Fujitsu FI-6130 Manual de usuario

for Fujitsu Scanners

Cleaning and Consumable Replacement Instructions

IManualnstruction

Versitec is a division of Cranel, Inc.

fi-6130 / fi-6230

fi-6140 / fi-6240

WARNING !!

TURN OFF SCANNER, DISCONNECT FROM POWER

AND

ALLOW TO COOL FOR AT LEAST 15 MINUTES

BEFORE SERVICING

Limitation of Liability

Before using this product, please read this manual carefully. If this

product is used incorrectly, unforeseen injury may occur.

Although best efforts have been made to ensure all information in this manual is correct,

Cranel Inc. assumes no liability to any party for any damage caused by errors or

omissions or by statements of any kind in this manual or future updates. Cranel Inc.

further assumes neither liability arising from the use of this product nor any liability for

incidental or consequential damages arising from the use of this manual. Cranel Inc.

disclaims all warranties regarding the information contained herein, whether expressed,

implied or statutory.

Kit Contents

Cleaning the Automatic Document Feeder

What to Clean

When to Clean

How to Clean

Using the Cleaning Paper

Cleaning the Flatbed

Replacing Consumables

Brake Roller

Pick Roller

Resetting Consumable Scan Counters

For inquiries during any of these procedures, contact:

Versitec Customer Support Center

1-800-224-3475

Kit Contents

Wipes

Cleaning Sheets

Swabs

V1 Cleaner

Pick Roller

Brake Roller

Cleaning the Automatic Document Feeder

Open the ADF

Location of Parts to be Cleaned

Recommended Cleaning Interval

During normal use, the ADF is to be thoroughly cleaned

every 5,000 scans

* Scanning certain documents may require more frequent cleaning *

Some examples are:

Carbonless paper Handwritten documents

Paper with special coatings Glossy paper

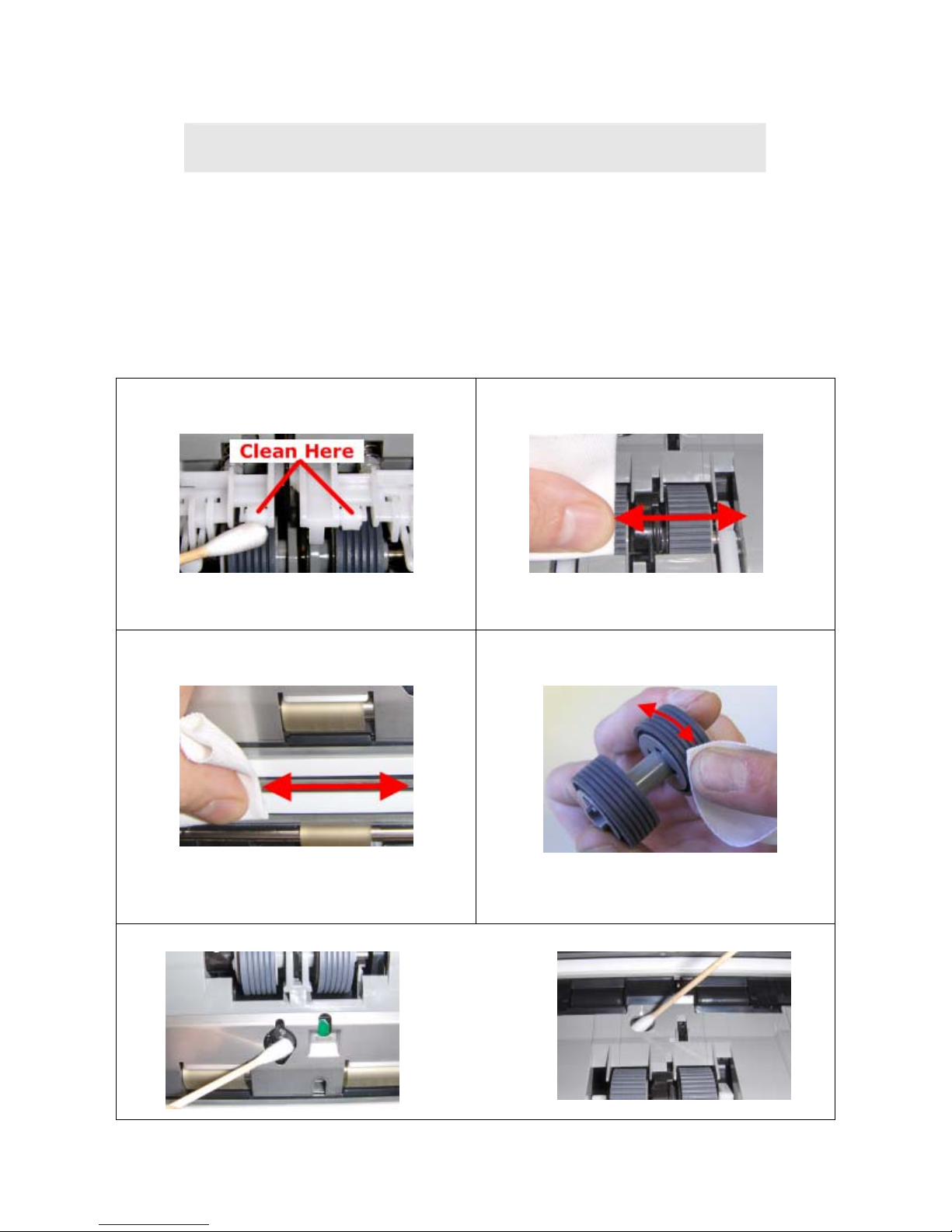

Clean in direction of arrows using either

cotton swaps or wipes moistened with V1 cleaner

Pick Arm Rollers

Feed, Eject, Pinch and Pick Rollers

Turn by hand to access entire roller

Glass

Glass can become hot during use

Allow to cool before cleaning

Break Roller

See Replacing Consumables section

for removal instructructions

Ultrasonic

Sensors

Using the Cleaning Paper

Cleaning paper is designed to remove loose dust and ink only.

Perform these steps between the manual cleanings described in

the previous section

Connect scanner to computer

and power on.

Apply V1 Cleaner to both sides

of cleaning paper and place in

paper chute.

Use any scanning software and

scan first side of cleaning paper.

Repeat process using opposite

side of cleaning paper.

Cleaning the Flatbed

Lift the document cover

Clean using wipes and V1 cleaner

Replacing Consumables

Brake Roller

(Recommended after 200,000 sheets or 1 year)

Squeeze tabs and pull down

brake roller cover.

Lift right side of brake roller

up and out to remove from

scanner

Remove brake roller from shaft

Install new roller. Make sure tab

on shaft fits into the slot on roller

Insert left end of shaft into hole

in scanner and right end of

shaft into slot. Close brake

roller cover.

Pick Roller

(Recommended after 200,000 sheets or 1 year)

Lift open sheet guide Rotate pick roller lever up

Lift out pick roller and shaft. Use a paper clip to lift tab on pick

roller and remove from shaft.

Install new roller. Slide pin on shaft

into slot in roller and click into place.

Insert left end of shaft into brass

bushing and drop gear into slot.

Rotate pick roller lever down and

snap into place Before closing sheet guide, you may

need to gently depress center roller.

Resetting Pick Roller and Pad Assembly Counters

After changing consumables, you need to reset the scan counters

Click Start.

Go to Settings and

click on Control Panel

Once in the Control Panel window,

open Scanners and Cameras

Right Click on the scanner

and select properties

Click the Device Set tab

Click the clear buttons

to reset the brake and

pick roller counts

Click OK to finish

and write to EPROM

For inquiries on consumables, call Versitec at: 800.727.2635
