fi-5900C & fi-5950 CONSUMABLE REPLACEMENT AND CLEANING INSTRUCTIONS

fi-5900C & fi-5950 CONSUMABLE

REPLACEMENT AND CLEANING INSTRUCTIONS

CG00002-006201C

fi-5900C & fi-5950 CONSUMABLE REPLACEMENT AND CLEANING INSTRUCTIONS

CONSUMABLES LIST

Description Qty Life Fujitsu P/N

Pad 1 600,000 PA03450-K014

Pick Rollers 1 Set 600,000 PA03450-K011

Brake Roller 1 600,000 PA03450-K013

Separation Rollers 1 Set 600,000 PA03450-K012

Note:

To insure the longest possible consumable life, it is strongly

recommended that all the consumables listed above be replaced at

the same time. Not replacing all the consumables at the same time

will decrease the life of the consumables.

NCR or Carbonless paper has chemical composition which damages

the consumables listed above. Cleaning of these items will be

needed more frequently to avoid feed problems. Also their life will be

reduced if this paper is scanned.

Pad Pick Rollers

Brake Roller Separation Rollers

fi-5900C & fi-5950 CONSUMABLE REPLACEMENT AND CLEANING INSTRUCTIONS

REPLACING THE PAD

• Make sure there is no paper

in the stacker.

• Press theADF Cover Open

Button.

Note:

The cover opens slowly on it’s

own.

Multiple feeds and misfeeds can be caused by a worn or improperly

installed Pad. The life span of the Pad Assembly is approximately

600,000 pages. If NCR or carbonless paper is used the life span of the

Pad may be decreased by half.

endtoScan

owerT

knes

HopperHeig

Hopper Height

unc

tio

tion

Thick

Thin

• Move the Pad to the left, than pull it up in order to remove it from the

scanner.

Pad

fi-5900C & fi-5950 CONSUMABLE REPLACEMENT AND CLEANING INSTRUCTIONS

REPLACING THE PAD (CONT.)

• To install the new Pad, align the pins on the back of the Pad with the

large side of the mounting holes and move the Pad to the right.

Mounting

Holes

Pins

• Close theADF Cover.

• Reset the Pad Counter in the

Software Operation Panel.

fi-5900C & fi-5950 CONSUMABLE REPLACEMENT AND CLEANING INSTRUCTIONS

• Make sure there is no paper

in the stacker.

• Press theADF Cover Open

Button.

Note:

The cover opens slowly on it’s

own.

• Open the Roller Cover by

placing your fingers in either

of the openings of the cover

and pulling out.

• Pull out on the tab that locks

the Pick Roller in place in the

direction of the arrow and

slide the Pick Roller off the

shaft.

• Repeat the procedure above

to remove the second Pick

Roller.

REPLACING THE PICK ROLLERS

Worn, defective, or improperly installed Pick Rollers will cause misfeeds

and paper jams. The Pick Rollers have an approximate life of 600,000

pages. If NCR or carbonless paper is used the life span of the Pick

Rollers may be decreased by half.

endto S

can

owerT

hic

knes

HopperHeig

Hopper Height

unc

tio

tion

Thick

Thin

Roller Cover

Roller

Cover

Opening

Pick Roller

Tab

fi-5900C & fi-5950 CONSUMABLE REPLACEMENT AND CLEANING INSTRUCTIONS

REPLACING THE PICK ROLLERS (CONT.)

• Install the new Pick Rollers

by aligning the hole in the

rollers with the roller shaft.

Note:

The roller shaft and the hole in

the Pick Rollers are keyed and

will only slide on in one

orientation.

• Close the Roller Cover.

• Close theADF Cover.

• Reset the Pick Roller

Counter in the Software

OperationPanel.

fi-5900C & fi-5950 CONSUMABLE REPLACEMENT AND CLEANING INSTRUCTIONS

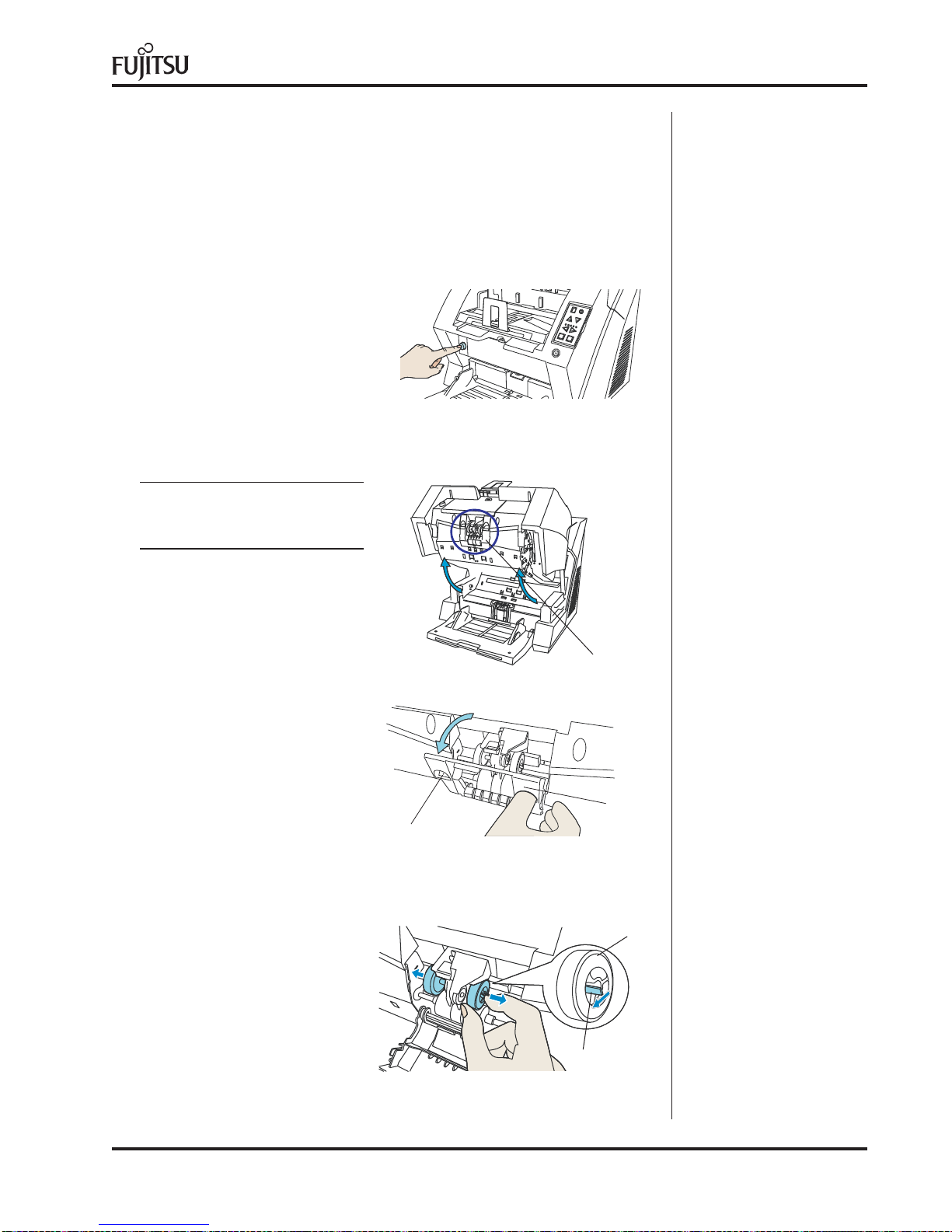

REPLACING THE SEPARATION ROLLERS

Worn or improperly installed Separation Rollers will cause multiple feeds

and paper jams. The Separation Rollers have an approximate life of

600,000 pages. If NCR or carbonless paper is used the life span of the

these rollers may be decreased by half.

• Make sure there is no paper

in the stacker.

• Press theADF Cover Open

Button.

Note:

The cover opens slowly on it’s

own.

• Open the Roller Cover by

placing your fingers in either

of the openings of the cover

and pulling out.

endto S

can

owerT

hic

knes

HopperHeig

Hopper Height

unc

tio

tion

Thick

Thin

• Slide the two Separation Rollers outwards in the direction of the

arrows.

Note:

The shafts will automatically lock in place when moved outward.

Roller Cover

Roller

Cover

Opening

Separation Roller

Shaft

fi-5900C & fi-5950 CONSUMABLE REPLACEMENT AND CLEANING INSTRUCTIONS

REPLACING THE SEPARATION ROLLERS (CONT.)

• Remove the two Separation

Rollers by sliding them

inwards and off the shafts (in

the direction of the arrow).

• Close the Roller Cover.

Note:

The Separation Rollers will

automatically spring to their

proper position.

• Close theADF Cover.

• Reset the Separator Roller

Counter in the Software

OperationPanel.

• Install the Separation Rollers by sliding them on to each shaft, aligning

the groove on the roller with the screw on the shaft.

Screw

Groove

Separation

Rollers

Roller

Cover

fi-5900C & fi-5950 CONSUMABLE REPLACEMENT AND CLEANING INSTRUCTIONS

REPLACING THE BRAKE ROLLER

Aworn or improperly installed Brake Roller will cause multiple feeds and

paper jams. The Brake Roller has an approximate life of 600,000 pages.

If NCR or carbonless paper is used the life span of the Brake Roller may

be decreased by half.

• Make sure there is no paper

in the stacker.

• Press theADF Cover Open

Button.

Note:

The cover opens slowly on it’s

own.

• Open the Pad Cover by

grabbing both sides of the

cover, pressing in and then

pulling out as shown in the

drawing to the right.

• Remove the Brake Roller by

lifting up on the left side first

and then removing the right

side of the shaft from it’s

mounting hole.

endtoS

can

owerT

hic

knes

HopperHeig

Hopper Height

unc

tio

tion

Thick

Thin

Pad

Cover

Brake Roller

Pad Cover

fi-5900C & fi-5950 CONSUMABLE REPLACEMENT AND CLEANING INSTRUCTIONS

REPLACING THE BRAKE ROLLER (CONT.)

• Install the new Brake Roller

by inserting the right end of

the shaft into the mounting

hole, then place the left end

into the mounting bracket.

• Close the Pad Cover.

• Close theADF Cover.

• Reset the Brake Roller

Counter in the Software

OperationPanel.
