FUJITSU SEMICONDUCTOR

SUPPORT SYSTEM SS01-71048-1E

DSU-FR EMULATOR

LQFP-100P HEADER TYPE5

MB2198-129

OPERATION MANUAL

PREFACE Thank you for purchasing the LQFP-100P header type5 (MB2198-129) for the DSU-FR emulator.

The LQFP-100P header type5 is used to connect the DSU-FR emulator (MB2198-01*3) and the

DSU-FR emulator PGA-401P adapter type2 (MB2198-130*4) to a user system. That uses Fujitsu FR

*1 family micro controller MB91270 series (LQFP-100P*2).

This manual explains thehandling of the LQFP-100P header type5 for the DSU-FR emulator. Before

using the MB2198-129, be sure to read this manual.

Consult the Sales Department or the Support Department of adapter Fujitsu Limited for mass-pro-

duction MCUs and evaluation MCUs.

*1 : FR is the abbreviation used for FUJITSU RISC CONTROLLER.

*2 : The lead pitch of PACKAGE (FPT-100P-M05) is 0.5 mm and the body size is 14 mm × 14 mm.

*3 : referred to as "emulator"

*4 : referred to as "adapter board"

■Handling and use

The handling and use of this product and notes regarding safety are included in the hardware manual

of the DSU-FR emulator.

Follow the instructions in for the use of this product.

•DSU-FR EMULATOR MB2198-01 HARDWARE MANUAL

•DSU-FR EMULATOR PGA-401P ADAPTER TYPE2 MB2198-130 OPERATION MANU-

■Caution of the products described in this document

The following precautions apply to the product described in this manual.

CAUTION The wrong use of a device will give an injury and may cause malfunction on cus-

tomers system.

Cuts This product has parts with sharp points that are exposed.

Do not touch edge of the product with your bare hands.

There is a possibility that it may be injured.

Damage When connect the header board to the user system, correctly position the index

mark (▲) on the NQPACK mounted on the user system with the index mark (▲)

on the header board, otherwise the emulator system and user system might be

damaged.

Damage When mounting a mass production MCU, correctly position pin 1, otherwise the

mass production MCU and user system might be damaged.

•The contents of this document are subject to change without notice.

Customers are advised to consult with FUJITSU sales representatives before ordering.

•The information, such as descriptions of function and application circuit examples, in this document are presented sole-

ly for the purpose of reference to show examples of operations and uses of FUJITSU semiconductor device; FUJITSU

does not warrant proper operation of the device with respect to use based on such information. When you develop

equipment incorporating the device based on such information, you must assume any responsibility arising out of such

use of the information. FUJITSU assumes no liability for any damages whatsoever arising out of the use of the infor-

mation.

•Any information in this document, including descriptions of function and schematic diagrams, shall not be construed

as license of the use or exercise of any intellectual property right, such as patent right or copyright, or any other right

of FUJITSU or any third party or does FUJITSU warrant non-infringement of any third-party’s intellectual property

right or other right by using such information. FUJITSU assumes no liability for any infringement of the intellectual

property rights or other rights of third parties which would result from the use of information contained herein.

•The products described in this document are designed, developed and manufactured as contemplated for general use,

including without limitation, ordinary industrial use, general office use, personal use, and household use, but are not

designed, developed and manufactured as contemplated (1) for use accompanying fatal risks or dangers that, unless

extremely high safety is secured, could have a serious effect to the public, and could lead directly to death, personal

injury, severe physical damage or other loss (i.e., nuclear reaction control in nuclear facility, aircraft flight control, air

traffic control, mass transport control, medical life support system, missile launch control in weapon system), or (2)

for use requiring extremely high reliability (i.e., submersible repeater and artificial satellite).

Please note that FUJITSU will not be liable against you and/or any third party for any claims or damages arising in

connection with above-mentioned uses of the products.

•Any semiconductor devices have an inherent chance of failure. You must protect against injury, damage or loss from

such failures by incorporating safety design measures into your facility and equipment such as redundancy, fire pro-

tection, and prevention of over-current levels and other abnormal operating conditions.

•If any products described in this document represent goods or technologies subject to certain restrictions on export un-

der the Foreign Exchange and Foreign Trade Law of Japan, the prior authorization by Japanese government will be

required for export of those products from Japan.

1. Checking the Delivered Product

Before using the LQFP-100P header type5, confirm that the following components are included in

the box:

•LQFP-100P header type5 *1 : 1

•Screws for securing header board (M2 ×10 mm, 0.4 mm pitch) : 4

•Washer : 4

•NQPACK100SD-ND*2 : 1

•HQPACK100SD*3 : 1

•Operation manual (Japanese version) : 1

•Operation manual (English version, this manual) : 1

*1 : Referred to as "header board". Header board is mounted on YQPACK100SD (Tokyo Eletech

Corporation), referred to as “YQPACK”.

*2 : IC socket manufactured by Tokyo Eletech Corporation, referred to as “NQPACK”, and sup-

plied with a special screwdriver and 3guide pins. A socket offering higher reliability,

NQPACK100SD-ND-SL (Tokyo Eletech Corporation, sold separately), can be used by mak-

ing an ICsocket mounting hole on the user systemboard. For more information, contact Tokyo

Eletech Corporation.

*3 : IC Socket cover manufactured by Tokyo Eletech Corporation, referred to as “HQPACK”, with

4 screws for securing HQPACK (M2 ×6 mm, 0.4 mm pitch).

This product is used as an emulator system by combining with an optional emulator and adapter

board.

Consult the Sales Department or the Support Department of Fujitsu Limited for the adapter or the

emulator of this product.

2. Handling Precautions

The header board is precision-manufactured to improve dimensional accuracy and to ensure reliable

contact. The header is therefore sensitive to mechanical shock. To ensure correct use of the header

in the proper environment, observe the following points regarding its insertion and removal:

•To avoidplacing stress on the NQPACK mounted on the user system board during connecting

the header board.

3. Notes on Designing

■Restrictions of PC board for the user system

Once the header board is connected to the user system, the heights of parts mounted in the space

around the header board are restricted.

The PC board of the user system must be designed with due consideration given to this restriction

(Figure 1).

* : The height differs slightly depending on how the YQPACK and the NQPACK are en-

gaged.

Figure 1 Header board dimensions

A1 B1

A50 B50

A1 B1

A50 B50

CN1

CN2

CN3

S2 S1

Approximately

35 *

Approximately

13 *

UNIT: mm

■MCU footprint design notes

Figure 2 shows the recommended dimensions of the NQPACK footprint mounted on the PC board

of the user system.

The PC board of the user system must be designed with due consideration given to this footprint as

well as to the mass production MCU.

For more information, contact the Tokyo Eletech Corporation.

*1 : It is a position of hole (φ1.0) for the guide pin to fit position when NQPACK is mounted.

When the guide pin is not used, it is not necessary to puncture it.

*2 : It is a fixation of screw hole (φ2.2) for IC socket made when NQPACK100SD-ND-SL

(Tokyo Eletech Corporation, sold separately) is mounted. When the NQPACK100SD-

ND-SL is not used, it is not necessary.

Figure 2 Recommended dimensions of the footprint for mounting the NQPACK

0.5 0.25

2.0

UNIT:mm

0.5 ×24 =12

2.0

2.0 2.0

5.8

φ2.2*2

3-φ1.0*1

4. Procedure for Connecting the User System

Before using the LQFP-100P header type5, mount the supplied NQPACK on the user system.

The header board is used combining the emulator. Moreover, connection of a header board and

an adapter board is two flat cables (a standard or Long)appended to the emulator main part. Please

use it.

Refer to the hardware manuals of the emulator or the adapter board about the way to connect.

■Connecting

1. To connect the header board to the user system, match the index mark (▲) on the NQPACK-

mounted on the user system with the index mark (▲) on the header board and then insert it (See

Figure 3) . The pin of YQPACK is thin and easy to bent. Insert NQPACK after confirm that the

pin of YQPACK is not bent.

2. Insert each screw for securing header board in each of the four drilled holes on the header

board(See Figure 4).

To tighten the screws, use the special screwdriver supplied with the NQPACK to finally tighten

the four screws in sequence. Please tighten a screw to a diagonal by equal power using a special

screwdriver. Tightening the screws too tight might result in a defective contact.

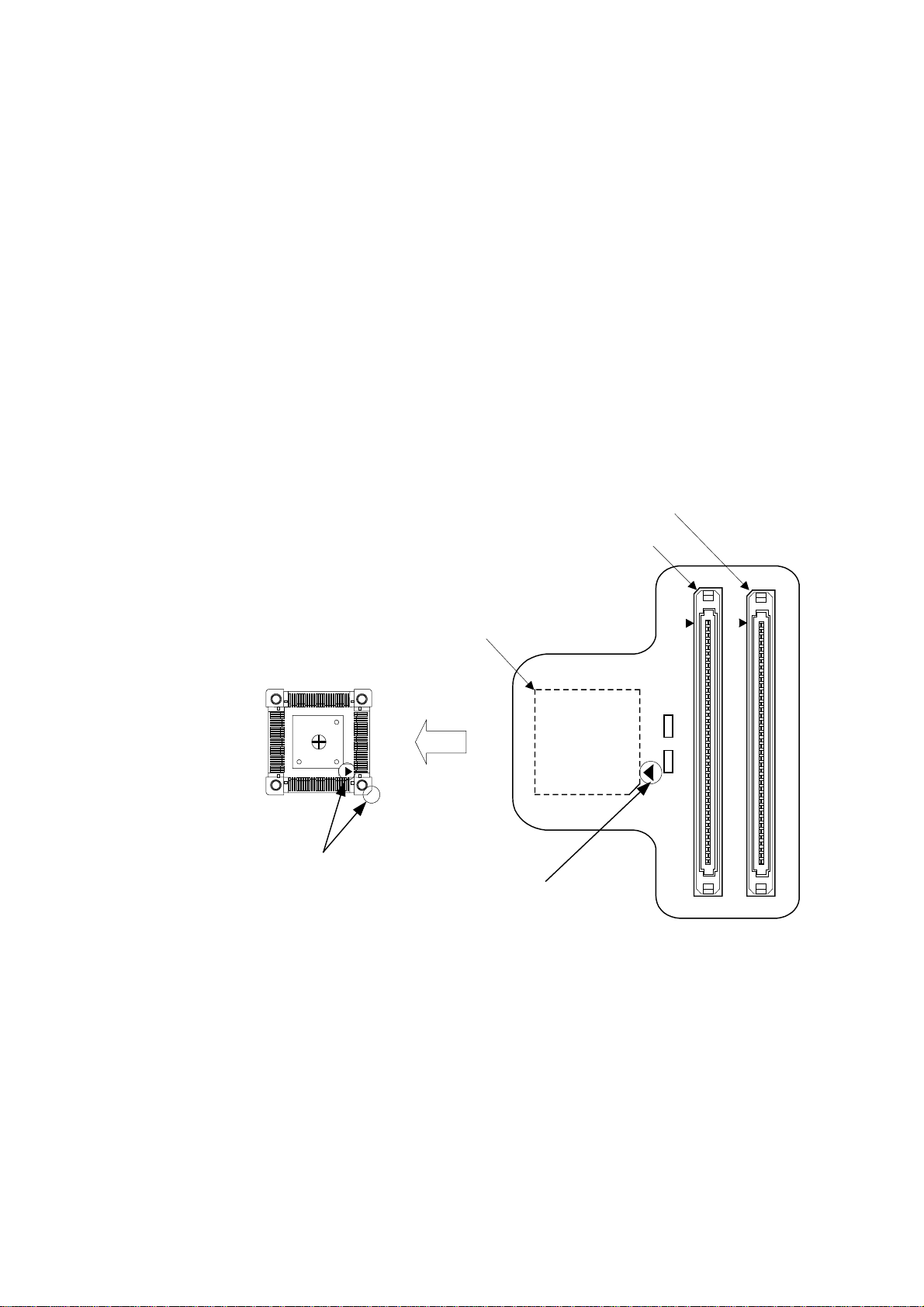

Figure 3 Index Position

NQPACK Index (▲)

Header board Index (▲)

Flat cable connector B

Flat cable connector A

YQPACK

(It mounts in the back)

Figure 4 Header board connection

■Disconnection To disconnect the header board from the user system, remove all four screws, and then pull the head-

er board straight out of the socket.

Screws for securing

header board

Washer

YQPACK

NQPACK

Header board

User system

5. Mounting Mass Production MCUs

To mount a mass production MCU on the user system, use the supplied HQPACK (See Figure 5).

■Mounting

1. To mount a mass production MCU on the user system, match the index mark (▲) on the NQ-

PACKmounted on the user system with the index mark (●) on the mass production MCU.

2. Confirm that the mass production MCU is correctly mounted on the NQPACK. Next, insert the

HQPACK into a NQPACK.

The pin of HQPACK is thin and easy to bent. Insert NQPACK after confirm that the pin of HQ-

PACK is not bent.

3. Insert each screw for securing HQPACK in each of the four drilled holes on the HQPACK,(See

Figure 5).

To tighten the screws, use the special screwdriver supplied with the NQPACK to finally tighten-

the four screws in sequence. Please tighten a screw to a diagonal by equal power using a special-

screwdriver. Tightening the screws too tight might result in a defective contact.

Figure 5 Mounting a mass production MCU

■Disconnection To remove the HQPACK, remove all four screws, and pull out the HQPACK vertically.

Screws for securing HQPACK

HQPACK

Mass production MCU

NQPACK

User system

6. Connector Pin Assignment

The signal of Evaluation MCU with which it was carried on the adapter board is connected to YQ-

PACK (the same assignments as production MCU) via the flat cable connector (A,B) on a header-

board.

Connection of a header board and an adapter board is two flat cables (a standard or Long) appended

to the emulator main part. Please use it.

Please check the hardware manual of an emulator or an adapter board about reference of the connec-

tionmethod.

For details on the production MCU's pin information, refer to the datasheet or hardware manual for

the relevant MCU.

■Pin Assignment

Tables 2 and 3 list the pin assignments among the probe connector, the evaluation MCU on the

adapter board, and the mass production MCU.

For details on the names of signal conductors of the evaluation MCU, refer to the hardware manual

for the emulator or adapter board.

Comments in the tables are given below.

*1 : Connected to the mass production MCU pin:VSS (pins 14, 42, 64 and 89).

*2 : Connected to the mass production MCU pin:C (pin15).

*3 : Connected to the mass production MCU pin:VCC (pins 13, 63 and 83).

*4 : Header board control pin (not connected to the mass production MCU).

*5 : Connected to the Evaluation MCU pin (pins 38, 51, 87 and 209) :It connects with a terminal-

block and connects with mass production MCU terminal (pins 11 and 12) with the jump-er

plug, respectively.

Figure 6 Pin Assignment

Table 1 Jumper Plug Setup

*6 : In Evaluation MCU, since it becomes a non-connected terminal, it connects with the pull-up

(10K ohm)

*7 : In Evaluation MCU, since it becomes a non-connected terminal, it connects with the pull-up

(10K ohm)

Jumper Plug Setup (S1,S2) Item Mass production MCU

A-B MB91F272

B-C MB91F272R

Evaluation MCU S1

12 pin

11 pin

Mass production MCU

38 pin

51 pin

87 pin

209 pin

Otros manuales para LQFP-100P

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Hardware de computadora de Fujitsu

Fujitsu

Fujitsu LQFP-64P Manual de usuario

Fujitsu

Fujitsu CS90A Manual de usuario

Fujitsu

Fujitsu PG-126 Manual de usuario

Fujitsu

Fujitsu F2MC-16L Series Manual de usuario

Fujitsu

Fujitsu MB2198-701-E Manual de usuario

Fujitsu

Fujitsu D2509 Manual de usuario

Fujitsu

Fujitsu F2MCTM-16LX Manual de usuario

Fujitsu

Fujitsu Supplement for Embedded MegaRAID SATA Manual de usuario

Fujitsu

Fujitsu MB2147-01 Instrucciones de instalación y funcionamiento

Fujitsu

Fujitsu FPT-20P-M06 Manual de usuario

Fujitsu

Fujitsu LQFP-176P Manual de usuario

Fujitsu

Fujitsu FMC-16LX/FR Manual de usuario

Fujitsu

Fujitsu F2MC-8FX MB2146-213 Manual de usuario

Fujitsu

Fujitsu F2 MC-8FX Family Manual de usuario

Fujitsu

Fujitsu PRIMERGY Tape Drv DAT72 Manual de usuario

Fujitsu

Fujitsu PRIMERGY PG-RSB104 Manual de usuario

Fujitsu

Fujitsu CELSIUS W380 Manual de usuario

Fujitsu

Fujitsu MB9B100A Series Manual de usuario

Fujitsu

Fujitsu MB2031-20 Manual de usuario

Fujitsu

Fujitsu MB2198-590-E Manual de usuario

Fujitsu

Fujitsu PRIMERGY LTO2 Manual de usuario

Fujitsu

Fujitsu 8FX Manual de usuario

Fujitsu

Fujitsu FUTRO S700 Manual de usuario

Fujitsu

Fujitsu SK-86R12-CPU01 Manual de usuario

Manuales populares de Hardware de computadora de otras marcas

EMC2

EMC2 VNX Series Manual del propietario

Panasonic

Panasonic DV0PM20105 Manual de usuario

Mitsubishi Electric

Mitsubishi Electric Q81BD-J61BT11 Manual de usuario

Gigabyte

Gigabyte B660M DS3H AX DDR4 Manual de usuario

Raidon

Raidon iT2300 Manual de usuario

National Instruments

National Instruments PXI-8186 Manual de usuario

Hauppauge

Hauppauge WinTV-HVR-2250 Manual de usuario

Kontron

Kontron CP6002 Manual de usuario

Manhattan

Manhattan 702843 Manual de usuario

Aphex

Aphex 230 Manual de usuario

AMD

AMD Phenom II Manual operacional

Intel

Intel NUC 12 Pro Manual de usuario

dbx

dbx Zone Pro 1260 Manual de usuario

Galaxy

Galaxy GHDX2-2430S-24F4D Manual de usuario

Intel

Intel AXXRMFBU4 Manual de usuario

Kontron

Kontron DIMM-PC/MD Manual de usuario

ST X-NUCLEO-SAFEA1B Instrucciones de funcionamiento

STEINWAY LYNGDORF

STEINWAY LYNGDORF SP-1 Manual de usuario
