Fujitsu IdeaBoxx Jade Manual de usuario

The Jade IdeaBoxx includes all the hardware, tools and software needed to be up and running quickly. This Linux-based development system is future-proof.

The module hardware is compatible and interchangeable with System on Modules (SoMs) from the entire Fujitsu family of embedded GDC chips. The Jade SoM

can be removed and replaced with Emerald, Triton, or other future SoM modules.

Toolkit Includes:

• Hardware Module:

• PCB assembly, including:

• Jade SoM Board

• SoM Carrier Board

• LCD Adapter Board

• 7-inch backlit LCD with capacitive touch screen

• Peripherals including USB, SD card, Ethernet, Audio, and HDMI

• Power supply

• USB cable for console access

• Suite of Software Tools Included on the USB Stick:

• Demos created with Crank Software Storyboard Suite, including

both touch-interactive and self-running versions

• Datasheets and application notes for the Jade IdeaBoxx

• Libraries and tools free of charge and royalties

• Schematics and Altium Designer project files for all PCBs

• Gerber files to create reference design PCBs

• Linux BSP virtual appliance image, including:

• U-boot bootloader

• Linux kernel version 3.0.3

• Functional root file system

• GCC-based cross-compiler

• Works out-of-the-box with Storyboard Suite from Crank Software

• Download from http://www.cranksoftware.com/

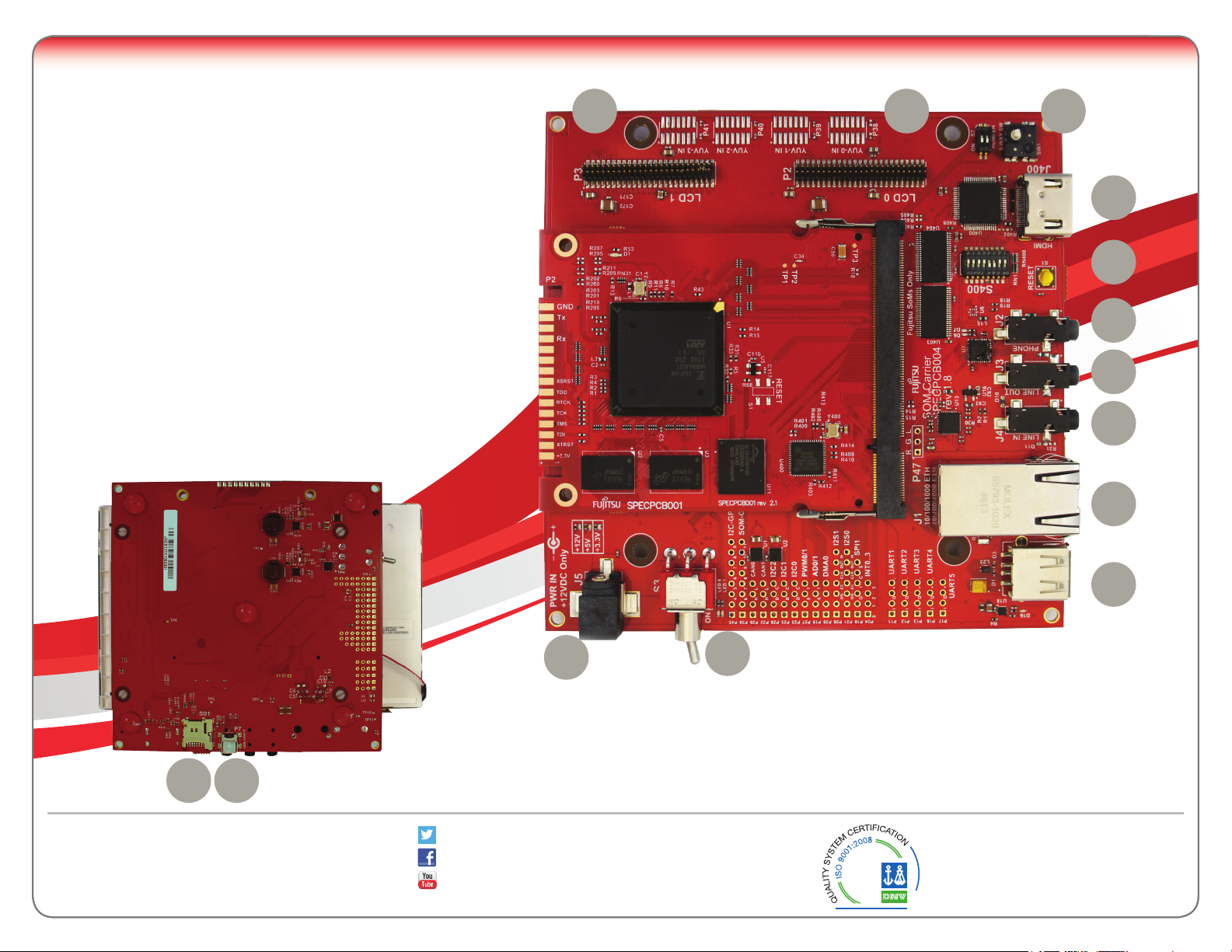

Jade IdeaBoxx™

Quick Start Guide

12 11

1. LCD1 Output

2. LCD0 Output

3. 5-Way Joystick

4. HDMI Output

5. Reset Switch

6. Headphone Output

7. Line Level Output

8. Line Level Input

9. Ethernet

10. USB Connector

11. Power Switch

12. Power connector

13. Mini SD Slot

14. Micro USB

1 2

Getting Started Instructions:

Video Walkthrough Available at

(https://www.youtube.com/user/FujitsuSemiUS)

1. Remove all the items from the box.

2. Remove the protective film from the LCD screen.

3. Insert a MicroSD card containing relevant software or

graphic files into the MicroSD card slot on the bottom

of the carrier board.

4. Plug the power supply cable into the power supply

connector on the left side of the board.

5. Plug the power supply into a wall outlet.

6. Power up the board by turning on power at switch S3

on the left side of the board.

7. The demo on the MicroSD card will automatically start.

13 14

Bottom of Board

Top of Board

All company and product names are trademarks or registered

trademarks of their respective owners.

Printed in the U.S.A. GDC-DKJ-QSG-21442-09/2014

FUJITSU SEMICONDUCTOR AMERICA, INC.

1250 E. Arques Avenue, M/S 333, Sunnyvale, CA 94085-5401

Tel: (800) 866-8608 Fax: (408) 737-5999

[email protected] | http://us.fujitsu.com/semi

Connect With Us: https://www.facebook.com/FujitsuSemiconductorAmerica

View Us: http://www.youtube.com/FujitsuSemiUS
