FujiFilm Apeos C8180 Manual de usuario

September 2021 GM1042E1-3 Edition1 FUJIFILM Business Innovation Corp.

Apeos™ C8180

Apeos C7580

Apeos C6580

Reference Guide

Appendix

21 Preface

1Preface

A guide describing the emulation mode, direct print, web applications, troubleshooting, etc.

Refer to Reference Guide - Main Unit for trademarks and manual conventions.

This manual may not be edited, modified or copied in whole or part without the written consent

of the publisher.

Parts of this manual is subject to change without prior notice.

The screen shots and the illustrations in this manual are used as examples. They may differ from

yours depending on the model, the software, or the OS.

2.1 Emulation

2Appendix

2.1 Emulation

When using the emulation mode, you can get the print results similar to those of other companies'

printers.

Overview of Emulation Feature

This machine is compatible with following emulation mode.

Refer

For details of each mode, please refer to the Reference Manual (sold separately).

Changing the print language

This machine is compatible with multi-emulation. Due to this, you can switch the corresponding print

language.

Changing the command

There are commands to change the corresponding print language.

Automatic change

The machine analyzes the data received by the host interface and automatically identifies the print

language.

Protocol dependence

You can fix the print language for each protocol (USB, IPP, LPD, Port9100, WSD).

[Protocols] of the [Network] tab.

Available font

User-defined characters (external fonts) can be used with ESC/P and PC-PR201H.

User-defined characters are registered as bitmap fonts and saved even after the power is turned off.

Sharing between print languages is not possible.

Emulation mode Printer to be emulated

ESC/P VP-1000

PC-PR201H PC-PR201H

PCL HP-CLJ5500 (color), HP-LJ4200 (black and white)

HP-GL 7586B or DJ750C Plus

HP-GL/2 DJ750C Plus

42 Appendix

Print function

*1 :In case of no storage, there are up to 64.

N Pages

2 pages are available.

Form

You can register standard forms and print the registered forms by synthesizing them into print data.

Note

If you try to register more forms than the maximum number of forms to be registered or if the form

memory reaches full capacity, new forms cannot be registered.

Barcode

Barcode standards available for ESC/P are JAN code, CODE39, CODABAR, Industrial 2 of 5, Matrix 2

of 5, and Interleaved 2 of 5.

Barcode standards available for PCL are CODE128, Customer barcode, and QR code.

Output of Related List

Refer

For details, refer to “Basic Operations” in Reference Guide - Operations.

Font

Available font can be confirmed by executing [Print] for [Font List] or [PCL Font List] in > [Device

Status] > [Print Reports] > [Printer Reports].

Form

You can confirm the form by execute [Print] in > [Device Status] > [Print Reports] > [Printer

Reports] > [ART IV, ESC/P User Defined List].

Barcode

You can confirm the method to specify commands by execute [Print] in > [Device Status] > [Print

Reports] > [PCL Font List].

Emulation mode N Pages Form Barcode

ART IV - Up to 2048*1 Yes

ESC/P Yes Up to 64 Yes

PC-PR201H Yes Up to 64 Yes

PCL - - Yes

HP-GL, HP-GL/2 - - -

2.1 Emulation

Associated Device Menu

Port Settings

Set in > [Device] > [Network Settings] > [Port Settings].

Enable port (USB/LPD/IPP/Port9100/WSD)

Launch the port to be used in the emulation mode.

Allocate Memory

Set in > [Device] > [App Settings] > [Print Settings] > [Allocate Memory].

Note

If storage is attached, the settings cannot be changed.

[ART IV User Defined Memory]

This sets capacity of memory used for user definition with ART IV. The maximum settable value

varies depending on the amount of free memory.

Refer

For other operations, refer to “Settings” in Reference Guide - Operations.

Delete Form

Set the mode to delete forms in > [Device] > [App Settings] > [Print Settings] > [Delete Form].

Emulation Mode

The unique settings for each emulation modes can be changed in > [Device Status] > [Print

Mode].

Note

[Retrieve Programming], [Store/Delete Programming] and [Default Programming] are displayed on ESC/

P, HP-GL/2 and PC-PR201H.

You can set these items also with Internet Services in the same procedure.

Retrieve Programming

Retrieve settings stored in the memory.

Programming

Enter the Item Number for the function in [Item Number] to display the current setting.

Enter the new value in [New Value] and tap on [Save] to change the setting.

Refer

Refer to "Items" (P.13) for Item Number.

Emulation mode [Port Settings] [Allocate Memory] [Delete Form]

ART IV Yes Yes Yes

ESC/P Yes Yes Yes

PC-PR201H Yes Yes Yes

PCL Yes - -

HP-GL, HP-GL/2 Yes Yes -

62 Appendix

Store/Delete Programming

Store the current Items details in [Custom Settings] and delete stored memory.

Default Programming

Set the default values.

HP-GL, HP-GL/2 Emulation-specific Matters

Printable area

SEF

Paper

size

Paper length

(1/7200″)

Coordinate value (1/7200″)

direction

Margin Printable area Top right corner Margin

Length Width Bottom

left X

Bottom

left Y

Long

side

Short

side

Top

right X

Top

right Y

XR YU

A3 119052 84168 1260 1260 116532 81648 117792 82908 1260 1260

A4 84168 59508 1260 1260 81648 56988 82908 58248 1260 1260

A5 59508 41940 1260 1260 56988 39420 58248 40680 1260 1260

JIS B4 103176 72828 1260 1260 100656 70308 101916 71568 1260 1260

JIS B5 72828 51588 1260 1260 70308 49068 71568 50328 1260 1260

Short side

Printable area

Paper size

(0,0)

(Bottom left X, Bottom left Y)

(Top right X, Top right Y)

Long side

Margin YU

Margin XR

2.1 Emulation

LEF

Paper

size

Paper length

(1/7200″)

Coordinate value (1/7200″)

direction

Margin Printable area Top right corner Margin

Length Width Bottom

left X

Bottom

left Y

Long

side

Short

side

Top

right X

Top

right Y

XR YU

A3 84168 119052 1260 1260 81648 116532 82908 117792 1260 1260

A4 59508 84168 1260 1260 56988 81648 58248 82908 1260 1260

A5 41940 59508 1260 1260 39420 56988 40680 58248 1260 1260

JIS B4 72828 103176 1260 1260 70308 100656 71568 101916 1260 1260

JIS B5 51588 72828 1260 1260 49068 70308 50328 71568 1260 1260

Printable area

Paper size

(Top right X, Top right Y)

(Bottom left X, Bottom left Y)

(0,0)

Long side

Short side

Margin XR

Margin YU

82 Appendix

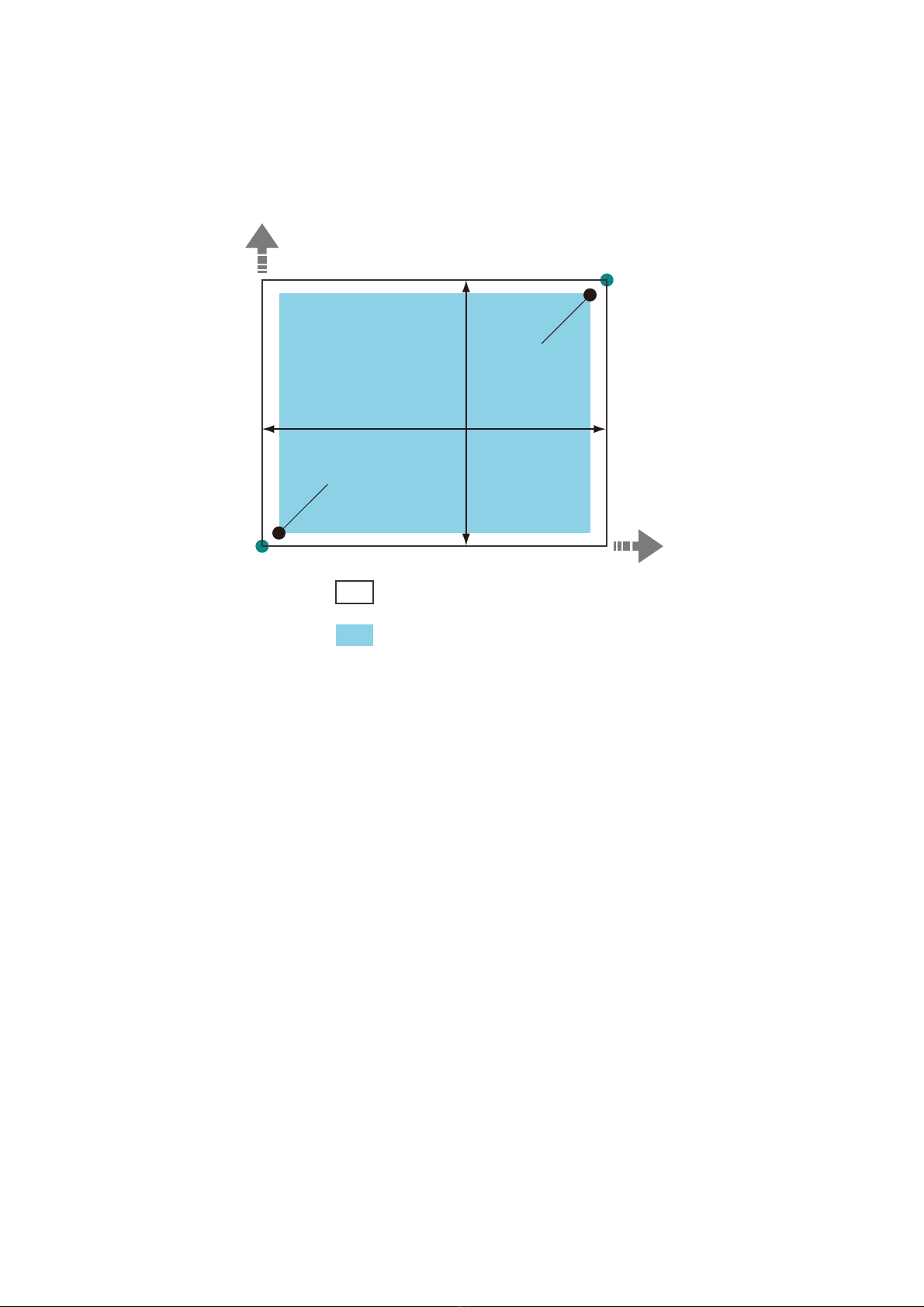

Hard Clip

Area determined by coordinates is called Hard Clip area.

Hard Clip area is determined by the printable area or paper size.

When the size is A3 and the starting point is the bottom left

Standard

Printable area of this machine is the Hard Clip area.

Paper

Same size as the paper is the Hard Clip area.

Auto Layout

Printed area is automatically determined based on the specified items, such as the document size

and paper size.

[Original Size]

Set to [Auto Detect] when using Auto Layout.

[Auto Layout]

Reduce/enlarge the document data to fit the paper size.

[Zoom]

You can enlarge/reduce the printed area to fit the drawn object area in the paper size.

Printable area（＝Standard Hard Clip area）

Paper size（＝Paper Hard Clip area）

(0,0) Paper origin

(0,0) Standard origin

(16798,11876)

(16442,11520)

Width

Length

2.1 Emulation

[Zoom Mode]

[Area Determine Mode]

Note

The object area is determined in [Adapted] without a command.

[Paper Margin]

You can specify the margin.

[Pen Attributes]

You can specify the setting for the pen to draw the boundary lines for the Hard Clip area.

You can set 16 attributes from [Pen Attributes 0] to [Pen Attributes 15].

[Paper Size] Document size is determined based on the drawn object area. Sizes

to be determined are A sizes (6 types from A0 through A5).

[Coordinate Area] Document size is determined based on the starting point of the

drawn object area.

[Auto] Selected automatically. The priority order is [PS] -> [IW] -> [IP] ->

[Adapted].

[IW] Area specified by the last IW command within the data is the object

area.

[IP] Area specified by all IP commands is the object area.

[Adapted] Object area is determined automatically.

[PS] Area including the area specified by the PS command in the

beginning is the object area.

[Pen Width] If reduced by the combination of [Original Size] and [Paper Size], the

pen width is also reduced.

Line width grows thicker from the center of the line.

If the width is 0.0 mm, nothing will be drawn.

Note

This is disabled for text whose [Kanji Font]/[Alphanumeric Font] is not

[Stroke].

[Line End] You can specify the end shape for the pen.

Note

This is disabled for text whose [Kanji Font]/[Alphanumeric Font] is not

[Stroke].

[Line Intersect] You can specify how pen lines are processed when connected.

Note

[None] has the shortest processing time and is suitable for checking.

If symbols are specified by symbol mode commands, connection

process is not performed. Symbol mode commands refer to HPGL

commands that specify symbols.

These settings are not valid for characters.

[Color] Pen colors are specified with RGB. This setting is available for color

printers.

[Density] You can specify the pen intensity. This setting is available for black

and white printers.

10 2 Appendix

Item combination examples in Auto Layout

[Zoom Mode]: [Paper Size], [Zoom]: ON

Image is reduced/enlarged within the printed area and printed.

[Zoom Mode]: [Paper Size], [Zoom]: OFF

Image is printed in the actual size.

Due to this, areas larger than the paper size are not printed.

Object area determined in “Area Judgement Mode”

Printable area

Paper size

Drawn object area ( = Print area)

Object area determined in “Area Judgement Mode”

Printable area

Paper size

Drawn object area ( = Print area)
