FS S1900-24T Manual de usuario

S1900-24T

V1.0

S1900-24T

43 65 87 109 1211 1413 1817 2019 2221 2423

1615

1 5 9 13 17 21

2 6 10 14 18 22

3 7 11 15 19 23

4PWR 8 12 16 20 24

ETHERNET UNMANAGED SWITCH

UNMANAGED ETHERNET-SWITCH

SWITCH ETHERNET NON GÉRÉ

V1.0

Quick Start Guide

Quick-Start Anleitung

Guide de Démarrage Rapide

Introduction

Accessories

Thank you for choosing S1900-24T switch. This guide is designed to familiarize you with the layout of

the switch and describes how to deploy the switch in your network.

S1900-24T

Power Cord x 1Rubber Pad x 4

S1900-24T

43 65 87 109 1211 1413 1817 2019 2221 2423161521

1 5 9 13 17 21

2 6 10 14 18 22

3 7 11 15 19 23

4PWR 8 12 16 20 24

Screw x 6

（KM3*8mm）

Front Panel Ports

Hardware Overview

S1900-24T

43 65 87 109 1211 1413 1817 2019 2221 2423161521

1 5 9 13 17 21

2 6 10 14 18 22

3 7 11 15 19 23

4PWR 8 12 16 20 24

RJ45

Mounting Bracket x 2

Back Panel

Grounding Point

AC 100-240V 50/60Hz

Power Supply

Front Panel LEDs

RJ45 10/100/1000BASE-T ports for Ethernet connection. Port 15 to 16

can be used for uplink ports (VLAN on).

Ports Description

S1900-24T

43 65 87 109 1211 1413 1817 2019 2221 2423161521

1 5 9 13 17 21

2 6 10 14 18 22

3 7 11 15 19 23

4PWR 8 12 16 20 24

RJ45

PWR

LEDs

PWR

Status Description

Oﬀ

Solid on

RJ45

Oﬀ

The switch is powered on properly.

The switch is not powered on, or not powered

on properly.

The port is connected to a device, but no data is

being transmitted over the port.

The port is not connected or is not connected

properly.

Blinking The port is connected to a device and data is

being transmitted over the port.

Installation Requirements

Before you begin the installation, make sure that you have the following:

Desktop mounting: ESD bracelet (or ESD gloves).

Wall mounting: ESD bracelet (or ESD gloves), ladder, marker, hammer drill, rubber hammer,

screwdriver.

Rack mounting: ESD bracelet (or ESD gloves), Phillips screwdriver, M6 Screws, Standard-sized 19"

wide rack with a minimum of 1U height available.

The installation site must be well ventilated. Ensure that there is adequate air ﬂow around

the switch.

Site Environment:

Do not operate it in an area that exceeds an ambient temperature of 45°C.

The installation site must be free from leaking or dripping water, heavy dew, and humidity.

Ensure rack and working platforms are well earthed.

Be sure that the switch is level and stable to avoid any hazardous conditions.

Do not install the equipment in a dusty environment.

S1900-24T

43 65 87 109 121 1 1413 1817 2019 2221 2423

1615

1 5 9 13 17 21

2 6 10 14 18 22

3 7 11 15 19 23

4PWR 8 12 16 20 24

Mounting the Switch

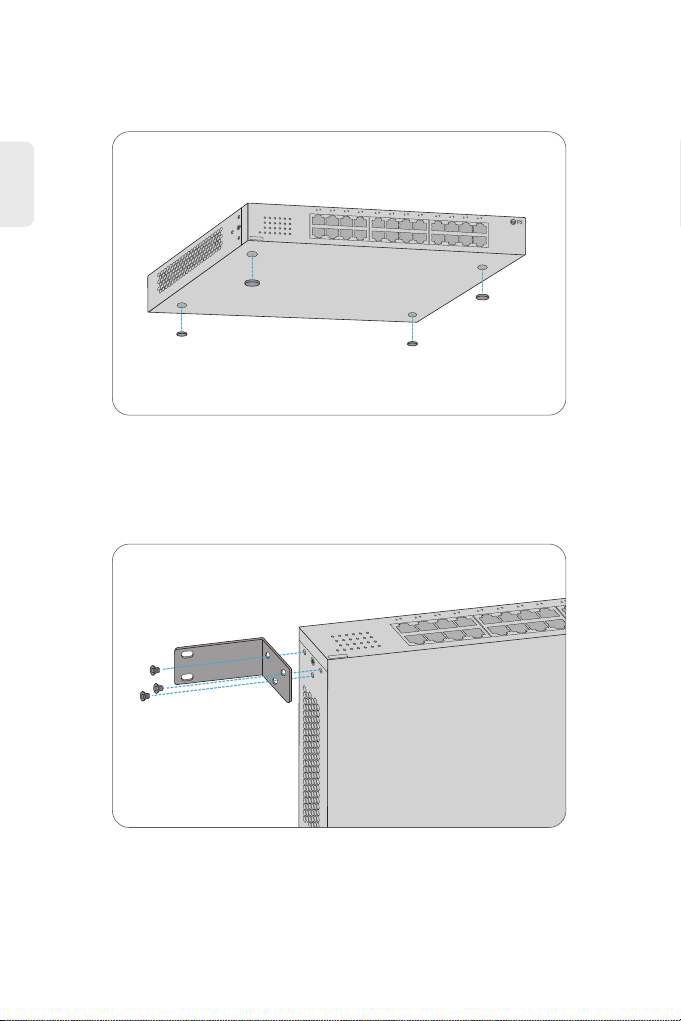

Desk Mounting

1. Attach four rubber pads to the bottom.

2. Place the chassis on a desk.

Wall Mounting

1. Rotate the two L-shaped brackets by 90 degrees and ﬁx them to both sides of the switch with

the included screws.

S1900-24T

43 65 87 109 1211 1413 1817 2019 2221 2423

1615

1 5 9 13 17 21

2 6 10 14 18 22

3 7 11 15 19 23

4PWR 8 12 16 20 24

S1900-24T

1 5 9 13 17 21

2 6 10 14 18 22

3 7 11 15 19 23

4PWR 8 12 16 20 24

S1900-24T

43 65 87 109 1211 1413 1817 2019 2221 2423

1615

1 5 9 13 17 21

2 6 10 14 18 22

3 7 11 15 19 23

4PWR 8 12 16 20 24

S1900-24T

43 65 87 109 1211 1413 1817 2019 2221 2423

1615

1 5 9 13 17 21

2 6 10 14 18 22

3 7 11 15 19 23

4PWR 8 12 16 20 24

2. Horizontally place the switch onto the wall with its RJ45 ports facing upward. Then mark the

screw holes with the marker.

3. Drill holes in the marked positions, and then knock the expansion bolts (self-prepared,

M5*40 mm) into the holes.

4. Insert the screws (self-prepared, PA5*25 mm, head diameter: 10 mm) through the holes of the

two L-shaped brackets, and secure the screws into the expansion bolts with a screwdriver. Ensure

that the switch is installed ﬁrmly with its RJ45 ports facing upward.

NOTE: This switch can only be installed on a concrete or non-ﬂammable wall.

S1900-24T

43 65 87 109 1211 1413 1817 2019 2221 2423

1615

1 5 9 13 17 21

2 6 10 14 18 22

3 7 11 15 19 23

4PWR 8 12 16 20 24

4 65 87 109 1211 1413 1817 2019 2221 2423

1615

Rack Mounting

1.Secure the mounting brackets to the two sides of the switch with six KM3*8 screws.

2. Attach the switch to the rack using the screws and tighten it.

AC 100-240V 50/60Hz

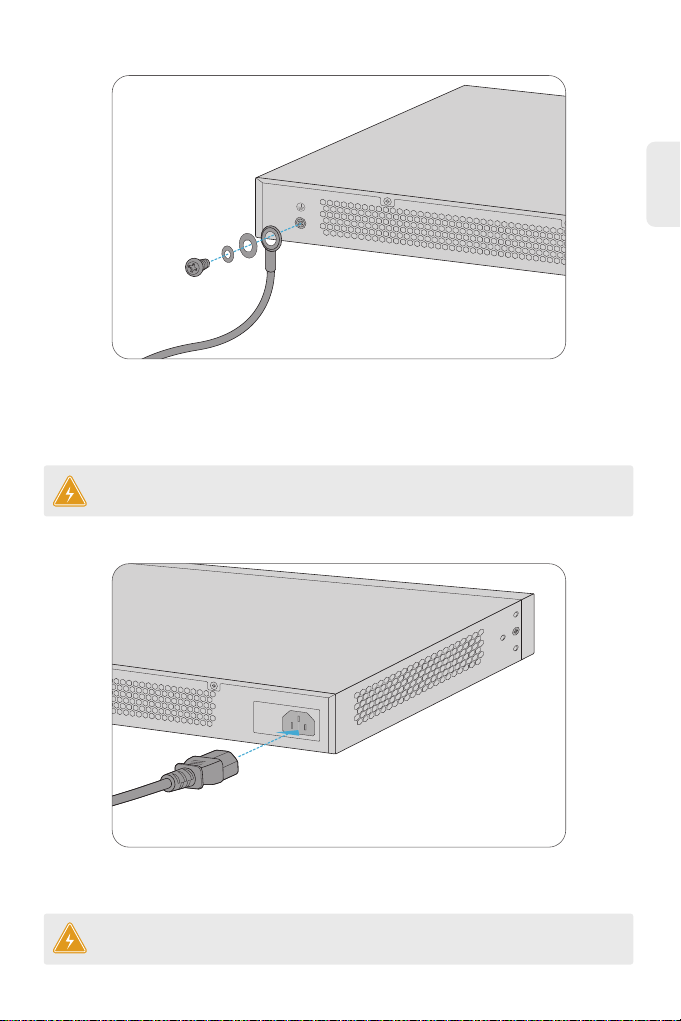

1. Connect one end of the grounding cable to a proper earth ground, such as the rack in which the

switch is mounted.

2. Secure the grounding lug to the grounding point on the back of the switch with the washer and

screws.

Grounding the Switch

1. Plug the AC power cord into the power port on the back of the switch.

2. Connect the other end of the power cord to an AC power source.

Connecting the Power

WARNING: Do not install power cable while the power is on.

CAUTION: The earth connection must not be removed unless all supply connections have

been disconnected.

S1900-24T

43 65 87 109 1211 1413 1817 2019 2221 2423

1615

1 5 9 13 17 21

2 6 10 14 18 22

3 7 11 15 19 23

4PWR 8 12 16 20 24

AC 100-240V 50/60Hz

Connecting the RJ45 Ports

1. Connect an Ethernet cable to the RJ45 port of a computer, printer, network storage, or other

network devices.

2. Connect the other end of the Ethernet cable to the RJ45 port of the switch.

Support and Other Resources

Download

Help Center

https://www.fs.com/download.html

https://www.fs.com/service/help_center.html

https://www.fs.com/contact_us.html

Product Warranty

FS ensures our customers that any damage or faulty items due to our workmanship, we will oﬀer a

free return within 30 Days from the day you receive your goods. This excludes any custom made

items or tailored solutions.

Warranty: S1900-24T Switch enjoys 2 year limited warranty against defect in materials

or workmanship. For more details about warranty, please check at

https://www.fs.com/policies/warranty.html

Return: If you want to return item(s), information on how to return can be found at

https://www.fs.com/policies/day_return_policy.html
