Frigidaire FGF376CXB Manual de usuario

PRODUCT NO. BASE MODEL NO. COLOR MARKET

FGF376CXBSA FGF376CXB white North America

Publication No.

5995374310

020613

-EN/SERVICE /ECL

369

C X P C S INC.

P. . Bo 21237 August a GA 30917

06/02 2

Publication No. FGF376CXBSA

5995374310

BACKGUARD

# = Fast-moving Parts 3 06/02

* = Non-Illustrated Parts

FGF376CXBSA Publication No.

5995374310

POS. NO PART NO DESCRIPTION

1 316028700 Shield,backguard ,galv ,rear wall

2 316051600 Shield,backguard ,inner

2A 316053800 Shield,backguard ,inner top

11 316083722 Trim,wrapper ,white ,textured,w/hole

15 316023108 Support,backguard ,RH

15A 316023109 Support,backguard ,LH

19 316100581 Panel,backguard ,white

20 # 316080011 Clock/Timer,slew

20A 316089306 Overlay,clock

23 316033204 Bracket,timer

24 # 316118101 Switch,oven light ,white ,rocker

36 316109513 Knob,top valve ,white

40 316009285 Panel,manifold ,white

42 316055201 Trim,vent ,chrome

56 316074907 Deflector,flue ,black

* 316001475 Wiring Harness,backguard

* 316021108 Screw,cup pt ,8-18 x 0.375 ,chrome

* 316021109 Screw,8-18 x 0.5 ,chrome

* 316021110 Screw,8-18 x 0.5 ,black

BACKGUARD

06/02 4

Publication No. FGF376CXBSA

5995374310

BURNER

# = Fast-moving Parts 5 06/02

* = Non-Illustrated Parts

FGF376CXBSA Publication No.

5995374310

POS. NO PART NO DESCRIPTION

1 316134501 Manifold Pipe,1

2 # 5303935184 Valve,top buner ,9K ,with mtg screws

2A # 5303935185 Valve-top burner,11K ,with mtg screws

2B # 5303935186 Valve-top burner,5K ,with mtg screws

* 316134300 Screw,10-24 ,valve mounting

3 # 316001824 Wiring Harness,w/igntr switch

4 # 316059612 Tube,burner ,red ,RF

5 # 316059613 Tube,burner ,green ,LF

6 # 316059614 Tube,burner ,natural ,RR

7 # 316059615 Tube,burner ,black ,LR

8 # 316135701 Module,spark

8* 5303289034 Wiring Harness,module/igniter

10 # 5303935025 Burner Assy,sealed ,small ,9K

10A# 5303935098 Burner Assy,sealed ,large ,11,100 BTU ,(2), includes,11,37,44A,45

10B# 316010605 Burner Assy,sealed ,small ,5K

11 316011200 Ignitor,top burner ,(4) ,w/mtg bracket

13 # 316065005 Tube,3/8 ,aluminum ,rgltr to manf ,with fittings

14 # 316091706 Regulator,pressure

14* 316021104 Screw,hex ,8-18 x 3/8 ,nick ,(3) ,regulator brkt

15 316091600 Bracket,regulator

16 # 316065003 Tube,valve to regul. ,3/8

17 # 5303208499 Valve,safety ,dual

17* 08068018 Shield,wire ,safety valve

18 # 3131290 Burner,oven

19 # 5303935066 Ignitor,oven kit ,w/nut & instr

20 3131284 Baffle,oven burner

21 5303013272 Nut,hex head sems

22 # 316065002 Tube,valve to mixer

23 # 08067935 Burner,broiler

24 # 316070400 Elbow,mixer

24* 316113400 Spacer,mixer elbow

25 5303210379 Baffle,broiler

26 # 316119302 Ignitor,broiler

37 316069301 Screw,burner mtg

44 5303210090 Orifice,top burner ,9K

44A 316010804 Orifice,top burner ,large ,11K

44B 316010809 Orifice,top burner ,5K

45 316011100 Screw,self-tapping ,M3x5.8 ,ignitor mtg

46 316074700 Plate,burner tube

47 # 316039616 LP Conversion Kit,orange

* 5303271648 Screw,wafer hd sq dr ,8-18AB x 0.5

BURNER

06/02 6

Publication No. FGF376CXBSA

5995374310

BODY

# = Fast-moving Parts 7 06/02

* = Non-Illustrated Parts

FGF376CXBSA Publication No.

5995374310

POS. NO PART NO DESCRIPTION

1 316029416 Panel,main back

2 3131314 Shield,oven top

3 316081034 Panel,bodyside ,white ,RH

3 316081035 Panel,bodyside ,white ,LH

4 316011917 Burner Box,with hole

4* 08067757 Cover Plate,burner box

5 316129200 Screw,leveling ,plastic ,with stop

6 316067902 Rack,oven

7 316007005 Hinge,oven door , (2)

8 5303300701 Panel,oven bottom

8* 316064600 Support,oven bottom

9 316081900 Pan,broiler

10 316082000 Insert,broiler pan

12 # 316027701 Switch,oven light

13 316026800 Rod,light switch

14 # 316116400 Receptacle,oven light

15 5303013071 Bulb/Lamp,oven light

16 08011086 Lens,oven light ,glass

17 316087500 Retainer,lens

18 # 316036300 Latch,door

21 3014099 Spacer,bodyside

25 5303288580 Shield,heat ,lower

28 3011813 Clip,wire ,bodyside

29 3051162 Glide,drawer ,front

30 316059200 Bracket,main top ,RH

30A 316059201 Bracket,main top ,LH

33 5303288495 Shield,rear wall

35 316116600 Gasket,flue

36 316133002 Flue

37 # 316134900 Probe,oven temp

38 316051700 Shield,heat

39 # 3202006 Cord,electric power

40 3200836 Shield,heat baffle

40* 5303288570 Screw,hd shldr sqdr ,8-18 X 1/2 ,heat shield

41 3131570 Cover,hinge cut-out

42 5303288578 Shield,bake burner

43 3131732 Screw,8-18 x 1.438 ,oven bottom

44 3131903 Bumper,door/drawer , rubber

49 3051124 Clip,spring mtg

53 5303288579 Shield,main front

53A 08067992 Shield,insulation ,front frame

55 316107800 Shield,flue

58A 316047708 Insulation,2" ,oven wrapper

58B 316218303 Insulation,oven back

58G 08067973 Insulation,main front

72 5303285692 Cover,rod end ,lt switch rod

88 316026400 Rod,auto latch

89 # 316028101 Motor,latch

170 5303935180 Anti-tip Kit,w/bracket,screw

170* 316107200 Bracket,anti-tip

170* 316112500 Template,anti-tip

170* 316116000 Screw,concrete tpg ,1.75 inch ,anti-tip brkt

* 316001632 Wiring Harness,chassis

* 316246400 Plug,button ,oven probe

* 316021108 Screw,cup pt ,8-18 x 0.375 ,chrome

* 5303280311 Screw,wafer hd sq dr ,10-32 x 0.312

* 5303285179 Screw,wafer head ,8-32T x 0.500 ,black

* 5303305324 Paint,touch-up ,white

* 5303271648 Screw,wafer hd sq dr ,8-18AB x 0.5

BODY

06/02 8

Publication No. FGF376CXBSA

5995374310

TOP/DRAWER

# = Fast-moving Parts 9 06/02

* = Non-Illustrated Parts

FGF376CXBSA Publication No.

5995374310

POS. NO PART NO DESCRIPTION

1 316011503 Drawer

2 5303288582 Liner,drawer ,galv steel ,front panel

4 316084405 Panel,drawer ,white

7 3051163 Glide,drawer ,rear

16 316114801 Maintop,white

19 # 316011417 Pan,burner ,large ,gray

19A# 316011409 Pan,burner ,small ,gray

20 316085304 Grate,gray ,(4)

22 # 316122101 Cap,burner ,small ,gray

22A# 316098509 Cap,burner ,large ,gray

22B# 316118801 Cap-burner,simmer ,gray

48 316077401 Shield,deflector ,main top panel ,(2)

* 3131903 Bumper,door/drawer , rubber

* 316089600 Spacer,drawer ,(2)

* 316021108 Screw,cup pt ,8-18 x 0.375 ,chrome

* 316021110 Screw,8-18 x 0.5 ,black

* 316021112 Screw,8-18 x 0.500 ,white

* 5303280311 Screw,wafer hd sq dr ,10-32 x 0.312

TOP/DRAWER

06/02 10

Publication No. FGF376CXBSA

5995374310

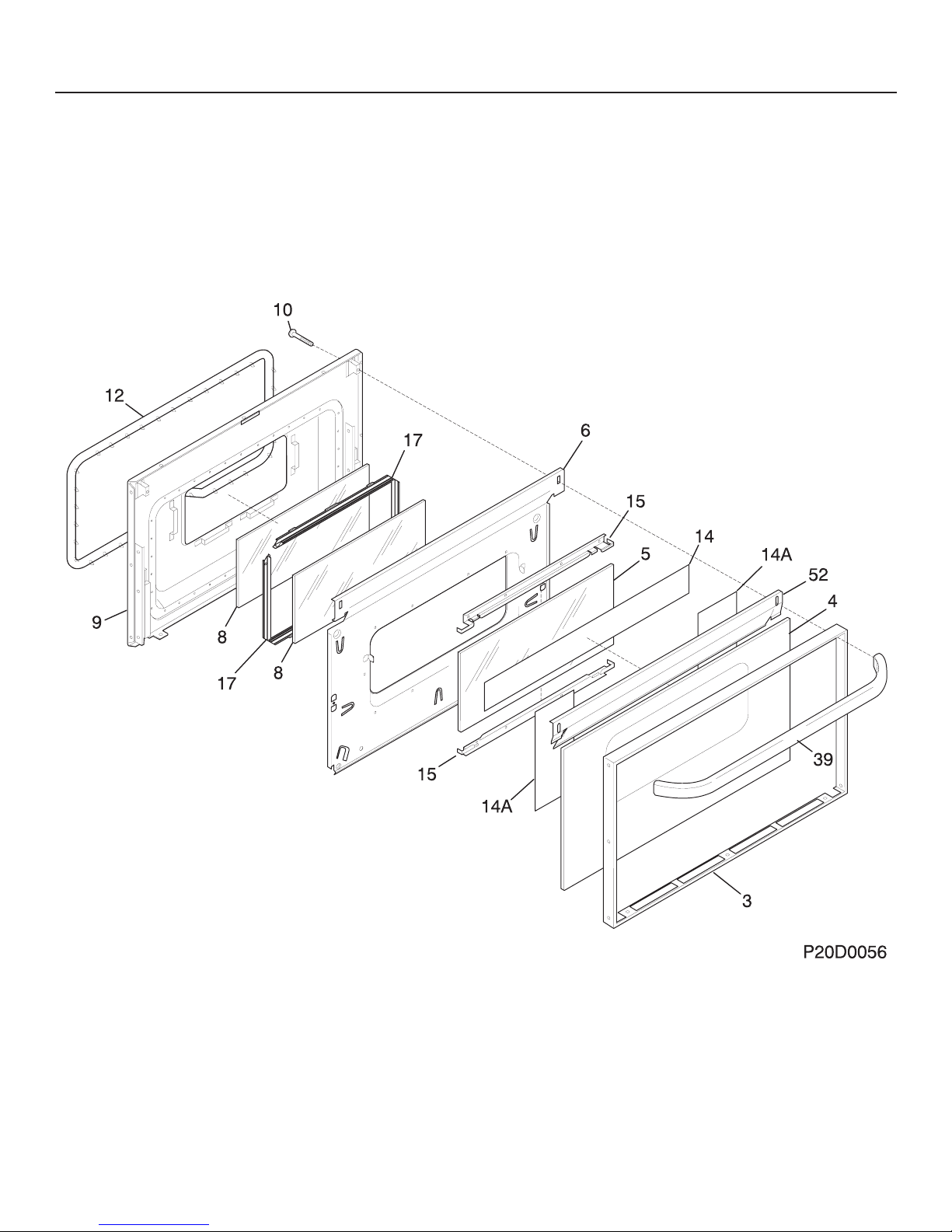

DOOR
