Frigidaire FGF318E Manual de usuario

Product No. FGF318ECA

Series 30" f/s gas

Color stainless

Market North America

Wiring Diagram 316255203

Owner's Guide 316257514

Installation Instructions 316259327

TGF317B.eps L24G0028.eps L24B0003.eps T24V0013.eps L24T0038.eps L24D0034.eps

316255203d.eps 316255203s.eps

Electrolux Major Appliances

North & Latin America

P.O. BOX 212378

AUGUSTA, GA 30917

Publication No.

5995440434

05/06/28

(EN/SERVICE/BJH)

369

30-INCH FREE-

STANDING GAS

RANGE

Model No.

FGF318E

Publication No: 5995440434 FGF318ECA

06/05 2

BACKGUARD

FGF318ECA Publication No: 5995440434

# Functional Parts 3 06/05

* Non-Illustrated Parts

BACKGUARD

POS. NO PART NO. DESCRIPTION

1 5303289640 Shield, backguard, rear wall

12 # 316032404 Thermostat

12* 316097602 Insulator

18 316263402 End Cap, black, RH

18A 316263403 End Cap, black, LH

19 316263353 Panel, backguard, black

20 # 316116200 Clock/Timer, TOD

20A 316115307 Overlay, clock, black

23 316263500 Bracket, clock mtg, RH

23A 316263501 Bracket, clock mtg, LH

24 # 316118100 Switch, oven light, black, rocker

32 316102300 Knob, thermostat, black

36 316009008 Knob, top valve, black, (4)

40 316201841 Panel, manifold, black

* 316021105 Screw, hex head cup pt, 8-18 x 0.375, black

* 316021108 Screw, cup pt, 8-18 x 0.375, chrome

* 316021110 Screw, 8-18 x 0.5, black

Publication No: 5995440434 FGF318ECA

06/05 4

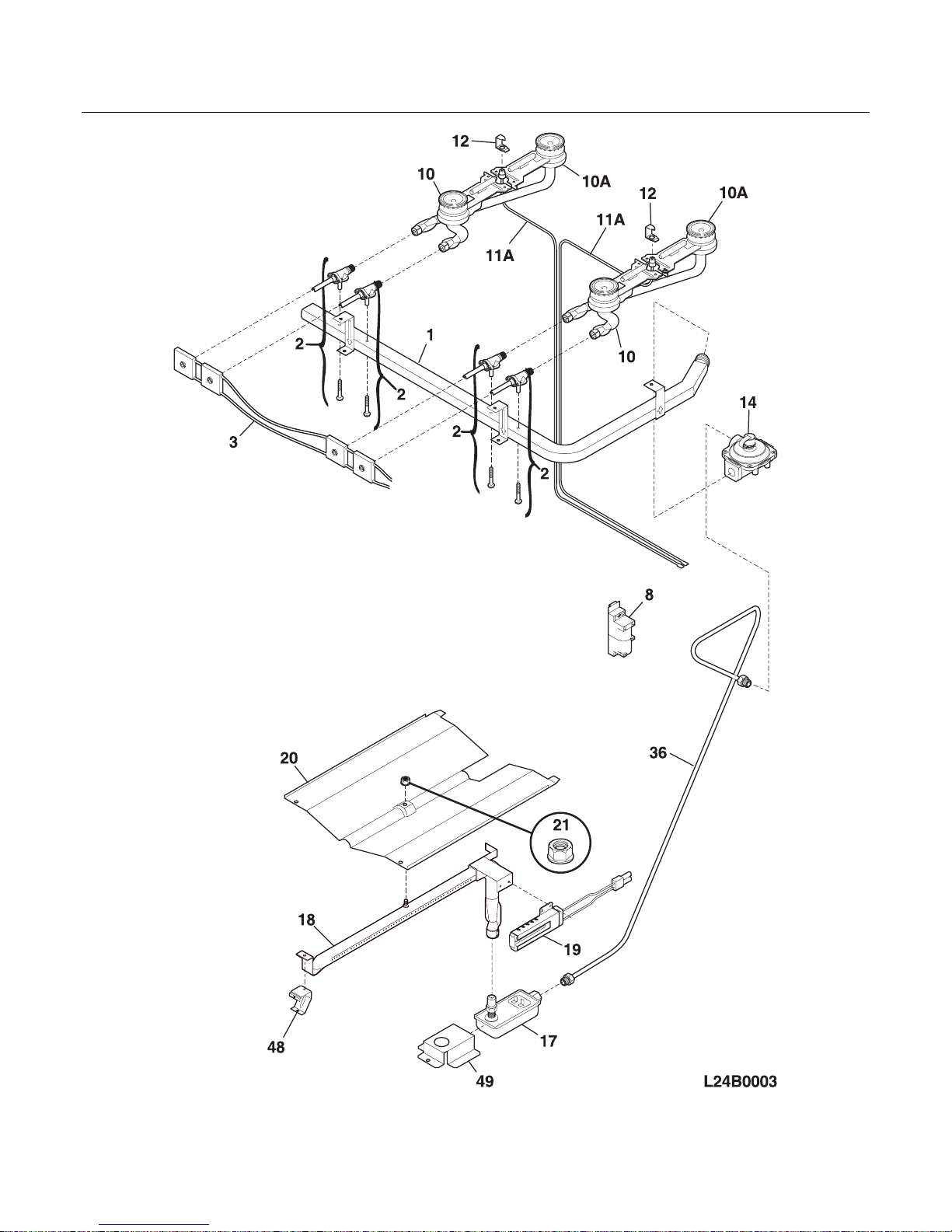

BURNER

FGF318ECA Publication No: 5995440434

# Functional Parts 5 06/05

* Non-Illustrated Parts

BURNER

POS. NO PART NO. DESCRIPTION

1 # 316269100 Pipe, manifold

2 # 5303935237 Valve, top burner, w/mtg screw

3 316001830 Wiring Harness, w/igntr switch

8 # 316135700 Module, spark

10 # 316103800 Burner, top, front, venturi ring

10A# 316103801 Burner, top, rear, venturi ring

11A# 316081705 Ignitor, top burner, 50"

12 3016993 Retainer, ignitor

14 # 316091705 Regulator, pressure

14* 316021104 Screw, hex, 8-18 x 3/8, nick, (3), regulator brkt

17 # 3203459 Valve, safety

18 # 316114300 Burner, oven

19 # 5303935066 Ignitor, oven kit, w/nut & instr

19*# 316119301 Ignitor-oven

20 3203265 Baffle, oven burner

21 5303013272 Nut, hex head sems

36 316065004 Tubing, 3/8, alum

48 3018603 Bracket, support, oven burner

49 3131438 Bracket, safety valve

* 316001003 Screw, ground wire

* 316215600 Screw, valve mtg., 1/4 - 20

* 5303271648 Screw, wafer hd sq dr, 8-18AB x 0.5

Publication No: 5995440434 FGF318ECA

06/05 6

BODY

FGF318ECA Publication No: 5995440434

# Functional Parts 7 06/05

* Non-Illustrated Parts

BODY

POS. NO PART NO. DESCRIPTION

1 316029415 Panel, main back

3 316400104 Panel, bodyside, black, RH

3 316400105 Panel, bodyside, black, LH

4 316067210 Burner Box

5 316272900 Screw, leveling, plastic, rear, (2)

5A 316407200 Leveling Leg Assy, metal, front, (2), bracket & leg

6 316067902 Rack, oven

7 316216504 Hinge, oven door, RH

7A 316216505 Hinge, oven door, LH

8 5303300701 Panel, oven bottom

8* 316064600 Support, oven bottom

14 316116400 Receptacle, oven light

15 5303013071 Bulb/Lamp, oven light

21 316408000 Clip, bodyside

27 5303284616 Clip, thermo bulb mtg

32 316107501 Channel, burner support

32* 5303289684 Fastener, tanden wire, (2)

33 316055600 Shield, spark module, galv steel

34 3018607 Plate, cover

35 316116600 Gasket, flue

36 316204401 Flue, black

39 3202006 Cord, electric power

41 316233400 Cover, hinge cutout, RH

41A 316233500 Cover, hinge cutout, LH

43 3131732 Screw, 8-18 x 1.438, oven bottom

54 5303271606 Housing, oven light

58A 3017142 Insulation, oven wrapper

58B 316054202 Insulation, 1", oven back

73 316109902 Base, low broil

93 316110000 Shield, ignitor, metal

170 5303935180 Anti-tip Kit, w/bracket, screw

170* 316107200 Bracket, anti-tip

170* 316112500 Template, anti-tip

170* 316116000 Screw, concrete, 1.75", anti-tip brkt

185 316112900 Shield, thermo bulb

* 316253307 Harness, main

* 316246400 Plug, button, oven probe

* 316435800 Plate, weight, (3)

* 5303305345 Paint, touch-up, black

* 316021105 Screw, hex head cup pt, 8-18 x 0.375, black

* 316021108 Screw, cup pt, 8-18 x 0.375, chrome

* 316021110 Screw, 8-18 x 0.5, black

* 316089500 Screw, 10-16 x .486

* 5303271648 Screw, wafer hd sq dr, 8-18AB x 0.5

* 5303285179 Screw, wafer head, 8-32T x 0.500, black

* 5308014215 Screw, 6-20 x 0.312

Publication No: 5995440434 FGF318ECA

06/05 8

TOP/DRAWER

FGF318ECA Publication No: 5995440434

# Functional Parts 9 06/05

* Non-Illustrated Parts

TOP/DRAWER

POS. NO PART NO. DESCRIPTION

1 316110201 Carriage, low broil

2 316236401 Liner, low broil

2A 316110800 Shield, broiler

2B 316237600 Shield, low broil, top

4 316231226 Panel, drawer, black

4A 316444800 Overlay, Drawer Panel, stainless

9 316081900 Pan, broiler

10 316082000 Insert, broiler pan

13 316111502 Glide, low broil, chassis

13A 316111600 Glide, low broil, inner

13B 316111501 Glide, low broil, outer

16 316273002 Main Top, black

17 316066900 Rod, maintop support

18 08067747 Bracket, hinge, main top RH

18A 08067746 Bracket, hinge, main top LH

20 # 316277801 Grate, black, (4)

25 316104500 Cover, vent, chrome

39 316248300 Handle, oven door, black

85 316115600 Rack, low broil

* 316279700 Cleaner, stainless steel

* 316021105 Screw, hex head cup pt, 8-18 x 0.375, black

* 316021108 Screw, cup pt, 8-18 x 0.375, chrome

* 316021110 Screw, 8-18 x 0.5, black

* 316021120 Screw, shoulder head, 8-18 x 5/8, (2), square drive

* 5308014215 Screw, 6-20 x 0.312

Publication No: 5995440434 FGF318ECA

06/05 10

DOOR
