Frigidaire FGEF3041K Manual de instrucciones

LGEF3041KFA.eps CFGEF3031KBA.eps VLGEF3031KBA.eps TFGEF3041KBA.eps

DLGEF3041KFA.eps

Product No. FGEF3041KFA

Series 30" f/s elec

Color stainless

Market North America

Owner's Guide 316902203

Installation Instructions 316454912

Service Data Sheet 316904414

Electrolux Major Appliances

North & Latin America

P.O. BOX 212378

AUGUSTA, GA 30917

Publication No.

5995539169

09/04/29

(EN/SERVICE/ECL)

369

30-INCH FREE-

STANDING ELECTRIC

RANGE

Model No.

FGEF3041K

Publication No: 5995539169 FGEF3041KFA

04/09 2

BACKGUARD

13A 14

54B

1414

CFGEF3031KBA

15A

20A

FGEF3041KFA Publication No: 5995539169

# Functional Parts 3 04/09

* Non-Illustrated Parts

BACKGUARD

POS. NO PART NO. DESCRIPTION

1 316557600 Shield, rear wall

13A# 316095503 Switch, infinite, warmer

14 316022500 Light/Lamp, indicator, 125 V

15 316546702 Cap, backguard, black, RH end

15A 316546703 Cap, backguard, black, LH end

19 316572422 Panel, backguard, stainless

20 # 316418300 Clock/Timer, electronic, ES330

* 316021110 Screw, 8-18 x 0.5, black

20A 316419333 Overlay, clock, black, ES330

21 316546601 Cap, backguard, black, top

31 316564402 Knob, control, black, (5)

46 316557300 Lens-light/lamp, indicator, clear

54 316436000 Switch, infinite, small element

54B# 316436001 Switch, infinite, large element

56 316234013 Shield, backguard, black, inner

69 5303288565 Screw, truss sqdr, 8-32 x 3/16, switch mtg

* 316021105 Screw, hex head cup pt, 8-18 x 0.375, black

* 316089500 Screw, 10-16 x .486

Publication No: 5995539169 FGEF3041KFA

04/09 4

BODY

5A 5

ANTI-TIP

BRACKET

ANTI-TIP

BRACKET

NOTE: Oven Liner N/A

Ass. du four N/A

170

151

58A

58B

170

151

VLGEF3031KBA

59A

FGEF3041KFA Publication No: 5995539169

# Functional Parts 5 04/09

* Non-Illustrated Parts

BODY

POS. NO PART NO. DESCRIPTION

1 316401801 Panel, main back

3 316400118 Panel, bodyside, black, RH

3 316400119 Panel, bodyside, black, LH

5 316272900 Screw, leveling, plastic, rear, (2)

5A 316498900 Leveling Leg Assy, metal, front, (2), bracket & leg

6 316496202 Rack, oven, (1)

6A 316496206 Rack, oven, (1)

8 316400601 Panel, oven bottom

8* 316064600 Support, oven bottom

8A 316411104 Base, bake element

9 316081900 Pan, broilerOPTIONAL ACCESS0RY

10 316082000 Insert, broiler panOPTIONAL ACCESS0RY

12 # 316445500 Switch, oven light, door frame

14 # 316116400 Receptacle, oven light

15 # 316538901 Lamp, oven light

16 318406100 Lens, oven light, glass

17 316087500 Retainer, lens

18 # 316405800 Latch Assembly, oven door

* 5303285179 Screw, wafer head, 8-32T x 0.500, black

21 316408000 Clip, bodyside

25 316406200 Shield, heat, lower

29 316407301 Glide, drawer, front

37 # 316490000 Probe, oven temp

42 316407700 Shield, wool, lower

43 3131732 Screw, 8-18 x 1.438, oven bottom

44 316517600 Spacer, oven door

45 316234100 Shield, wire, vent tube

57 316457801 Cover, access

58 316403802 Insulation, oven sump

58A 316406602 Insulation, oven wrapper

58B 316406500 Insulation, oven back

59 316208401 Vent Tube, assembly, w/catalyst

* 316089500 Screw, 10-16 x .486

59A 316208304 Tube, oven vent, upper

62 # 5303935271 Terminal Block Kit

62* 316001003 Screw, ground wire

62* 316205500 Nut, hex flange, 3/8 10-32

62* 316542200 Insulator

63 316542600 Plate, grounding strap

66 # 316203301 Element, broil

67 # 316413800 Element, bake, hidden

68 316404000 Support, element, broil

71 316422304 Shield, rear wall

86 316441300 Receptacle, hinge

* 316418900 Screw, sims lp, #8-32 x 5/16", black

87 316081200 Bracket, cable mtg

88 316203500 Rod, auto latch

89 # 316464300 Motor-latch

151 316404600 Shield, bodyside

170 316112004 Anti Tip Kit, assembly

170* 316107200 Bracket, anti-tip

170* 316116000 Screw, concrete, 1.75", anti-tip brkt

170* 316541700 Template, anti-tip

* # 316506248 Wiring Harness, main

* 316021105 Screw, hex head cup pt, 8-18 x 0.375, black

* 316021110 Screw, 8-18 x 0.5, black

* 316418901 Screw, trilobe, 10-32 x 5/16", (4)

Publication No: 5995539169 FGEF3041KFA

04/09 6

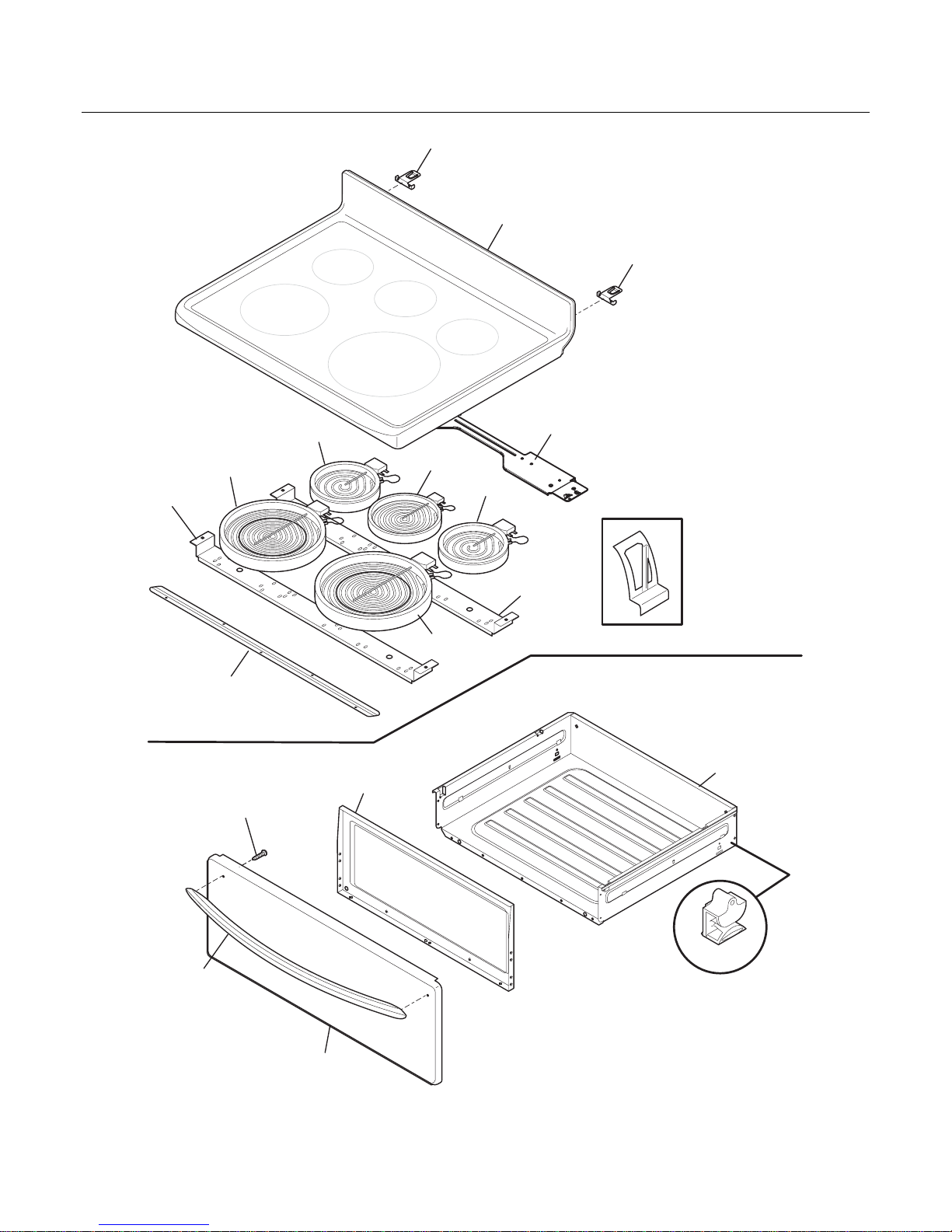

TOP/DRAWER

26B

26A

15B

15A

15C

TFGEF3041KBA

FGEF3041KFA Publication No: 5995539169

# Functional Parts 7 04/09

* Non-Illustrated Parts

TOP/DRAWER

POS. NO PART NO. DESCRIPTION

1 316408703 Drawer, utility

2 316403300 Liner, drawer

4 316409414 Panel, drawer front, stainless

7 316407400 Glide, drawer, rear

15 # 318198846 Element, surface, small/6", 1200 W

15A# 316465001 Element, surface, 9", 3000W, radiant

15B# 318198827 Element, surface, 12", 2700 W

15C# 318198832 Element, surface, warmer, 100 W

16 316531968 Maintop, steel/glass, black

18 316436600 Hinge Bracket, maintop, (2)

26 316427600 Channel, element support, (2)

26A 316498200 Bracket-support, chassis, aluminum

26B 316214202 Bracket, chassis support, front

* 316021109 Screw, 8-18 x 0.5, chrome

39 316554005 Handle, door/drawer, stainless

52 316461700 Clip, element mtg

52* 5308014215 Screw, 6-20 x 0.312

60 5304414648 Screw, handle mtg.

* # 316510672 Harness, wiring, surface

* 316468100 Cleaner, smoothtop, w/sponge

* 316021105 Screw, hex head cup pt, 8-18 x 0.375, black

* 316021110 Screw, 8-18 x 0.5, black

* 316089500 Screw, 10-16 x .486

Publication No: 5995539169 FGEF3041KFA

04/09 8

DOOR

60B

DLGEF3041KFA

10B

FGEF3041KFA Publication No: 5995539169

# Functional Parts 9 04/09

* Non-Illustrated Parts

DOOR

POS. NO PART NO. DESCRIPTION

4 316452719 Glass, oven door, black, w/foil

6 316406310 Shield, wool

* 316021109 Screw, 8-18 x 0.5, chrome

7 316405600 Insulation, oven door

8 316117500 Glass, oven door, heat barrier

9 316423701 Liner, oven door

10 316439500 Screw, handle mtg., #10-24 x 1.75", (2)

10B 316008401 Washer, 3/4 OD x 1/4 ID, steel

12 316405000 Seal, oven door

13 316566305 Panel Assembly, door, stainless, outer, w/badge

17 316402403 Spacer, door glass, (2)

20 316408600 Spacer, door handle, (2)

23 316456304 Hinge, oven door, (2)

23* 316418900 Screw, sims lp, #8-32 x 5/16", black

39 316554005 Handle, door/drawer, stainless

53 316408201 Shield, door filler, black, (2)

55 316408300 Bracket, glass support, (4)

60B 316021110 Screw, 8-18 x 0.5, black

* 316433603 Label, anti-tip
