Frigidaire FEC36C2A Manual de usuario

Product No. FEC36C2AQD FEC36C2ASD

3805441141044 3805441141014

Series 36" elec 36" elec

Color bisque white

Market North America North America

Wiring Diagram 318046901 318046901

Owner's Guide 318200612 318200612

Installation Instructions 318201410 318201410

FEC36C2A.eps LA9923G40B.eps LA9923V41.eps 318046901.eps

ELECTROLUX HOME PRODUCTS, INC.

P.O. Box 212378, Augusta, GA 30917

Publication No.

5995403143

04/02/03

(EN/SERVICE/ECL)

377

ELECTRIC COOK-TOP

RANGE

Model No.

FEC36C2A

Publication No: 5995403143 FEC36C2A

02/04 2

CONTROL PANEL

FEC36C2A Publication No: 5995403143

# Functional Parts 3 02/04

* Non-Ilustrated Parts

CONTROL PANEL

Model Index: AFEC36C2A (FEC36C2ASD)

BFEC36C2A (FEC36C2AQD)

POS. NO PART NO. DESCRIPTION

16 5303291327 A B Plate, instrument mtg

19 318242600 A - Panel, control, white

19 318242601 - B Panel, control, bisque

36 318196633 A - Knob, control, white

36 318196635 - B Knob, control, bisque

46 5303297274 A B Lens, indicator light

51 # 318044822 A B Light, indicator, clear

* 5303272289 A B Seal, indicator light

54 # 318220009 A B Switch, surface unit, small

54A# 318220010 A B Switch, surface unit, large

* 318146010 A B Bushing, switch

69 5303323134 A B Screw, switch mtg., 8-32 x 0.188

107 5303325928 A B Housing, wire feed

108 5303325931 A B Housing, bottom slide

163 318014100 A B Spacer

* 3051070 A B Screw, hex washer head, 10-24 x 0.438, special

* 5303311306 A B Screw, 8-18 x 0.375

* 5303311532 A B Screw, 6-32 x 1/4", back

Publication No: 5995403143 FEC36C2A

02/04 4

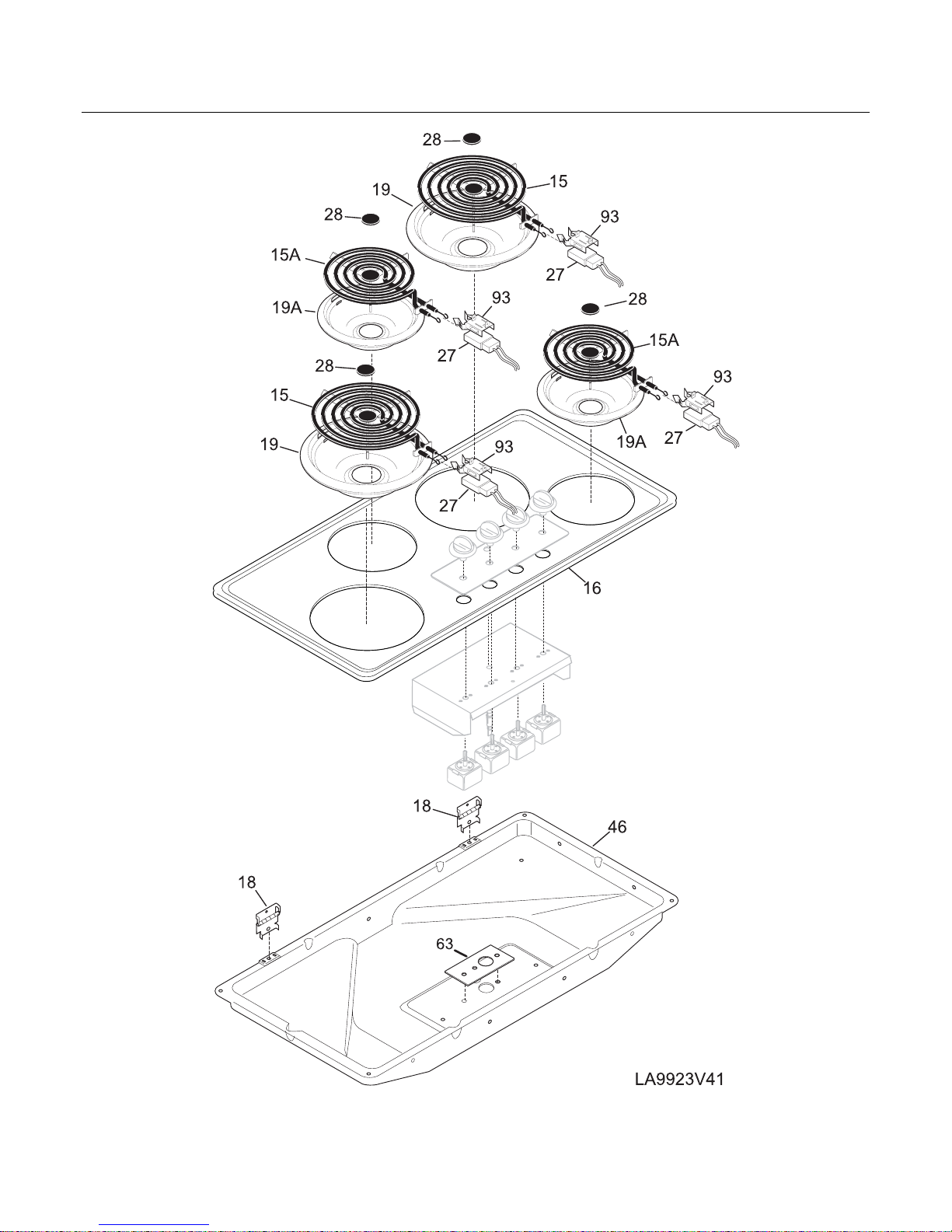

MAIN TOP/SURFACE UNITS

FEC36C2A Publication No: 5995403143

# Functional Parts 5 02/04

* Non-Ilustrated Parts

MAIN TOP/SURFACE UNITS

Model Index: AFEC36C2A (FEC36C2ASD)

BFEC36C2A (FEC36C2AQD)

POS. NO PART NO. DESCRIPTION

15 # 3051450 A B Element, surface, 8" large

15A# 3051449 A B Element, surface, 6" small

16 318159041 A - Main Top, white

16 318159044 - B Main Top, bisque

18 318074310 A B Hinge, maintop, (2)

19 # 318067056 A B Pan, surface element, large, chrome

19A# 318067046 A B Pan, surface element, small, chrome

27 # 318223403 A B Terminal Block, surface element, 30", yellow leads

27 # 318223404 A B Terminal Block, surface element, 39", brown leads

27 # 318223412 A B Terminal Block, surface element, 30", white leads

27 # 318223424 A B Terminal Block, surface element, 36", orange leads

28 5303017715 A B Medallion, 1 1/2"dia, black, surface element

46 318077121 A B Burner Box

63 5303291326 A B Plate, grounding

93 5303304731 A B Bracket, terminal block

* # 318078532 A B Box & wires assy

* 5303324001 A B Spacer

* 5303300195 A B Screw, 10-32 x 0.375, terminal block, (2)

* 5303311532 A B Screw, 6-32 x 1/4", back

* 5303323140 A B Screw, ground, 10-32 x 0.375

Publication No: 5995403143 FEC36C2A

02/04 6

WIRING DIAGRAM
