Installation Instructions

Over the Ran e Microwave Oven

BEFORE YOU BEGIN

Read these instructions completely and carefully.

•IMPORTANT -Save these instructions for

local inspector's use.

•IMPORTANT-observe all governing codes

and ordinances.

• Note to Installer- Be sure to leave these

instructions with the Consumer.

• Note to Consumer- Keep these instructions for

future reference.

• Skill level - Installation of this appliance requires

basic mechanical and electrical skills.

• Proper installation is the responsibility of the

installer.

• Product failure due to improper installation is not

covered under the Warranty.

READ CAREFULLY. KEEP THESE INSTRUCTIONS.

Installation Instructions

CONTENTS

General information

Important Safety Instructions ..................... 3

Electrical Requirements .............................. 3

Hood Exhaust ........................................... 4, 5

Damage - Shipment/Installation ................. 6

Parts Included ............................................... 6

Tools You Will Need ..................................... 7

Mounting Space ............................................ 7

Step-by-step installation guide

Placement of Mounting Plate ................ 8-10

Removing the Mounting Plate ................... 8

Finding the Wall Studs .............................. 8

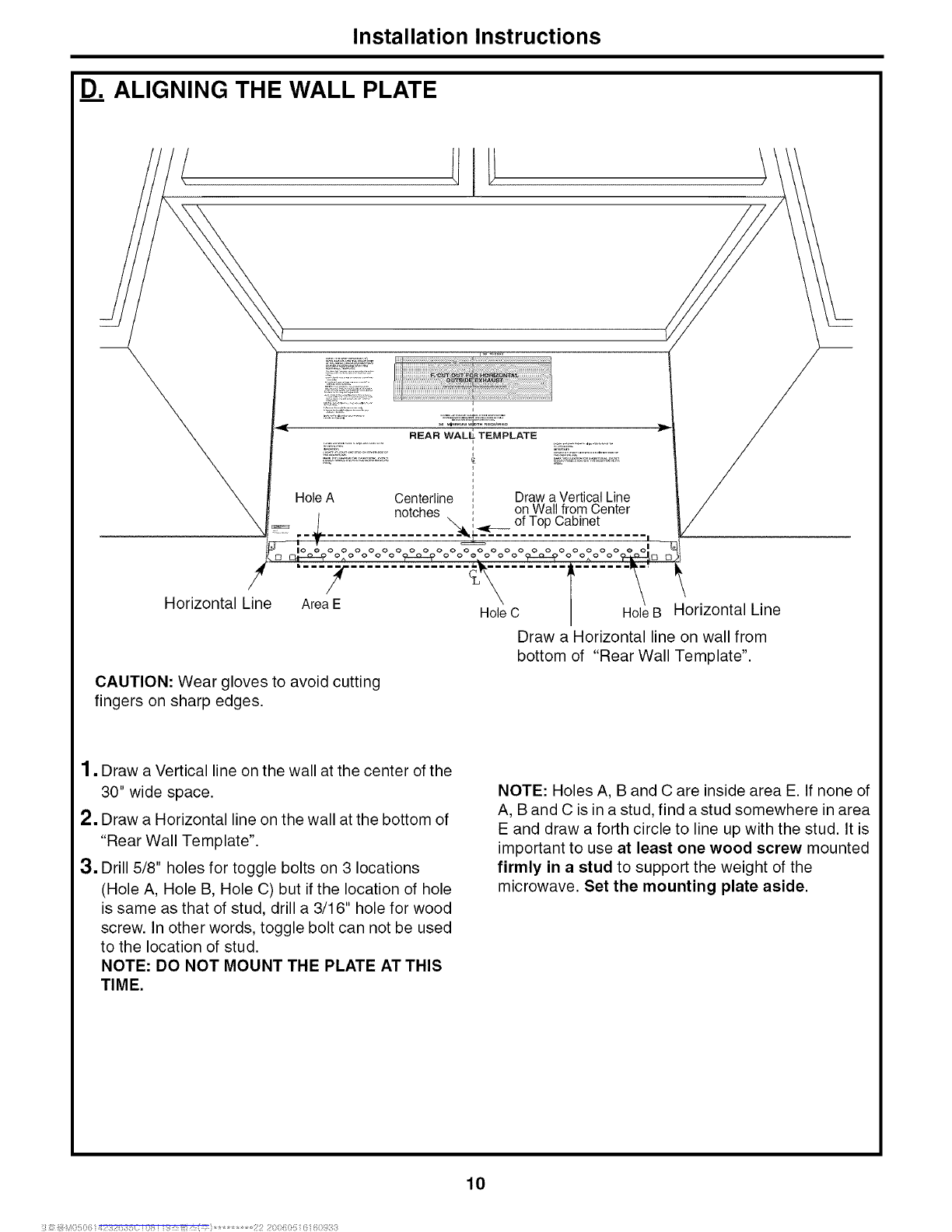

Determining Wall Plate Location ............... 9

Aligning the Wall Plate ............................ 10

Installation Types ................................. 11-21

ARecirculating ........................................... 12-13

Attach Mounting Plate to Wall ................. 12

Preparation of Top Cabinet ..................... 12

Mount the Microwave Oven ..................... 13

BOutside Top Exhaust .............................. 14-17

Attach Mounting Plate to Wall ................. 14

Preparation of Top Cabinet ..................... 15

Adjust Blower .......................................... 15

Check Damper Operation ........................ 16

Mount Microwave Oven ........................... 16

Adjust Exhaust Adaptor ........................... 17

Connecting Ductwork .............................. 17

COutside Back Exhaust ............................. 18-21

Preparing Rear Wall ................................ 18

Attach Mounting Plate to Wall ........... 18, 19

Preparation of Top Cabinet ..................... 19

Adjust Blower .................................... 19, 20

Mount the Microwave Oven ............... 20, 21

Before You Use Your Microwave .............. 22

Installation Instructions

IMPORTANT SAFETY INSTRUCTIONS

This product requires a three-prong grounded outlet.

The installer must perform a ground continuity check

on the power outlet box before beginning the

installation to insure that the outlet box is properly

grounded. If not properly grounded, or if the outlet

box does not meet electrical requirements noted

(under ELECTRICAL REQUIREMENTS), a qualified

electrician should be employed to correct any

deficiencies.

CAUTION: For personal

safety, remove house fuse or

open circuit breaker before

beginning installation to

avoid severe or fatal shock

injury.

CAUTION: For personal safety, the mounting

surface must be capable of supporting the

cabinet load, in addition to the added weight of

this 59 pound product, plus additional oven loads

of up to 50 pounds or a total weight of 109

pounds.

CAUTION: For personal safety, this product

cannot be installed in cabinet arrangements such

as an island or a peninsula. It must be mounted to

BOTH a top cabinet AND a wall.

NOTE: For easier installation and personal

safety, it is recommended that two people install

this product.

IMPORTANT-PLEASE READ CAREFULLY. FOR

PERSONAL SAFETY, THIS APPLIANCE MUST BE

PROPERLY GROUNDED TO AVOID SEVERE OR

FATAL SHOCK.

Insure proper

ground exists

before use

The power cord of this

appliance is equipped

with a three-prong

(grounding) plug which

mates with a standard

three-prong (grounding)

wall receptacle to

minimize the possibility

of electric shock hazard

from this appliance.

You should have the wall receptacle and circuit

checked by a qualified electrician to make sure

the receptacle is properly grounded.

Where a standard two-prong wall receptacle is

encountered, it is very important to have it

replaced with a properly grounded three-prong

wall receptacle, installed by a qualified

electrician.

DO NOT, UNDER ANY CIRCUMSTANCES, CUT,

DEFORM OR REMOVE ANY OF THE PRONGS

FROM THE POWER CORD. DO NOT USE WITH

AN EXTENSION CORD.

ELECTRICAL REQUIREMENTS

Product rating is 120 volts AC, 60 Hertz, 14.5 amps

and 1.6 kilowatts.

This product must be connected to a supply circuit of

the proper voltage and frequency. Wire size must

conform to the requirements of the National Electrical

Code or the prevailing local code for this kilowatt

rating. The power supply cord and plug should be

brought to a separate 20 ampere branch circuit single

grounded outlet. The outlet box should be located in

the cabinet above the microwave oven. The outlet

box and supply circuit should be installed by a

qualified electrician and conform to the National

Electrical Code or the prevailing local code.

Installation Instructions

HOOD EXHAUST

NOTE: Read these next two pages only if you plan to vent your exhaust to the outside. If you plan to

recirculate the air back into the room, proceed to page 11.

OUTSIDE TOP EXHAUST (EXAMPLE ONLY)

The following chart describes an example of one possible ductwork installation.

DUCT PIECES

Roof Cap

12 Ft. Straight Duct (6"

Round)

EQUIVALENT NUMBER

LENGTH x USED

24 Ft. x (1)

12 Ft. x (1)

[]

Rectangular-to-Round 5 Ft.

Transition Adaptor*

Equivalent lengths of duct pieces are based on actual

tests and reflect requirements for good venting

performance with any vent hood.

x (1)

Total Length

EQUIVALENT

= LENGTH

=24 Ft.

=12 Ft.

=5Ft.

= 41 Ft.

* IMPORTANT: If a rectangular-to-round transition adaptor is used, the bottom corners of the damper will have

to be cut to fit, using the tin snips, in order to allow free movement of the damper.

OUTSIDE BACK EXHAUST (EXAMPLE ONLY)

The following chart describes an example of one possible ductwork installation.

DUCT PIECES

Roof Cap

3 Ft. Straight Duct

(3¼"x 10"

Rectangular)

EQUIVALENT NUMBER

LENGTH* x USED

40 Ft. x (1)

3Ft. x (1)

(_ 90 ° Elbow 10 Ft.

Equivalent lengths of duct pieces are based on actual

tests and reflect requirements for good venting

performance with any vent hood.

x (2)

Total Length

EQUIVALENT

=LENGTH

= 4O Ft.

= 3 Ft.

= 2O Ft.

=63 Ft.

NOTE: For back exhaust, care should be taken to align exhaust with space between studs, or wall should be

prepared at the time it is constructed by leaving enough space between the wall studs to accommodate

exhaust.

Installation Instructions

NOTE: If you need to install ducts, note that the total

duct length of 3W' x 10" rectangular or 6" diameter

round duct should not exceed 60 equivalent feet.

Outside ventilation requires a HOOD EXHAUST

DUCT. Read the following carefully.

NOTE: It is important that venting be installed using

the most direct route and with as few elbows as

possible. This ensures clear venting of exhaust and

helps prevent blockages. Also, make sure dampers

swing freely and nothing is blocking the ducts.

Exhaust connection:

The hood exhaust has been designed to mate with a

standard 3W'x 10" rectangular duct.

If a round duct is required, a rectangular-to-round

transition adaptor must be used. Do not use less

than a 6" diameter duct.

Maximum duct length:

For satisfactory air movement, the total duct length of

3W' x 10" rectangular or 6" diameter round duct

should not exceed 60 equivalent feet.

Elbows, transitions, wall and roof

caps, etc., present additional resistance to

airflow and are equivalent to a section of straight duct

which is longer than their actual physical size. When

calculating the total duct length, add the equivalent

lengths of all transitions and adaptors plus the length

of all straight duct sections. The chart below shows

you how to calculate total equivalent ductwork length

using the approximate feet of equivalent length of

some typical ducts.

DUCT PIECES EQUIVALENT NUMBER EQUIVALENT

LENGTH x USED =LENGTH

Rectangular-to-Round

Transition Adaptor* 5 Ft. x ( = Ft.

Wall Cap 40 Ft. x ( = Ft.

(_ 90 ° Elbow 10 Ft. x ( = Ft.

(_ 45 ° Elbow 5 Ft. x ( = Ft.

90 ° Elbow 25 Ft. x ( = Ft.

J 45 ° Elbow 5 Ft. x ( = Ft.

Roof Cap 24 Ft. x ( = Ft.

[_ Straight Duct 6" Round or

3W'x 10" Rectangular 1 Ft. x ( = Ft.

Total Ductwork = Ft.

* IMPORTANT: If a rectangular-to-

round transition adaptor is used, the

bottom corners of the damper will

have to be cut to fit, using the tin

snips, in order to allow free movement of the damper.

Equivalent lengths of duct pieces are based on actual

tests and reflect requirements for good venting

performance with any vent hood.

Installation Instructions

DAMAGE - SHIPMENT/

INSTALLATION

•If the unit is damaged in shipment, return the

unit to the store in which itwas bought for repair

or replacement.

• If the unit is damaged by the customer, repair

or replacement is the responsibility of the

customer.

• If the unit is damaged by the installer (if other

than the customer), repair or replacement must

be made by arrangement between customer and

installer.

PARTS INCLUDED

HARDWARE PACKET

PART QUANTITY

Wood Screws 1

_' (W'x 2")

Toggle Bolts 3

@_ (and wi_,g nuts)

(3/16" X

Self-aligning 3

Machine Screws

(W'-28 x 3W')

Nylon Grommet 2

(for metal cabinets)

You will find the installation hardware contained in a

3acket with the unit. Checkto make sure you have all

these parts.

NOTE: Some extra parts are included.

ADDITIONAL PARTS

PART

TOPCABINETTEMPLATE

REAR WALL TEMPLATE

Top Cabinet

Template

Rear Wall

Template

Installation

Instructions

Separately

Packed

Grease

Filters

Exhaust

adaptor

QUANTITY

Installation Instructions

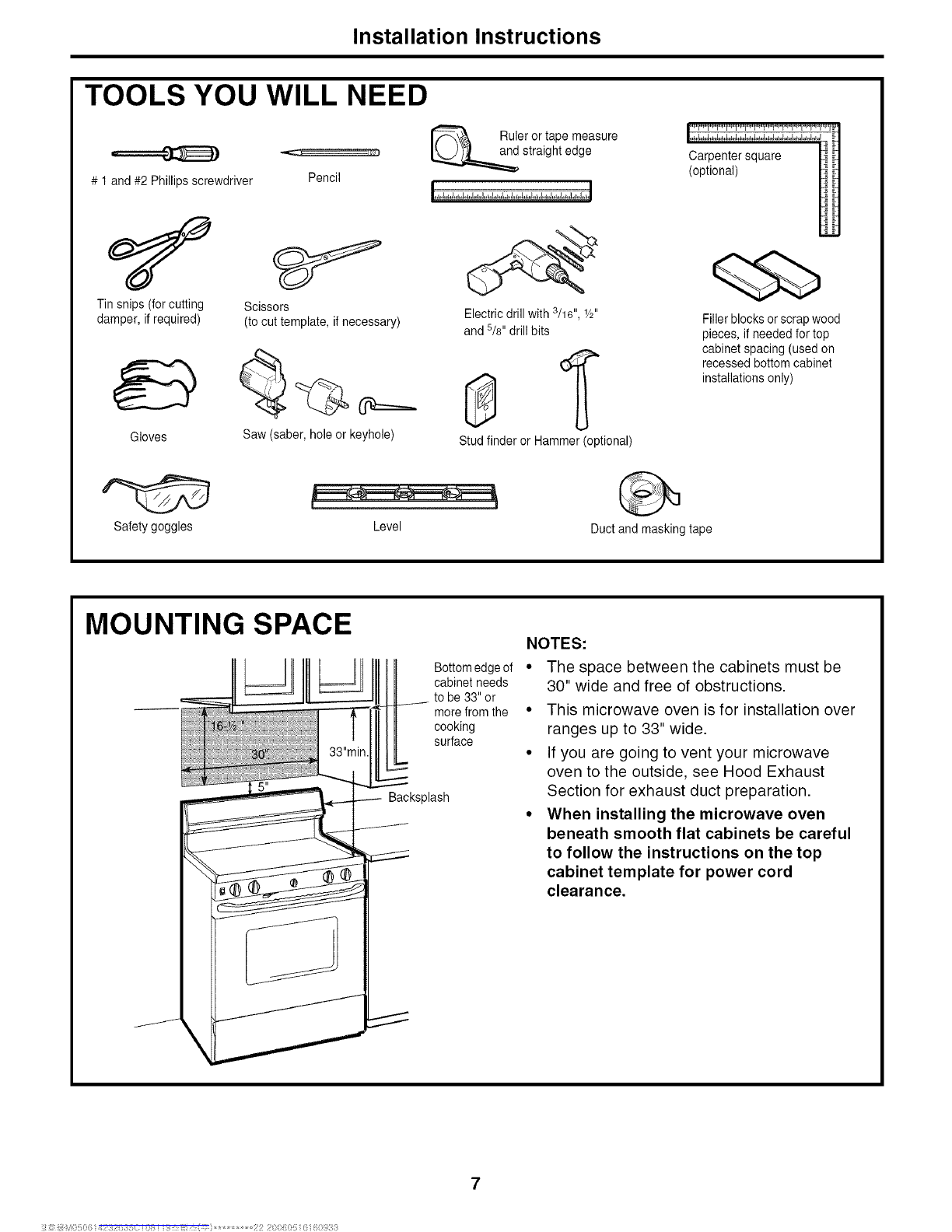

TOOLS YOU WILL NEED

Pencil

# 1 and #2 Phillips screwdriver

Ruler or tapemeasure

straight edge

Tin snips (for cutting

damper, if required)

Gloves

Scissors

(tocut template, if necessary)

Saw (saber, hole or keyhole)

Electric drill with 3/16", 1/2"

and5/8"drill bits

Stud finder or Hammer (optional)

Carpenter square 4__

(optional) _ _

Filler blocksor scrap wood

pieces, if needed for top

cabinet spacing (used on

recessed bottom cabinet

installations only)

Safety goggles Level Ductand masking tape

MOUNTING SPACE

Bottom edgeof *

cabinet needs

to be 33"or

more from the *

cooking

surface Q

Backsplash

NOTES:

The space between the cabinets must be

30" wide and free of obstructions.

This microwave oven is for installation over

ranges up to 33" wide.

If you are going to vent your microwave

oven to the outside, see Hood Exhaust

Section for exhaust duct preparation.

When installing the microwave oven

beneath smooth flat cabinets be careful

to follow the instructions on the top

cabinet template for power cord

clearance.

Installation Instructions

1.PLACEMENT OF THE MOUNTING PLATE

A. REMOVING THE MICROWAVE

OVEN FROM THE CARTON/

REMOVING THE MOUNTING

PLATE

1. Remove the installation instructions, Exhaust

adaptor, filters, glass tray and the small hardware

bag. Do not remove the Styrofoam protecting the

front of the oven.

2, Fold back all 4 carton flaps fully against carton

sides. Then carefully roll the oven and carton over

onto the top side. The oven should be resting in

the Styrofoam.

3. Pull the carton up and off the oven.

4, Remove and properly discard plastic bags.

Screws

Mounting Plate T

5, Remove the 2 screws from the mounting plate.

This plate will be used as the rear wall template

and for mounting.

NOTE: You will have to reuse two screws in original

Ioction of outcase after removing mounting plate.

B. FINDING THE WALL STUDS

iWall Studs

1. Find the studs, using one of the following

methods:

A. Stud finder-a magnetic device which locates

nails.

B. Use a hammer to tap lightly across the

mounting surface to find a solid sound. This

will indicate a stud location.

2. After locating the stud(s), find the center by

probing the wall with a small nail to find the edges

of the stud. Then place a mark halfway between

the edges. The center of any adjacent studs

should be 16" or 24" from this mark.

3. Draw a line down the center of the studs.

THE MICROWAVE MUST BE CONNECTED TO AT

LEAST ONE WALL STUD.

Installation Instructions

DETERMINING WALL PLATE LOCATION UNDER YOUR CABINET

Plate position - beneath flat bottom cabinet

Draw a vertical line on

the wall at the center of

the 30" wide space.

Tape the Rear Wall

Template onto the wall

matching the centerline

and touching the

bottom of the cabinet.

_mmmmmmmmmmmmmmmmmmmmmmmmmmmmmmmmmmmmmmmmmmd

Plate position - beneath framed recessed

cabinet bottom

33" to Cooktop

Draw a vertical line on the wall at the center of the

30" space.

Tape the Rear Wall Template onto the wall

matching the centerline and touching the bottom

cabinet frame.

Plate position - beneath recessed bottom

cabinet with front overhang

Your cabinets may have decorative trim that

interferes with the microwave installation. Remove

the decorative trim to install the microwave properly

and to make it level.

THE MICROWAVE MUST BE LEVEL.

Use a level to make sure the cabinet bottom is level.

If the cabinets have a front overhang only, with no

back or side frame, install the mounting plate down

the same distance as the front overhang depth. This

will keep the microwave level.

1. Measure the inside depth of the front overhang.

2. Draw a horizontal line on the back wall an equal

distance below the cabinet bottom as the inside

depth of the front overhang.

3. For this type of installation with front overhang

only, align the mounting tabs with this horizontal

line, not touching the cabinet bottom as described

in Step D.

Installation Instructions

D_ ALIGNING THE WALL PLATE

Horizontal Line

Hole A

Area E

REAR WALI_ TEMPLATE

Centerline Draw a Vertical Line

notches on Wall from Center

of Cabinet

HoleC

CAUTION: Wear gloves to avoid cutting

fingers on sharp edges.

Hole B Horizontal Line

Draw a Horizontal line on wall from

bottom of "Rear Wall Template".

1, Draw a Vertical line on the wall at the center of the

30" wide space.

2. Draw a Horizontal line on the wall at the bottom of

"Rear Wall Template".

3. Drill 5/8" holes for toggle bolts on 3 locations

(Hole A, Hole B, Hole C) but if the location of hole

is same as that of stud, drill a 3/16" hole for wood

screw. In other words, toggle bolt can not be used

to the location of stud.

NOTE: DO NOT MOUNT THE PLATE AT THIS

TIME.

NOTE: Holes A, B and C are inside area E. If none of

A, B and C is in a stud, find a stud somewhere in area

E and draw a forth circle to line up with the stud. It is

important to use at least one wood screw mounted

firmly in a stud to support the weight of the

microwave. Set the mounting plate aside.

Otros manuales para LEVM30FE

Tabla de contenidos

Otros manuales de Microondas de Frigidaire

Frigidaire

Frigidaire FMOW1852AS Manual del propietario

Frigidaire

Frigidaire GMOS1962AF Manual del propietario

Frigidaire

Frigidaire FFCE1638L S Manual de usuario

Frigidaire

Frigidaire GMOS1266AF Manual del propietario

Frigidaire

Frigidaire PLMVZ169HC - 1.6 cu. Ft. Microwave Oven Manual de usuario

Frigidaire

Frigidaire FGMV205KB Manual del propietario

Frigidaire

Frigidaire FPBM189KF - Professional Series... Manual de usuario

Frigidaire

Frigidaire FGMO205KB - Gallery 2.0 cu. Ft. Microwave Guía de inicio rápido

Frigidaire

Frigidaire MC-700M Guía de referencia rápida

Frigidaire

Frigidaire Gallery FGMV174K F Manual de usuario

Frigidaire

Frigidaire FGMV153CLB Guía de inicio rápido

Frigidaire

Frigidaire Gallery FGMV153CL Guía de instalación

Frigidaire

Frigidaire FFMV1846VS Manual de usuario

Frigidaire

Frigidaire EM048KYY Manual del propietario

Frigidaire

Frigidaire Microwave / Wall Oven Combination Manual del propietario

Frigidaire

Frigidaire CGBM185KBB Manual del propietario

Frigidaire

Frigidaire GLMB186 Manual de usuario

Frigidaire

Frigidaire FFCE2238L B Manual de usuario

Frigidaire

Frigidaire FPMO209KF - Professional 2.0 cu. Ft.... Manual de usuario

Frigidaire

Frigidaire FFCT1278LS Manual de usuario

Frigidaire

Frigidaire GLMV168K Manual de usuario

Frigidaire

Frigidaire FGMO206NTD Manual del propietario

Frigidaire

Frigidaire PMOS1980AF Manual del propietario

Frigidaire

Frigidaire GMBD3068AF Manual del propietario

Manuales populares de Microondas de otras marcas

Daewoo

Daewoo KOG-574R0S Manual de usuario

LG MH7040SS Manual de usuario

Sharp

Sharp R-895(AL)M Manual de usuario

Dometic

Dometic DOTRM13W Manual de usuario

Sanyo

Sanyo EM-X680 Manual de usuario

Sharp

Sharp R-393M Manual de usuario

KitchenAid

KitchenAid KMCX4510 Instrucciones de instalación

Smeg

Smeg S45MCX1 Manual de usuario

Russell Hobbs

Russell Hobbs RHM2044 Manual de usuario

Sunbeam

Sunbeam SMW759 Manual de usuario

Gallet

Gallet FMOE230S Manual de usuario

Bosch

Bosch CEG732X.1B Manual de usuario

Dometic

Dometic Roadmate 230 Manual de usuario

Samsung

Samsung SJ0396W Manual de usuario

Sanyo

Sanyo EM-P494WS Manual de usuario

Sharp

Sharp R-240 Manual de usuario

Electrolux

Electrolux EMS2840 Manual de usuario

Daewoo

Daewoo KOC-984T2S13 Manual de usuario
