PART QUANTITY

Trim Frame 1

Bottom Duct 1

Side Duct 1

1” Screws 6

(4 required, 2 extra)

1⁄2” Screws 15

(11 required, 4 extra)

Anti-Tip Bracket 1

Bottom Bracket 1

Upper Duct 1

Template 1

Questions? In the U.S., call 1-800-944-9044. In Canada, call 1-866-213-9397 (English),

1-800-669-4606 ext. 8199 (French).

Visit our Website at:

www.frigidaire.com

READ CAREFULLY.

KEEP THESE INSTRUCTIONS.

Installation Built-In Trim Kits

Instructions

82-1827 and 82-1830

Phillips screwdriver

Pencil

Tape measure

Awl or punch

Drill with 7⁄64″bit or #35

164D3370P160

49-40169-1

P/N 316137209 Rev. A

Printed in Korea (05-01 JR)

BEFORE YOU BEGIN

Read these instructions completely and carefully.

•IMPORTANT –Save these

instructions for local inspector’s use.

•IMPORTANT –Observe all

governing codes and ordinances.

•Note to Installer –Be sure to leave these

instructions with the Consumer.

•Note to Consumer –Keep these

instructions for future reference.

• Unplug the microwave oven before attempting

installation of this kit.

• Skill level – Installation of this appliance requires basic

mechanical and electrical skills.

• Completion time – 1-3 hours

• Proper installation is the responsibility of the installer.

• Product failure due to improper installation is not

covered under the Warranty.

• This kit is UL and CUL listed for installation alone or

over any Frigidaire single electric wall oven.

FOR YOUR SAFETY:

WARNING –Before beginning the

installation, switch power off at service panel and lock

the service disconnecting means to prevent power

from being switched on accidentally. When the service

disconnecting means cannot be locked, securely fasten

a prominent warning device, such as a tag, to the

service panel.

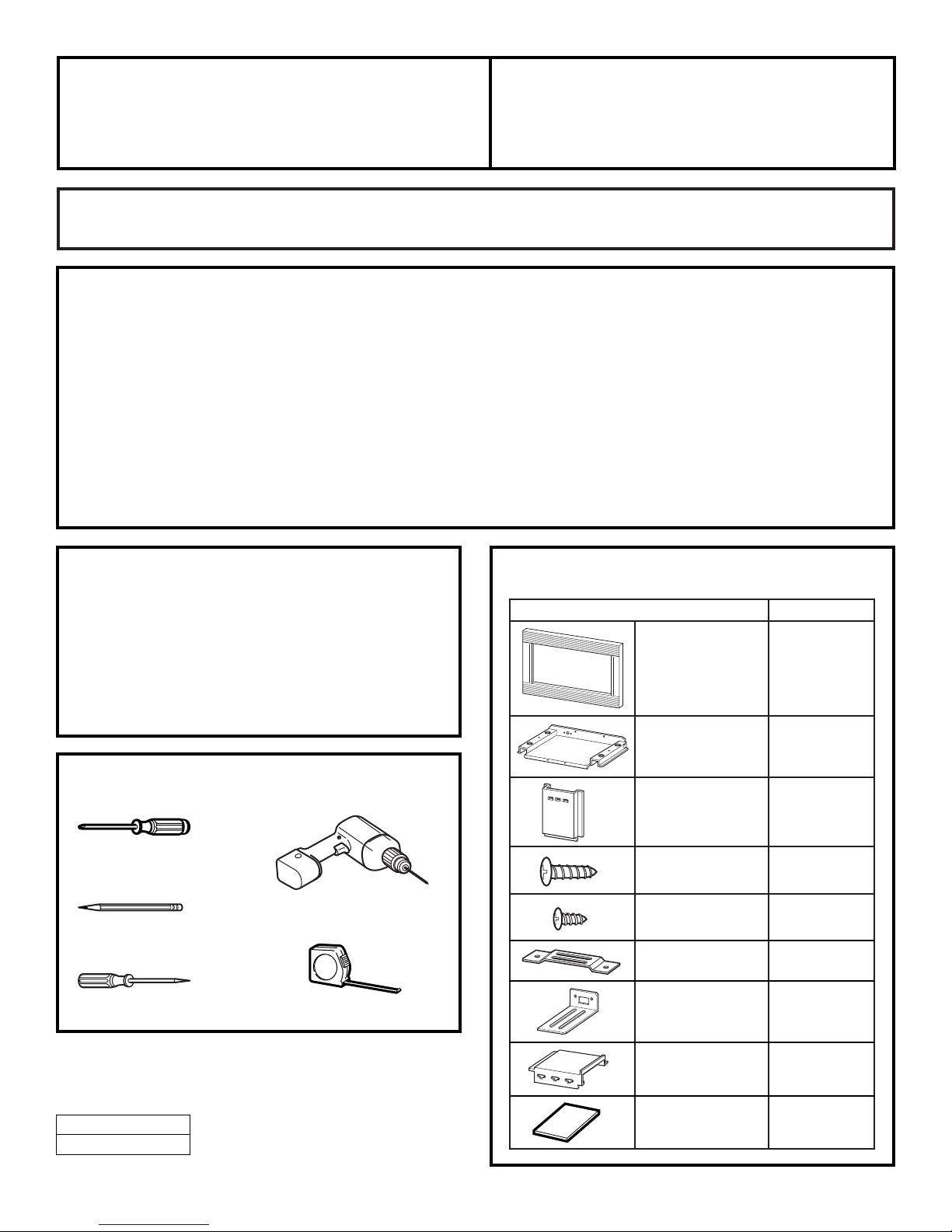

TOOLS YOU WILL NEED

PARTS INCLUDED

Installation Instructions

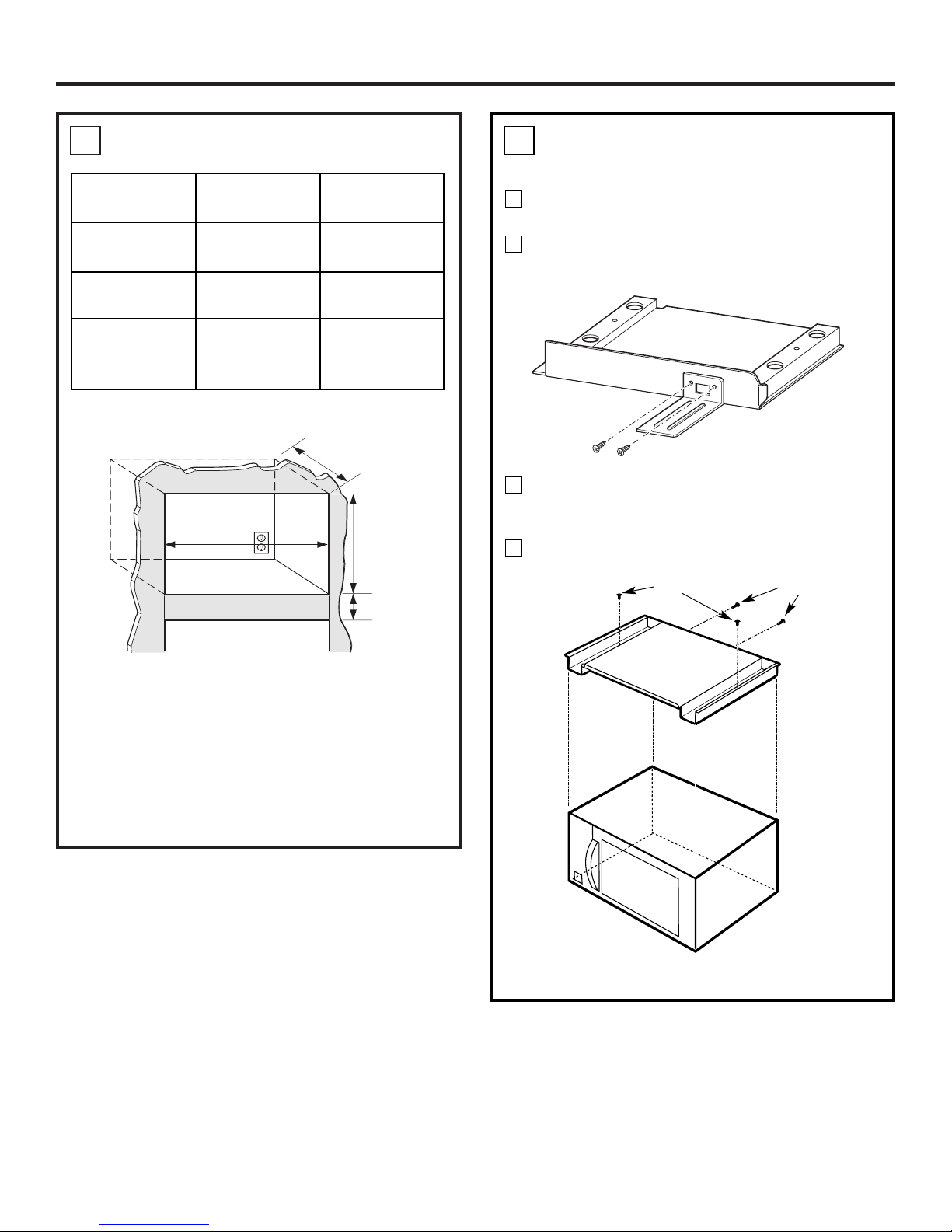

CUTOUT DIMENSIONS

On 27″(68.6 cm) models, allow 1″(2.5 cm) at the top,

11⁄16″(1.75 cm)on the sides and 13⁄8″(3.5 cm)at the

bottom for overlap of the Trim Frame over the edges

of the cutout.

On 30″(76.2 cm) models, allow 1″(2.5 cm) at the top,

23⁄16″(5.6 cm) on the sides and 13⁄8″(3.5 cm) at the

bottom for overlap of the Trim Frame over the edges

of the cutout.

* Min. depth with receptacle outside cabinet 191⁄2″ (49.5 cm).

Min. depth with receptacle inside cabinet 22″ (56 cm).

Depth

Height

3″Min.

(7.6 cm)

Width

Models 27″30″

(68.6 cm) (76.2 cm)

Height 163⁄4″163⁄4″

(42.5 cm) (42.5 cm)

Width 251⁄2″251⁄2″

(6.5 cm) (6.5 cm)

Depth (min.)* 191⁄2″or 22″191⁄2″or 22″

(49.5 cm or (49.5 cm or

56 cm) 56 cm)

INSTALL BOTTOM BRACKET

AND BOTTOM DUCT

Disconnect the microwave oven before proceeding

with the installation.

Fasten the bottom bracket to the bottom duct by

using two 1⁄2″screws.

Remove any loose items inside the microwave oven,

including the turntable and turntable support.

Carefully turn the microwave upside down.

Install bottom duct with four 1⁄2″screws as shown.

Microwave Oven Upside Down

Front

Rear

1⁄2″Screws (2)

Screws

Installation Instructions

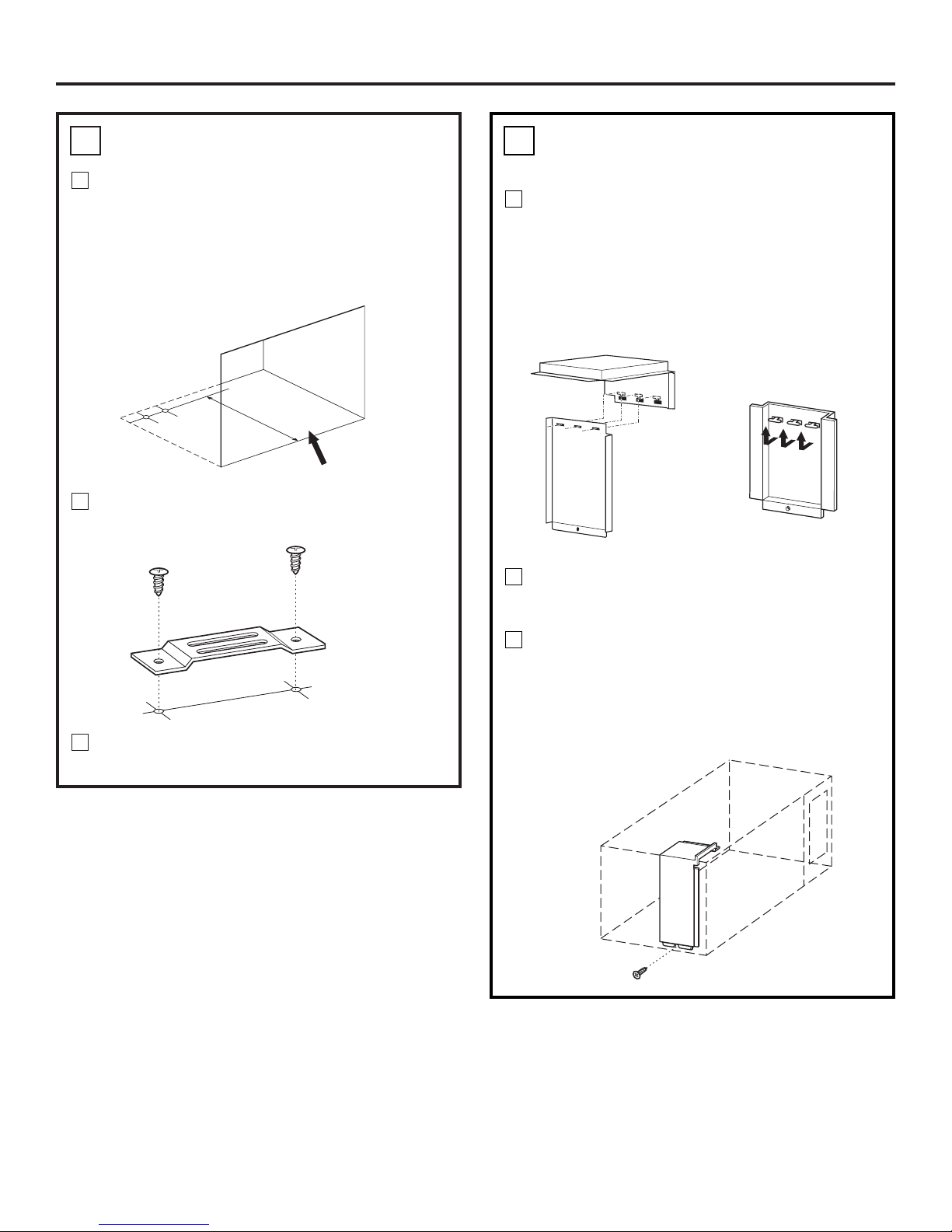

INSTALL THE ANTI-TIP BRACKET

Fold or cut the front edge of the template, along the

front guide line. Place the template flush along the

front edge of the cutout floor, aligning the center

line of the template with the center line of the

cutout floor. Mark the center positions with an awl

or center punch for the anti-tip bracket location

as shown.

Remove the template and drill two holes for the

anti-tip bracket.

Install the anti-tip bracket onto the cutout floor

using two 1⁄2″screws.

Cutout Floor

1⁄2″Screws (2)

Anti-Tip Bracket

INSTALL SIDE DUCT AND

UPPER DUCT

Connect the side duct to the upper duct as shown.

1. Insert projecting tabs of the upper duct into the

holes of the side duct.

2. Bend the tabs up with caution as shown.

NOTE: Remove any oil or dirt on the surface of the

microwave oven before the ducts are attached.

Set the microwave upright, being careful not to

bend the front flange. Remove the one existing

screw from the left side of the microwave oven.

Peel off the backing of the double sided tape.

Carefully position the side duct and upper duct

assembly on the microwave cabinet, aligning with

the bottom screw hole. Press down firmly on the

ducts. Fasten the duct assembly to the left side of

the cabinet with the screw removed above.

(2)

(1)

Existing Screw (1)

Upper Duct

Side Duct

3 Tabs

3 Holes

INSTALLING THE TRIM FRAME

Place the trim frame over the microwave oven.

Make sure the trim frame is level and the microwave

oven is centered within the trim frame. Mark four

center positions through the four mounting holes

of the trim frame.

NOTE: Center the trim frame equally on all four

sides.

Remove the trim frame and drill four pilot holes.

Attach the trim frame by using four screws.

Installation Instructions

Pilot Hole

Cutout Opening

Mounting Hole

Trim Frame

1″Screw

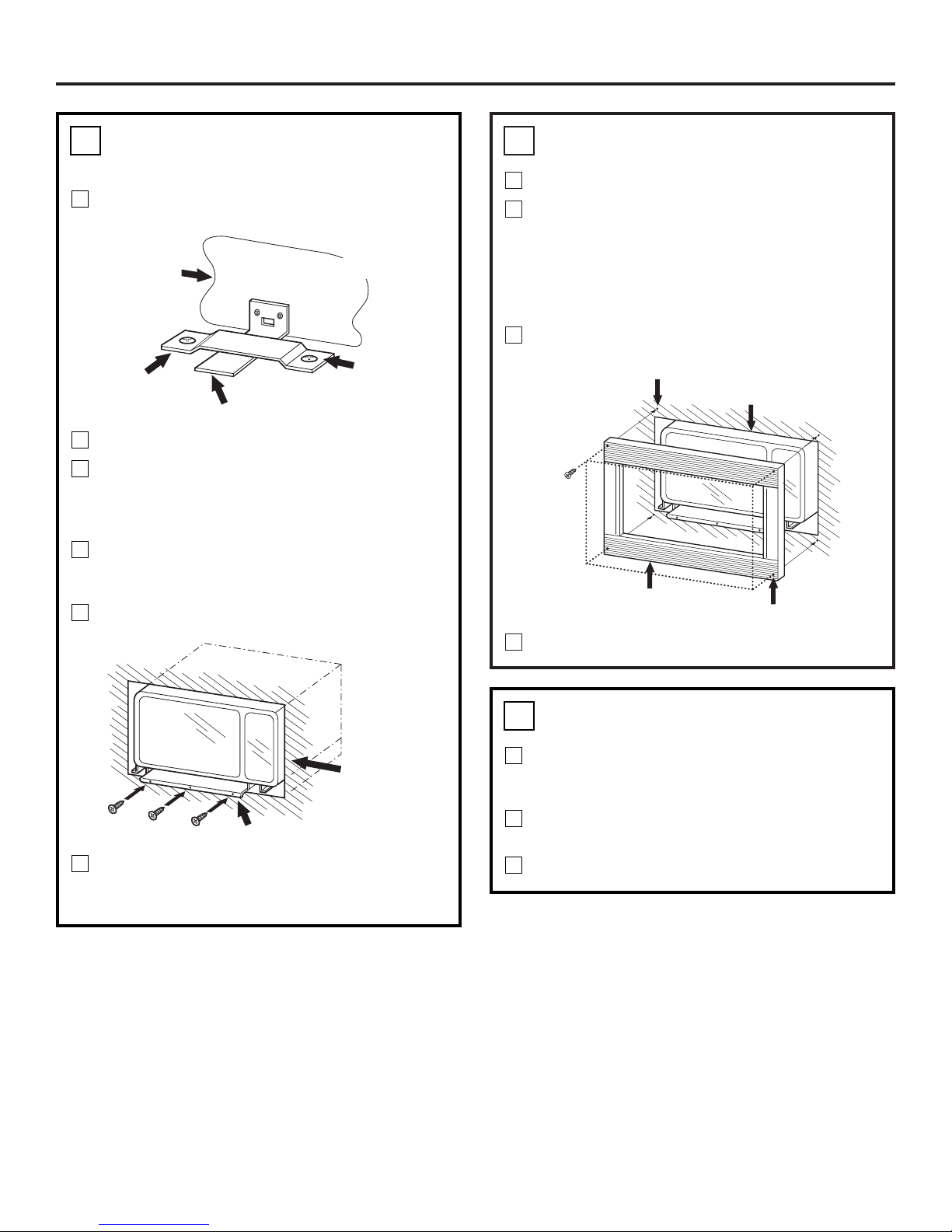

INSTALL MICROWAVE OVEN

INTO CABINET

Slide the microwave oven part way into the cabinet

opening.

Plug in the microwave oven.

Bottom bracket must be flat to the cutout floor to

engage correctly with the anti-tip bracket as shown.

Carefully slide the microwave back, making sure the

power cord is not mashed or cut.

Center the microwave oven within the cutout

opening and slide the microwave oven in place,

engaging the anti-tip bracket.

Ensure the microwave oven is accurately centered.

Drill pilot holes through the positioning flange and

then install three 1⁄2″screws at the front of the

bottom duct as shown.

Anti-Tip Assembly

Bottom Duct

1⁄2″Screw

Bottom Bracket

Anti-Tip

Bracket

Cutout Opening

Positioning Flange

1⁄2″Screw

REPLACE ANY LOOSE ITEMS

Your trim kit is now fully installed. Replace any

loose items that were removed from the inside of

the microwave oven.

Keep these installation instructions for future

reference.

Replace house fuse or close circuit breaker.
