Frigidaire FAH12EJ2T1 Manual de usuario

PRODUCT NO.

BASE MODEL NO.

VOLTS

BTU-COOLING

FAH12EJ2T1 FAH12EJ2T 230 12000

BTU-HEATING

10600

P.O. Box 212378

Augusta, GA 30917

FACTORY PARTS CATALOG

ROOM AIR CONDITIONER

Model No.

FAH12EJ2T1

WIRING DIAGRAM # - 309104101

OWNERS GUIDE # - 309000823

Publication No.

000307

-EN/SERVICE /REP

345

5995337572

FAH12EJ2T1

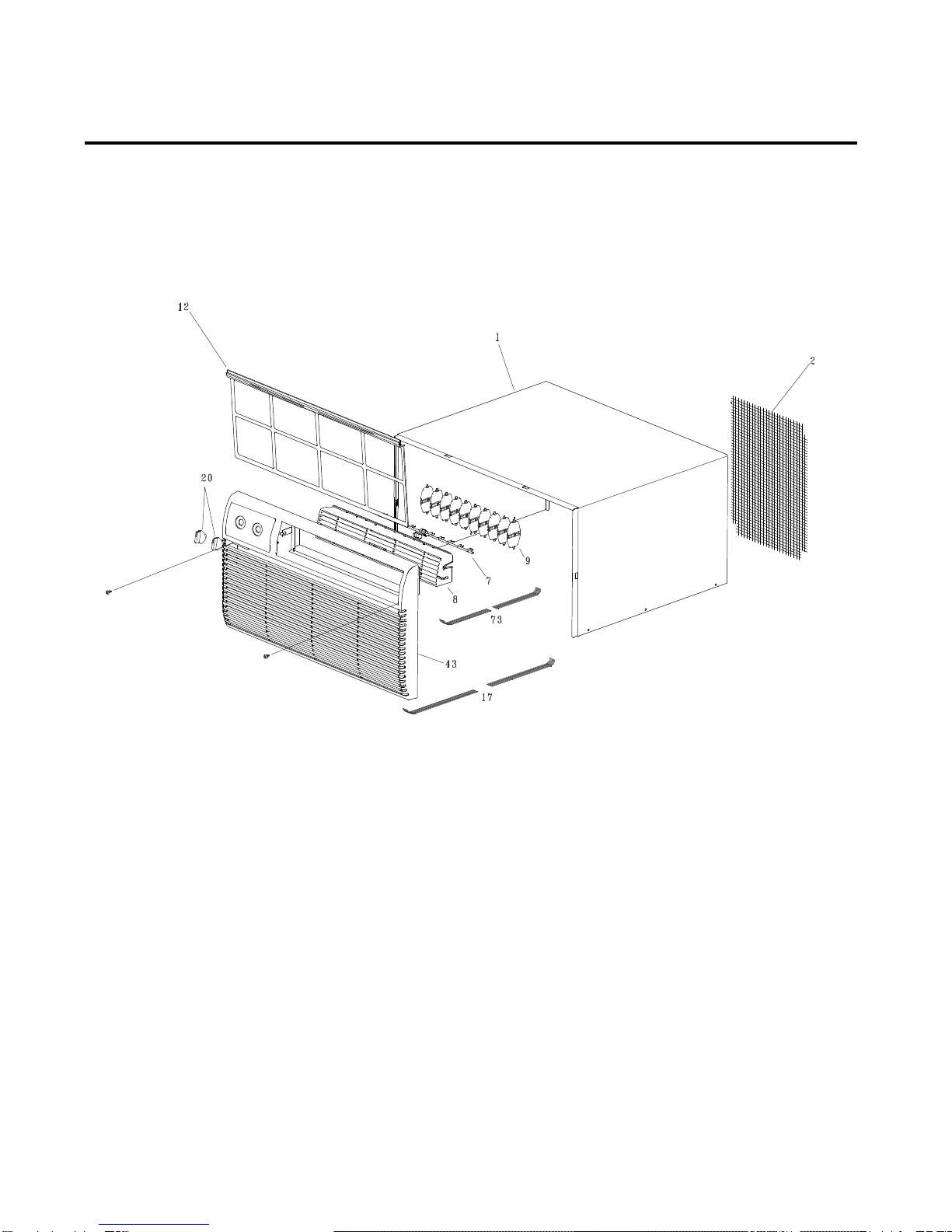

CABINET FRONT AND WRAPPER

5/00 1

FAH12EJ2T1

1 309627504 WRAPPER-U BEND 18.5 BLD

2 309636101 SCREEN-SAFETY 18.5 BLD

7 309324004 LINK-VERT LOUVER 1403

8 309628004 LOUVERS-HORIZ 1403

9 309628104 LOUVER-VERT 1403

12 309628204 FILTER-MOLDED AIR

17 309629406 FRONT ASSY 18.5 BLD

20 309307011 KNOB-CONTROL(1403;W/6502)

29 5304410881 SCREW-FRONT MTG

43 309631806 FNT/CTRL LABEL ASSY

73 309629304 LOUVER ASSY

*5304408740 PANEL-REAR PLASTIC

CABINET FRONT AND WRAPPER

POS. NO. PART NO. DESCRIPTION

# = Functional Parts

* = Non-illustrated Parts

5/00 2

FAH12EJ2T1

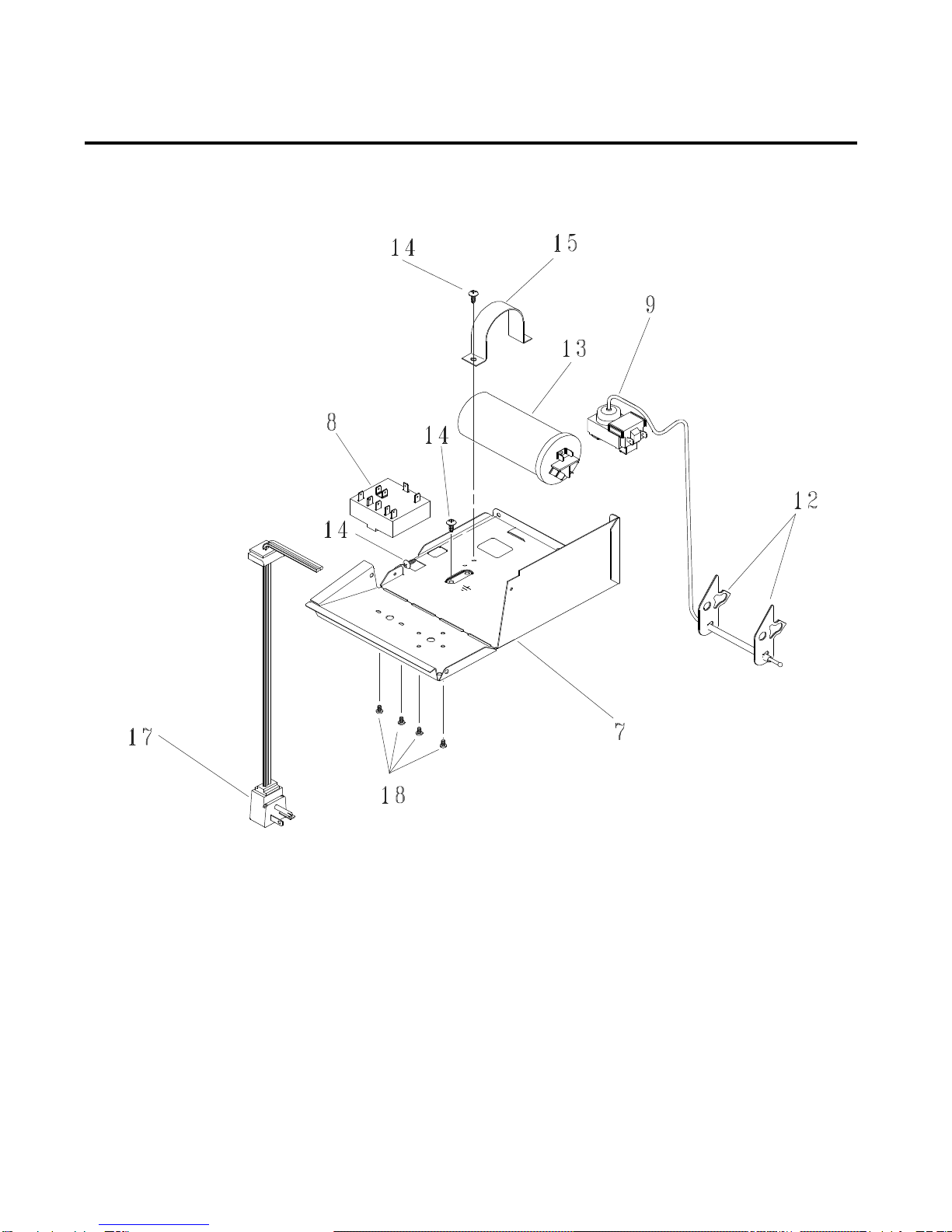

CONTROL PARTS

5/00 3

FAH12EJ2T1

7# 309628502 #BOX-CONTROL

8# 309329301 SWITCH-7POS GE

9 5304409496 CONTROL-AIR TEMP

12 309329801 #RETAINING CLIP

13# 5303319112 Capacitor,370V, 30+7.5

14 5303285199 Screw,phillips, 8-18,sq. recess

truss head

15 5303303077 Strap-capacitor

17# 309343107 CORD-SRV 230V/12GA TYPE D

18 5303007754 Screw,.138-32

35 3200761 Spacer-control bulb

37 5304409509 HARNESS ASM

*309111201 GROMMET-WIRES

CONTROL PARTS

# = Functional Parts

* = Non-illustrated Parts

POS. NO. PART NO. DESCRIPTION

5/00 4

FAH12EJ2T1

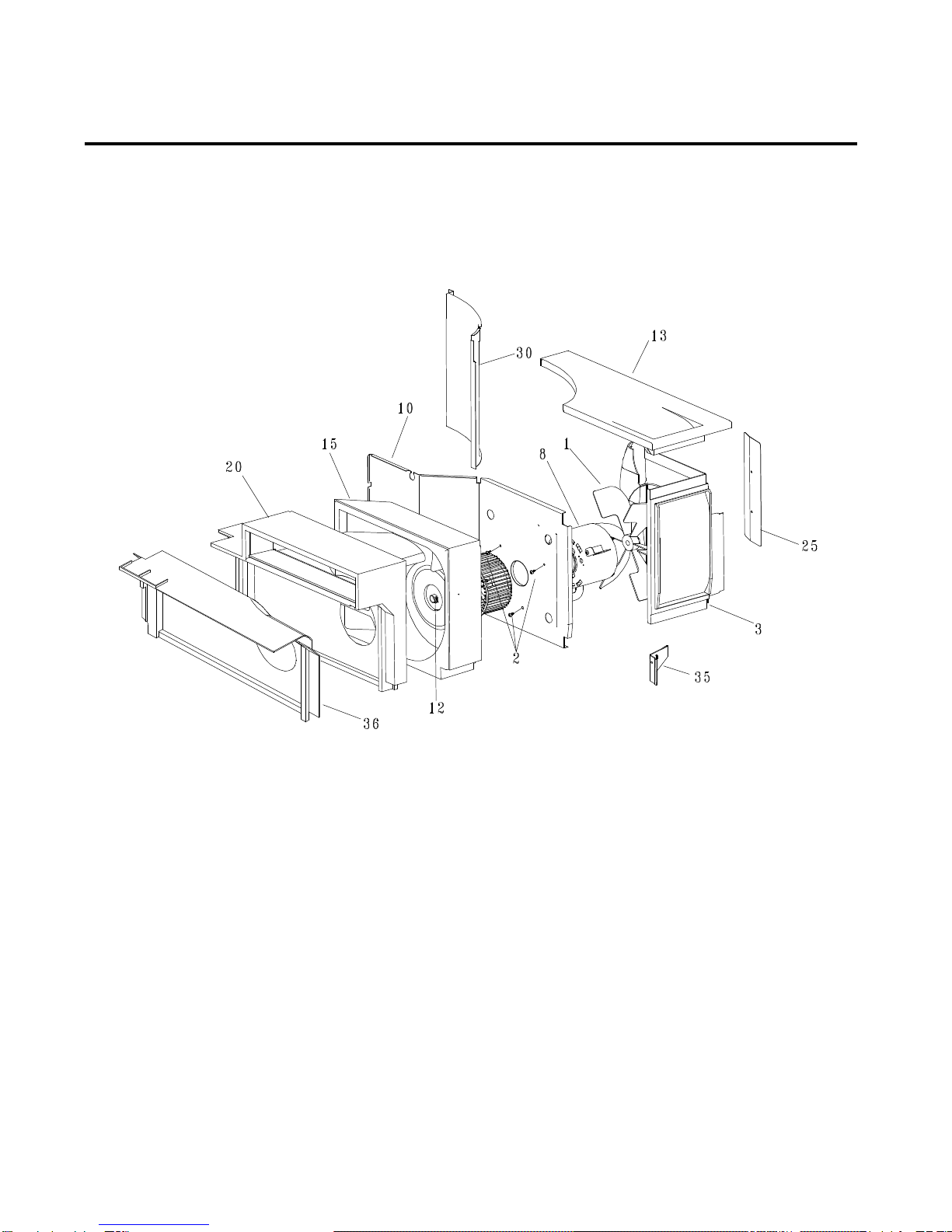

AIR HANDLING PARTS

5/00 5

FAH12EJ2T1

1# 309629102 BLADE-FAN ASSY

2 3202975 Screw,10-16 x 0.72 sq. drive

3 309628901 SHROUD-CONDENSER

8# 5304409514 MOTOR-FAN 2SP,W/LEADS

10 309627401 BULKHEAD-18.5CHASSIS

11# 309631701 BLOWER WHEEL

12 5303012110 Clamp-blower

13 309628802 TOP-CONDENSER

15 309622802 SCROLL-18.5

20 309625501 SCROLL PLATE

25 309335201 BAFFLE-AIR

30 309629001 PARTITION-SHROUD

35 309335001 BAFFLE-CONDENSATE

36 309633401 HEAT SHIELD

AIR HANDLING PARTS

POS. NO. PART NO. DESCRIPTION

# = Functional Parts

* = Non-illustrated Parts

5/00 6

FAH12EJ2T1

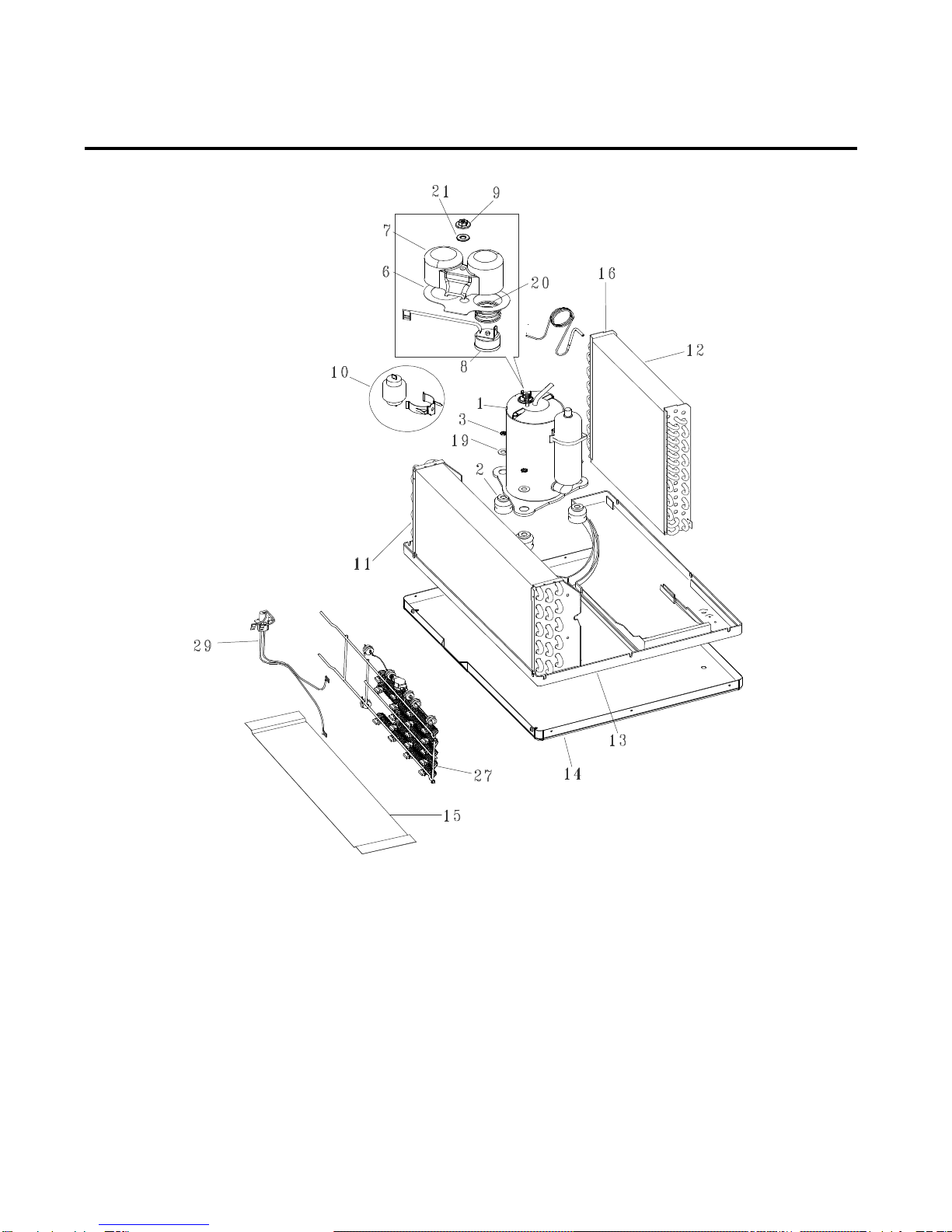

COMPRESSOR PARTS

5/00 7

FAH12EJ2T1

1# 5304408198 COMPR-MATSUSHITA

2 5303283877 Grommet,compressor,(3)

3 5308006948 Nut,compressor,(3)

6 5303002035 Gasket-cover

7 5303211011 Cover-terminal

8# 5304408199 OVERLOAD-MRA 99809-694

9 5303301734 Nut,cover

11# 309632401 EVAP ASSY-3RW/19FPI

12# 309632505 COND ASSY-3RW/15FPI

13 309628702 TRAY-BASE

14 309632003 BASE/STUD ASSY

15 309629501 HEAT SHIELD

16# 3203179 Capillary tube

19 5303002664 Washer,compressor

20 5303002036 Spring,overload

21 5303295516 Washer,cover

27 309627002 HEATER ASS'Y

30 3017804 Valve-drain

32 3018695 Nut-heater

36 # 5304409501 Harness-wire, heater 12awg

COMPRESSOR PARTS

POS. NO. PART NO. DESCRIPTION

# = Functional Parts

* = Non-illustrated Parts

5/00 8

FAH12EJ2T1

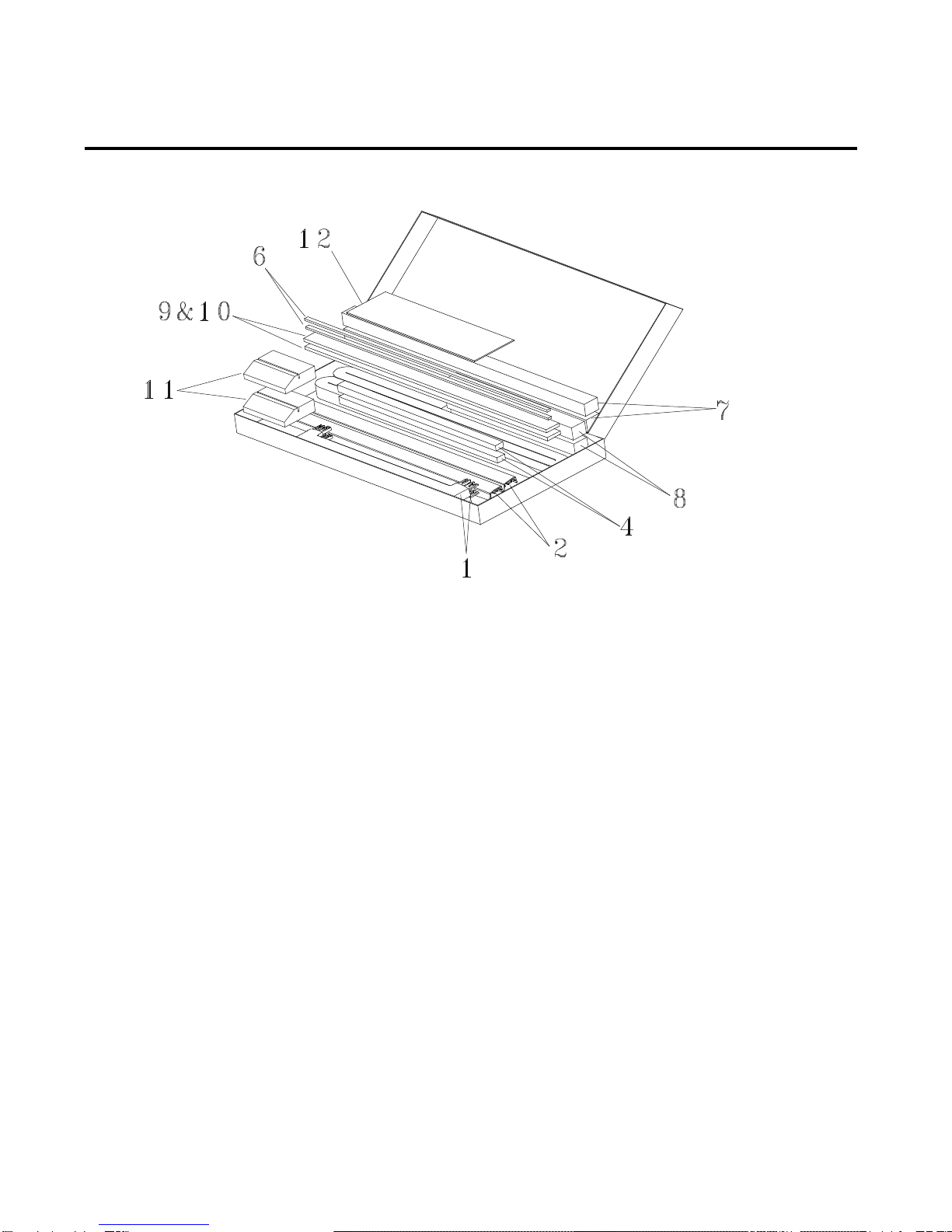

1 309628603 TRIM FRAME-SIDES

2 309628604 TRIM FRAME-TOP & BOTTOM

3 * 5304409303 KIT-GROUNDING WIRE

4 5304409304 BLOCK-TAPERED

5 * 5303301038 SEAL-WRAPPER

6 5304409305 SEAL-COND END BRACKET

7 5304409306 SEAL-COND/REAR PANEL

8 5304409307 SEAL-COND/REAR PNL,SIDES

9 5304409308 SEAL-COND/RR PNL,TOP &BTTM

10 5304409309 SEAL-COND/REAR PNL, SIDES

11 5304409310 BLOCK-CHASSIS/CABINET

12 309335101 DIVIDER-COND IN/OUT

13 * 5304409311 KIT-GRILLE MOUNTING

15 309636002 KIT-MTG-ALL PARTS ABOVE

# = Functional Parts

* = Non-illustrated Parts

WINDOW MOUNTING PARTS

POS. NO. PART NO. DESCRIPTION

5/00 9
