Frigidaire FAA055M7A1 Manual de usuario

PRODUCT NO. BASE MODEL NO. SERIES VOLTS BTU-COOLING

FAA055M7A1 FAA055M7A Century 115 5000 BTU

MARKET

Frigidaire

Publication No.

5995385050

030130

-EN/SERVICE /KC

345

ROOM AIR CONDITIONER

Model No.

FAA055M7A1

FACTORY PARTS CATALOG

ROOM AIR CONDITIONER

WIRING DIAGRAM - # 309364201

OWNER’S GUIDE - # 309000848

ENERGY GUIDE - # 309369952

ELECTROLUX HOME PRODUCTS, INC

P.O.BOX 212378, AUGUSTA, GA 30917

01/03 2

Publication No. FAA055M7A1

5995385050

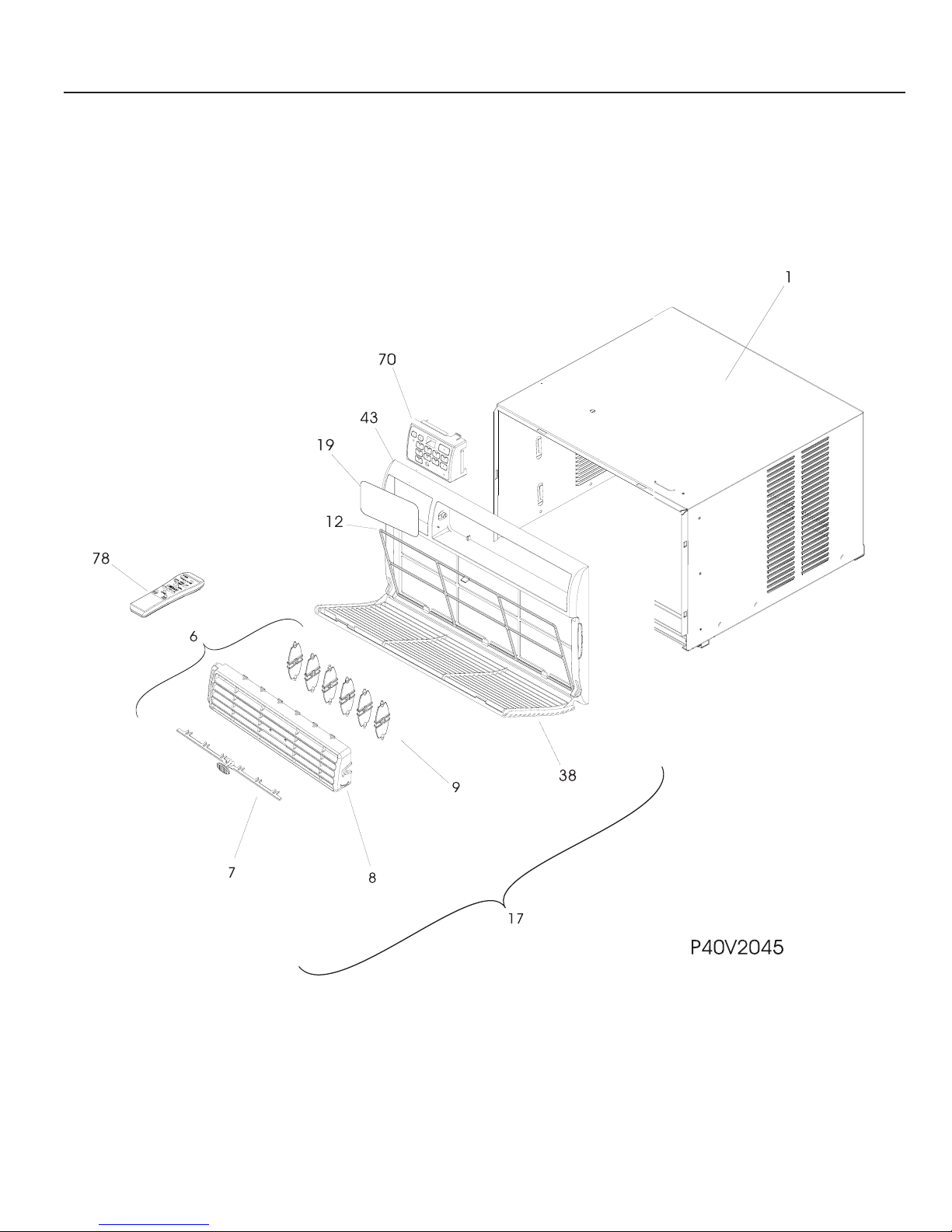

CABINET FRONT AND WRAPPER

# = Fast-moving Parts 3 01/03

* = Non-Illustrated Parts

FAA055M7A1 Publication No.

5995385050

CABINET FRONT AND WRAPPER

POS. NO PART NO DESCRIPTION

1 5304430636 Cabinet,wrapper

* 5303303691 Screw,truss head ,8-18AB x 0.375 ,w/nibs

6 309640207 Louver Assy,Includes 7,8,9

7 309638002 * Link,vertical louver ,with handle

8 309639303 * Louver,horizontal

9 309342001 * Louver,vertical ,(6)

12 309343501 Filter,air ,7.12 x 17.31 ,no frame

17 309640107 Front Assembly,4 way panel ,w/8,9,12,38,43

* 3015312 Screw,8-18AB x 0.500

19 309359903 Overlay,control

38 309646301 Panel,cabinet front

43 309646401 Frame,cabinet front

70 309369501 Enclosure,control mount

78 # 309342607 Remote Control,transmitter ,with batteries

* 309369952 Energy Guide,FAA055M7A

01/03 4

Publication No. FAA055M7A1

5995385050

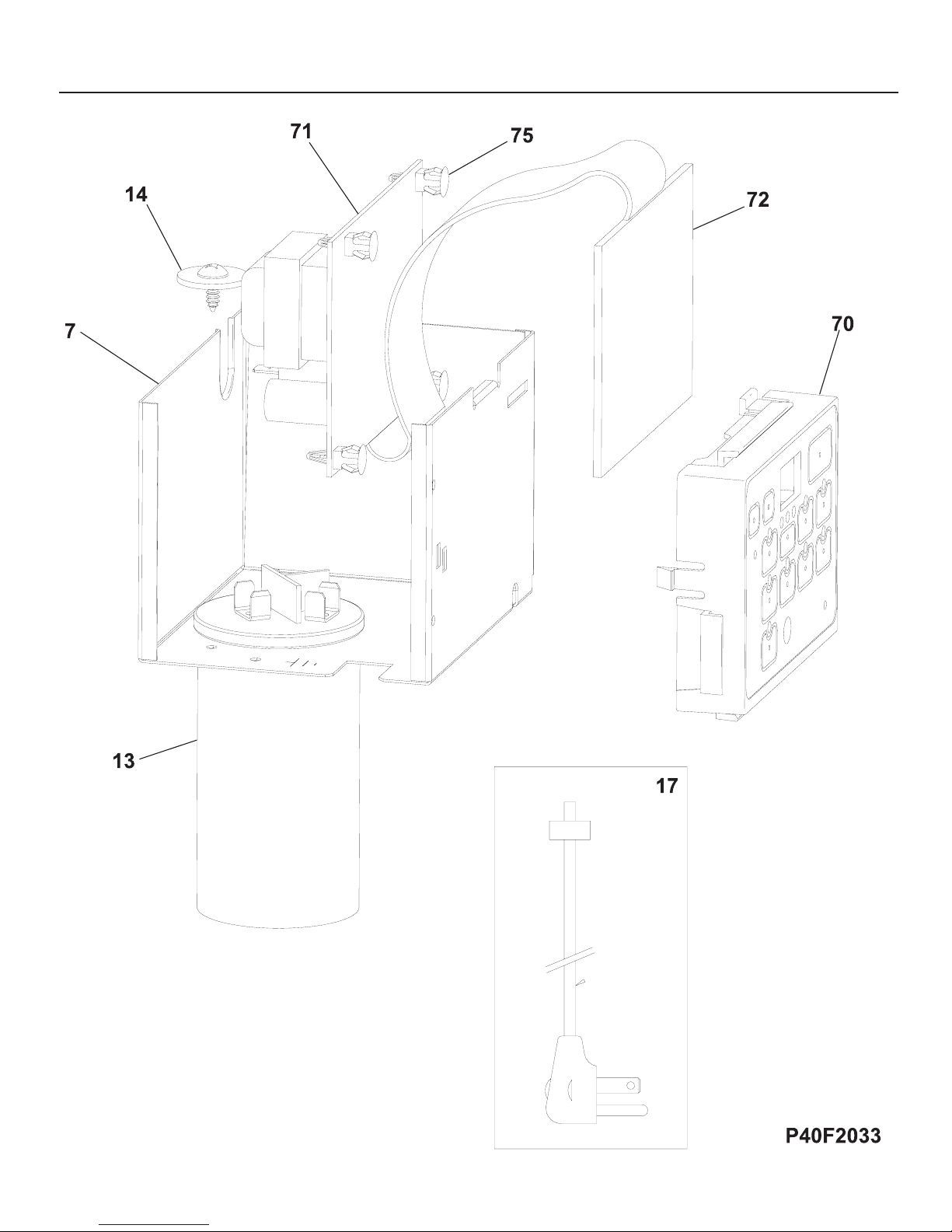

CONTROLS

# = Fast-moving Parts 5 01/03

* = Non-Illustrated Parts

FAA055M7A1 Publication No.

5995385050

CONTROLS

POS. NO PART NO DESCRIPTION

7 309650302 Control Box

13 # 5304426449 Capacitor,250 V ,35+5 mfd

14 3002801 Screw,8-18B x 0.500

17 # 309343122 Cord-electric power,18 AWG ,115 V

* 5303285199 Screw,Ph truss hd ,8-18 x 0.38 ,grounding

70 309369501 Enclosure,control mount

71 # 309350404 PC Board,power ,w/trans,sensor

72 # 309350406 PC Board,input ,sleep/filter ck

72* 5304417643 Ribbon Protector

72* 5303301590 Screw,6-20AB x 0.38

75 5304413781 Hardware,PCB support

01/03 6

Publication No. FAA055M7A1

5995385050

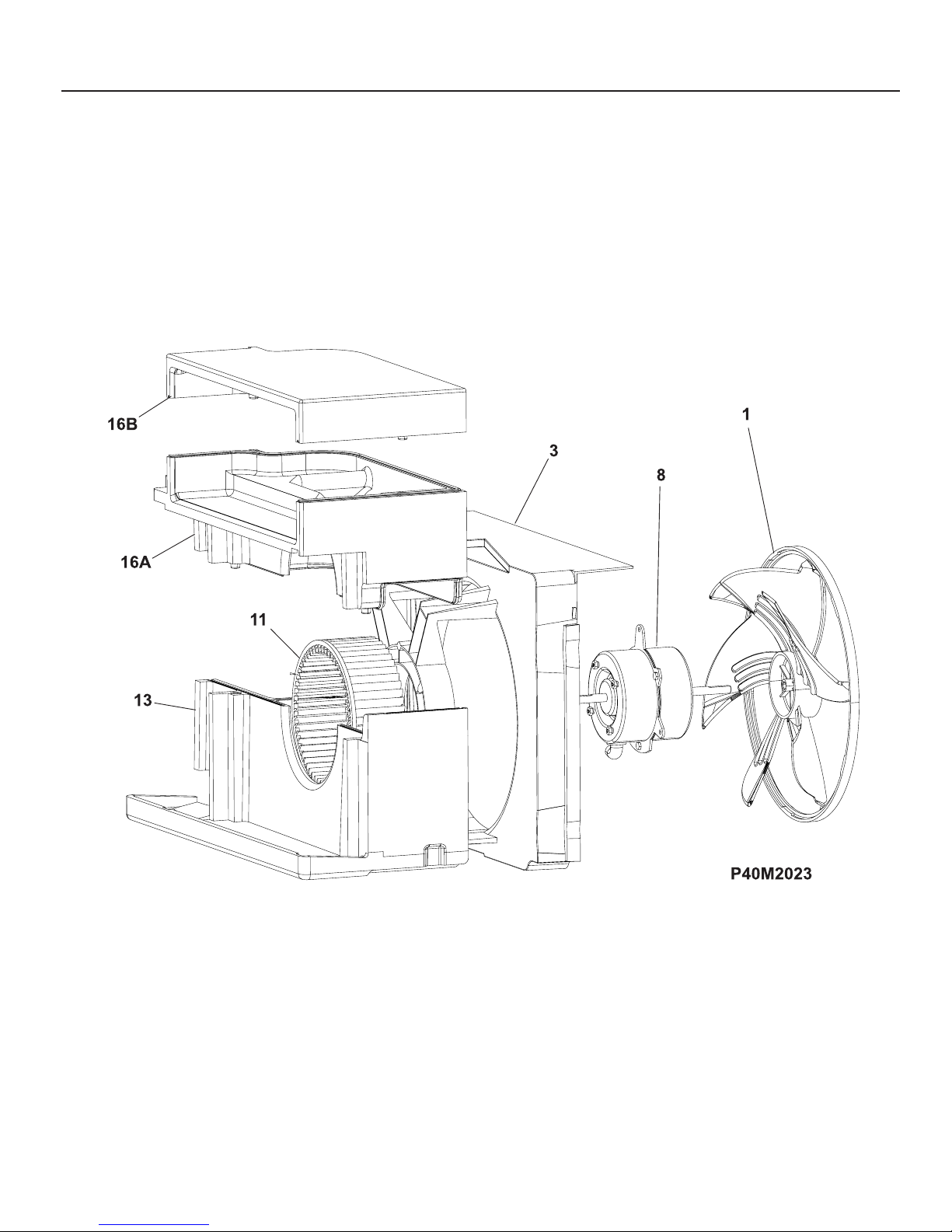

AIR HANDLING PARTS

# = Fast-moving Parts 7 01/03

* = Non-Illustrated Parts

FAA055M7A1 Publication No.

5995385050

AIR HANDLING PARTS

POS. NO PART NO DESCRIPTION

1 # 309646202 Fan Blade,with clamp

3 # 309650701 Shroud,fan housing

* 5303285199 Screw,Ph truss hd ,8-18 x 0.38 ,grounding

8 # 309649901 Motor,fan

* 3015312 Screw,8-18AB x 0.500

11 # 309649802 Blower Wheel,8mm snap-on hub

11* 327161302 Clamp,blower wheel mt ,compression

13 # 309650401 Scroll/Evap Tray,blower housing ,bottom

16A# 309650501 Scroll,blower housing ,top

16B# 309650601 Cover,scroll

01/03 8

Publication No. FAA055M7A1

5995385050

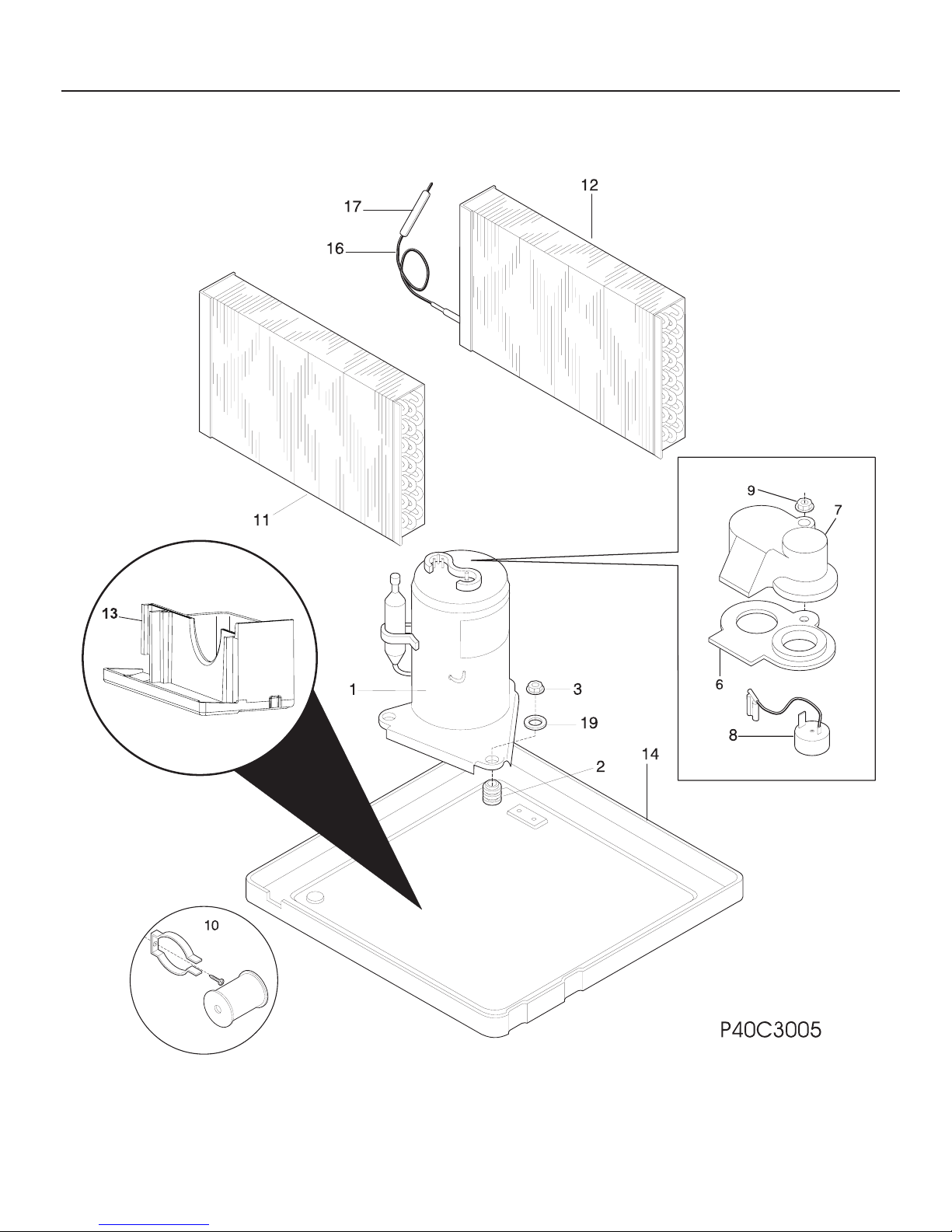

COMPRESSOR PARTS

# = Fast-moving Parts 9 01/03

* = Non-Illustrated Parts

FAA055M7A1 Publication No.

5995385050

COMPRESSOR PARTS

POS. NO PART NO DESCRIPTION

1 # 309616915 Compressor

2 5304430860 Grommet,compressor mtg ,(3)

3 5308006948 Nut,compressor mtg ,(3)

6 3201668 Gasket,terminal cover

7 5304405245 Cover,compr terminal

8 # 5303311029 Overload Protector

9 3201670 Nut,terminal cover

10 # 5303317601 Start Assist Kit,compressor

11 # 309637405 Evaporator

12 # 5303307226 Condenser

13 # 309650401 Scroll/Evap Tray,blower housing ,bottom

14 309650801 Base,compressor mtg ,with studs

16 # 5308017120 Capillary Tube,45 inch long ,cut to length

17 # 5300265301 Drier-filter,service kit

19 309112501 Washer,metallic

01/03 10

Publication No. FAA055M7A1

5995385050

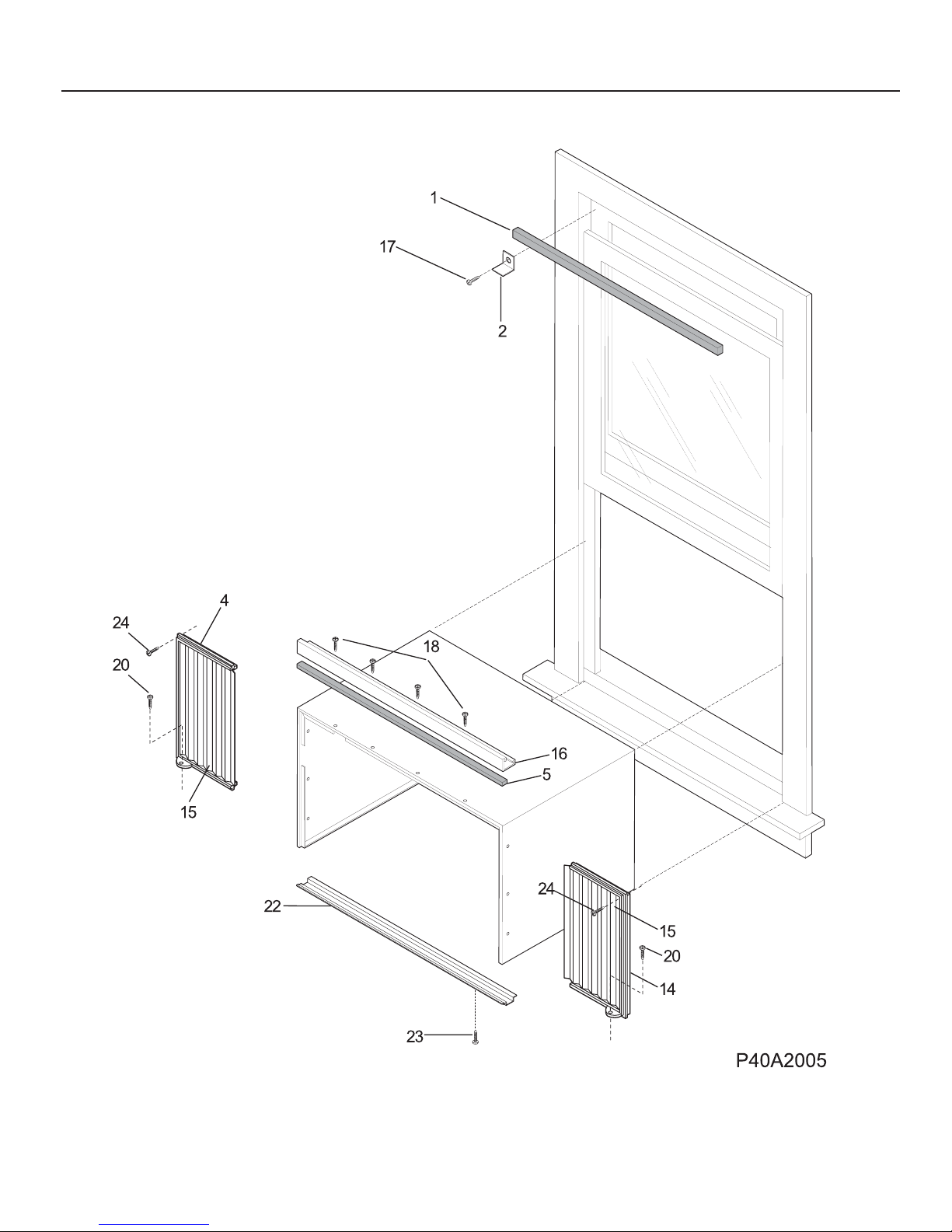

WINDOW MOUNTING PARTS
