Frigidaire EC300W-FA Manual de usuario

Manual v1.5

Evaporative Air Cooler

EC300W-FA

Owner’s Manual

READ AND SAVE THESE INSTRUCTIONS.

TABLE OF CONTENTS

Safety Information & Warnings ........................................................................... 4

Parts List............................................................................................................... 6

Features ............................................................................................................... 7

Operating Instructions ......................................................................................... 8

Filling The Water Tank ......................................................................................... 9

Using The Remote Control................................................................................. 11

Control & Display Panels.................................................................................... 12

Cleaning and Maintainance ............................................................................... 15

Product Storage ................................................................................................. 15

Troubleshooting................................................................................................. 16

Limited Manufacturer’s Warranty ..................................................................... 17

SPECIFICATIONS

MODEL

EC300W-FA

RATED VOLTAGE

120 V

～

RATED FREQUENCY

60 Hz

RATED POWER

110W

NOISE

≤60dB

AIRFLOW

600CFM

DIMENSIONS

15.37”×13.46”×35.33”

NET WEIGHT

17.64 lbs.

WARRANTY

1 Year Manufacturer’s Warranty

Frigidaire is a registered trademark of Electrolux Home Products, Inc.

Manufactured under license by:

NewAir, LLC

6600 Katella Ave, Cypress, CA 90630

Comments/questions:

support@newair.com | 855-963-9247

Take advantage of all the benefits product registration has to offer:

Service and Support

Diagnose troubleshooting and service issues faster and more

accurately

Recall Notifications

Stay up to date on safety, system updates and recall notifications

Special Promotions

Opt-in for NewAir promotions and offers.

Registering your product information online is safe & secure and takes

less than 2 minutes to complete:

Alternatively, we recommend you attach a copy of your sales receipt below and

record the following information, which can be found on the manufacturer’s

nameplate on the back of the unit. You will need this information if it becomes

necessary to contact the manufacturer for service inquiries.

Date of Purchase: ___________________________________________

Serial Number: ____________________________________________

Model Number: ____________________________________________

SAFETY INFORMATION & WARNINGS

In order to use the product safely and to avoid any danger caused

by wrong operation, please pay close attention to the warnings

and instructions in this manual.

•This appliance can only be used by children ages 8 and up. Children should

not play with the appliance. Cleaning and user maintenance should not be

done by children without supervision.

•This appliance is not intended for use by persons (including children) with

reduced physical, sensory or mental capabilities, or lack of experience and

knowledge, unless they are under constant supervision or given instruction

concerning use of the appliance by a person responsible for their safety.

•If the supply cord is damaged, it must be replaced by the manufacturer or

similarly qualified persons in order to avoid hazards.

•If the product experiences any type of failure, please notify the

manufacturer. Do not disassemble or replace the parts. Disassembly or

modification without permission will affect both the safety and warranty of

the product.

•Do not touch the power cord plug with wet hands. There is a risk of

electrocution.

•Never insert wooden sticks, metal sticks, or other objects into the inlet or

outlet. It may cause leakage, short circuit, or damage to the product.

•Do not spray insecticides and flammable sprays around the product. It may

cause damage to the product.

•Do not pull the cord when removing the power plug. It may cause power

cord damage, electric shock and other hazards.

•If you notice an unpleasant smell or hear abnormal noises during use,

immediately stop using product and unplug from the power source.

•Do not use an exposed or damaged power cord. It may cause electric

shock, short circuit, or fire.

•The water level of the tank should never exceed the maximum level line

and should not be lower than the minimum level line (observable within

the tank) when the evaporative cooling function is turned on.

•After water is filled, do not tilt while placing or moving to prevent

splashing.

•If you know the product will be stored for a while, turn it off and

disconnect the power plug from the outlet.

•Only use standard power outlets for this unit. The power

voltage must match the voltage on the nameplate of the

unit. Please confirm the voltage before plugging the unit

into the wall.

•During evaporative cooling mode, do not attempt to install the air filter or

cooling pad. This may cause water to spray out of the air outlet.

•The appliance is only for household and indoor use.

•This appliance has a polarized plug (one prong is wider than the other). To

reduce the risk of electric shock, this plug is intended to fit in a polarized

outlet in only one way. If the plug does not fit both ways, please contact a

qualified electrician. Do not attempt to tamper with this safety feature in

any way.

•Warning: Always disconnect the power plug from the outlet before

servicing or cleaning the appliance.

•Warning: To reduce the risk of fire or electric shock, do not use this fan

with any solid-state speed control device.

PARTS LIST

1. Top loading reservoir

11. Front cover

2. Top cover

12. Vertical louver

3. Left cover

13. Back cover

4. Water pump side lever (raised)

14. Right cover

5. Water pump side lever (lowered)

15. Power cord storage

6. Water tank latch

16. Water gauge

7. Water tank

17. Remote control

8. Casters

18. Dustproof filter

9. Remote control receiver

19. Cooling pad

10. Horizontal louver

20. Power cord

FEATURES

1. 2 in 1 Evaporative cooler and fan

2. Timing function: 1H, 2H, 4H, 8H

3. Remote control

4. Water can be added from the top or by accessing the lower tank

5. Water pump protection

6. Four fan speed levels: High, Medium, Low, and Silent

7. Four modes: Normal, Natural, and Sleep

8. Touch button control with LED display

9. Automatic horizontal swinging, manual vertical swinging

10. Universal roller design; easy to move

11. Air dry function

12. Smart memory for unexpected power outage

13. Automatic shut off after 15 hours of continuous operation

14. Power and shutdown button sound reminder

OPERATING INSTRUCTIONS

After removing the product from the box, remove the stopper as shown in Fig.

1, then slide the side lever to the bottom so that the pump extends down into

the tank to allow for evaporative cooling operation.

(Fig. 1) (Fig. 2)

FILLING THE WATER TANK

If you want to use the evaporative cooling function, you need to add water to

the tank. Water can be filled from the top or the bottom:

1. From the top: First open the top loading reservoir, and then slowly pour

water into the tank (Fig. 3 & 4). Once full, return the cover to its original

position. Make sure to check the water level indicator in front of the unit

so as to not fill water beyond maximum level.

Open the top loading reservoir (Fig. 3)

Fill water (Fig. 4)

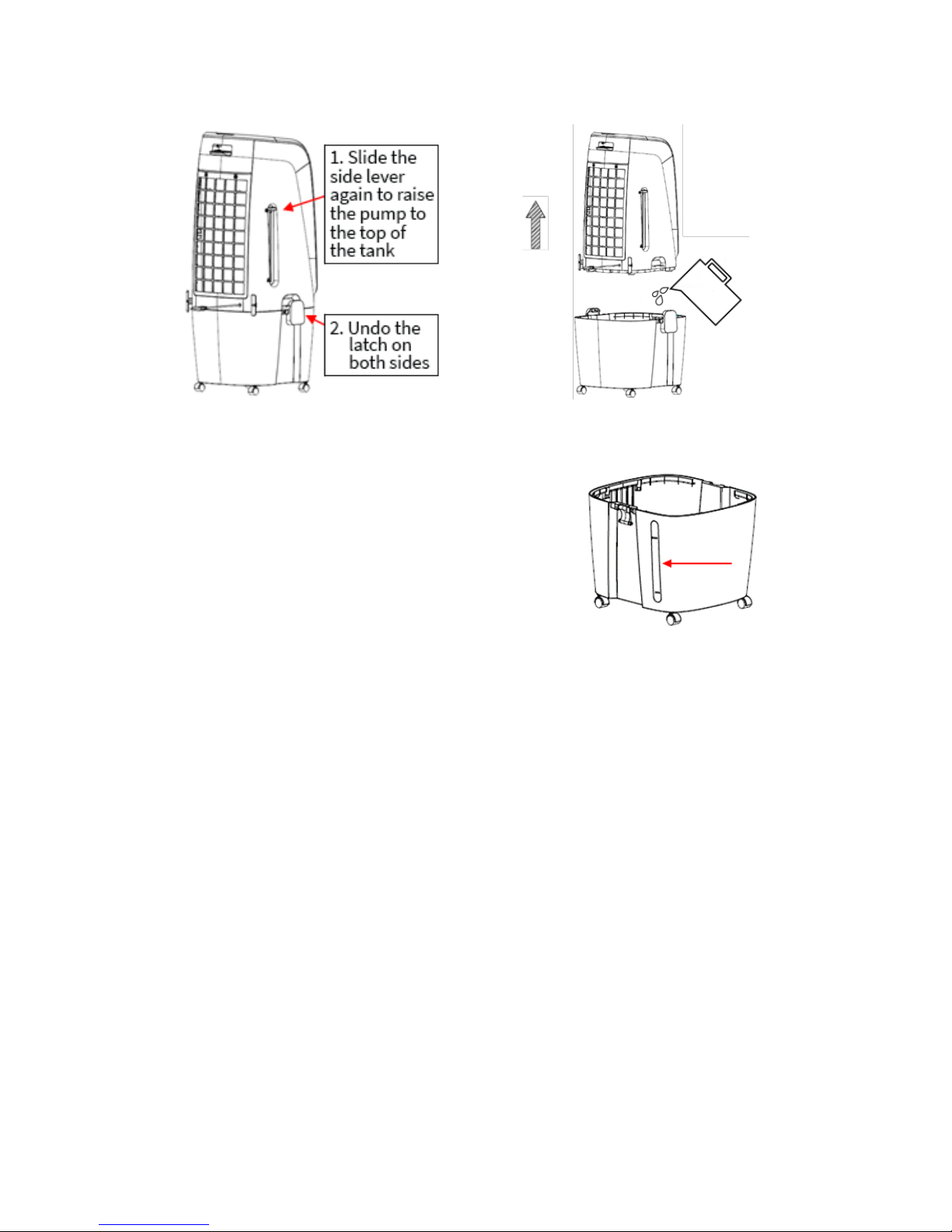

3. Accessing the water tank (bottom): Before adding water to the water tank,

first slide the side lever to the top to raise the water pump to the top of

the tank:

•Undo the latches on both sides (Fig. 5)

•Lift the top half of the unit and slowly pour water into the tank (Fig. 6).

After adding water:

•Place the top half of the unit back on top of the water tank

•Fasten the side latches

•Slide the side lever down to move the tank to the bottom.

(Fig. 5)

(Fig. 6)

4. When filling the water tank, please note

the level indicator in front of the unit

(Fig. 7)

a. Do not fill the water beyond the

maximum water level (Fig. 7).

b. Please remember to use clean tap

water.

c. Tip: It is normal if the device has a

slight odor or the water in the tank

has a slight discoloration when it is

used for the first time.

(Fig. 7)
