Frigidaire FAH086N1 Manual de usuario

Product No. FAH086N1T1

Series TTW/Builder

Volts 115

BTU-Cooling 8000

Wiring Diagram 309201101

Market North America

P40L2012.eps cbnt-cntls01.eps syst01.eps 309201101.eps

Electrolux Major Appliances

North & Latin America

P.O. BOX 212378

AUGUSTA, GA 30917

Publication No.

5995463030

06/03/09

(EN/SERVICE/WC)

099

ROOM AIR

CONDITIONER

Model No.

FAH086N1

Publication No: 5995463030 FAH086N1T1

03/06 2

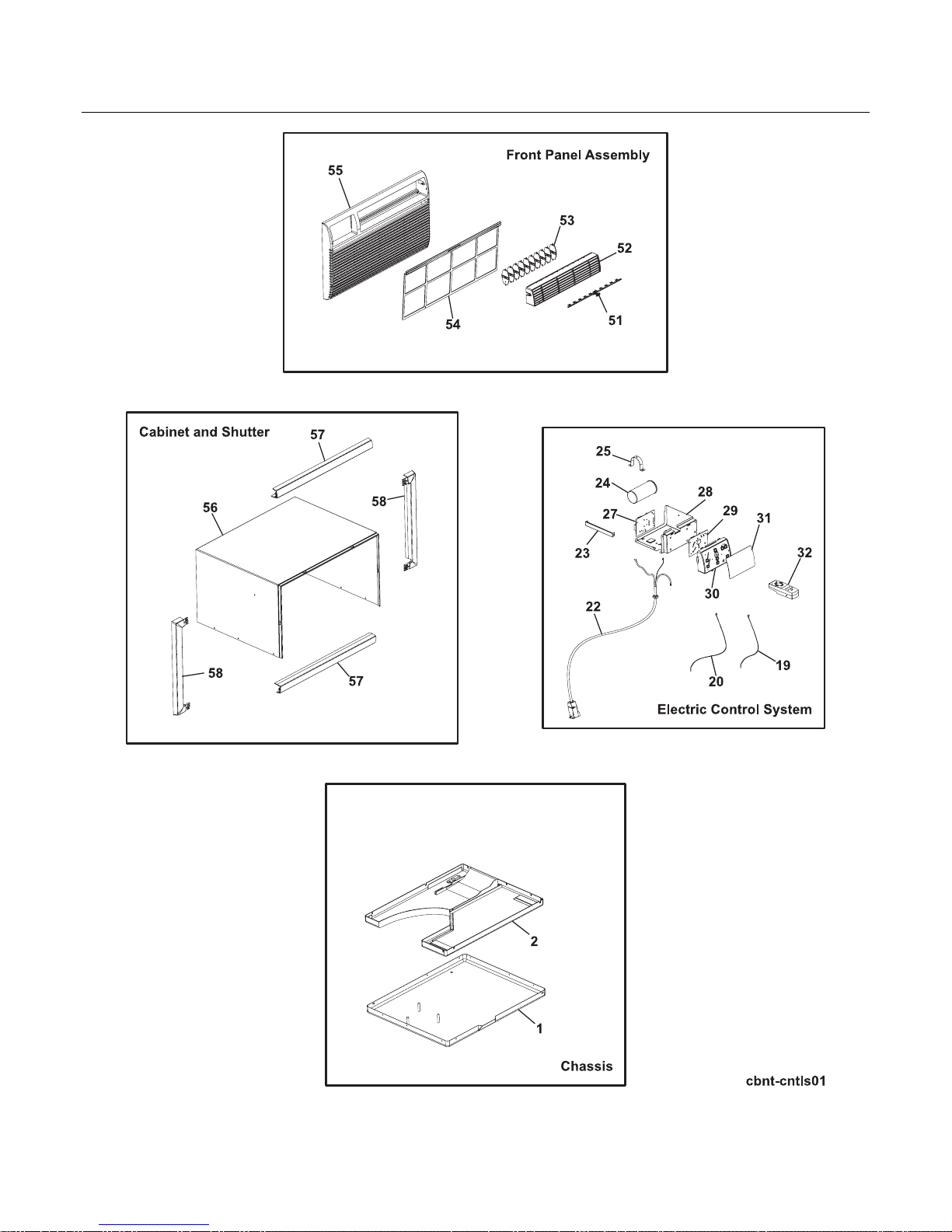

CABINET, FRONT, CONTROLS

FAH086N1T1 Publication No: 5995463030

# Functional Parts 3 03/06

* Non-Illustrated Parts

CABINET, FRONT, CONTROLS

POS. NO PART NO. DESCRIPTION

1 309632007 Base, compressor mt., with studs

2 309628705 Tray, evap base

19 # 309201603 Sensor, thermistor, evap defrost

20 # 309201602 Sensor, thermistor, ambient temp

22 # 309343127 Power Cord, LCDI-type A, 16 AWG, 115 V, with test/reset

23 309203101 Support, control box

24 # 5304426823 Capacitor, 250 V, 35+10 mfd

25 # 5303303708 Strap, capacitor

27 # 309201003 PC Board, power, 115 V

28 309200301 Control Box

29 # 309201305 PC Board, input/display, 115 V

30 309200201 Enclosure, input pcb, control panel

31 309201405 Overlay, control display

32 # 309902201 Remote Control, transmitter, with lcd

51 309324004 Link, vertical louver, with handle

52 309628004 Louver, horizontal

53 309628104 Louver, vertical

54 309628204 Filter, air, molded plastic, grey

55 309200101 Panel, front grille

56 309627504 Cabinet, wrapper

57 309628603 Trim, frame, side

58 309628604 Trim, frame, top & bottom

Publication No: 5995463030 FAH086N1T1

03/06 4

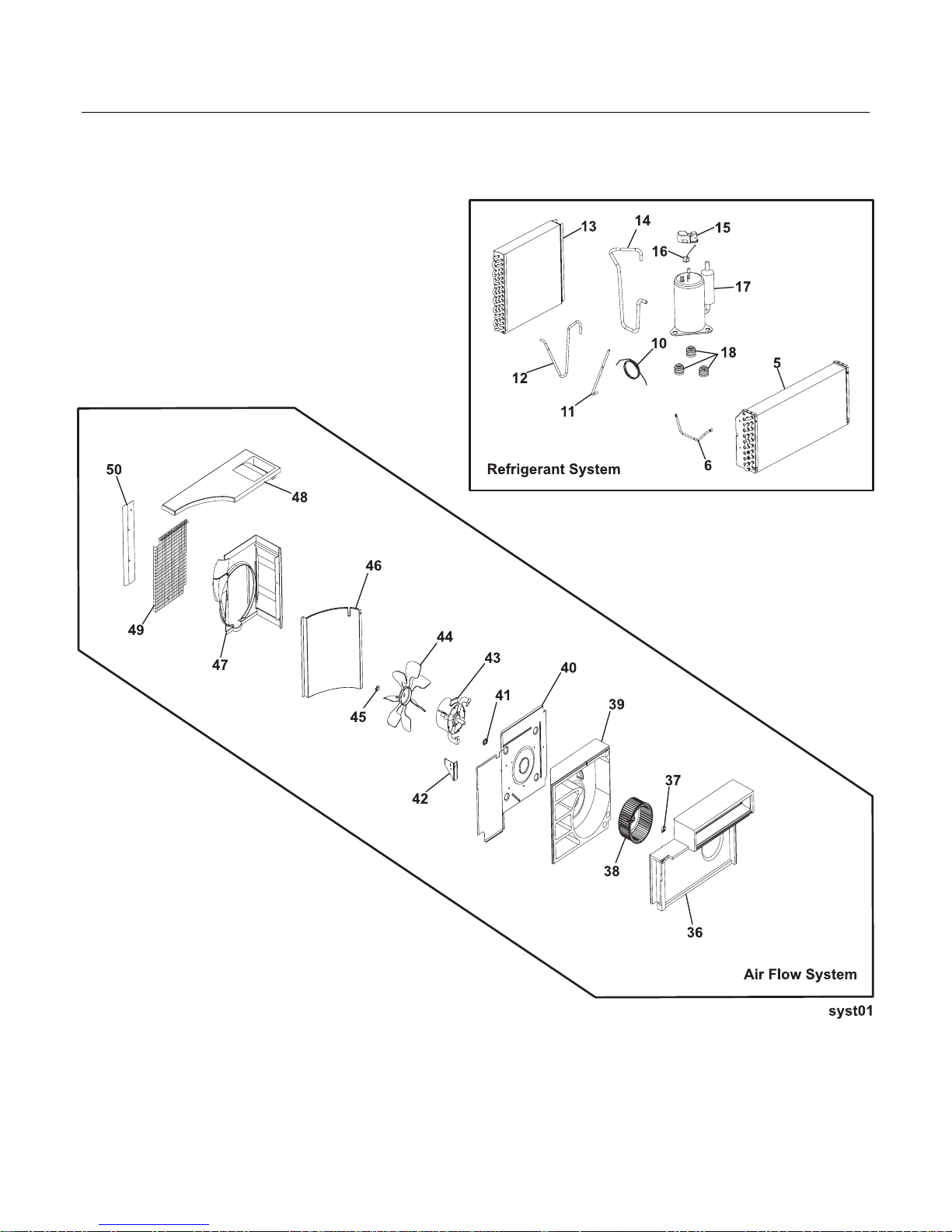

COOLING & AIR FLOW SYSTEMS

FAH086N1T1 Publication No: 5995463030

# Functional Parts 5 03/06

* Non-Illustrated Parts

COOLING & AIR FLOW SYSTEMS

POS. NO PART NO. DESCRIPTION

5 # 309632303 Evaporator

6 # 309337001 Tube, anti gurgle

10 # 309372301 Tube, capillary

11 # 5304413933 Tube, process, cond. outlet

12 # 309202101 Tube, discharge

13 # 309641901 Condenser

14 # 309202201 Tube, suction

15 5304454860 Cover, compressor, wiring

16 # 309205101 Overload Protector

17 # 309260501 Compressor

18 5304454861 Grommet, compressor

36 309622901 Plate, scroll cover

37 309112101 Clamp, blower wheel mt, compression

38 # 309631701 Blower Wheel

39 309622801 Housing, blower scroll

40 309627401 Bulkhead

41 309100301 Grommet, wire protector

42 309335001 Baffle, splash/motor

43 # 309647503 Motor, fan, 3 speed

44 # 309200501 Fan Blade

45 309906801 Clamp, fan blade, assembly

46 309629001 Partition, condenser, galv-steel

47 309628901 Shroud, condenser

48 309628802 Cover, condenser, top

49 309636101 Screen, safety, wire mesh, cabinet rear

50 309335201 Baffle, air

Publication No: 5995463030 FAH086N1T1

03/06 6

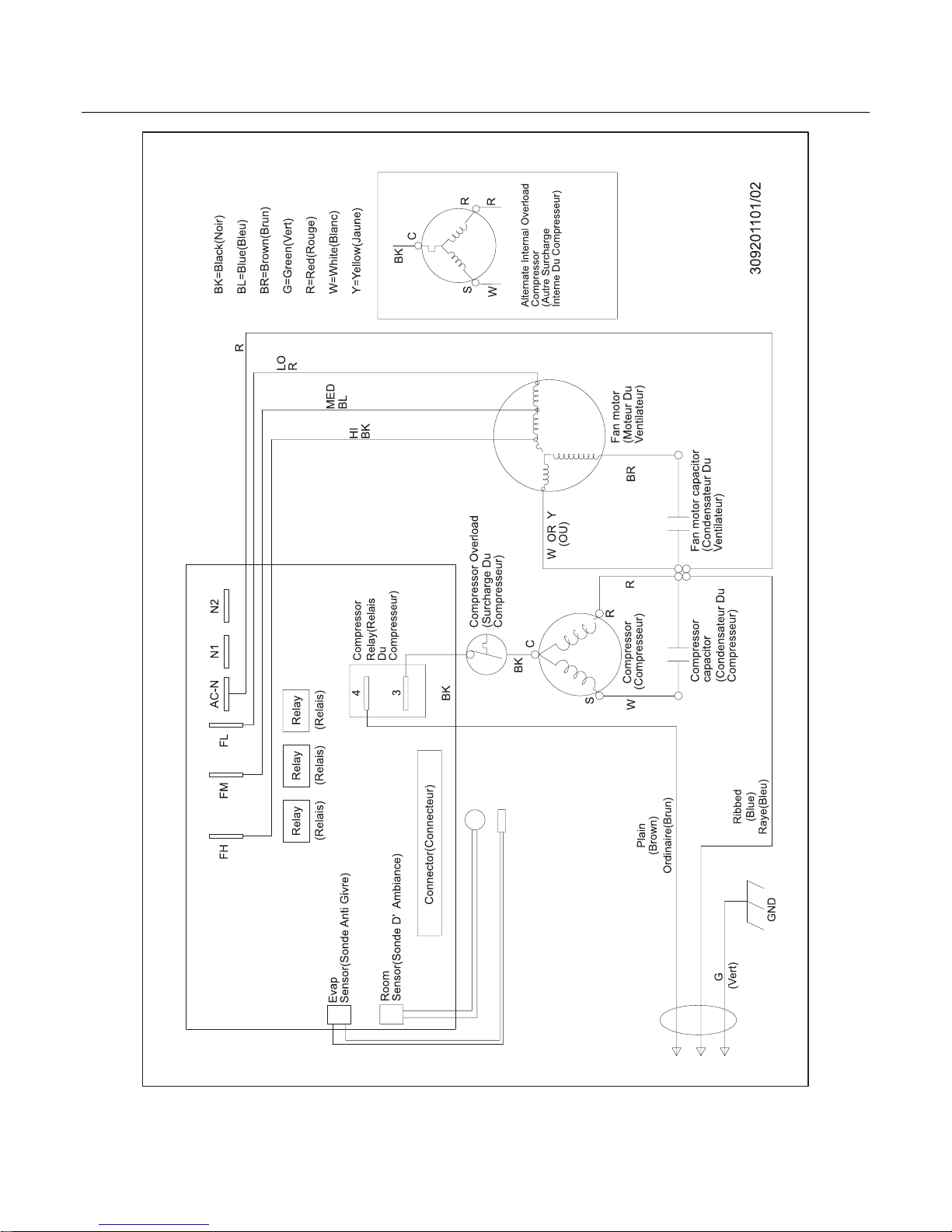

WIRING DIAGRAM
