Frigidaire FAC102P1 Manual de usuario

M40L0001.eps M40C0001.eps M40M0001.eps 2202049172.eps

Product No. FAC102P1A1 FAC102P1A2 FAC102P1A3 FAC102P1A4

Series ROOM AIR ROOM AIR ROOM AIR ROOM AIR

Color white white white white

Volts 115 115 115 115

Owner's Guide 220261d000 220261d000 220261d000 220261d000

Market North America North America North America North America

Electrolux Major Appliances

North & Latin America

P.O. BOX 212378

AUGUSTA, GA 30917

Publication No.

5995436846

05/05/16

(EN/SERVICE/WC)

099

ROOM AIR

CONDITIONER

Model No.

FAC102P1

Publication No: 5995436846 FAC102P1

05/05 2

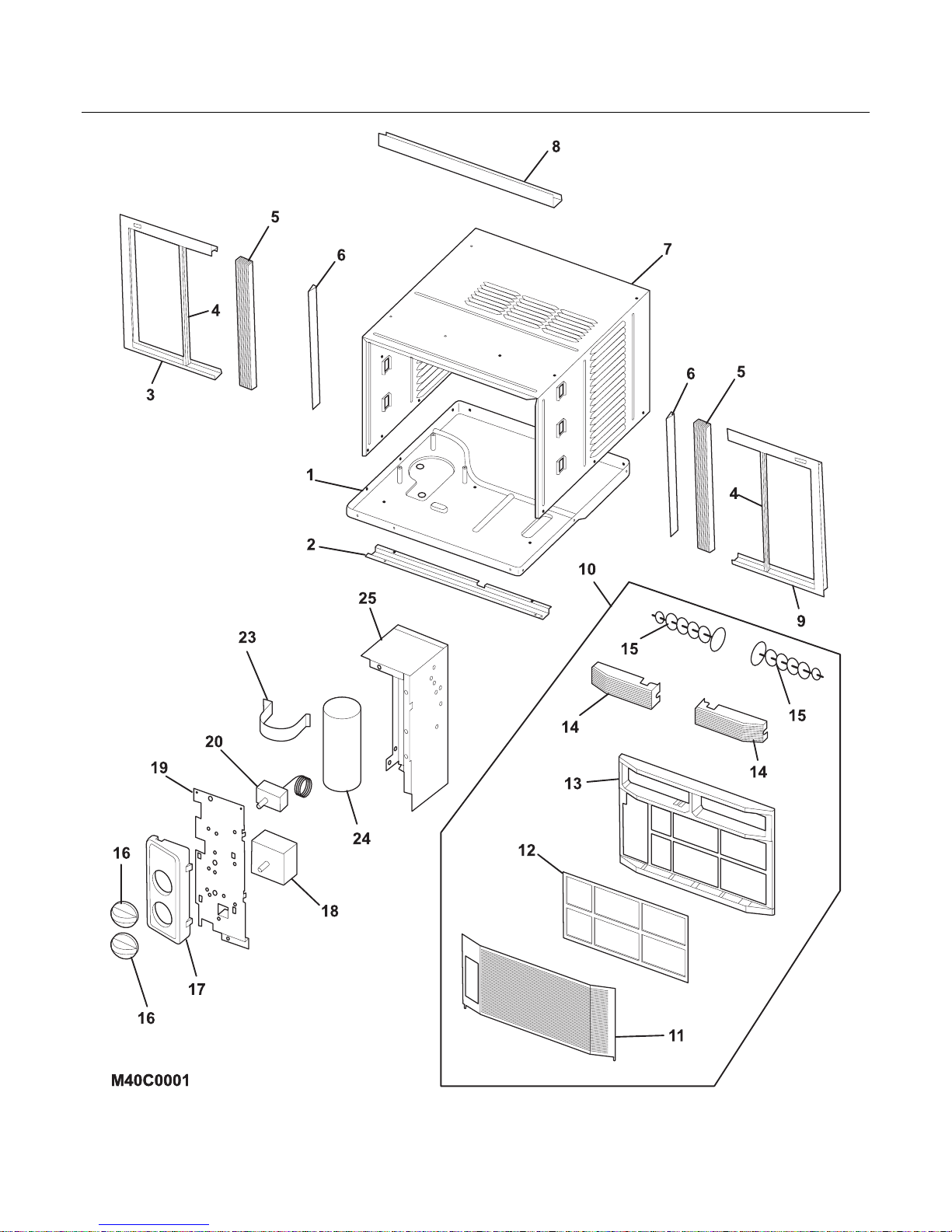

CABINET, FRONT, CONTROLS

FAC102P1 Publication No: 5995436846

# Functional Parts 3 05/05

* Non-Illustrated Parts

CABINET, FRONT, CONTROLS

Model Index: AFAC102P1A (FAC102P1A1)

BFAC102P1A (FAC102P1A2)

CFAC102P1A (FAC102P1A3)

DFAC102P1A (FAC102P1A4)

POS. NO PART NO. DESCRIPTION

1 5304436522 A B C D Base, unit chassis

2 5304436523 A B C D Rail, shutter track, bottom

3 5304436544 A B C D Frame, shutter panel, LH

4 5304436545 A B C D Retainer, shutter lock

5 5304436546 A B C D Shutter, accordion panel

6 5304436547 A B C D Retainer, shutter mount, cabinet sides

7 5304446442 A B C D Cabinet, wrapper/sleeve

8 5304436549 A B C D Rail, shutter track, top

9 5304436550 A B C D Frame, shutter panel, RH

10 5304436599 A B C D Front Assembly, complete panel, includes

11 5304436551 A B C D Panel, front grille, tilt-out

12 5304436552 A B C D Filter, air, plastic frame

13 5304436553 A B C D Frame, front assembly

14 5304436554 A B C D Louver, horizontal

15 5304446443 A B C D Louvers, vertical

16 5304437050 A B C D Knob, rotary control

17 5304446347 A B C D Dial Plate, display panel

17 5304437051 A B C D Enclosure, control, switch box

18 5304446345 A B C D Switch, selector, main

19 5304446441 A B C D Panel, control mounting board

20 # 5304437106 A B C D Control, temperature

23 5304436530 A B C D Strap, capacitor mtg.

24 # 5304436526 A - - D Capacitor

24 # 5304436527 - B C - Capacitor

25 5304436524 A B C D Control Box

Publication No: 5995436846 FAC102P1

05/05 4

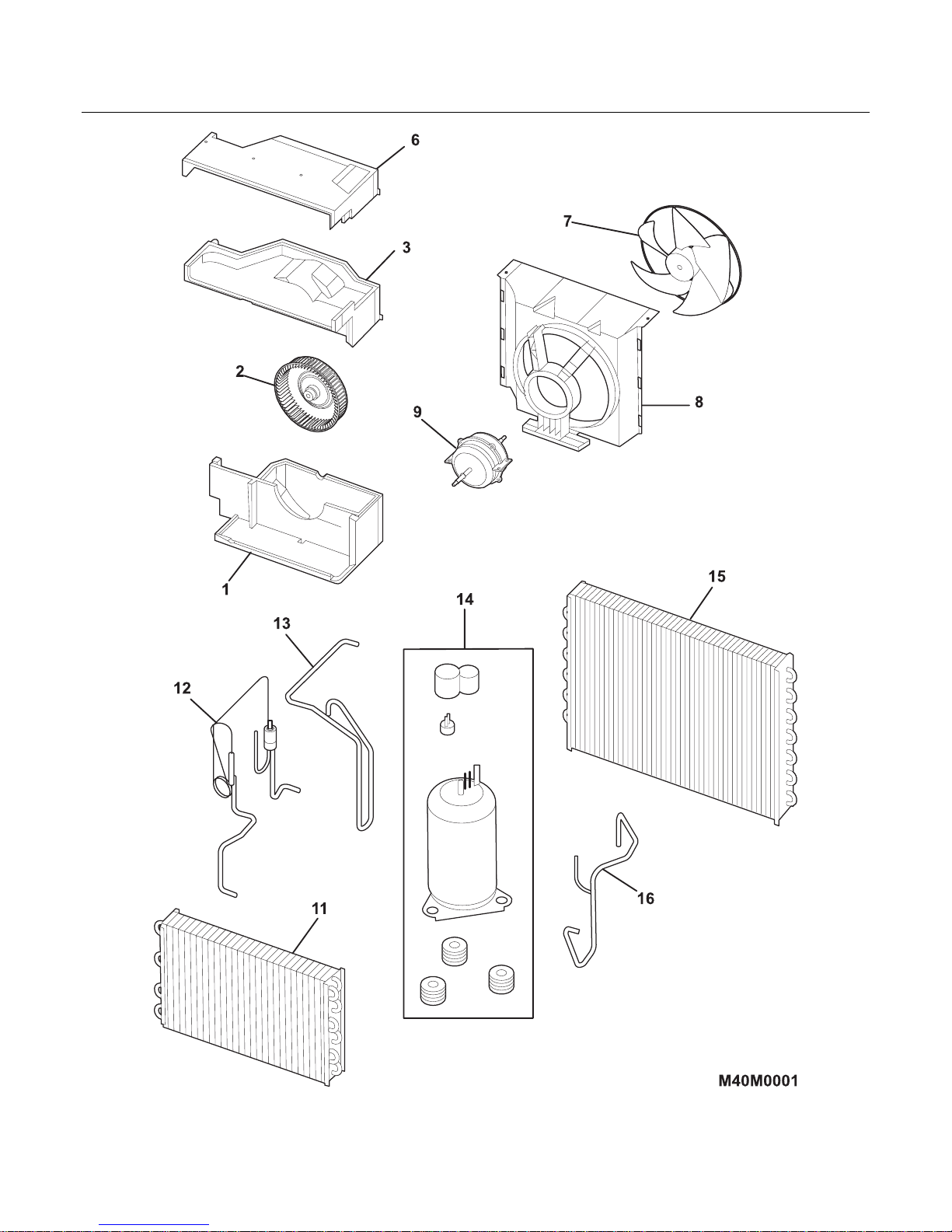

COOLING & AIR FLOW SYSTEMS

FAC102P1 Publication No: 5995436846

# Functional Parts 5 05/05

* Non-Illustrated Parts

COOLING & AIR FLOW SYSTEMS

Model Index: AFAC102P1A (FAC102P1A1)

BFAC102P1A (FAC102P1A2)

CFAC102P1A (FAC102P1A3)

DFAC102P1A (FAC102P1A4)

POS. NO PART NO. DESCRIPTION

1 5304436556 A B C D Scroll, blower housing, bottom, w/drain tray

2 # 5304436557 A B C D Blower Wheel, centrifugal fan

3 5304436559 A B C D Scroll, blower housing, top

4 5304436558 A B C D Door, fresh air vent, with lever

5 5304436564 A B C D Guide, vent door/lever

6 5304436565 A B C D Cover, blower scroll, top

7 # 5304436563 A B C D Fan Blade, propeller, axial flow

8 # 5304436562 A B C D Shroud, fan housing

9 5304446444 A - C - Motor-fan

9 5304446450 - B - D Motor-fan

10 5304436560 A B C D Seal, fan motor, rubber ring, water proof

11 # 5304436567 A - - D Evaporator

11 5304446451 - B C - Evaporator

12 5304446448 A - - D Tube-capillary

12 5304446454 - B C - Tube-capillary

13 5304446447 A - - D Tube-discharge

13 5304446453 - B C - Tube-discharge

14 # 5304446446 A - - D Compressor Assy

14 # 5304437083 - B C - Compressor Assy

15 # 5304436571 A - - D Condenser

15 5304446452 - B C - Condenser

16 5304446445 A - - D Tube,suction

16 # 5304436570 - B C - Suction Tube

* # 5304446449 A B C D Power Cord, electric, 115 V

* 5304458023 A B C D Hardware Kit, installation

Publication No: 5995436846 FAC102P1

05/05 6

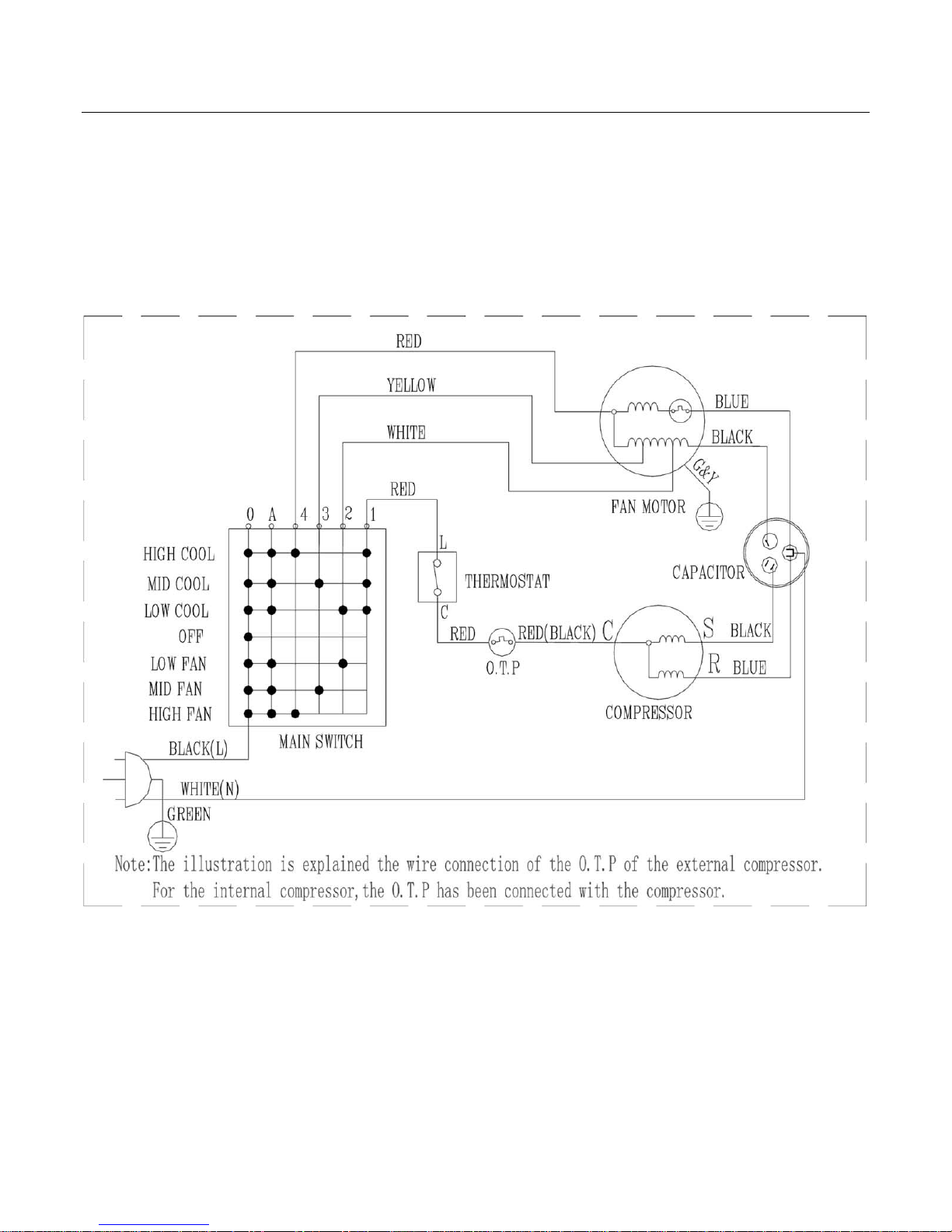

WIRING DIAGRAM

2202019172
