Frigidaire FAS155K1A4 Manual de usuario

ROOM AIR CONDITIONER

Model No.

FAS155K1A

FACTORY PARTS CATALOG

ROOM AIR CONDITIONER

WIRING DIAGRAM - # 309343701

OWNER’S GUIDE - # 309000825

ENERGY GUIDE - # 309367491

ELECTROLUX HOME PRODUCTS, INC

P.O.BOX 212378, AUGUSTA, GA 30917

PRODUCT NO. BASE MODEL NO. SERIES VOLTS BTU-COOLING

FAS155K1A4 FAS155K1A Gallery 115 15000 BTU

MARKET

USA

Publication No.

5995374286

020613

-EN/SERVICE /KC

345

06/02 2

Publication No. FAS155K1A

5995374286

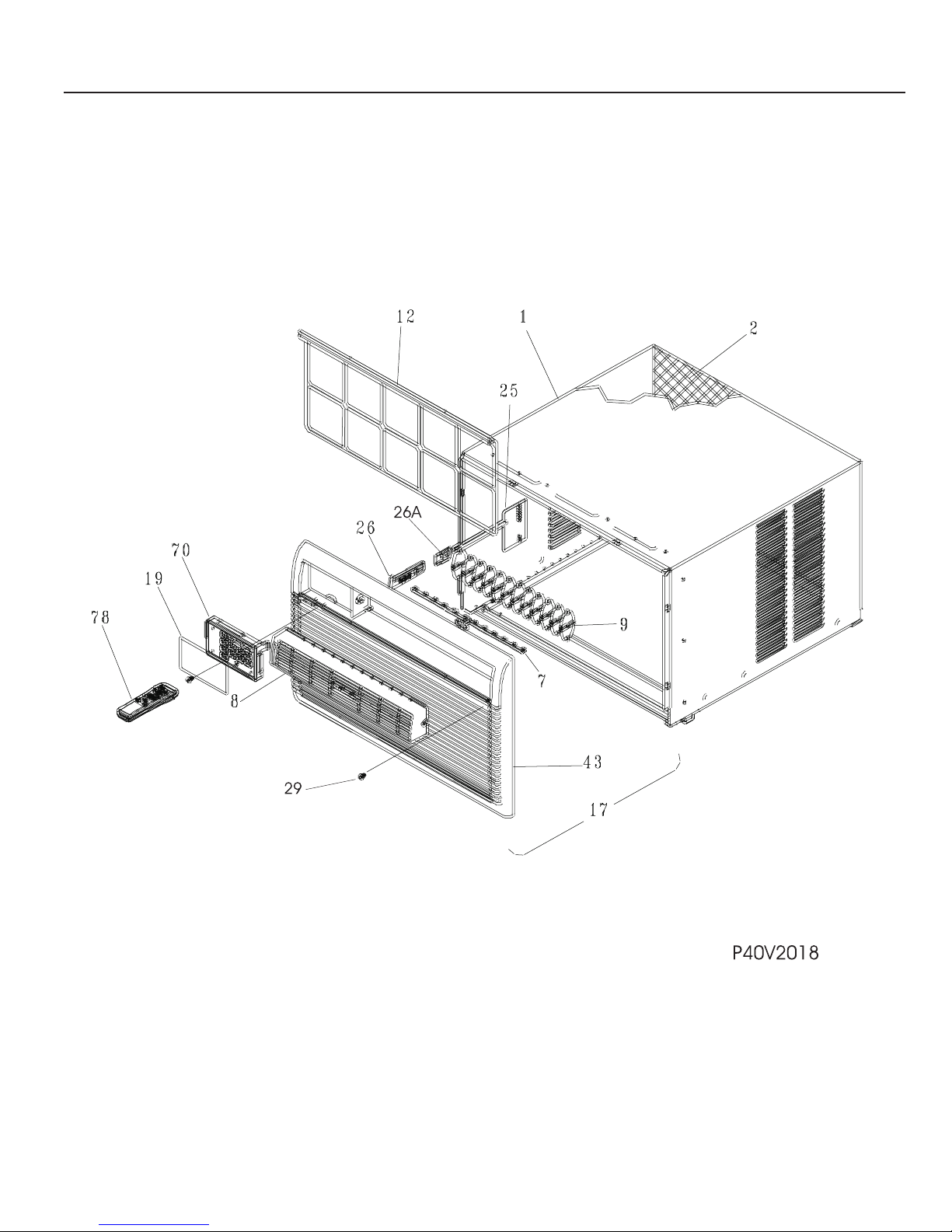

CABINET FRONT AND WRAPPER

# = Fast-moving Parts 3 06/02

* = Non-Illustrated Parts

FAS155K1A Publication No.

5995374286

CABINET FRONT AND WRAPPER

POS. NO PART NO DESCRIPTION

1 309632704 Cabinet,sleeve ,top louvers

* 5303212504 Seal,sleeve/shroud ,23.72" x 1.25" ,bottom

2 309632804 Grille,rear ,with rail

7 309631104 Link,vertical louver ,with handle

8 309633305 Louver Assy,Incl-7,8,9

8 309630804 Louver,horizontal

9 309631004 Louver,vertical

12 309631404 Filter,air ,molded plastic

17 309633205 Front Assembly,w/7,8,9,12,43

19 309341002 Overlay,Frig Gallery

25 309321401 Door,vent ,with actuator

26 309330404 Handle,vent ,gray

26A 309330202 Detent,vent

29 3015312 Screw,8-18AB x 0.500

43 309630904 Panel,cabinet front

70 309342401 Enclosure,elec control mt

78 309350502 Remote Control,transmitter ,with batteries

* 309367491 Energy Guide

06/02 4

Publication No. FAS155K1A

5995374286

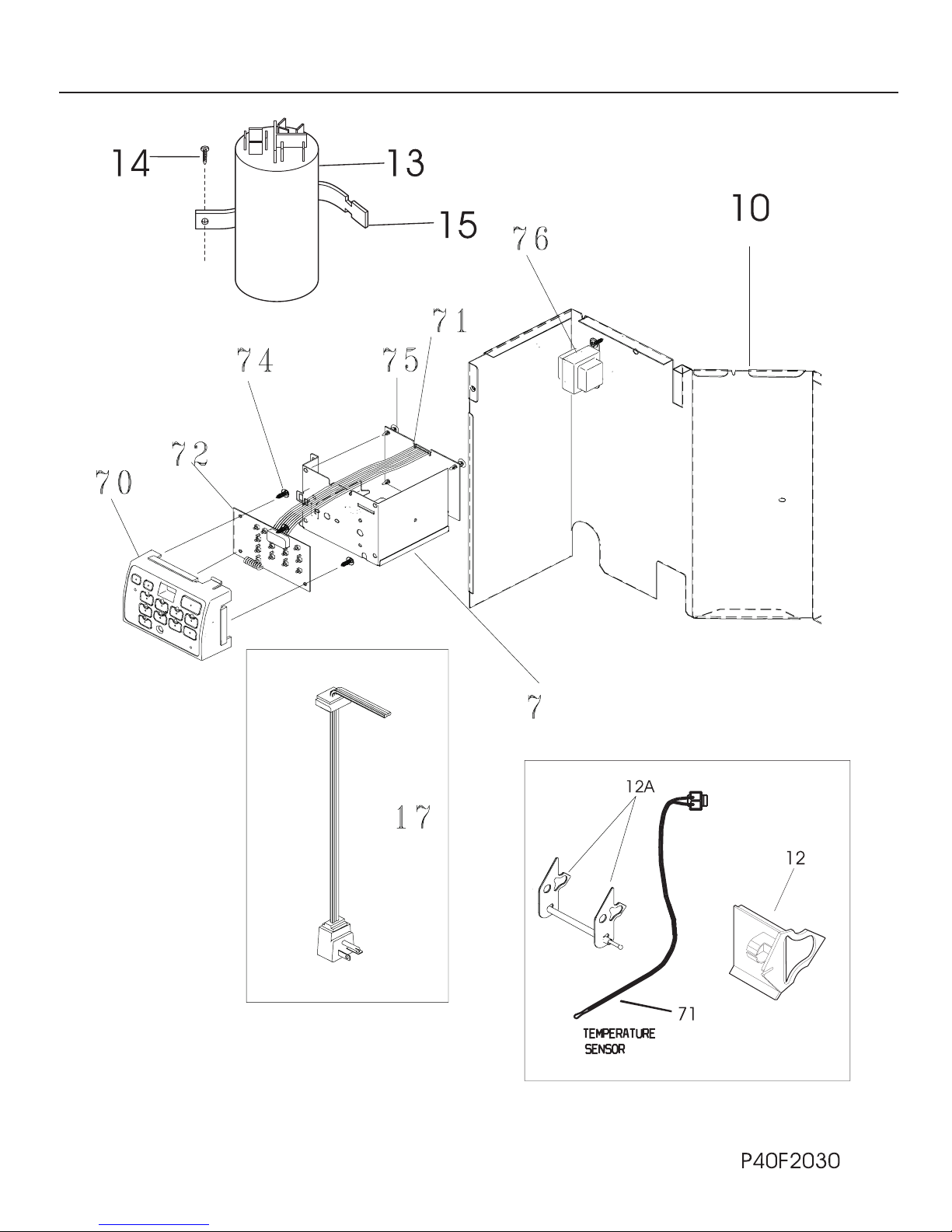

CONTROLS

# = Fast-moving Parts 5 06/02

* = Non-Illustrated Parts

FAS155K1A Publication No.

5995374286

CONTROLS

POS. NO PART NO DESCRIPTION

7 309630403 Control Box

* 5303015427 Screw,truss head ,8-18AB x 0.47

10 309623602 Bulkhead,control system

10* 309111201 Grommet,wire protector

12 5304413782 Holder,thermistor ,w/seal

12A 309331801 Clip,sensor retainer ,(2)

13 # 5303291523 Capacitor,370 V ,10+40 mfd

14 5303285199 Screw,Ph truss hd ,8-18 x 0.38 ,grounding

15 5303303077 Strap,capacitor mtg.

17 309343111 Cord-electric power,type A ,14 AWG

70 309342401 Enclosure,elec control mt

71 309340503 PC Board,power ,w/temp sensor

72 309340701 PC Board,input

72* 5304417643 Ribbon Protector

74 5303301590 Screw,6-20AB x 0.38

75 5304413781 Support,PC board

76 309111601 Transformer,120/12 Volt

76* 5303303691 Screw,truss head ,8-18AB x 0.375 ,w/nibs

06/02 6

Publication No. FAS155K1A

5995374286

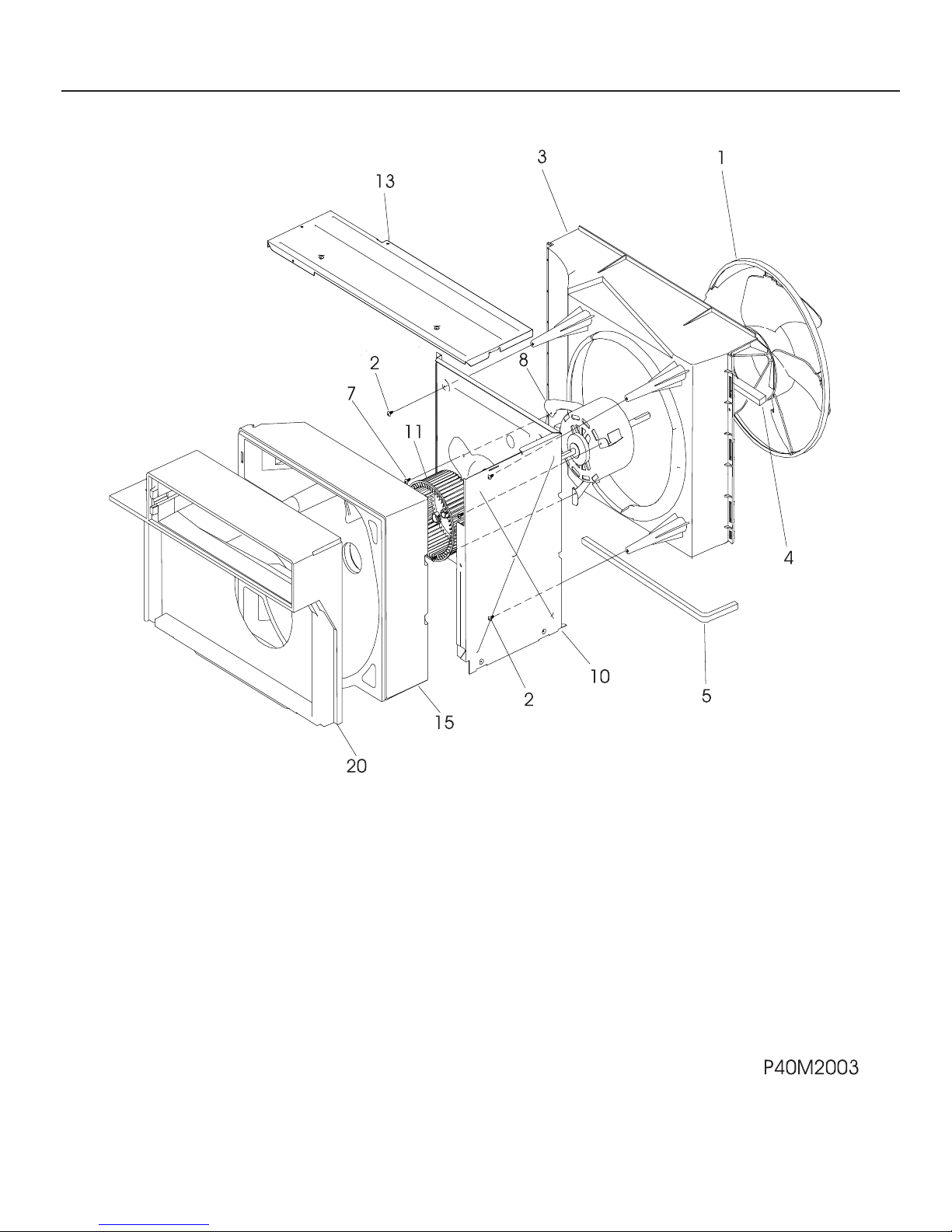

AIR HANDLING PARTS

# = Fast-moving Parts 7 06/02

* = Non-Illustrated Parts

FAS155K1A Publication No.

5995374286

AIR HANDLING PARTS

POS. NO PART NO DESCRIPTION

1 # 5303311048 Fan Blade,with clamp

2 3202975 Screw,10-16AB x 0.72 ,square drive

3 309623201 Shroud,cond fan motor

4 5303212504 Seal,sleeve/shroud ,23.72" x 1.25" ,bottom

5 5303015311 Seal,fan housing ,19.56" x 0.50" ,lower

7 5303015427 Screw,truss head ,8-18AB x 0.47

8 # 309630609 Motor,fan

10 309623401 Bulkhead,air system

11 309633001 Blower Wheel,plastic ,with clamp

13 309630302 Cover,blower wheel ,top

15 309630101 Housing,blower scroll

20 309630201 Plate,scroll cover

06/02 8

Publication number FAS155K1A

5995374286

COMPRESSOR PARTS

06/02 9

FAS155K1A Publication No.

5995374286

COMPRESSOR PARTS

POS. NO PART NO DESCRIPTION

1 # 5303925103 Compressor,w/overload

2 5303283877 Grommet,compressor mtg ,(3)

3 5308006948 Nut,compressor mtg ,(3)

6 5303272298 Gasket,terminal cover ,compressor elec

7 3206230 Cover,terminal ,compressor elec

8 # 5303016697 Overload Protector

9 5303211017 Nut,terminal cover ,compressor elec

11 # 309634103 Evaporator

12 # 5303303600 Condenser

13 309623501 Tray,evap drip

14 309632907 Base,compressor mtg ,with studs

16 5303289577 Capillary Tube,40 inch long ,cut-to-length

17 5300265301 Drier-filter,service kit

19 309112501 Washer,metallic

06/02 10

Publication No. FAS155K1A

5995374286

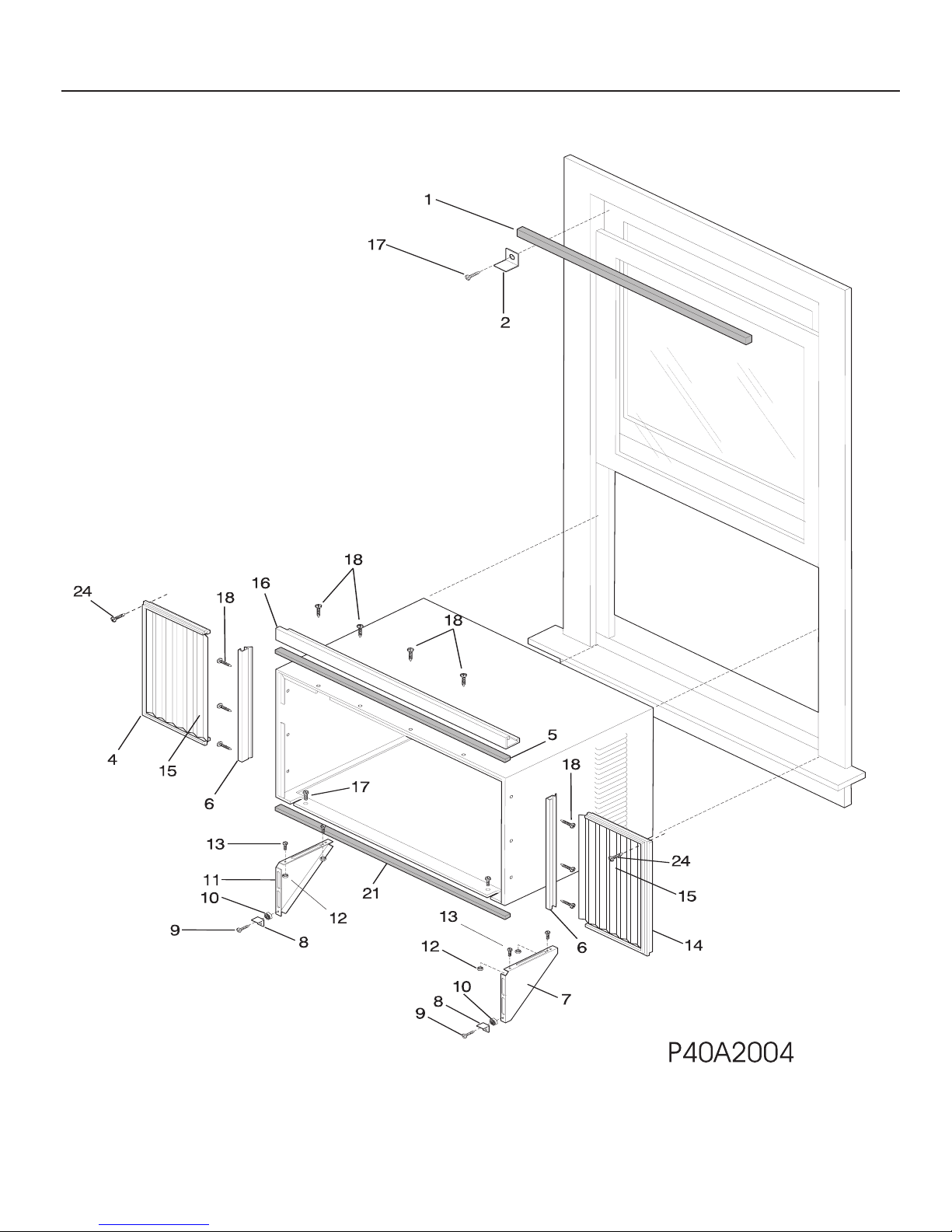

WINDOW MOUNTING PARTS
