Frigidaire FAC066L7A2 Manual de usuario

PRODUCT NO. BASE MODEL NO. SERIES VOLTS

FAC066L7A2 FAC066L7A Compact 115

BTU-COOLING

6100 BTU

Publication No.

5995375085

020627

-EN/SERVICE/KC

345

ROOM AIR CONDITIONER

Model No.

FAC066L7A

FACTORY PARTS CATALOG

ROOM AIR CONDITIONER

WIRING DIAGRAM - # 309341601

OWNER’S GUIDE - # 309000825

ENERGY GUIDE - # 309369902

ELECTROLUX HOME PRODUCTS, INC

P.O.BOX 212378, AUGUSTA, GA 30917

06/02 2

Publication No. FAC066L7A2

5995375085

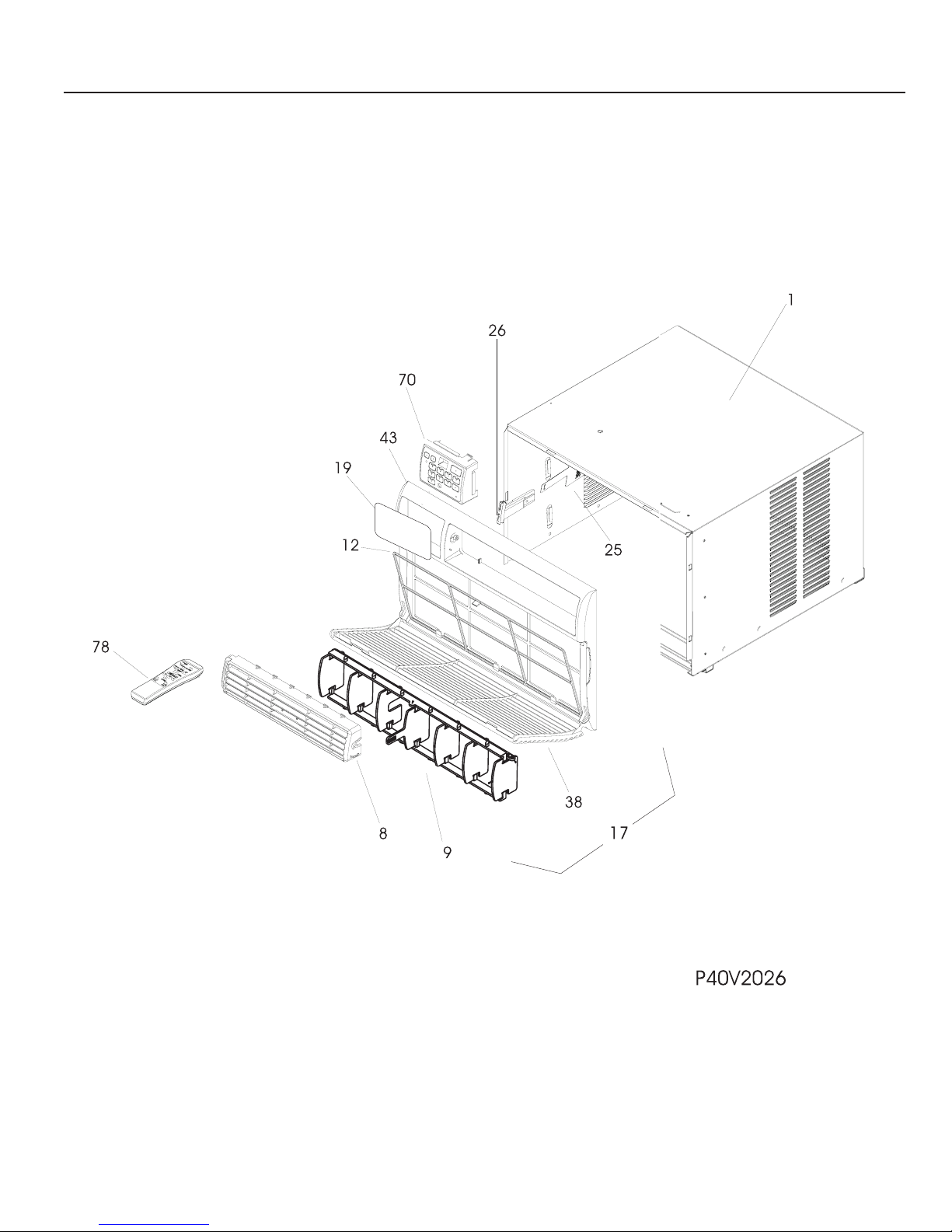

CABINET FRONT AND WRAPPER

# = Fast-moving Parts 3 06/02

* = Non-Illustrated Parts

FAC066L7A2 Publication No.

5995375085

CABINET FRONT AND WRAPPER

POS. NO PART NO DESCRIPTION

1 309643602 Cabinet,wrapper

* 5303303691 Screw, truss head, 8-18AB x 0.375, w/nibs

8 309640204 Louver Assy,Includes8&9

8 309639302 • Louver,horizontal

9 309647201 • Louver,vertical ,with link

12 309343501 Filter,air ,7.12 x 17.31 ,no frame

17 309640104 Front Assembly,cabinet ,w/8,9,12,38,43

* 3015312 Screw,8-18AB x 0.500

19 309340802 Overlay,control

25 309328603 Door,fresh air vent

25* 309330201 Detent,vent

26 309638201 Handle,vent door

38 309646301 Panel,cabinet front

43 309646401 Frame,cabinet front

70 309342201 Enclosure,elec control mt

78 309342604 Remote Control, transmitter, with batteries

* 309369902 Energy Guide, FAC066L7A2

06/02 4

Publication No. FAC066L7A2

5995375085

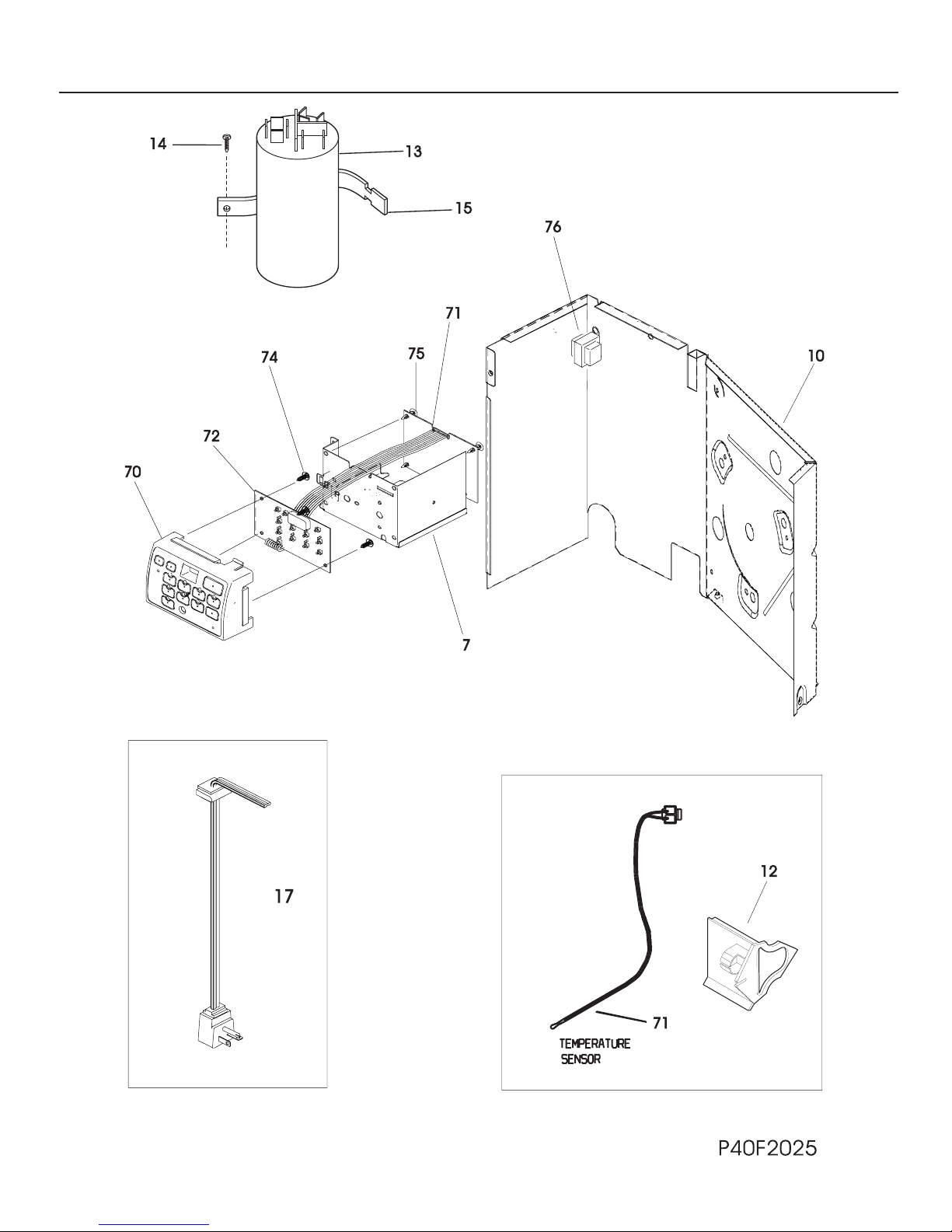

CONTROLS

# = Fast-moving Parts 5 06/02

* = Non-Illustrated Parts

FAC066L7A2 Publication No.

5995375085

CONTROLS

POS. NO PART NO DESCRIPTION

7 # 309643801 Control Box

10 309643702 Bulkhead

10* 309111201 Grommet,wire protector

12 5304413782 Holder,thermistor ,w/seal

13 # 5304426655 Capacitor,250 V ,35+4 mfd

14 3015312 Screw,8-18AB x 0.500

15 309351901 Strap,capacitor mtg.

17 # 309343101 Cord-electric power,18 AWG ,115 V

* 5303285199 Screw, Ph truss hd, 8-18 x 0.38, grounding

70 309342201 Enclosure,elec control mt

71 # 309340503 PC Board,power ,w/temp sensor

72 # 309340505 PC Board,input ,11.5 MM display

72*# 5304417643 Ribbon Protector

74 5303301590 Screw,6-20AB x 0.38

75 5304413781 Support,PC board

76 309111601 Transformer,120/12 Volt

06/02 6

Publication No. FAC066L7A2

5995375085

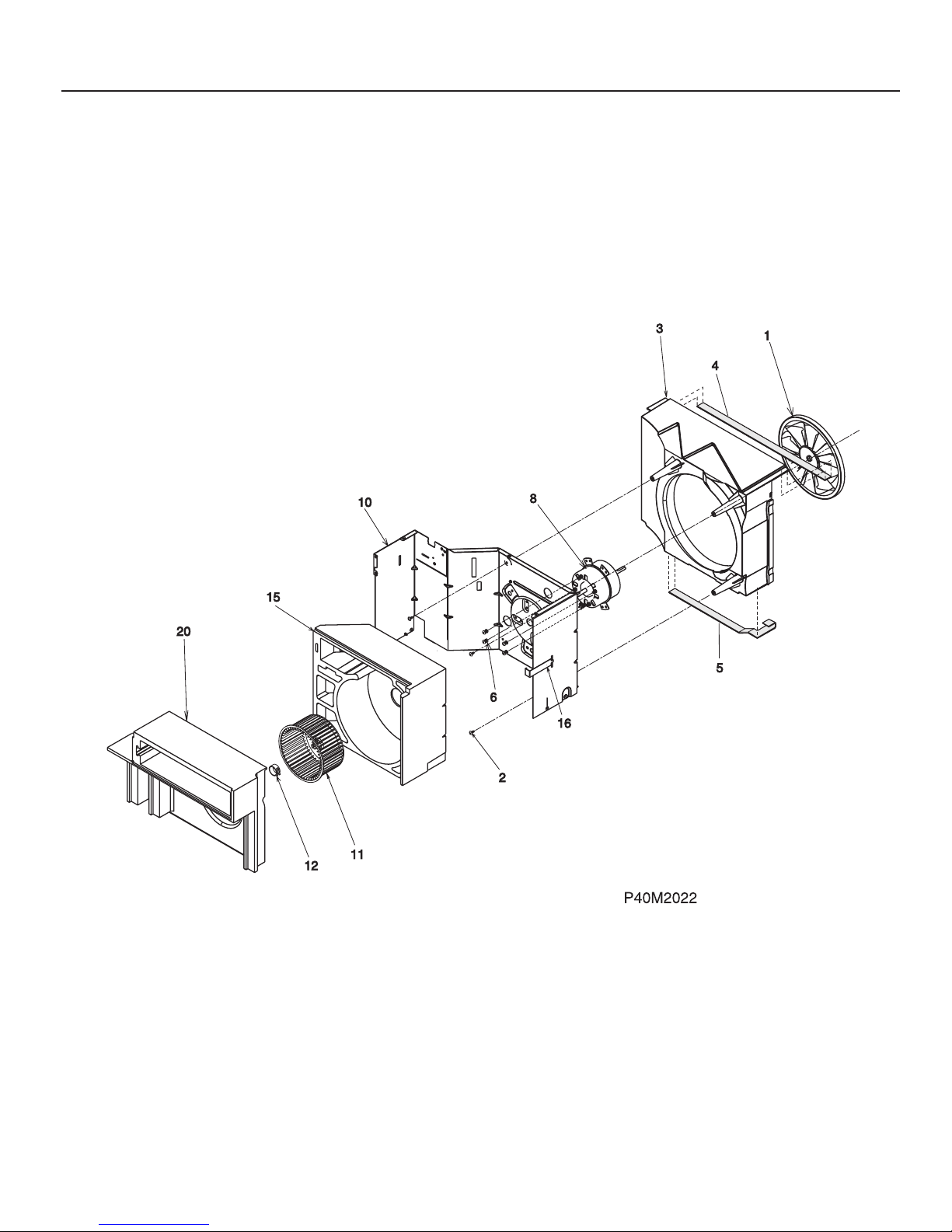

AIR HANDLING PARTS

# = Fast-moving Parts 7 06/02

* = Non-Illustrated Parts

FAC066L7A2 Publication No.

5995375085

AIR HANDLING PARTS

POS. NO PART NO DESCRIPTION

1 # 309646202 Fan Blade,with clamp

2 3202975 Screw,10-16AB x 0.72 ,square drive

3 309643901 Housing,fan shroud

4 5304421913 Seal,top

5 5303303759 Seal,bottom

6 08007481 Nut,Keps ,motor mtg ,(4)

8 # 309645002 Motor,fan

10 309643702 Bulkhead

11 # 309643302 Blower Wheel,8mm hub

12 327161302 Clamp,blower wheel mt ,compression

15 309642901 Housing,blower scroll ,Extended

16 309100201 Clip,evap/bulkhead

20 309643002 Plate,scroll cover

06/02 8

Publication No. FAC066L7A2

5995375085

COMPRESSOR PARTS

# = Fast-moving Parts 9 06/02

* = Non-Illustrated Parts

FAC066L7A2 Publication No.

5995375085

COMPRESSOR PARTS

POS. NO PART NO DESCRIPTION

1 # 309616916 Compressor

2 5303283877 Grommet,compressor mtg ,(3)

3 5308006948 Nut,compressor mtg ,(3)

6 3201668 Gasket,terminal cover

7 5304405245 Cover,compr terminal

8 # 5303311029 Overload Protector

9 3201670 Nut,terminal cover

10 # 5303317601 Start Assist Kit,compressor

11 # 309604211 Evaporator

12 # 309645305 Condenser

13 # 309642801 Tray,evap drip

14 309644003 Base,compressor mt. ,with studs

16 # 5304417693 Capillary Tube, 37 inch long, cut to length

17 # 5300265301 Drier-filter,service kit

19 309112501 Washer, metallic

06/02 10

Publication No. FAC066L7A2

5995375085

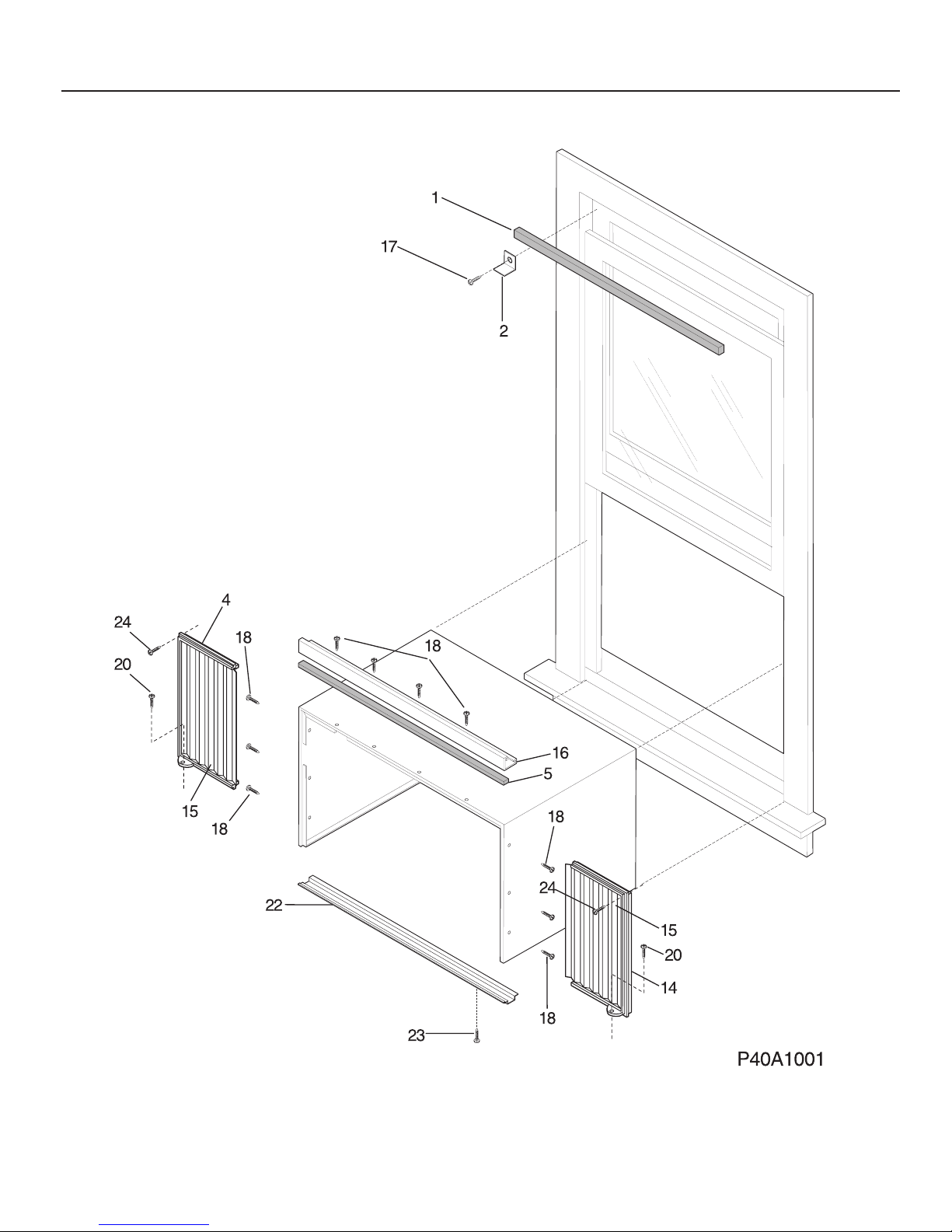

WINDOW MOUNTING PARTS
