ROOM AIR CONDITIONER

Model No.

FAS185J2A

FACTORY PARTS CATALOG

ROOM AIR CONDITIONER

WIRING DIAGRAM - # 309343701

OWNER’S GUIDE - # 309000825

ENERGY GUIDE - # 309367496

ELECTROLUX HOME PRODUCTS, INC

P.O.BOX 212378, AUGUSTA, GA 30917

PRODUCT NO. BASE MODEL NO. VOLTS BTU-COOLING

FAS185J2A8 FAS185J2A 230 18000 BTU

MARKET

USA

Publication No.

5995373700

020606

-EN/SERVICE /BLT

345

06/02 2

Publication No. FAS185J2A

5995373700

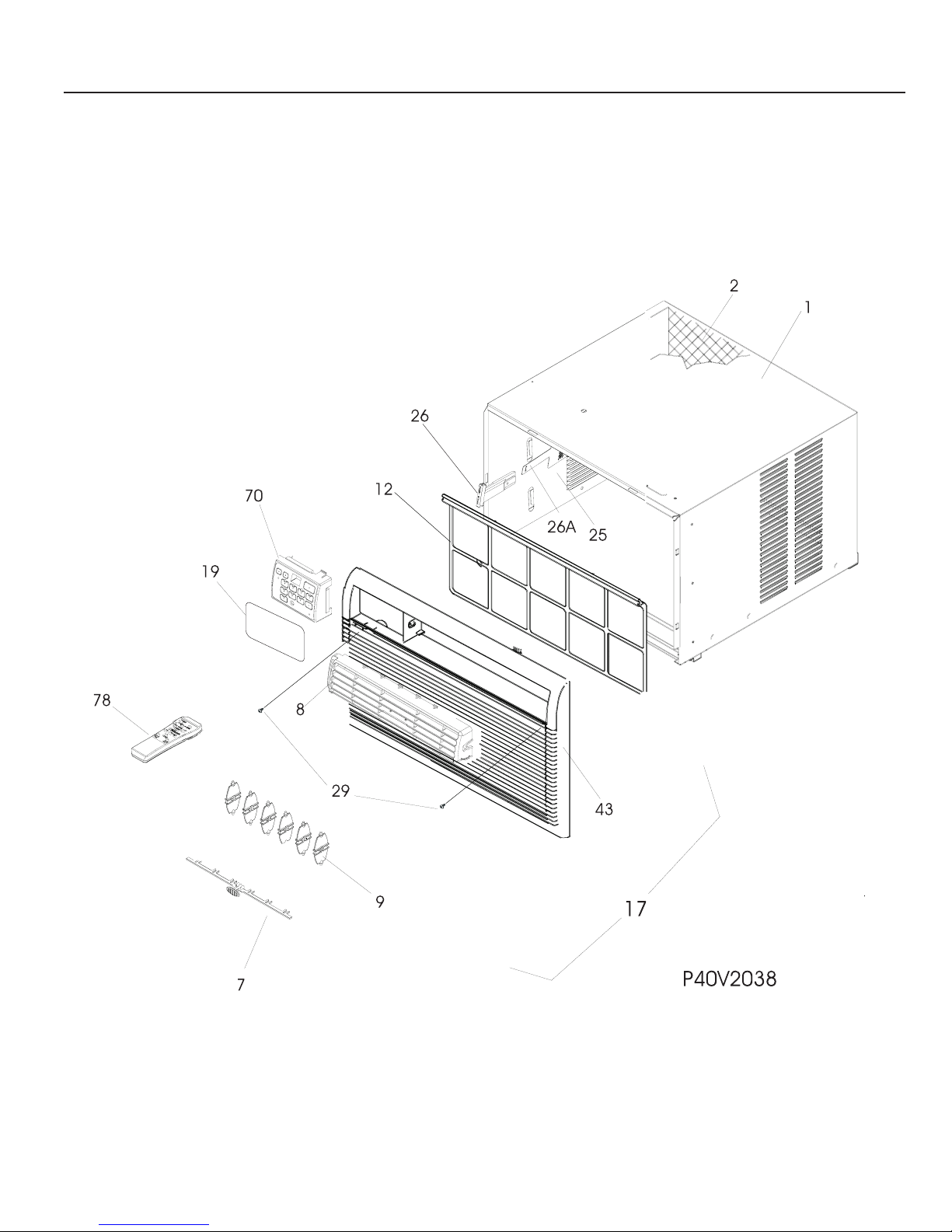

CABINET FRONT AND WRAPPER

# = Fast-moving Parts 3 06/02

* = Non-Illustrated Parts

FAS185J2A Publication No.

5995373700

CABINET FRONT AND WRAPPER

POS. NO PART NO DESCRIPTION

1 309632704 Cabinet,sleeve ,top louvers

* 5303212504 Seal,sleeve/shroud ,23.72" x 1.25" ,bottom

2 309632804 Grille,rear ,with rail

7 309631104 Link,vertical louver ,with handle

8 309630804 Louver,horizontal

8* 309633305 Louver Assy,Incl-7,8,9

9 309631004 Louver,vertical

12 309631404 Filter,air ,molded plastic

17 309633205 Front Assembly,w/7,8,9,12,43

19 309341002 Overlay,Frig Gallery

25 309321401 Door,vent ,with actuator

26 309330404 Handle,vent ,gray

26A 309330202 Detent,vent

29 3015312 Screw,8-18AB x 0.500

43 309630904 Panel,cabinet front

70 309342401 Enclosure,elec control mt

78 309342604 Remote Control,transmitter ,with batteries

06/02 4

Publication No. FAS185J2A

5995373700

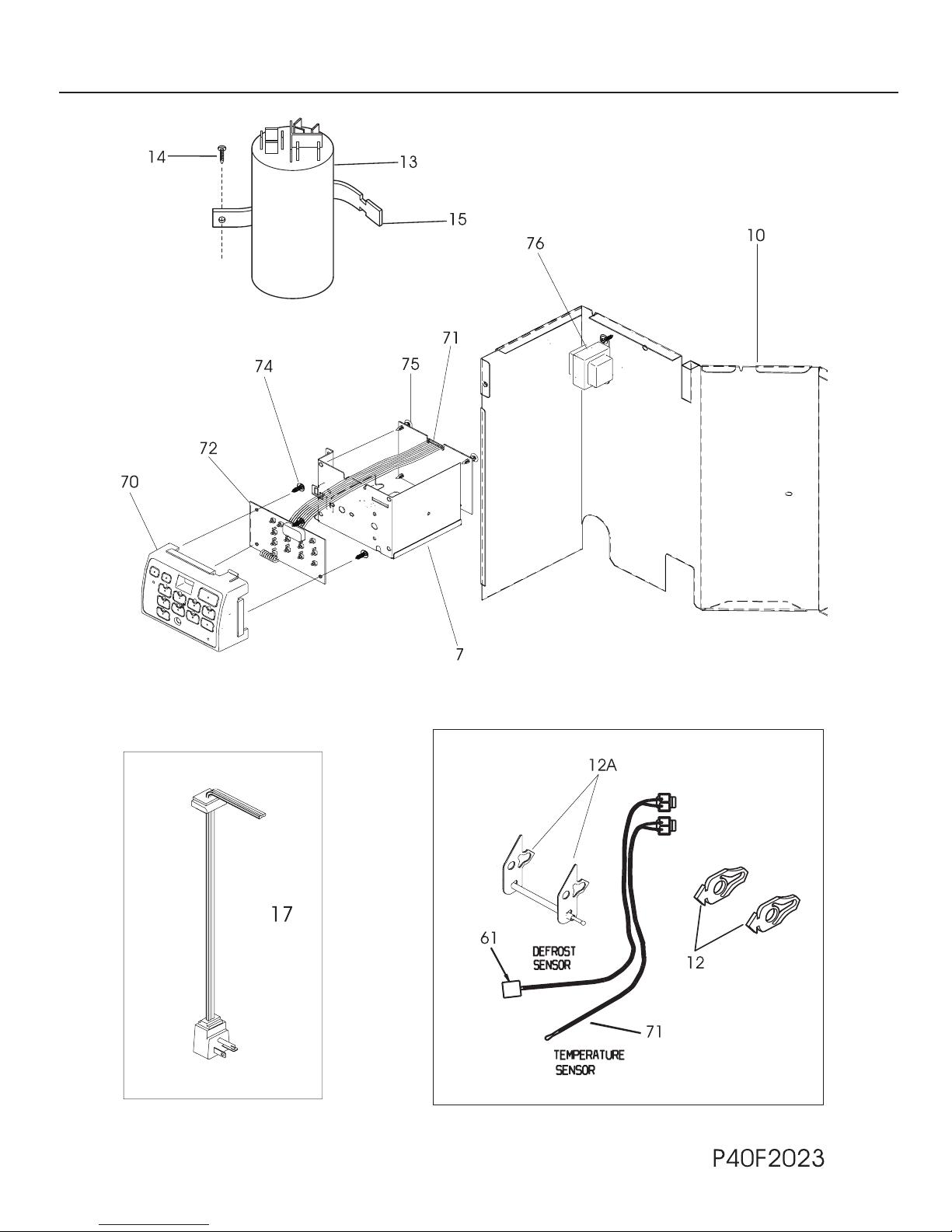

CONTROLS

# = Fast-moving Parts 5 06/02

* = Non-Illustrated Parts

FAS185J2A Publication No.

5995373700

CONTROLS

POS. NO PART NO DESCRIPTION

7 309630403 Control Box

7* 5303015427 Screw,truss head ,8-18AB x 0.47

10 309623602 Bulkhead,control system

10* 309111201 Grommet,wire protector

12 5304413782 Holder,thermistor ,w/seal

12A 309331801 Clip,sensor retainer ,(2)

13 # 5304426869 Capacitor,450 V ,40+7.5 mfd

14 5303285199 Screw,Ph truss hd ,8-18 x 0.38 ,grounding

15 5303303077 Strap,capacitor mtg.

17 # 309343112 Cord-electric power,type C ,16 AWG

61 # 5304414095 Thermistor,defrost sensor

70 309342401 Enclosure,elec control mt

71 309340503 PC Board,power

72 309340701 PC Board,input

72* 5304417643 Ribbon Protector

74 5303301590 Screw,6-20AB x 0.38

75 5304413781 Support,PC board

76 309111602 Transformer,240/12 Volt

06/02 6

Publication No. FAS185J2A

5995373700

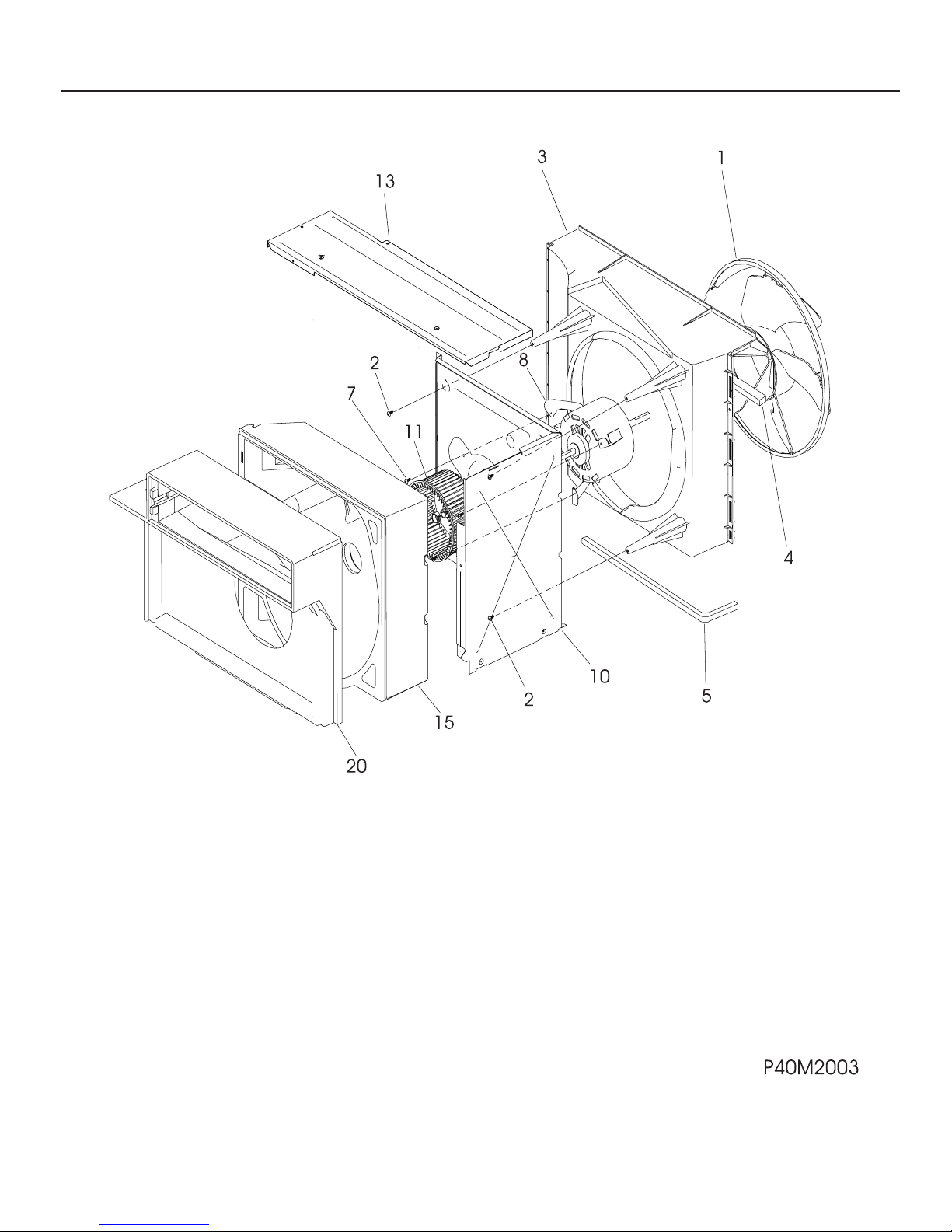

AIR HANDLING PARTS

# = Fast-moving Parts 7 06/02

* = Non-Illustrated Parts

FAS185J2A Publication No.

5995373700

AIR HANDLING PARTS

POS. NO PART NO DESCRIPTION

1 # 5303311048 Fan Blade,with clamp

2 3202975 Screw,10-16AB x 0.72 ,square drive

3 309623201 Shroud,cond fan motor

4 5303212504 Seal,sleeve/shroud ,23.72" x 1.25" ,bottom

5 5303015311 Seal,fan housing ,19.56" x 0.50" ,lower

7 5303015427 Screw,truss head ,8-18AB x 0.47

8 # 309630607 Motor,fan

10 309623401 Bulkhead,air system

11 309633001 Blower Wheel,plastic ,with clamp

13 309630302 Cover,blower wheel ,top

15 309630101 Housing,blower scroll

20 309630201 Plate,scroll cover

06/02 8

Publication No. FAS185J2A

5995373700

COMPRESSOR PARTS

06/02 9

FAS185J2A Publication No.

5995373700

COMPRESSOR PARTS

POS. NO PART NO DESCRIPTION

1 309603104 Compressor

2 5303283877 Grommet,compressor mtg ,(3)

3 5308006948 Nut,compressor mtg ,(3)

6 5303291330 Gasket,terminal cover

7 5304416126 Cover,elec terminal ,compressor

8 5304414111 Overload Protector,MRA 12044-386

9 5303294292 Nut,terminal cover

11 # 309634201 Evaporator

* # 5304414095 Thermistor,defrost sensor

12 # 5303306719 Condenser

13 309623501 Tray,evap drip

14 309632910 Base,compressor mtg. ,with studs

16 # 5303303064 Capillary Tube,30 inch long

17 5300265301 Drier-filter,service kit

17* 5303290357 Strainer

19 5303002664 Washer,compressor mtg

19* 309112501 Washer,metallic

06/02 10

Publication No. FAS185J2A

5995373700

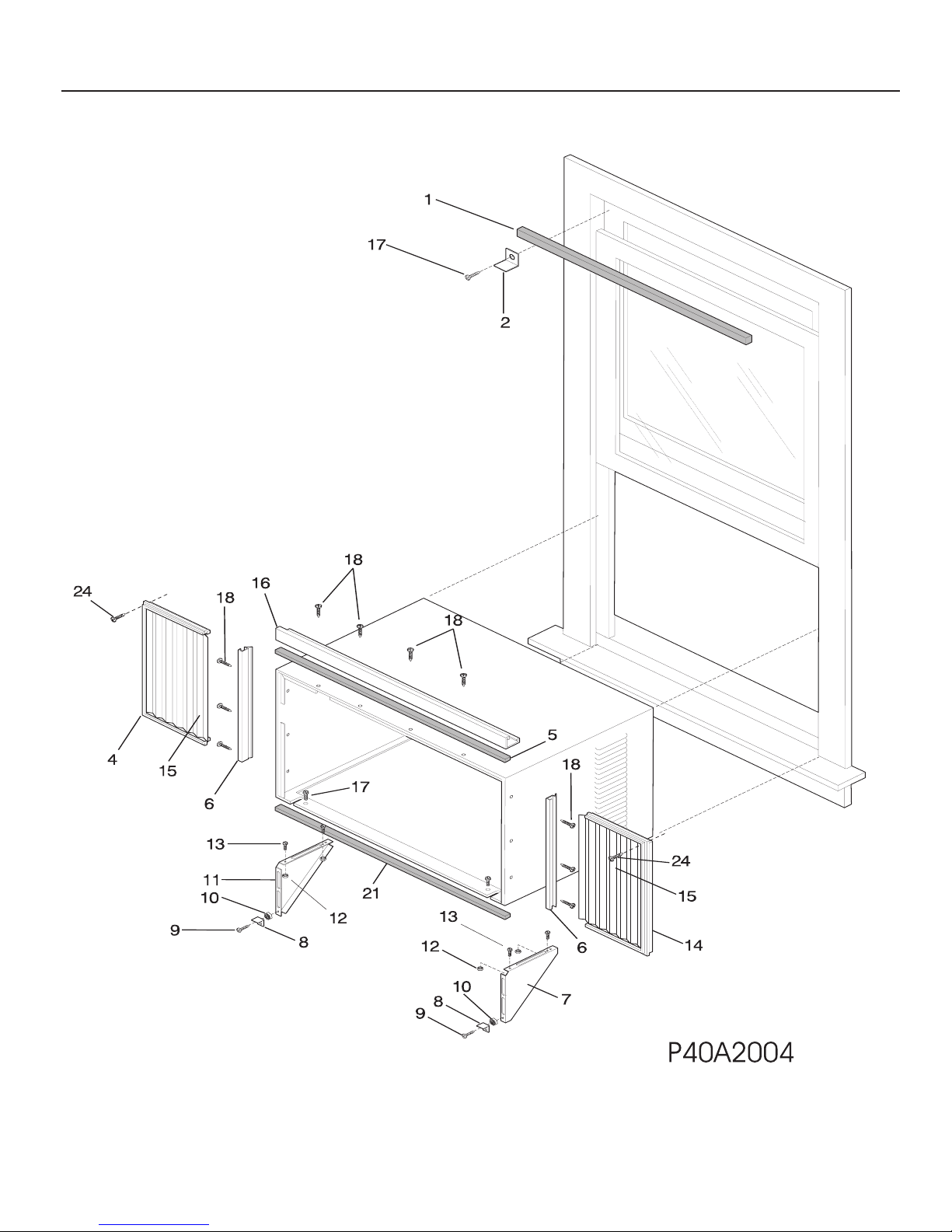

WINDOW MOUNTING PARTS
