Fan heater SWS

1. Fan heater SWS

2. Mounting brackets SWB

3. Basic ﬁlter SWSFT

4. Filter section, deep-pleated

bagﬁlter EU3 SWF

5. Return air intake SWD

6. Extra air director SWLR

7. Drip tray SWST

Accessories

Type Description

SWLR1 Extra air director SWS12

SWLR2 Extra air director SWS22

SWLR3 Extra air director SWS32/33

SWSFT02 Basic ﬁlter SWS02

SWSFT1 Basic ﬁlter SWS12

SWSFT2 Basic ﬁlter SWS22

SWSFT3 Basic ﬁlter SWS32/SWS33

SWST02 Driptray SWS02

SWST1 Driptray SWS12

SWST2 Driptray SWS22

SWST3 Driptray SWS32/33

Type Description

SWB0 Mounting brackets SWS02

SWB1 Mounting brackets SWS12

SWB2 Mounting brackets SWS22

SWB3 Mounting brackets SWS32/SWS33

SWF1 Filter section SWS12

SWF2 Filter section SWS22

SWF3 Filter section SWS32/SWS33

SWD1 Return air intake SWS12

SWD2 Return air intake SWS22

SWD3 Return air intake SWS32/SWS33

SWEF1 Extra ﬁlter cassette EU3 SWS12

SWEF2 Extra ﬁlter cassette EU3 SWS22

SWEF3 Extra ﬁlter cassette EU3 SWS32/SWS33

SWSTSWB SWF SWD SWSFTSWLR

SWS

Inlet

Outlet

Type A

[mm] B

[mm] C

[mm] D

[mm] E

[mm] F

[mm] G

[mm] H

[mm] I

[mm] J

[mm] K

[mm] Ø

[mm]

SWS02 470 520 210 50 95 40 70 40 390 65 260 22

SWS12 545 540 215 60 95 40 70 40 465 65 260 22

SWS22 675 690 215 60 100 45 70 45 585 70 400 28

SWS32(3)

SWS33(3)

800 830 315 35 100 45 70 45 710 70 530 28

Dimensions

Type A

[mm]

SWB0 195 395 235 10

SWB1 195 460 300 10

SWB2 250 570 410 10

SWB3 335 700 530 10

Type E

[mm]

SWF1 466 492 470 444 524

SWF2 616 602 580 594 524

SWF3 746 722 700 724 524

Type J

[mm]

SWD1 466 492 470 444

SWD2 616 602 580 594

SWD3 746 722 700 724

N(18)

Drip tray, SWST

Type M

[mm]

SWST02 518 218

SWST1 538 213

SWST2 691 217

SWST3 828 313

122

Return air intake, SWD

Filter section, SWF

Mounting brackets SWB

288

42,

ø20

: +7 (495) 374-90-31

E-mail: [email protected]

www.frico-air.ru

SWS

KRT1900TKS16 RE1,5/3/RE7

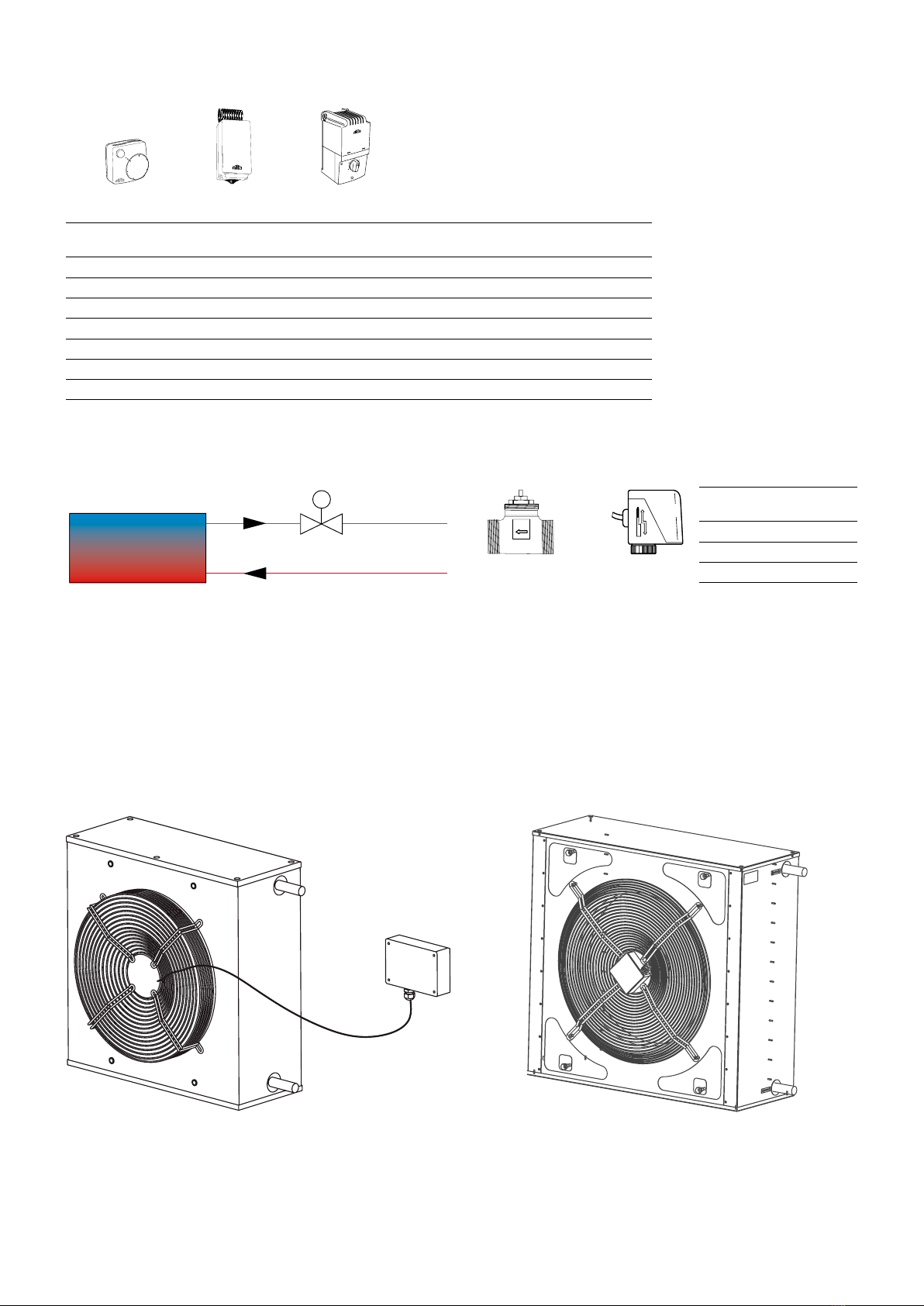

Controls

Type Description HxWxD

[mm]

TKS16 Electronic thermostat with knob and 1-pole main switch 80x80x31

KRT1900 Capillary tube thermostat 165x57x60

RE1,5 5-step change-over switch for air ﬂow, max.1,5A 200x105x105

RE3 5-step change-over switch for air ﬂow, max. 3A 200x105x105

RE7 5-step change-over switch for air ﬂow, max. 7A 247x147x145

STDT16 Thermal contact motor protection (400V3~) 150x80x98

SWYD1 2-step change-over switch for air ﬂow (Y/D) 120x85x135

TVVS20/25 SD20

Type RSK

SD20 672 70 37

TVVS20 673 92 96

TVVS25 673 92 97

Water regulation

SD20

TVVS20/25

Electrical installation 230V~

1 m cable

Terminal box

Electrical installation 400V3~

SWS

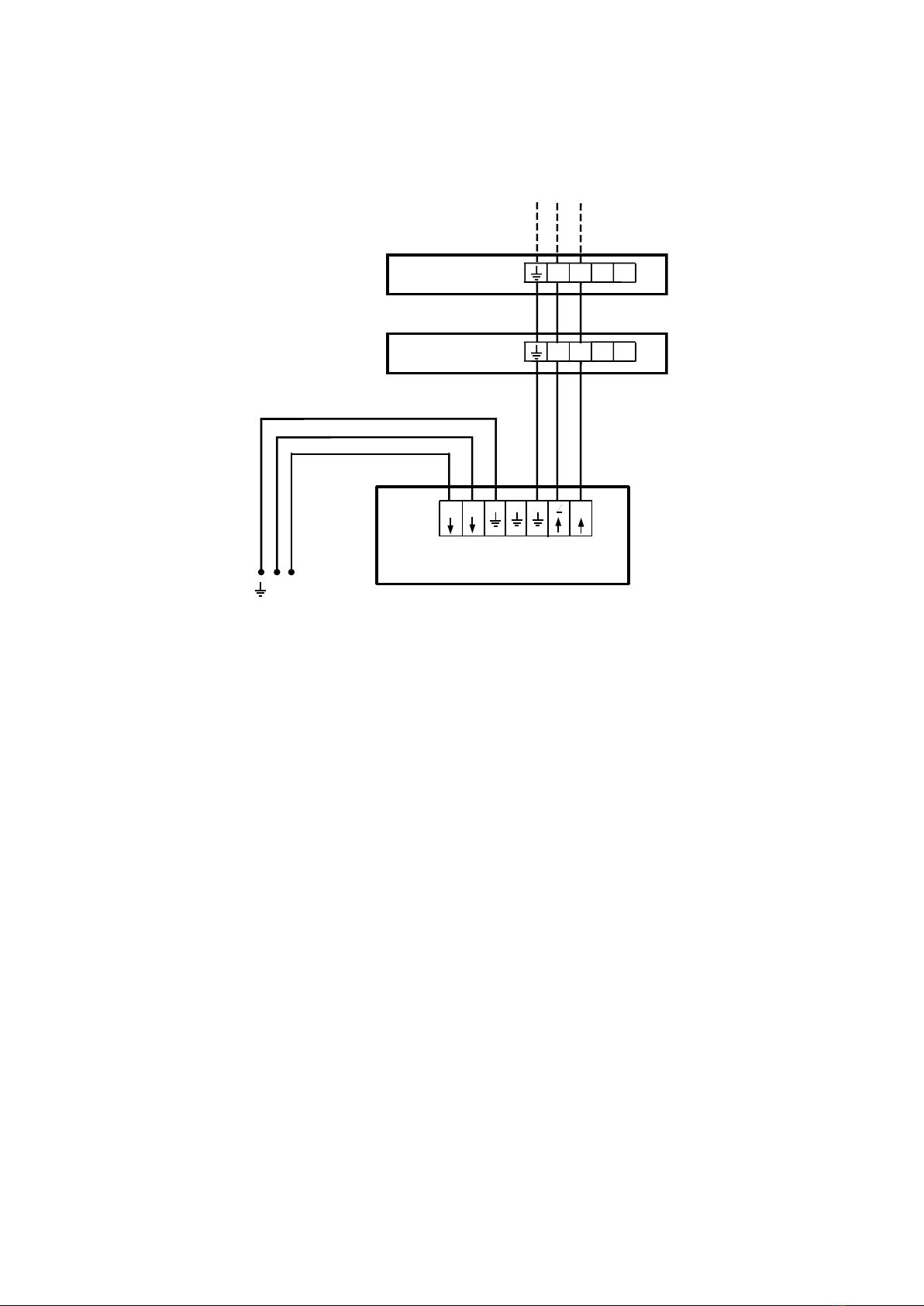

Wiring diagrams SWS

SWS 230V~

Yellow-Green

Black

Brown

230 V~

Blue

Internal

: +7 (495) 374-90-31

E-mail: [email protected]

www.frico-air.ru

SWS

Control by thermostat only

KRT

SWS

230 V~

SD20

TVVS20/25

Wiring diagram

230V~

SWS

230 V~

SD20

TVVS20/25

TKS16

A/B

>t°C

SWS

5-step control of airﬂow only

1 2

RE1,5 - 7

230 V~

SWS

1 2

SWS

Wiring diagram

230V~

: +7 (495) 374-90-31

E-mail: [email protected]

www.frico-air.ru

SWS

Thermostat and 5-step control

KRT

RE1,5 - 7

SWS

L N

230 V~

SD20

TVVS20/25

Wiring diagram

230V~

RE1,5 - 7

SWS

230 V~

SD20

TVVS20/25

TKS16

A/B

>t°C

SWS

Black

Orange

400 V3~

Grey

Brown

Red

Blue

V2 V1 W2 W1 U2

L2 L3

TK TK

∆400V3~

SWS323/333

400 V3~

L2 L3

Y 400V3~

SWS323/333

Black

Orange

Grey

Brown

Red

Blue

V2 V1 W2 W1 U2 TK TK

Wiring diagrams

SWS 400V3~

Internal wiring diagram

2-step control of airﬂow only

Black

Orange

Grey

Brown

Red

Blue

V2 V1 U2

SWS323/333

TK TK

STDT16

SWYD1

Half speed

Full speed

12 3 45678910 11 12 13 14 15 16 17 18 19 20

W2 W1

: +7 (495) 374-90-31

E-mail: [email protected]

www.frico-air.ru

SWS

Wiring diagrams

SWS 400V3~

Black

Orange

Grey

Brown

Red

Blue

V2 V1 U2

SWS323/333

TK TK

STDT16

SWYD1

Half speed

Full speed

123

45678910 11 12 13 14 15 16 17 18 19 20

W2 W1

230 V~

SD20

TVVS20/25

KRT

400 3V~

Heat controlled by thermostat and 2-step control of air ﬂow

Black

Orange

Grey

Brown

Red

Blue

V2 V1 U2

SWS323/333

TK TK

STDT16

SWYD1

Half speed

Full speed

123

45678910 11 12 13 14 15 16 17 18 19 20

W2 W1

400 3V~

230 V~

SD20

TVVS20/25

TKS16

A/B

>t°C
