Horizon Elite™Ice Machine Models with RIDE®Technology
Installation Instructions for Drop-Ins
HCD/HMD/HCF/HMF1010RJS, HCD/HMD/HCF/HMF1410RJS,
HCD/HMD1010NJS, HCD/HMD1410NJS
(See model number congurator on page 2 for details.)
01113299R00
801 Church Lane • Easton, PA 18040, USA
Toll free (877) 612-5086 • +1 (610) 252-7301
www.follettice.com
remote condensing
2remote condensing DROP-IN • RIDE Technology
ConfigurationApplication
S RIDE™
(RIDE remote
ice delivery
equipment)
T Top-mount
400 up to
454 lbs
(206kg)
1000/1010
up to
1036 lbs
(471kg)
1400/1410
up to
1450 lbs
(658kg)
1650 up to
1580 lbs
(717kg)
V Vision™
H Harmony™
B Ice storage bin
J Drop-in
M Ice Manager
diverter valve
system
CondenserSeriesVoltageIcemaker
C 208-230/60/1 (icemaking head)
Self-contained only.
D 115/60/1 (icemaking head)
Self-contained and remote. If remote
unit, high side is 208-230/60/1.
E 230/50/1 (icemaking head)
Self-contained only.
F 115/60/1 (icemaking head)
Remote only. High side is
208-230/60/3.
MC Maestro™
Chewblet®
(400 Series)
HC Horizon
Chewblet
(1000, 1400,
1650 Series)
HM Horizon
Micro Chewblet
HC 1400C SVA
A Air-cooled, self-contained
W Water-cooled, self-contained
R Air-cooled, remote condensing unit
N Air-cooled, no condensing unit for
connection to parallel rack system
Chewblet®Ice Machine Model Number Configurations
CAUTION!
• This appliance should be connected by a qualied person in accordance with applicable codes.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualied
persons in order to avoid a hazard.
• Connect to potable water supply only.
• This appliance can be used by children aged 8 years and above and persons with reduced physical, sensory,
or mental capabilities, or lack of experience and knowledge if they have been given supervision or instruction
concerning use of the appliance in a safe way and understand the hazards involved. Children should be
supervised to ensure that they do not play with the appliance.
• This appliance is intended to be used for household and similar applications such as staff kitchen areas
in shops, offices and other working environments; farm houses and by clients in hotels, motels and
other residential type environments; bed and breakfast type environments; catering and similar non-retail
applications.
• WARNING! To avoid a hazard due to instability of the appliance, it must be xed in accordance with the
instructions.
3
DROP-IN • RIDE Technology remote condensing
Front cover
8
Internal connection
7
Ice transport tube
5
External connection
6
Louvered docking assembly
4
Dispenser preparation
3
Site preparation
2
Unpack
1
Read and complete the following 8 installation steps
4remote condensing DROP-IN • RIDE Technology
Carefully unpack and inspect the contents of your Follett ice machine. 1
Unpack
7/16"
7/16"
➊ ➋
➌➍
➎ ➏
Unpack ice machine
1. 1
5
DROP-IN • RIDE Technology remote condensing
➎
➍
➋
➊
3/8" ∅ (9,5 mm)
NEMA
5-15
➌
1/4" per foot
(6,4 mm per 0,3 m)
5/8" ∅ (15,8 mm)
Prepare the installation site. 2
Site preparation
2.1
Provide drainage, water supply and electrical power to within 6 feet (2m) of ice
machine in accordance with local and national codes. Outdoor installation of
low side is not recommended and will void warranty.
Electrical ➊
• 120/60/1-5 amps
Potable water supply ➋ (3/8” push-in internal connection, 3/8” OD tubing required)
• 10-70 psi (69-483kpa)
• 45-90 F (7-32 C)
• Follett recommends the use of an in-line water ltration system (item# 00130286)
• This equipment is to be installed with adequate backow protection to comply with applicable
federal, state, and local codes
Drain ➌ (3/4” MPT)
• The drain line from the ice machine must have at least 1/4” per foot pitch (6,4 mm/0,3 m)
Refrigeration lines ➍
• 5/8” ∅ (15,8 mm) diameter suction line (insulated) ➍
• 3/8” ∅ (9,5 mm) liquid line ➎
Installation site requirements
2.1
6remote condensing DROP-IN • RIDE Technology
12"
(304,8mm)
min.
4"
(101,6mm)
➌
➍
➓
➑
➋
➏
➎
➊
➐
➐
➒
Hot Water
160 F (71 C)
Prepare the dispenser. 3
Dispenser preparation
• Determine best route for ice transport tube run. Note: 12" (304,8mm) clearance is required.
• Drill 1 3/4" (44,5mm) hole through either side of dispenser ➊
• Install gasket ➋ onto bulkhead tting ➌
• Attach bulkhead tting with at up ➍ and tighten bulkhead nut ➎
• Position and secure nut locking plate ➏with supplied screws
• Verify installation of O-ring on stainless steel ice transport tube coupling ➐
• Insert stainless steel ice transport tube coupling ➐ into bulkhead tting and secure with coupling
cap ➑
• Heat end of transport tube in cup of 160 F (71 C) hot water to soften and spread with pliers ➒
before making connection to ease assembly
• Attach ice transport tube to coupling with supplied hose clamp ➓
2.1 Dispenser preparation
3.1
7
DROP-IN • RIDE Technology remote condensing
Machine stand accessory
Wall bracket accessory
Install the louvered docking assembly.
Louvered docking assembly 4
3/8˝ ∅
high pressure
line
1010, 1410:
5/8" ∅ low pressure line
1" (25,4 mm)
Stub Typ
1.88" (47,8 mm)
3.38" (86 mm)
2" (50,8 mm)
➋
➊
➊
• Mount louvered docking assembly ➊
• “Rough-in” the refrigerant piping ➋
2.1 Louvered docking assembly
4.1
• Mount louvered docking assembly to wall
bracket accessory
• Mount louvered docking assembly to
machine stand accessory
8remote condensing DROP-IN • RIDE Technology

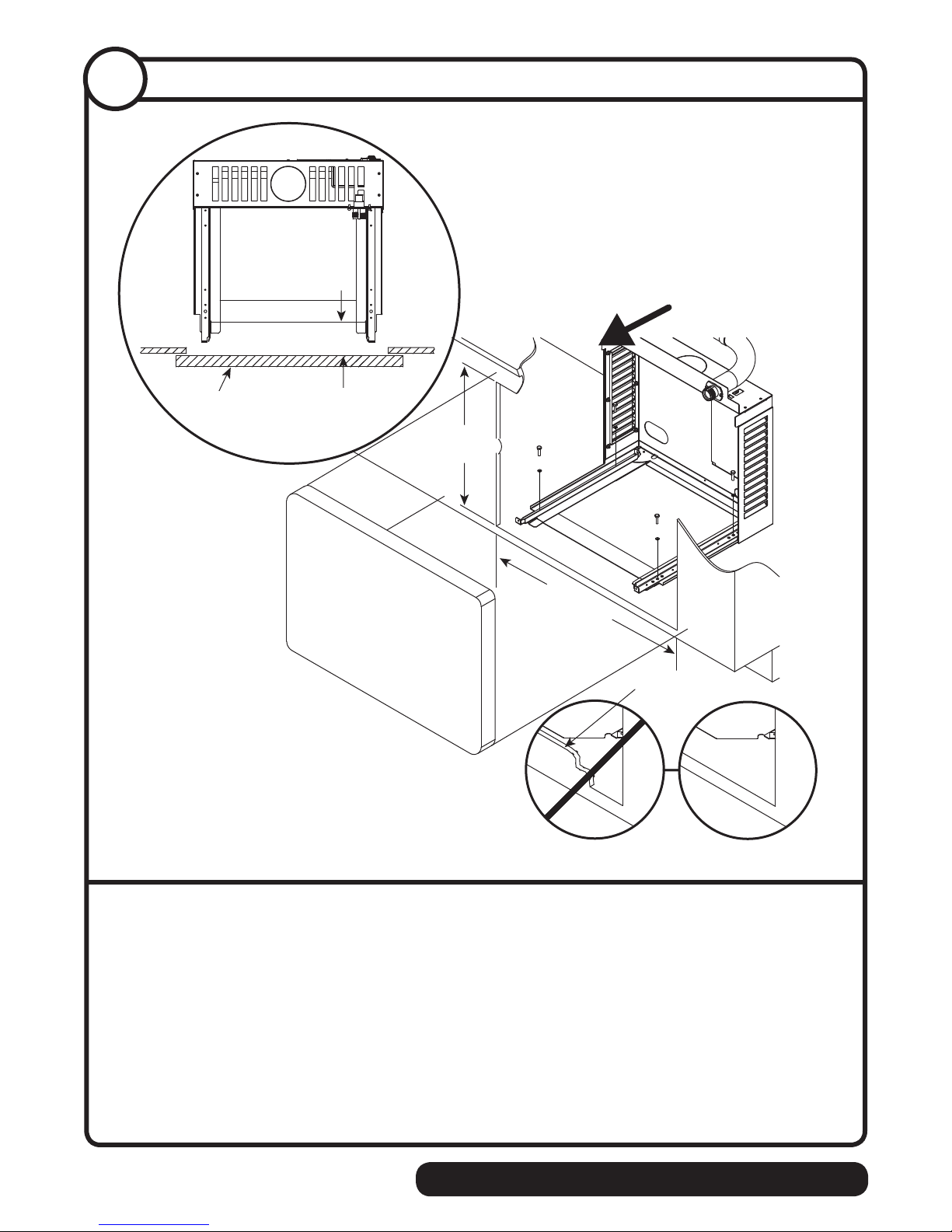

No Lip
➋
Access panel/
door on counter
3.25" (83 mm) min.
➊
➌
24" min.
(609 mm
22.25" min.
(656 mm)
CROSSBRACE
Top View
DOCKING STATION
• Position and screw louvered docking assembly to the bottom of counter inside of access panel/
door min. of 3.25" (83 mm) from the front edge of the cross brace ➊
• The mounting surface for the louvered docking assembly must be solid.
Do not mount directly onto runners or channels.
• There must be no lip or edge that would hinder the ice machine from sliding in or out of the
louvered docking station ➋
• Ice machine must be installed facing forward as shown for service accessibility ➌
Undercounter installation requirements
4.2
9
DROP-IN • RIDE Technology remote condensing
➎
1/4"
1'
➊
➋
➌
➍
➏
➐
Hot Water
160 F (71 C)
Ice transport tube
Install the ice transport tube. 5
Ice transport tube tips
• Insulate entire length of ice transport tube ➊
• Secure ice transport tube ➋ as needed to prevent dips and traps from forming.
For long tube runs see guide on page 14.
• Pitch ice transport tube at least 1/4" per foot (6,4mm/.3m) ➌
• Ice transport tube must drain towards ice machine
Ice transport tube to Ice machine
• Be sure tube ends are square ➍
• Heat end of transport tube in cup of 160 F (71 C) hot water to soften and spread with pliers ➎
before making connection to ease assembly
• Push ice transport tube onto ice machine nipple ➏
• Install hose clamp ➐
Ice transport tube installation from dispenser to ice machine
5.1
10 remote condensing DROP-IN • RIDE Technology
Connect utilities to louvered docking assembly. 6
External connections
➋
➊
➌
• Remove access panel if necessary.
• Install drain line ➊.
The rigid drain line from the ice machine
must have at least 1/4" per foot pitch
(6,4mm/0,3m).
• Rough-in ice machine potable water
supply ➋.
3/8" push-in connection will be made at
shut-off valve inside machine
• Apply Petrogel to barbed drain tting ➌
• Replace access panel.
Water and drain
6.1
➊
• Braze supplied expandable refrigerant
lines in place ➊
Refrigerant
6.2
