Follett Horizon Elite 1010 Series Manual de usuario

Horizon Elite™ 1010/1410 Ice Machines (Self-contained)

50 Hz and 60 Hz

User Guide

Please visit www.follettice.com/technicaldocuments

for the Operation and Service manual for your unit.

Installation and Service Videos:

www.follettice.com/servicevideolibrary

01266568R00

801 Church Lane • Easton, PA 18040, USA

Toll free (877) 612-5086 • +1 (610) 252-7301

www.follettice.com

Welcome to Follett

Follett equipment enjoys a well-deserved reputation for excellent performance, long-term reliability and outstanding

after-the-sale support. To ensure that this equipment delivers that same degree of service, review this guide

carefully before you begin your installation.

Should you need technical help, please call our Technical Service group at (877) 612-5086 or (610) 252-7301.

Please have your model number, serial number and complete and detailed explanation of the problem when

contacting Technical Service.

Getting Started

After uncrating and removing all packing material, inspect the equipment for concealed shipping damage. All freight

is to be inspected upon delivery. If visible signs of damage exist, please refuse delivery or sign your delivery receipt

"damaged." Follett Customer Service must be notied within 48 hours. Wherever possible, please include detailed

photos of the damage with the original packaging so that we may start the freight claim process.

HCC/HMC 1010/1410 A/W

HCE/HME 1010/1410 A/W

2 Horizon Elite 1010/1410 Self-Contained (50 Hz and 60 Hz)

CAUTION!

§Warranty does not cover exterior or outside installations.

§Do not tilt unit further than 30° off vertical during uncrating or installation.

§Dispenser bin area contains mechanical, moving parts. Keep hands and arms clear of this area at all times. If access to

this area is required, power to unit must be disconnected rst.

§This appliance is not suitable for installation in an area where a water jet could be used.

§This appliance must not be cleaned by a water jet.

§User maintence should not be done by children.

§Follett recommends a Follett water lter system be installed in the ice machine inlet water line (standard capacity

#00130229, high capacity #00978957, carbonless high capacity #01050442).

§Prior to operation clean the dispenser in accordance with instructions found in this manual.

§Do not block air intake or exhaust.

§This appliance should be permanently connected by a qualied person in accordance with application codes.

§A qualied person shall provide a readily accessible disconnect device incorporated into the xed wiring.

§If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualied persons in

order to avoid a hazard.

§This appliance can be used by children aged 8 years and above and persons with reduced physical, sensory, or mental

capabilities, or lack of experience and knowledge if they have been given supervision or instruction concerning use of the

appliance in a safe way and understand the hazards involved. Children should be supervised to ensure that they do not

play with the appliance.

§This appliance is designed for commercial use.

§WARNING! To avoid a hazard due to instability of the appliance, it must be xed in accordance with the instructions.

§Warranty does not cover exterior or outside installations.

§To reduce risk of shock, disconnect power before servicing.

§Connect to potable water supply only.

§Ice is slippery. Maintain counters and oors around dispenser in a clean and ice-free condition.

§Ice is food. Follow recommended cleaning instructions to maintain cleanliness of delivered ice.

ConfigurationApplication

S RIDE®

(RIDE remote

ice delivery

equipment)

T Top-mount

425 up to

425 lbs

(193 kg)

710 up to

675 lbs

(306 kg)

1010 up to

1061 lbs

(482 kg)

1410 up to

1466 lbs

(665 kg)

1810 up to

1790 lbs

(812 kg)

2110 up to

2039 lbs

(925 kg)

V Vision™

H Harmony™

B Ice storage bin

J Drop-in

M Ice Manager™

diverter valve

system

P Cornelius Profile

PR150

CondenserSeriesVoltageIcemaker

C 208-230/60/1 (icemaking head)

Self-contained only.

D 115/60/1 (icemaking head)

Self-contained and remote. If remote

unit, high side is 208-230/60/1.

E 230/50/1 (icemaking head)

Self-contained only.

F 115/60/1 (icemaking head)

Remote only. High side is

208-230/60/3.

MC Maestro Plus™

Chewblet®

(425 Series)

HC Horizon Elite™

Chewblet

(710, 1010, 1410,

1810, 2110

Series)

HM Horizon Elite

Micro Chewblet™

HC 1810D SVA

A Air-cooled, self-contained

W Water-cooled, self-contained

R Air-cooled, remote condensing unit

N Air-cooled, no condensing unit for

connection to parallel rack system

Chewblet®Ice Machine Model Number Configurations

Horizon Elite 1010/1410 Self-Contained (50 Hz and 60 Hz) 3

Specications

Electrical

Each ice machine requires its own separate circuit with electrical disconnect within 10 ft (6 m).

Equipment ground required.

Standard electrical:

§HCE1010: 230/50/1 (6 ft (2 m) cord) requires dedicated 15A circuit

§HCE1410: 230/50/1 (6 ft (2 m) cord only, no plug) requires dedicated 20A circuit

§HCC1010: 208-230/60/1 (6 ft (2 m) NEMA 6-15 cord and plug provided) requires dedicated 15A circuit

§HCC1410: 208-230/60/1 (6 ft (2 m) NEMA 6-20 cord and plug provided) requires dedicated 20A circuit

§Amperage: 1010A/W - 11A,

1410A/W - 14A

Plumbing

WARNING

This equipment to be installed with adequate backow protection to comply with applicable federal, state, and

local codes.

§3/8" OD push-in water inlet (connection inside machine) - 3/8" OD tubing required

§3/4" MPT drain

§1/4" FPT condenser inlet (water-cooled condenser only)

§1/4" FPT condenser drain (water-cooled condenser only)

Notes:

§Water shut-off recommended within 10 feet (3 m).

§Water supply must have particle ltration. Follett recommends the lter system that has integral scale inhibitors.

(Follett item# 00130286).

§Follett does not recommend the use of water softeners or bowl scale inhibitors.

§The potable water total dissolved solids (TDS) content must be greater than 10 ppm for the water control

system to function properly. If using reverse osmosis water ltration system, ensure TDS level is greater than

10ppm.

Flush drain plumbing

§3/4" MPT ush drain connection at the rear of the machine.

§Drain must slope 1/4" per foot (6 mm per 30.4 cm).

§Drain line should not be shared with any other piece of equipment.

§Drain line cannot be reduced to a size smaller than 1".

§Drain should be piped without a vent.

3/4" barb x 3/4" FPT

1" Stand pipe/Drain

2 ft. x 1" OD

silicone tubing

Minimum 8"

radius

3/4" MPT x 1" slip

1" PVC Drain

2 ft. x 1" OD

silicone tubing 3/4" MPT x 1" slip

3/4" barb x 3/4" FPT

1/4" per foot

(6,4 mm per 0,3 m)

4 Horizon Elite 1010/1410 Self-Contained (50 Hz and 60 Hz)

Ambient

Air temperature 100 F/38 C max. 50 F/10 C min.

Water temperature 90 F/32 C max. 45 F/7 C min.

Water pressure – potable 70 psi max. (483 kPa) 10 psi min. (89 kPa)

Heat rejection

1010 1410

Air-cooled 11,300 BTU/hr 16,000 BTU/hr

Water-cooled 12,800 BTU/hr 16,400 BTU/hr

Weight

1010 1410

Approximate ship weight 275 lb (125 kg) 305 lb (138 kg)

Approximate net weight 265 lb (120 kg) 295 lb (134 kg)

Ice production

1010 Air-cooled ice machine capacity/24 hrs.

Ambient Air Temperature F/C

Evap Potable Water Temperature F/C

F 60 70 80 90 100

C16 21 27 32 38

50 116 0 1061 962 825 688 lbs

10 526 481 436 374 312 kg

60 1093 1001 909 795 681 lbs

16 496 454 412 361 309 kg

70 1026 941 857 765 674 lbs

21 465 427 389 345 306 kg

80 971 893 815 730 644 lbs

27 440 405 370 331 292 kg

90 917 845 773 694 614 lbs

32 416 383 351 315 279 kg

1010 Water-cooled ice machine capacity/24 hrs.

Condenser Water Temperature F/C

Evap Potable Water Temperature F/C

F 50 60 70 80 90

C10 16 21 27 32

50 1096 1043 1011 947 892 lbs

10 497 473 454 430 405 kg

60 1006 970 938 888 839 lbs

16 456 440 425 403 381 kg

70 917 898 874 830 778 lbs

21 416 407 396 376 353 kg

80 874 888 830 787 749 lbs

27 396 403 376 357 340 kg

90 831 807 778 745 712 lbs

32 377 366 353 338 323 kg

1410 Air-cooled ice machine capacity/24 hrs.

Ambient Air Temperature F/C

Evap Potable Water Temperature F/C

F 60 70 80 90 100

C16 21 27 32 38

50 1593 1466 1339 1230 112 1 lbs

10 723 665 609 558 508 kg

60 1518 1396 1275 1163 1052 lbs

16 689 633 578 528 477 kg

70 1442 1327 12 11 1097 982 lbs

21 654 602 549 498 445 kg

80 1394 1272 115 0 1050 950 lbs

27 632 577 522 476 431 kg

90 1345 1217 1089 1004 918 lbs

32 610 552 494 455 416 kg

1410 Water-cooled ice machine capacity/24 hrs.

Condenser Water Temperature F/C

Evap Potable Water Temperature F/C

F 50 60 70 80 90

C10 16 21 27 32

50 1393 1368 1343 1328 1313 lbs

10 632 621 609 602 596 kg

60 1374 1326 1278 1268 1257 lbs

16 623 601 580 575 570 kg

70 1335 1284 1213 1207 1201 lbs

21 606 582 550 547 545 kg

80 1278 1216 115 3 113 5 1116 lbs

27 580 552 523 515 506 kg

90 1201 1147 1093 1063 1032 lbs

32 545 520 496 482 468 kg

Horizon Elite 1010/1410 Self-Contained (50 Hz and 60 Hz) 5

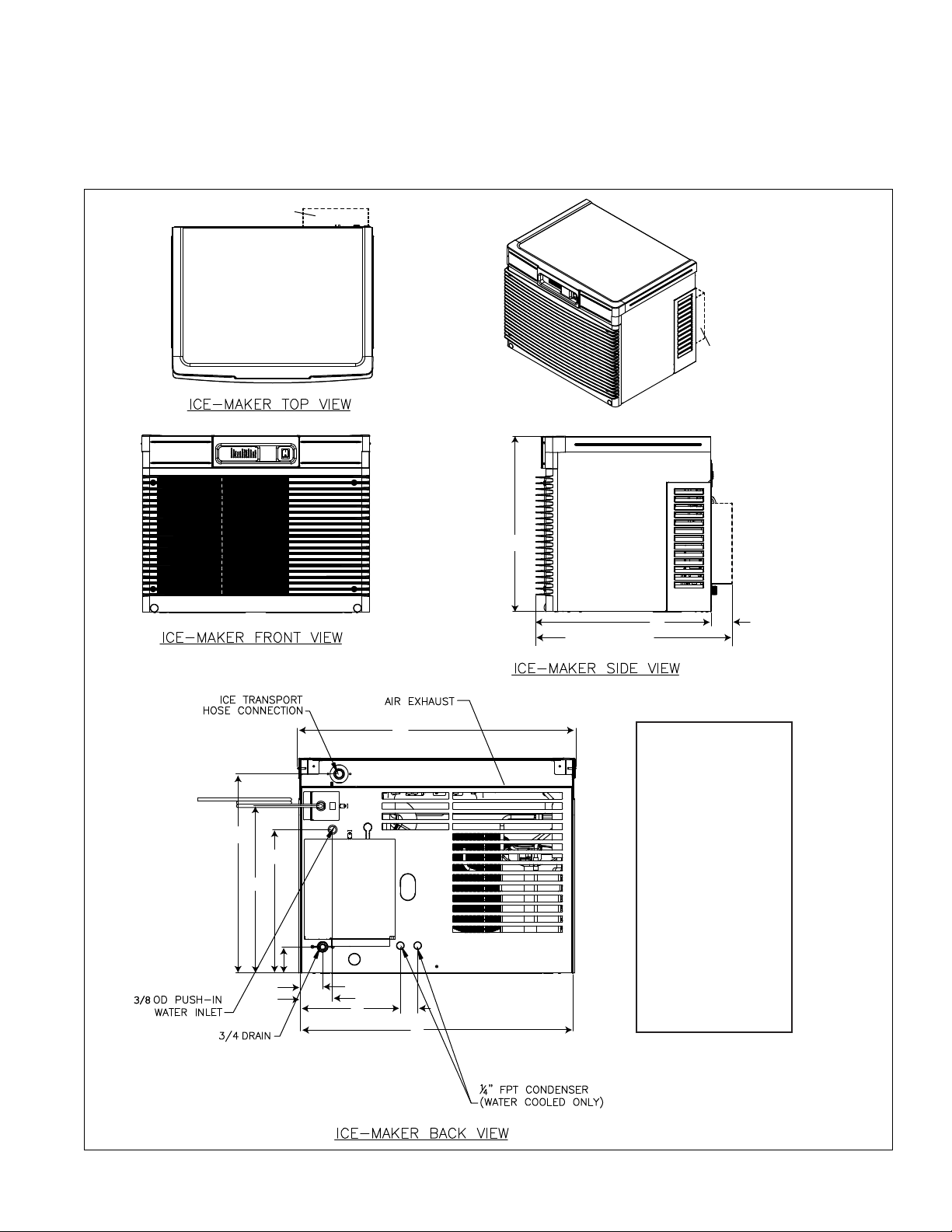

Dimensions and clearances

§Entire front of ice machine must be clear of obstructions/connections to allow removal.

§1" (26 mm) clearance above ice machine for service.

§1" (26 mm) minimum clearance on sides.

§The intake and exhaust air grilles must provide at least 250 sq in (1615 sq cm) of open area.

§Air-cooled ice machines – 18" (458 mm) minimum clearance between discharge and air intake-grilles.

A 22.51" (57.2 cm)

B22.48" (57.1 cm)

C25.15" (56.3 cm)

D2.66" (6.8 cm)

E20.84" (52.9 cm)

F17.49" (44.4 cm)

G15.00" (38.1 cm)

H2.73" (6.9 cm)

I2.30" (5.8 cm)

J3.34" (8.5 cm)

K10.44" (26.5 cm)

L1.81" (4.6 cm)

M28.50" (72.4 cm)

N29.15" (74.0 cm)

C (1410 ONLY)

D (1410 ONLY)

1410 ONLY

6 Horizon Elite 1010/1410 Self-Contained (50 Hz and 60 Hz)

Cleaning/sanitizing and preventive maintenance (all models)

Note: Do not use bleach to sanitize or clean the icemaker.

Preventive maintenance

Periodic cleaning of Follett’s icemaker system is required to ensure peak performance and delivery of clean,

sanitary ice. The recommended cleaning procedures that follow should be performed at least as frequently as

recommended, and more often if environmental conditions dictate.

Cleaning of the condenser can usually be performed by facility personnel. Cleaning of the icemaker system, in most

cases, should be performed by your facility’s maintenance staff or a Follett authorized service agent. Regardless

of who performs the cleaning, it is the operator’s responsibility to see that this cleaning is performed according to

the schedule below. Service problems resulting from lack of preventive maintenance will not be covered under the

Follett warranty.

Weekly exterior care

The exterior may be cleaned with a stainless cleaner such as 3M Stainless Steel Cleaner & Polish or equivalent.

Monthly condenser cleaning (air-cooled icemaker only)

1. Use a vacuum cleaner or stiff brush to carefully clean condenser coils of air-cooled icemakers to ensure

optimal performance.

2. When reinstalling counter panels in front of remote icemakers, be sure that ventilation louvers line up with

condenser air duct.

Semi-annual evaporator cleaning (every 6 months)

WARNING

§Wear rubber gloves and safety goggles (and/or face shield) when handling ice machine cleaner or sanitizer.

CAUTION

§Use only Follett approved SafeCLEAN Plus™ cleaning solution.

§DO NOT USE BLEACH.

§It is a violation of federal law to use these solutions in a manner inconsistent with their labeling.

§Read and understand all labels printed on packaging before use.

Note: Complete procedure for cleaning and sanitizing MUST be followed. Ice must be collected for 10minutes

before putting ice machine back into service.

Fig. 1

1. Press the CLEAN button. The machine will drain. The

auger will run for a short time and then stop. Wait for

the LOW WATER light to come on. LO WATER

Horizon Elite 1010/1410 Self-Contained (50 Hz and 60 Hz) 7

Fig. 2

2. Follow the directions on the SafeCLEAN Plus

packaging to mix 1 gal. (3.8 L) of Follett SafeCLEAN

Plus solution. Use 100 F (38 C) water.

3. Using a 1 quart (1 L) container, slowly ll cleaning

cup until CLEANER FULL light comes on. Do not

overll.

4. Place one SaniSponge™ cleaning sponge in

remaining sanitizing and cleaning solution and retain

for Step 9.

Note: Do not use bleach to sanitize or clean the icemaker.

CLEANER FULL

Fig. 3

5. Replace cover on cleaner cup. Machine will clean,

then ush 3 times in approximately 15 minutes. Wait

until machine restarts.

Fig. 4

6. To clean/sanitize ice transport tube – Press power

switch OFF

8 Horizon Elite 1010/1410 Self-Contained (50 Hz and 60 Hz)

Fig. 5

7. Disconnect coupling as shown.

Fig. 6

8. Using disposable foodservice grade gloves, insert dry

SaniSponge cleaning sponge.

9. Insert SaniSponge cleaning sponge soaked in

SafeClean Plus (from Step 4).

10. Push both SaniSponge cleaning sponges down ice

transport tube with supplied pusher tube. 1

16"

(407 mm)

Fig. 7

11. Remove and discard 16 inch (407 mm) pusher tube.

Horizon Elite 1010/1410 Self-Contained (50 Hz and 60 Hz) 9

Fig. 8

12. Reconnect coupling. Press power switch ON. Ice

pushes SaniSponge cleaning sponges through ice

transport tube.

Fig. 9

13. Place a sanitary (2 gal. or larger) container in bin or

dispenser to collect SaniSponge cleaning sponges

and ice for 10 minutes.

14. Collect 5.5 lbs (3 kg) of ice from unit. Discard ice and

SaniSponge cleaning sponges.

10 Horizon Elite 1010/1410 Self-Contained (50 Hz and 60 Hz)

Wiring diagram

Otros manuales para Horizon Elite 1010 Series

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Máquina de hielo de Follett

Follett

Follett Horizon Elite Chewblet 1010 Series Manual de usuario

Follett

Follett 7UC100A Manual de usuario

Follett

Follett C20001 Manual de operación

Follett

Follett Horizon Elite HCD1010RHT Manual de usuario

Follett

Follett Horizon HCD1000RVS Manual de usuario

Follett

Follett C19999 Manual de operación

Follett

Follett Horizon Elite Harmony HCD E 710AHT Series Manual de usuario

Follett

Follett HCC1000A Manual de operación

Follett

Follett Symphony 25HI400A Suplemento

Follett

Follett Ice Pro DB650 Guía de configuración

Follett

Follett Maestro Chewblet 400 Series Guía de configuración

Follett

Follett HCD Manual de operación

Follett

Follett Horizon H C700ABT Manual de usuario

Follett

Follett Maestro plus chewblet ride 425 series Manual de usuario

Follett

Follett 230V 50Hz Suplemento

Follett

Follett Horizon Elite 2110 Series Manual de usuario

Follett

Follett Horizon Elite HCD710A Manual de usuario

Follett

Follett Horizon Elite 1412 Manual de usuario

Follett

Follett 110 Series Suplemento

Follett

Follett L82639 Manual de operación

Follett

Follett Ice Pro EDB1000 Manual

Follett

Follett Horizon Elite Chewblet HCF1010RMS Manual de usuario

Follett

Follett Horizon Elite 710 Series Manual de usuario

Follett

Follett MC-425A/W Guía de configuración

Manuales populares de Máquina de hielo de otras marcas

Hoshizaki

Hoshizaki KMD-460MWJ Manual de usuario

Sub-Zero

Sub-Zero 315I Instrucciones de uso

Unold

Unold 48945 Manual de usuario

Kenmore

Kenmore 2217402A Manual de usuario

Cornelius

Cornelius WM600 Instrucciones de funcionamiento

GE XPIO43SCSS Manual de usuario

Hoshizaki

Hoshizaki KMD-901MAH Manual de usuario

Whynter

Whynter FIM-450HA Manual de usuario

U-Line

U-Line UMCR014-SC01A Manual de instalación

Andrew James

Andrew James AJ000522 Manual de usuario

Scotsman

Scotsman CME1356 Manual de usuario

Scotsman

Scotsman ACM 25 Manual de usuario

Kärcher

Kärcher IP 120 Manual de usuario

U-Line

U-Line SS1095 Manual de usuario

Maytag

Maytag MIM1554WRS - Ice Maker Manual de usuario

Hoshizaki

Hoshizaki KM-630MAH Manual de usuario

Princess

Princess Yonanas Manual de usuario

Unold

Unold 48946 Manual de usuario
