Follett Horizon Elite HCC710AJS Manual de usuario

Order parts online

www.follettice.com

Horizon Elite™Ice Machine Models with RIDE™Technology

Installation Instructions for Drop-In

HCC/HCD710AJS, HCC1010AJS, HCC1410AJS, HCC1010WJS, HCC1410WJS,

HMC1010AJS, HMC1410AJS, HMC1010WJS, HMC1410WJS,

HCE1010AJS, HCE1410AJS, HCE1010WJS, HCE1410WJS

HME1010AJS, HME1410AJS, HME1010WJS, HME1410WJS

(See model number congurator on page 2 for details.)

self-contained

01113281R05

801 Church Lane • Easton, PA 18040, USA

Toll free (877) 612-5086 • +1 (610) 252-7301

www.follettice.com

2self-contained DROP-IN • RIDE Technology

CAUTION!

• This appliance should be connected by a qualied person in accordance with applicable codes.

• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualied

persons in order to avoid a hazard.

• Connect to potable water supply only.

• This appliance can be used by children aged 8 years and above and persons with reduced physical, sensory,

or mental capabilities, or lack of experience and knowledge if they have been given supervision or instruction

concerning use of the appliance in a safe way and understand the hazards involved. Children should be

supervised to ensure that they do not play with the appliance.

• This appliance is intended to be used for household and similar applications such as staff kitchen areas

in shops, offices and other working environments; farm houses and by clients in hotels, motels and

other residential type environments; bed and breakfast type environments; catering and similar non-retail

applications.

• WARNING! To avoid a hazard due to instability of the appliance, it must be xed in accordance with the

instructions.

ConfigurationApplication

S RIDE™

(RIDE remote

ice delivery

equipment)

T Top-mount

425 up to

425 lbs

(193 kg)

710 up to

675 lbs

(306 kg)

1010 up to

1061 lbs

(482 kg)

1410 up to

1466 lbs

(665 kg)

1810 up to

1790 lbs

(812 kg)

2110 up to

2039 lbs

(925 kg)

V Vision™

H Harmony™

B Ice storage bin

J Drop-in

M Ice Manager™

diverter valve

system

P Cornelius Profile

PR150

CondenserSeriesVoltageIcemaker

C 208-230/60/1 (icemaking head)

Self-contained only.

D 115/60/1 (icemaking head)

Self-contained and remote. If remote

unit, high side is 208-230/60/1.

E 230/50/1 (icemaking head)

Self-contained only.

F 115/60/1 (icemaking head)

Remote only. High side is

208-230/60/3.

MC Maestro™

Chewblet®

(425 Series)

HC Horizon

Chewblet

(710, 1010, 1410,

1810, 2110

Series)

HM Horizon

Micro Chewblet™

HC 1810D SVA

A Air-cooled, self-contained

W Water-cooled, self-contained

R Air-cooled, remote condensing unit

N Air-cooled, no condensing unit for

connection to parallel rack system

Chewblet®Ice Machine Model Number Configurations

DROP-IN • RIDE Technology self-contained

Front cover

Internal connection

Ice transport tube

External connection

Docking assembly

Dispenser preparation

Site preparation

Unpack

Read and complete the following 8 installation steps

4self-contained DROP-IN • RIDE Technology

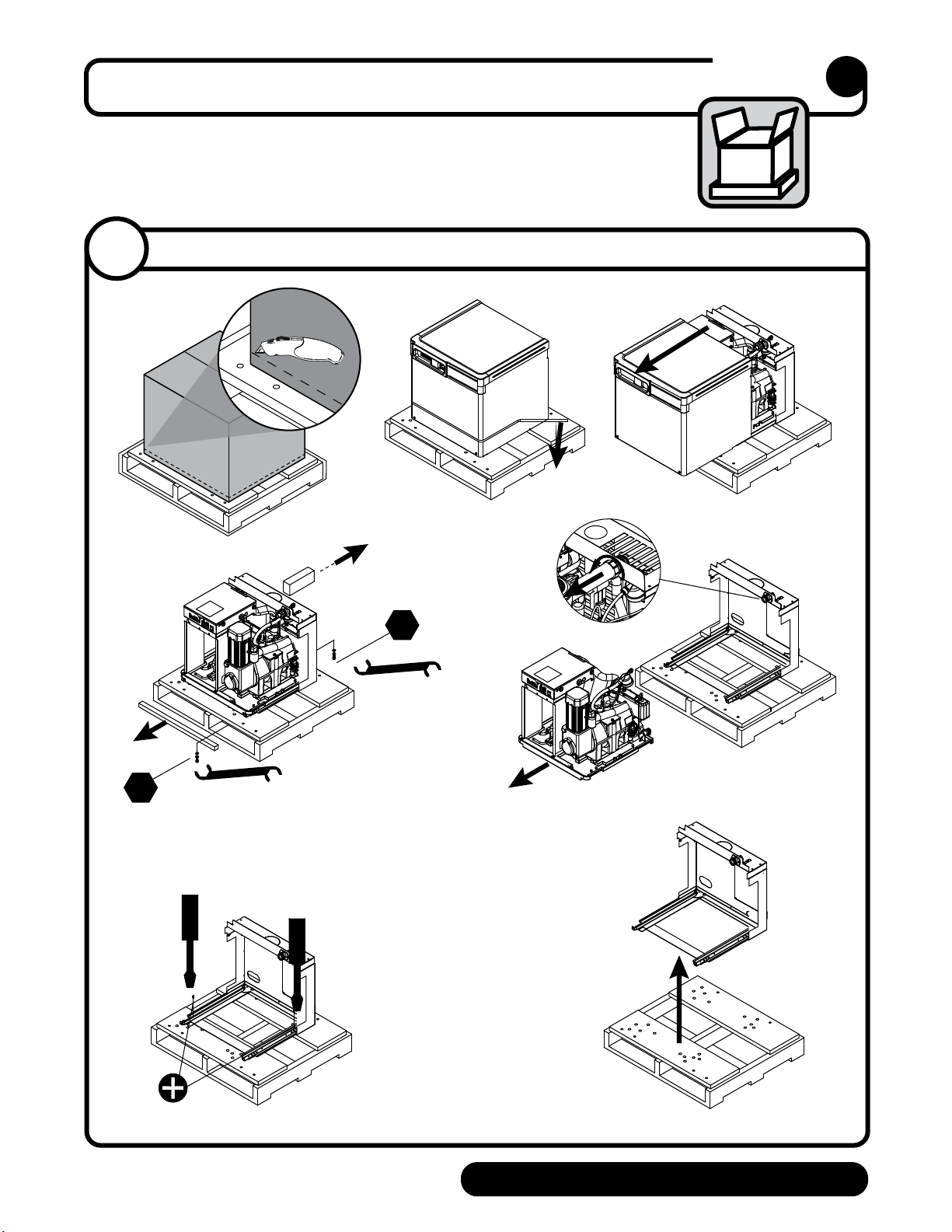

Carefully unpack and inspect the contents of your Follett ice machine. 1

Unpack

7/16"

➊➋➌

➍➎

➏➐

DO NOT TILT ICE MACHINE

TO ACCESS BOLTS!

COMPRESSOR DAMAGE

WILL RESULT

Unpack ice machine

1. 1

DROP-IN • RIDE Technology self-contained

➋

➌

➊

NEMA

6-15

H_C1010A/W

H_C1410A/W

NEMA

6-20

H_E710A‡

H_E1010A/W‡

requires 15 amp circuit

1.50 mm2wire

H_E1410A/W‡

requires 20 amp circuit

4.00 mm2wire

➍

1/4" per foot

(6,4 mm per 0,3 m)

2 ft. x 1" OD

silicone tubing

and ttings

provided

H_D710A

NEMA

5-15

➍

3/8"

chassis

drain must

be used

Prepare the installation site. 2

Site preparation

2.1

Provide drainage, water supply and electrical power to within 6 feet (2m) of ice

machine in accordance with local and national codes. Outdoor installation is

not recommended and will void warranty.

Electrical ➊

• H_C1010/1410(A/W)JS 208-230/60 • H_D710AJS 115/60 (Requires dedicated 15A circuit)

• H_E1010/1410(A/W)JS 230/50‡• H_E710AJS 230/50‡

‡ H_E710A, H_E1010A/W requires 15A dedicated circuit 1.50 mm2wire, H_E1410A/W requires 20A dedicated circuit

4.00 mm2wire. Plug must be provided by end user and must conform to standard EN 60 335-2-24 of the end

destination.

Potable water supply ➋ (3/8" push-in connection, 3/8" OD tubing required)

• 10-70 psi (69-483 kpa)

• 45 to 90 F (7 to 32 C)

• Follett recommends the use of an in-line water ltration system (item# 00130286)

• This equipment is to be installed with adequate backow protection to comply with applicable

federal, state, and local codes

Condenser water supply for water-cooled systems ➌ (1/4" FPT inlet, 1/4" FPT outlet)

• 10 psi min.; 150 psi max. (69 kpa min.; 1034 kpa max.)

• 45 to 90 F (7 to 32 C)

• 1.5 gallons per minute (5.68 liters per minute)

Drains: ➌ 3/4" Barb for silicone drain, 3/8" push-to-connect for chassis drain

• Minimum 8"radius on silicone drain line. Drain line from the ice machine must have at least

1/4" per foot pitch (6,4mm/0,3m).

Installation site requirements

2.1

6self-contained DROP-IN • RIDE Technology

12"

(304,8mm)

min.

(101,6mm)

➌

➍

➓

➑

➋

➏

➎

➊

➐

➒

Hot Water

160 F (71 C)

Prepare the dispenser. 3

Dispenser preparation

• Determine best route for ice transport tube run. Note: 12" (304,8 mm) clearance is required.

• Drill 1 3/4" (44,5 mm) hole through either side of dispenser ➊

• Install gasket ➋onto bulkhead tting ➌

• Attach bulkhead tting with at up ➍and tighten bulkhead nut ➎

• Position and secure nut locking plate ➏with supplied screws

• Verify installation of O-ring on stainless steel ice transport tube coupling ➐

• Insert stainless steel ice transport tube coupling ➐into bulkhead tting and secure with coupling

cap ➑

• Heat end of transport tube in cup of 160 F (71 C) hot water to soften and spread with pliers ➒

before making connection to ease assembly

• Attach ice transport tube to coupling with supplied hose clamp ➓

2.1 Dispenser preparation

3.1

DROP-IN • RIDE Technology self-contained

Install the docking assembly.

Docking assembly 4

Undercounter installation requirements

4.1

Wall bracket accessory Machine stand accessory

• Mount docking assembly to wall bracket

accessory

• Mount docking assembly to machine

stand accessory

Prior to installing the docking assembly, ensure that the drain tting

is oriented (right or left) correctly for your installation. An optional

straight drain tting is also supplied. You may need to remove the

back panel of the docking assembly in order to re-orient or change

the drain tting. Replace back panel prior to mounting the docking

assembly.

BEFORE PROCEEDING

DOCKING STATION

• Position and screw docking assembly to the bottom of counter inside of access panel/door ➊

1010/1410: 2.25" (57 mm) from the front edge of asembly

710: 3.25" (82.55 mm) from the front edge of the cross brace

• The mounting surface for the docking assembly must be solid.

Do not mount directly onto runners or channels.

• There must be no lip or edge that would hinder the ice machine from sliding in or out of the

docking station ➋

INTAKE AND EXHAUST GRILLE PLACEMENT: Air-cooled models only

• Position the intake grille cutout in the access panel/door

Note: Ice machine must be aligned with cutout and inside of access panel to provide a tight

seal and prevent recirculation of hot exhaust air.

• Left edge of cutout from the left side of the ice machine ➌

1010/1410: 2.25" (57 mm)

710: 2" (51 mm)

• Bottom edge of cutout should be 2" (51 mm) from the bottom of the ice machine ➍

• Position supplied exhaust grille at least 18" (458mm) away from intake grille ➎.

Where possible, install exhaust grille to the rear or side of the base cabinet.

• If not using supplied grille, air circulation requirements below must be met:

1010/1410: 250 sq. in (1613 sq cm) intake/exhaust air

710: 160 sq. in (1032 sq cm) intake/exhaust air

8self-contained DROP-IN • RIDE Technology

Top View

Access panel/

door on counter

➊B

➍

➌A

(51 mm)

Front View

bottom of ice machine

side of ice machine

3D Counter View

18" min.

(458mm)

➎

➋

No Lip

1010/1410: 2.25" (57 mm)

710: 2" (51 mm)

1010/1410: 2" (51 mm)

710: 3.25" (82.55 mm)

1010/1410: 23.5" (597 mm)

710: 22.25" (565 mm)

1010/1410: 24" (610 mm)

710: 18" (457 mm)

1010/1410: 31" (787 mm)

710: 24" (609 mm)

1010/1410: 15" (381 mm)

710: 14" (355 mm)

Undercounter installation detail

CAUTION

• Keep ventilation openings in the appliance enclosure clear of obstruction. Failure to do so could result in damage to equipment.

• To ensure proper ventilation (if not using supplied grille) carefully review air circulation specications on previous page (4.1)

DROP-IN • RIDE Technology self-contained

Ice transport tube

Install the ice transport tube. 5

➎

1/4"

➊

➋

➌

➍

➏

➐

Hot Water

160 F (71 C)

Ice transport tube tips

• Insulate entire length of ice transport tube ➊

• Secure ice transport tube ➋as needed to prevent dips and traps from forming.

For long tube runs see guide on page 15.

• Pitch tube at least 1/4" per foot (6,4mm/0,3m) ➌

• Ice transport tube must drain towards ice machine

Ice transport tube to Ice machine

• Be sure tube ends are square ➍

• Heat end of transport tube in cup of 160 F (71 C) hot water to soften and spread with pliers ➎

before making connection to ease assembly

• Push ice transport tube onto ice machine nipple ➏

• Install hose clamp ➐

Ice transport tube installation.

5.1

10 self-contained DROP-IN • RIDE Technology

Connect utilities to docking assembly. 6

External connections

➏

➌

➋

➐

➑

3/4" barb x 3/4" FPT

1" Stand pipe/Drain

2 ft. x 1" OD

silicone tubing

Minimum 8"

radius

3/4" MPT x 1" slip

➍

➎

➊

3/4" barb x 3/4" FPT

1" Stand pipe/Drain

2 ft. x 1" OD

silicone tubing

Minimum 8"

radius

➍

3/4" MPT x 1" slip

➎

➌

➋

➊

➏

Air-cooled ice machines only Water-cooled ice machines only

6.1 6.2

• Rough-in ice machine potable water

supply ➊. 3/8" push-in connection will be

made at included shut-off valve then at

back of docking station into solenoid.

• Remove access panel if necessary ➋.

• Connect the silicone tubing to the ice

machine 3/4" drain barb ➌.

• Assemble the 3/4" barb x 3/4" FPT to the

3/4" MPT x 1" slip. Connect the other end

of the silicone tubing to the 3/4" barb ➍.

• Connect the 1" slip tting to the 1" stand

pipe/drain ➎.

Note: Minimum 8" radius on silicone

drain line. Drain line from the ice machine

must have at least 1/4" per foot pitch

(6,4mm/0,3m).

• Apply Petrol-gel to barbed drain tting ➏

• Replace access panel.

• Rough-in ice machine potable water

supply ➊. 3/8" push-in connection will be

made at included shut-off valve then at

back of docking station into solenoid.

• Remove access panel if necessary ➋.

• Connect the silicone tubing to the ice

machine 3/4" drain barb ➌.

• Assemble the 3/4" barb x 3/4" FPT to the

3/4" MPT x 1" slip. Connect the other end

of the silicone tubing to the 3/4" barb ➍.

• Connect the 1" slip tting to the 1" stand

pipe/drain ➎.

Note: Minimum 8" radius on silicone

drain line. Drain line from the ice machine

must have at least 1/4" per foot pitch

(6,4mm/0,3 m).

• Connect cooling water supply ➏and

return ➐

• Apply Petrol-gel to barbed drain tting ➑

• Replace access panel.

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Máquina de hielo de Follett

Follett

Follett MCC400A Guía de configuración

Follett

Follett 25CI425A Guía de configuración

Follett

Follett Horizon HMD700NHT Manual de usuario

Follett

Follett HCD1650RBT Manual de usuario

Follett

Follett L77091 Guía de configuración

Follett

Follett Horizon H_C700AHT Manual de usuario

Follett

Follett H58642 Manual de operación

Follett

Follett Horizon Elite HC-1810R/N Manual de operación

Follett

Follett Horizon Elite HCE710A Manual de operación

Follett

Follett Horizon Elite 1010 Series Manual de usuario

Follett

Follett MC825 Series Guía de configuración

Follett

Follett MC-425A/W Guía de configuración

Follett

Follett Horizon Elite HCD1410R Manual de usuario

Follett

Follett MCC400A Guía de configuración

Follett

Follett Horizon Elite Chewblet 1010 Series Manual de usuario

Follett

Follett Horizon Elite 1010 Series Manual de usuario

Follett

Follett Maestro Chewblet 400 Series Guía de configuración

Follett

Follett U300 Series Manual de usuario

Follett

Follett 7FS100A Guía de configuración

Follett

Follett HCD Manual de operación

Follett

Follett Horizon Elite HMD1010R Manual de usuario

Follett

Follett Horizon Elite HCD710A Manual de operación

Follett

Follett HMF1400R Manual de operación

Follett

Follett Horizon Elite HCD1810RHS Manual de usuario

Manuales populares de Máquina de hielo de otras marcas

Hoshizaki

Hoshizaki KMD-460MWJ Manual de usuario

Sub-Zero

Sub-Zero 315I Instrucciones de uso

Unold

Unold 48945 Manual de usuario

Kenmore

Kenmore 2217402A Manual de usuario

Cornelius

Cornelius WM600 Instrucciones de funcionamiento

GE XPIO43SCSS Manual de usuario

Hoshizaki

Hoshizaki KMD-901MAH Manual de usuario

Whynter

Whynter FIM-450HA Manual de usuario

U-Line

U-Line UMCR014-SC01A Manual de instalación

Andrew James

Andrew James AJ000522 Manual de usuario

Scotsman

Scotsman CME1356 Manual de usuario

Scotsman

Scotsman ACM 25 Manual de usuario

Kärcher

Kärcher IP 120 Manual de usuario

U-Line

U-Line SS1095 Manual de usuario

Maytag

Maytag MIM1554WRS - Ice Maker Manual de usuario

Hoshizaki

Hoshizaki KM-630MAH Manual de usuario

Princess

Princess Yonanas Manual de usuario

Unold

Unold 48946 Manual de usuario
