Horizon Elite™Ice Machine Models with RIDE®Technology

Installation Instructions for Harmony™ or

110CM Symphony™Plus Applications

HCD/HMD/HCF/HMF1810RHS, HCD/HMD/HCF/HMF2110RHS,

HCD/HMD1810NHS, HCD/HMD2110NHS

(See model number congurator on page 2 for details.)

remote condensing

01157866R03

801 Church Lane • Easton, PA 18040, USA

Toll free (877) 612-5086 • +1 (610) 252-7301

www.follettice.com

For applications using 110CM Symphony Plus

and most countertop dispensers manufactured by

Cornelius • Lancer • SerVend

2remote HARMONY and Symphony Plus • RIDE Technology

CAUTION!

§This appliance should be connected by a qualied person in accordance with applicable codes.

§If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly

qualied persons in order to avoid a hazard.

§Connect to potable water supply only.

§This appliance can be used by children aged 8 years and above and persons with reduced physical,

sensory, or mental capabilities, or lack of experience and knowledge if they have been given supervision

or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children

should be supervised to ensure that they do not play with the appliance.

§This appliance is intended to be used for household and similar applications such as staff kitchen areas

in shops, offices and other working environments; farm houses and by clients in hotels, motels and other

residential type environments; bed and breakfast type environments; catering and similar non-retail

applications.

§WARNING! To avoid a hazard due to instability of the appliance, it must be xed in accordance with the

instructions.

ConfigurationApplication

S RIDE™

(RIDE remote

ice delivery

equipment)

T Top-mount

425 up to

425 lbs

(193 kg)

710 up to

675 lbs

(306 kg)

1010 up to

1061 lbs

(482 kg)

1410 up to

1466 lbs

(665 kg)

1810 up to

1790 lbs

(812 kg)

2110 up to

2039 lbs

(925 kg)

V Vision™

H Harmony™

B Ice storage bin

J Drop-in

M Ice Manager

diverter valve

system

P Cornelius Profile

PR150

CondenserSeriesVoltageIcemaker

C 208-230/60/1 (icemaking head)

Self-contained only.

D 115/60/1 (icemaking head)

Self-contained and remote. If remote

unit, high side is 208-230/60/1.

E 230/50/1 (icemaking head)

Self-contained only.

F 115/60/1 (icemaking head)

Remote only. High side is

208-230/60/3.

MC Maestro™

Chewblet®

(425 Series)

HC Horizon

Chewblet

(710, 1010,

1410, 1810,

2110 Series)

HM Horizon

Micro Chewblet

HC 1810D SVA

A Air-cooled, self-contained

W Water-cooled, self-contained

R Air-cooled, remote condensing unit

N Air-cooled, no condensing unit for

connection to parallel rack system

Chewblet®Ice Machine Model Number Configurations

HARMONY and Symphony Plus • RIDE Technology remote

Front cover

Internal connection

Ice transport tube

External connection

Docking assembly

Dispenser preparation

Site preparation

Unpack

Read and complete the following 8 installation steps

4remote HARMONY and Symphony Plus • RIDE Technology

Carefully unpack and inspect the contents of your Follett ice machine. 1

Unpack

7/16"

➊➋➌

➍➎

➏➐

DO NOT TILT ICE MACHINE

TO ACCESS BOLTS!

COMPRESSOR DAMAGE

WILL RESULT

Unpack carton #1

1. 1

HARMONY and Symphony Plus • RIDE Technology remote

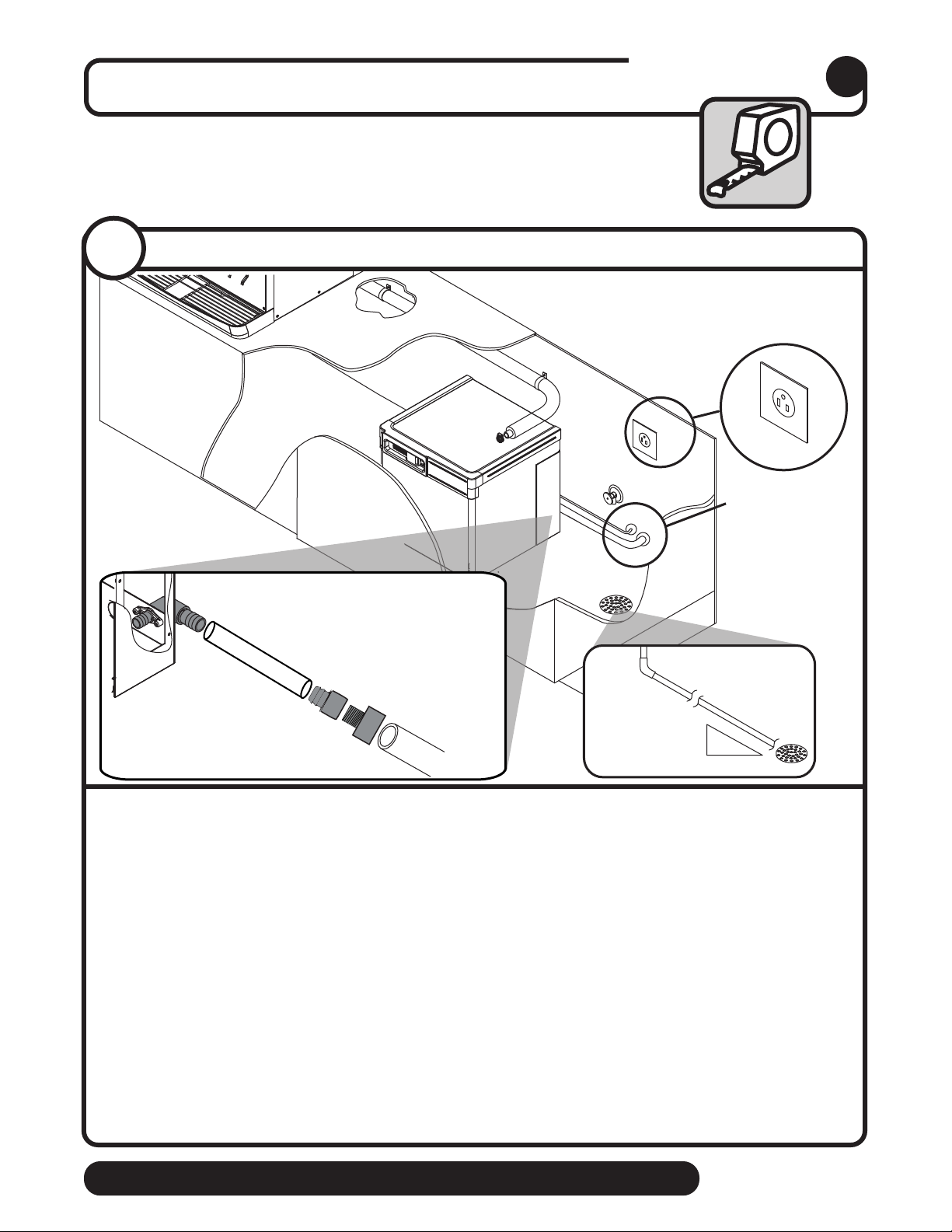

Prepare the installation site. 2

➎

➍

3/8" ∅ (9,5mm)

NEMA

5-15

➋

➊

➌

7/8" ∅ (22.4 mm)

1" PVC Drain

2 ft. x 1" OD

silicone tubing 3/4" MPT x 1" slip

3/4" barb x 3/4" FPT

➌

1/4" per foot

(6,4 mm per 0,3 m)

3/8"

chassis

drain must

be used

➌

Site preparation

Electrical ➊

• 1810(R/N)HS 120/60/1-5 amps

• 2110(R/N)HS 120/60/1-5 amps

Potable water supply ➋ (3/8” push-in connection, 3/8” OD tubing required)

• 10-70 psi (69-483kpa)

• 45-90 F (7-32 C)

• Follett recommends the use of an in-line water ltration system (item# 00130286)

• This equipment is to be installed with adequate backow protection to comply with applicable

federal, state, and local codes

Drains: ➌ 3/4” Barb for silicone drain, 3/8” push-to-connect for chassis drain

• Minimum 8” radius on silicone drain line. Drain line from the ice machine must have at least

1/4” per foot pitch (6,4mm/0,3m).

Refrigeration lines ➍ and ➎

• 7/8” ∅ (22,4 mm) diameter suction line (insulated) ➍

• 3/8” ∅ (9,5 mm) liquid line ➎

2.1

Provide drainage, water supply and electrical power to within 6 feet (2m) of ice

machine in accordance with local and national codes. Outdoor installation of

low side is not recommended and will void warranty.

Installation site requirements

2.1

6remote HARMONY and Symphony Plus • RIDE Technology

(127 mm)

3.0" ∅

(77,2 mm)

Standard (Cornelius, Lancer, or Servend)

Locate hole position 5" (127 mm) from back

of dispenser top

Back of Top

Front of Top

(127 mm)

3.0" ∅

(77,2 mm)

5" (127 mm)

110CM Symphony Plus

Locate hole position 5" (127 mm) from

back and right of dispenser top

10.00"

9.00"

3.0" ∅

Locate hole position 10" (254 mm) from

back and 9" (229 mm) from right of

dispenser top

Back of Top

Front of Top

Lancer Sensation and Touchpoint

110CM Symphony Plus w/IMDV

R1.750 5" (127 mm)

5" (127 mm)

4" (102 mm)

Lancer Sensation and Touchpoint w/IMDV

10.00"

9.00"

Prepare the dispenser. 3

Dispenser preparation

Attention! The location of the hole in the dispenser top is dependent

on the type of dispenser. Be sure to follow Step 3.1 for the

appropriate dispenser.

Hole location - Harmony (Lancer, Cornelius or Servend), or 110CM Symphony Plus

3.1

HARMONY and Symphony Plus • RIDE Technology remote

• Remove protective tape from gaskets

Top preparation

3.2

➋

➊

➌

➊

• Apply gaskets ➊

• Install shuttle actuator ➋ through

dispenser top and secure with locking nut

➌

Top preparation

3.3

➋

➊

• Screw 4" (102 mm) extension ➊ into

bottom of shuttle actuator ➋

Top preparation

3.4

OFF

Cornelius models ED, DB, DF, IDC and

FLAVOR FUSION

Adjust the agitation timer located on the Cornelius

PC board to 1 second on, 1 hour off. Note: See

Cornelius manual for more information.

Agitation adjust. – CORNELIUS

3.5

8remote HARMONY and Symphony Plus • RIDE Technology

PRESS IN ON

THIS SIDE TO

TURN SWITCH

ON.

SWITCH

OFF

PRESS IN ON

THIS SIDE TO

TURN SWITCH

OFF.

ROCKER

SWITCHES

(VIEW LOOKING

DOWN)

SIDE VIEW

12345678

OFF

SWITCH

NUMBER

AGITATION FREQUENCY

NO AGITATION

10 MINUTES

20 MINUTES

30 MINUTES

40 MINUTES

50 MINUTES

60 MINUTES

70 MINUTES

80 MINUTES

90 MINUTES

100 MINUTES

110 MINUTES

120 MINUTES

130 MINUTES

140 MINUTES

150 MINUTES

SWITCH

NUMBER

AGITATION TIME

1 SECOND

2 SECONDS

3 SECONDS

4 SECONDS

X = ON

O = OFF

Lancer 4500 series only

Adjust the agitation time to 1 second, and the agitation frequency to 150 minutes. See Lancer

manual for more information.

Agitation adjustments – LANCER 4500 SERIES

3.6

Agitation adjustments – LANCER Sensation and Touchpoint

3.7

No agitation adjustment required

HARMONY and Symphony Plus • RIDE Technology remote

Major/Minor

FS-16 Setup

Config Bonus Key

Soda/Plain Water

Config Dispense Only

PC Mode

PC Time

Ice Stir Off

Ice Stir On

Sold Out

Carb Sensors

Ice Bin Sensors

Valve Code Version

Number Of Valves

Reset Defaults No Ye s

Reload Defaults?

1 2 3 4

12 0.104 0.104

1000

Ice Bin Optic

Upper Lower

Sold Out #1

Selection Sold Out

05000

On Time (MSEC)

Off On

Set PC Mode Menu

V:1 B1 DLY1

Dispense Delay

V:2 1:S 2:W 3:S 4:W

V:1 T:F M:S B:W

Bonus Key Setup

Brands Per Side

V:1 L:2 R:1

FS-16 Setup

Soda/Plain Water

OFF Time (MIN)

00150

On Time (MSEC)

01000

1000 500

34 0.104 0.104

On On On On

V:1 B:1

Sold Out #1

Off

Sold Out #1

Ver. 0.200

Lancer FS-16

Sub-CatagoryMain Menu

Initialization Screen

2nd Sub-Catagory

(Boot Up Only)

Cancel Enter

Scrolls through Main Menu

Press "Enter" to enter sub-catagory

Moves curser to right or left

Changes value (number/letter)

Press "Enter" to enter save changes

Press "Cancel" to exit menu

➊

Lancer FS series only

• Hold down “cancel” and “left button” to get to hidden menu ➊

• Type in code 6655

• Type in 150 minutes “off time” and 1810 milliseconds (1 second of time) as the preferred setting

Note: See Lancer manual for more information

Agitation adjustments – LANCER FS SERIES

3.8

Agitation adjustments – SERVEND

3.9

SerVend models only

No agitation adjustment required

10 remote HARMONY and Symphony Plus • RIDE Technology

P/N 307277 — Diverter plate

(single agitator Cornelius

dispensers and left-hand

dispense chute on dual-agitator

Cornelius dispensers)

P/N 307277 — Diverter plate

(single agitator Cornelius

dispensers and left-hand

dispense chute on dual-agitator

Cornelius dispensers)

Single Agitator

Dual Agitator

P/N 00996207 — Diverter plate

(right-hand dispense chute on

dual-agitator dispensers)

Dispenser diverter plate overview (Installation on next page)

3.10

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Máquina de hielo de Follett

Follett

Follett Maestro Chewblet 400 Series Suplemento

Follett

Follett MCE414A S Series Guía de configuración

Follett

Follett Horizon Elite HCD1810NHT Manual de usuario

Follett

Follett Horizon Elite HCE710A Manual de operación

Follett

Follett Horizon Elite 2110 Series Manual de usuario

Follett

Follett HCC1400W Manual de operación

Follett

Follett R5A Manual de operación

Follett

Follett Horizon Chewblet series Manual de usuario

Follett

Follett Horizon Elite H D710ABT Series Manual de usuario

Follett

Follett HCD1000RBT Manual de usuario

Follett

Follett Maestro Plus MCD425A BS Manual de usuario

Follett

Follett Horizon Elite series Manual de usuario

Follett

Follett Horizon Elite HMD1010R/N Manual de operación

Follett

Follett Horizon Elite HME1410A/W Manual de operación

Follett

Follett D400A/W Manual

Follett

Follett Horizon Elite 710 Series Manual de usuario

Follett

Follett Horizon Chewblet series Manual de usuario

Follett

Follett HCE1400A Manual de operación

Follett

Follett Maestro Plus MCC425A BS Manual de operación

Follett

Follett T400A Guía de configuración

Follett

Follett L60417 Manual de operación

Follett

Follett HCD1000R Manual de operación

Follett

Follett MCC400A Guía de configuración

Follett

Follett Symphony 25HI400A Suplemento

Manuales populares de Máquina de hielo de otras marcas

Hoshizaki

Hoshizaki KMD-460MWJ Manual de usuario

Sub-Zero

Sub-Zero 315I Instrucciones de uso

Unold

Unold 48945 Manual de usuario

Kenmore

Kenmore 2217402A Manual de usuario

Cornelius

Cornelius WM600 Instrucciones de funcionamiento

GE XPIO43SCSS Manual de usuario

Hoshizaki

Hoshizaki KMD-901MAH Manual de usuario

Whynter

Whynter FIM-450HA Manual de usuario

U-Line

U-Line UMCR014-SC01A Manual de instalación

Andrew James

Andrew James AJ000522 Manual de usuario

Scotsman

Scotsman CME1356 Manual de usuario

Scotsman

Scotsman ACM 25 Manual de usuario

Kärcher

Kärcher IP 120 Manual de usuario

U-Line

U-Line SS1095 Manual de usuario

Maytag

Maytag MIM1554WRS - Ice Maker Manual de usuario

Hoshizaki

Hoshizaki KM-630MAH Manual de usuario

Princess

Princess Yonanas Manual de usuario

Unold

Unold 48946 Manual de usuario
