Flycam FLCM-FLN-TC Manual de usuario

What’s In The Box

Please inspect the contents of your shipped package to ensure you have received everything that

is listed below.

Flowline Camera Gimbal Tilt Control Kit (FLCM-FLN-TC)

No part of this document may be reproduced, stored in a retrieval system, or transmied by any form or by any means,

electronic, mechanical, photo-copying, recording, or otherwise, except as may be expressly permied by the applicable copyright

statutes or in wring by the Publisher.

Assembly Manual

1 x L-Type Allen key

(Size: 3 x 16”)

Flowline Camera Gimbal Tilt

NOTE: Flycam Gimbal Tilt Control Kit is

exclusively designed for all Flycam Flow-

line Series to oer steady gimbal lt.

• Remove the bolt of the Flycam Gimbal

Tilt Control Kit using a T-type Allen Key

(3x16”)(Not Included).

• Remove the rst Spindle of the Flycam

Gimbal Tilt Control Kit, as shown in

the image.

• To remove the remaining bolts, follow

the same process.

Flowline Camera Gimbal Tilt Control Kit Setup

• Now, remove the second Spindle.

• Remove the aached Camera

Hook of the Flycam Flowline Arm

(Not Included) by loosening its screws

using the Allen key.

• Now, remove the Camera Hook from

the cup and take out the Cord from the

cup.

• Remove the Cord Lock from the Cord.

• Remove the cap of the Flycam Gimbal

Tilt Kit.

NOTE: The Crossbar is axed to the top

of your Flowline Rig with the help of the

Quick-Release Camera Hook.

Flycam Flowline Arm Setup

• Properly insert the Cord into the

Flycam Gimbal Tilt Kit.

• Now, insert the Cord into the Camera

Hook.

• Mount the cap on the Camera Hook

and properly secure it.

• Aer inserng the Cord into the

Camera Hook, rotate and properly

ghten it.

• Aach both the Spindles of the

Flycam Gimbal Tilt Kit with the Star

Ring (Not Included).

• Pull and remove the Camera Hook of

the Flycam Gimbal Tilt Kit.

• Repeat the same process to secure the

second Spindle.

• Aer aaching the Spindles, re-insert

bolts and ghten the rst Spindle using

the T-type Allen Key (3x16”).

• The height of the Flycam Gimbal Tilt Kit

is properly adjusted.

NOTE: The kit includes a Crossbar, Ropes,

Spindles, and a Quick-Release Camera

Hook, delivering steady lng gimbal

shots

• You can loosen or ghten the rope of

the Flycam Gimbal Tilt to adjust its

height.

• Aach the cap to the Camera Hook, as

shown in the image.

• Slide the RS-Ronin (Not Included) onto

the Star Ring and secure it in posion

by ghtening its locking knob.

NOTE: The Crossbar enables supreme

balance and lets you lt your enre

Flowline rig down to 90° on either side,

allowing dynamic shots.

RS-Ronin Setup

Dierent and Creave Tilng angles for Gimbals

(SHOWN WITH OPTIONAL ACCESSORIES)

Warranty: We oer one year warranty for our products from date of purchase. Within this period of me,

we will repair it without charge for labor or parts. Warranty doesn’t cover transportaon costs nor does it

cover a product subjected to misuse or accidental damage. Warranty repairs are subjected to inspecon

and evaluaon by us.

Liability: We are not liable for damage caused by products that we do not supply or from mishandling in

transit, accident, misuse, neglect, lack of care of the product, or service by anyone other than our

company.

utmost support and care unl you use our product.

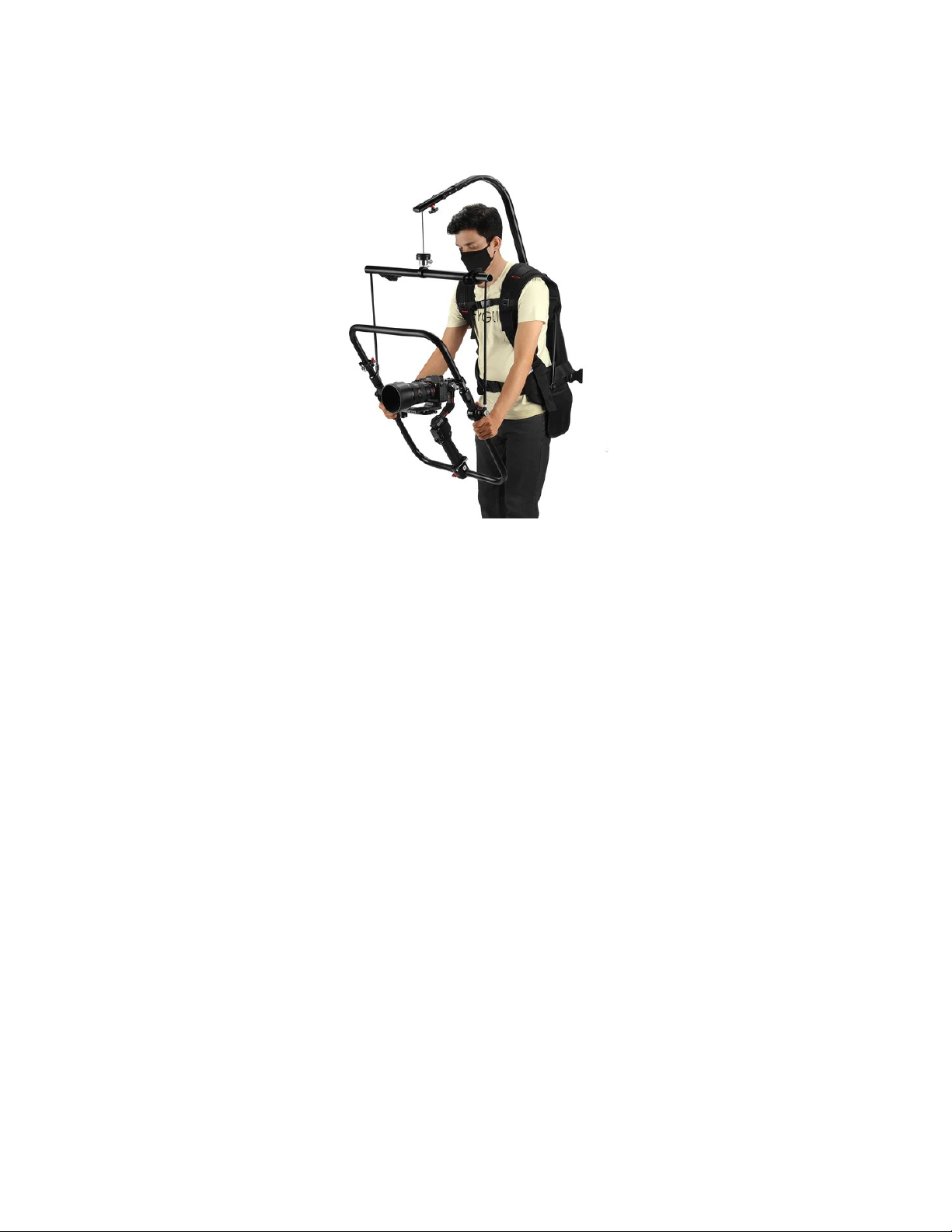

YOUR FLYCAM FLOWLINE CAMERA GIMBAL TILT CONTROL KIT

ALL DRESSED UP AND READY TO GO!
