What’s In The Box
Please inspect the contents of your shipped package to ensure you have received everything that
is listed below.
Zest Pro Electronic Stabilizer | V-Mount (ST-ZEST-PRO-02)
All rights reserved.
No part of this document may be reproduced, stored in a retrieval system, or transmied by any form or by any means,
electronic, mechanical, photo-copying, recording, or otherwise, except as may be expressly permied by the applicable copyright
statutes or in wring by the Publisher.
Assembly Manua l
Telescopic centre post with Inbuilt
Cables
Weight Rods
2 x 300mm Male Rods
2 x 150 Female Rods
Monitor Mount
20pcs Weight Plates
V-Mount Baery
2
2 x HDMI male to male
cable
DC Power cable RC male to BNC
male cable RC to RC male cable
2 x RC Female to BNC male
Connector 3/16mm, 4mm, 3mm, 2.5mm Allen Keys Ratchet Knob
Storage Bag
3
FUNCTIONS
1/4"- 20 3/8"-16
Scaling
Quick & Precise
Camera Posion
Adjustments
Fine Tuning Knob
Front-to-Back Camera Adjustment
Fine Tuning Knob
Reversed to Forward Camera adjustment & Push from
Outer Side to free Dovetail Quick Release Plate from
Camera Plaorm
Dovetail Quick Release Knob
Secure Dovetail Quick Release
Plate to Camera Plaorm
Camera Plaorm with Dovetail
Quick-Release
For Quick Camera Mounng/
Dismounng
4
Scaling
Bubble leveler
Glow-in-the-dark bubble level
DC Connector
Power output
HDMI Connector
RC Video Connector
Laser Engraved Guide Scale
Markings
Quick & Precise Vercal Posion
Adjustment
Posive Twist Lock
Easy & Secure Low Mode
Operaon
Posion-Adjustable
Knurled 3-Axis Gimbal
3-Axis Smooth Rotaonal
Operaon
Gimbal Handle
Connects to Vibraon Isolator
Arm
5
Loosen bolts to adjust the height of Zest
as per your requirement. Securely ghten
the bolts with the help of Allen key.
NOTE: Do not over ghten the bolts.
ZEST PRO SETUP
Loosen the Bolts & knob to rotate
Monitor Mount plate. The unique pivot
mechanism of Monitor mount enable
360° Rotaon and angle adjustment for
more convenience.
Adjustment of Monitor Mount
Aach the monitor mount to the
stabilizer rods and secure it properly
using the knob.
This is adjustable by loosening the
Monitor Mount Knob with one hand
while supporng and adjusng the
monitor with the other.
Add your choice of monitor by lining up
the registraon pins and aaching it to
the monitor mount via the capve ¼-20
screw.
6
Insert the weight rods onto the stabilizer
& ghten the knobs accurately.
Now aach provided Weight Plates at
both sides on Stabilizer rods and ghten
the knobs to secure them appropriately.
Aach V-Mount Baery Plate onto
Stabilizer Rods and ghten the provided
knob to secure it properly.
Assembly of Weight Bar
Assembly of Head Plate
Remove the bolt aached to the camera
plate with the help of a 3/16 mm Allen
key.
Aer removing the bolt, you can use a
ratchet knob in its place.
Once the ratchet knob is aached,
ghten it correctly.
7
The Camera plaorm knob helps in the
movement of the plate.
As shown in the image, you can use the
knob to reverse and forward the plate as
per your choice.
Pull the knob on the camera plaorm
and remove the quick release plate.
Loosen the black knob on the camera
plaorm to move it right-le.
The images show the camera plaorm
movement. You can move the plaorm
right-le as per your requirement.
Aach the quick release camera plate to
the camera, and secure it using an Allen
Key.
8

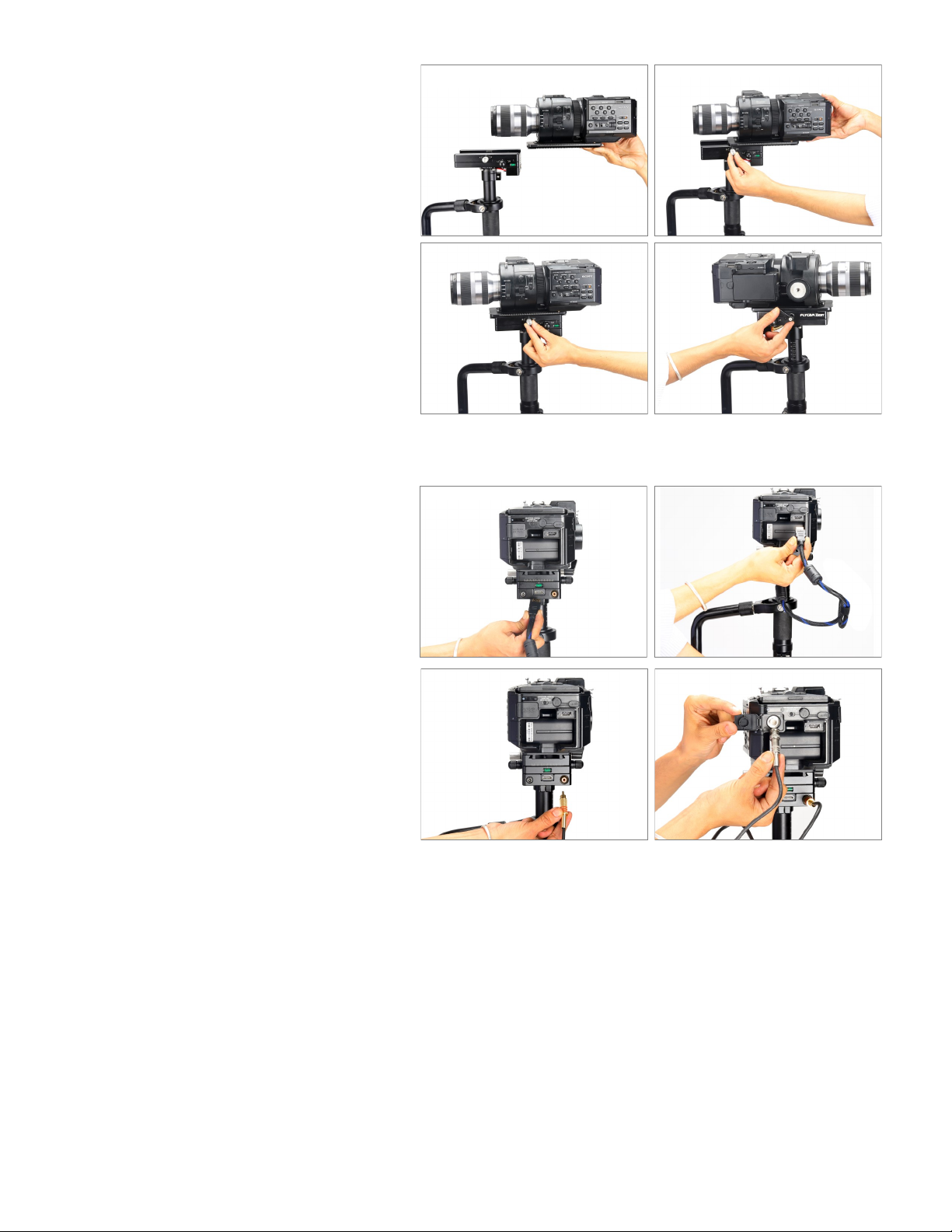

Pull the knob on the camera plate, slide
in the camera, push the knob where the
camera is balanced correctly.
Aer balancing the camera properly,
push the knob and use the ratchet knob
to secure it properly.
HDMI male cable– It is used when we
want to take video from hdmi connector
of camera .one will connect to camera
and other will to camera plate of zest. If
we need two hdmi output for display
then you can use it with power hdmi
splier cabinet .
RC male to bnc male wire– It is used to
connect the camera of bnc funcon and
other side will connect to camera plate
of zest.
DC power cable :- it is used with power hdmi splier. here we have many voltage output and we can
use voltage output for display according to your requirements. Voltages are specied in power splier.
RC to RC male cable :- it is used when we have RC connector in camera .you can use this video cable
according to your requirements.
Cable Assembly
9
(SHOWN WITH OPTIONAL ACCESSORIES)
Warranty: We oer one year warranty for our products from date of purchase. Within this period of
me, we will repair it without charge for labor or parts. Warranty doesn’t cover transportaon costs nor
does it cover a product subjected to misuse or accidental damage. Warranty repairs are subjected to
inspecon and evaluaon by us.
Liability: We are not liable for damage caused by products that we do not supply or from mishandling
in transit, accident, misuse, neglect, lack of care of the product, or service by anyone other than our
company.
Contact Us: In case of any kind of dissasfacon, please Contact us immediately and we promise our
utmost support and care unl you use our product.
YOUR FLYCAM ZEST PRO ELECTRONIC VIDEO CAMERA STABILIZER
ALL DRESSED UP AND READY TO GO!
