Flycam Buddy flcm-bdy Manual de usuario

No part of this document may be reproduced, stored in a retrieval system, or transmied by any form or by any

means, electronic, mechanical, photocopying, recording, or otherwise, except as may be expressly permied

by the applicable copyright statutes or in wring by the Publisher.

I N S T R U C T I O N M A N U A L

Buddy - 2 Axis Gimbal Camera Stabilizer

(FLCM-BDY)

Flycam Buddy - 2 Axis Gimbal Camera Stabilizer (FLCM-BDY) 2

I NT R O D U C T I O N

FLYCAM showcased its new Buddy - 2 Axis Gimbal Camera Stabilizer, an ulmate gimbal for smaller

cameras with a payload of 1.5kg. It’s expertly designed to transform your shaky handheld shots into

silky smooth professional looking footage. It comes with quick release mechanism that allows the

operator to change camera setups and re-balance the enre system very quickly. A thumb controller

is installed in the center that automacally balances the camera. Aaching a small monitor to it, makes

framing more accurate..

D E T A I L S O F T H E PA C K A G E

You will receive the kit unassembled in one box.. Unpack the box to check for the package contents,

whether you have received all the contents according to your purchase or not.

S p e ci f i ca t i on s :

(1) Load Capacity: Upto 1Kg

(2) Rated Voltage: 11.1 V DC

(3) Rated Current: 1.5 amp

Symbol:

DC Power

Quick release plate

Two Jointers

Top Handle

Top Central Support Rod

Two Side Handles

2 Axis Gimbal Stabilizer Body Five Gimbal Stand Rods

of following sizes:

 2x 28cm long rod

(both having cuts at

one end)

 2x 35cm long rod

 1x 41cm long rod

Baery Charger

USB Cable

Voltage Meter

Baery Charger

Adapter

Allen Key

Flycam Buddy - 2 Axis Gimbal Camera Stabilizer (FLCM-BDY) 3

 Now aach 35cm rods (without cut) with jointers

and ghten with Allen bolts.

 Then aach the 41cm long rod with the jointer as shown and Join another jointer to the top of this

41cm long rod.

 Loosen the Allen bolts with provided Allen key from

both jointers.

 Aach the other 28cm long rods (having cut) with the jointer and ghten it well with Allen key.

The Gimbal Stand is ready for use now.

NOTE: Keep the cuts upper side on rods

A s se m b li ng S t ep s o f G i m b al S ta n d

Flycam Buddy - 2 Axis Gimbal Camera Stabilizer (FLCM-BDY) 4

 Aach the top handle onto the top rod of Flycam Buddy and ghten the knob. Handle can be

moved front and back for adjustment.

A s se m b li ng S t ep s o f F l yc a m B u d d y - 2 A x i s G i m b a l S ta n d

 Now aach the top central support rod with top rod and ghten it with the Allen key to secure it

properly.

Flycam Buddy - 2 Axis Gimbal Camera Stabilizer (FLCM-BDY) 5

 Aach the side handles with top central support rod and ghten the knobs. Now put the Flycam

Buddy on gimbal stand.

 Aach the quick release plate with your camera, ghten it properly. Then aach the camera with

the quick release adapter and secure it well with knob provided on the side of quick release

adapter as shown below.

 Press and slide out the top cover of Baery box, then remove the back cover. Connect the cable

connecons together.

Flycam Buddy - 2 Axis Gimbal Camera Stabilizer (FLCM-BDY) 6

 Then press the baery inwards in order to aach back cover of baery box. Slide in the Top Cover.

You can check the baery voltage through provided Voltage meter.

NOTE : Aach the buzzer with baery when you are using the Flycam Buddy. When the baery

remains low the buzzer will start beeping which means that you need to recharge the baery now.

Cauon : Do not use the buddy if the buzzer is beeping as in that case it can cause damage to the

baery.

Working Range : 9V to 12V

Balancing of Flycam Buddy - 2 Axis Gimbal Camera Stabilizer

 Loosen the front knob for side-to-side movement of quick release adapter and side knob for front

& back movement of Quick release plate.

 You can also slide the top handle front and back to balance the Gimbal Stabilizer.

Your Flycam Buddy - 2 Axis Gimbal Camera Stabilizer is ready to use

Flycam Buddy - 2 Axis Gimbal Camera Stabilizer (FLCM-BDY) 7

Exclusive of Camera

1 click : Normal mode

2 clicks : Follow mode

3 clicks : Calibrate Gyro

4 clicks : Calibrate Accelerometer

5 clicks : Manual Tilt Mode

Normal mode - It will stabilize camera in both axis against any vibraons/movements of gimbal.

Follow Mode - It will stabilize camera normally but when pitch axis is lted for a longer me the

camera will slowly follow the pitch angle.

Calibrate accelerometer - Should be used once when camera posion is changed or new camera is

installed. Level the camera and keep it steady ll motors are reacvated

Calibrate gyro - Should be done when new camera is installed. Gyro is temperature sensive, if gimbal

seems out of control use this funcon to recalibrate gyro.

M a n u a l Ti l t mo d e - Aer entering this mode the motors will be deacvated for 5 seconds.

During this me set the camera angle to desired posion and gimbal will maintain the posion of

camera aer 5 seconds. This will change normal posion of camera for all future use. If you need to

change enter to this mode and level the camera again.

M o d e s e t t i n g o f F l y c a m B u d d y:

Click on the marked buon as shown in the image to set the

mode of Flycam Buddy.

Mode Buon

Flycam Buddy - 2 Axis Gimbal Camera Stabilizer (FLCM-BDY) 8

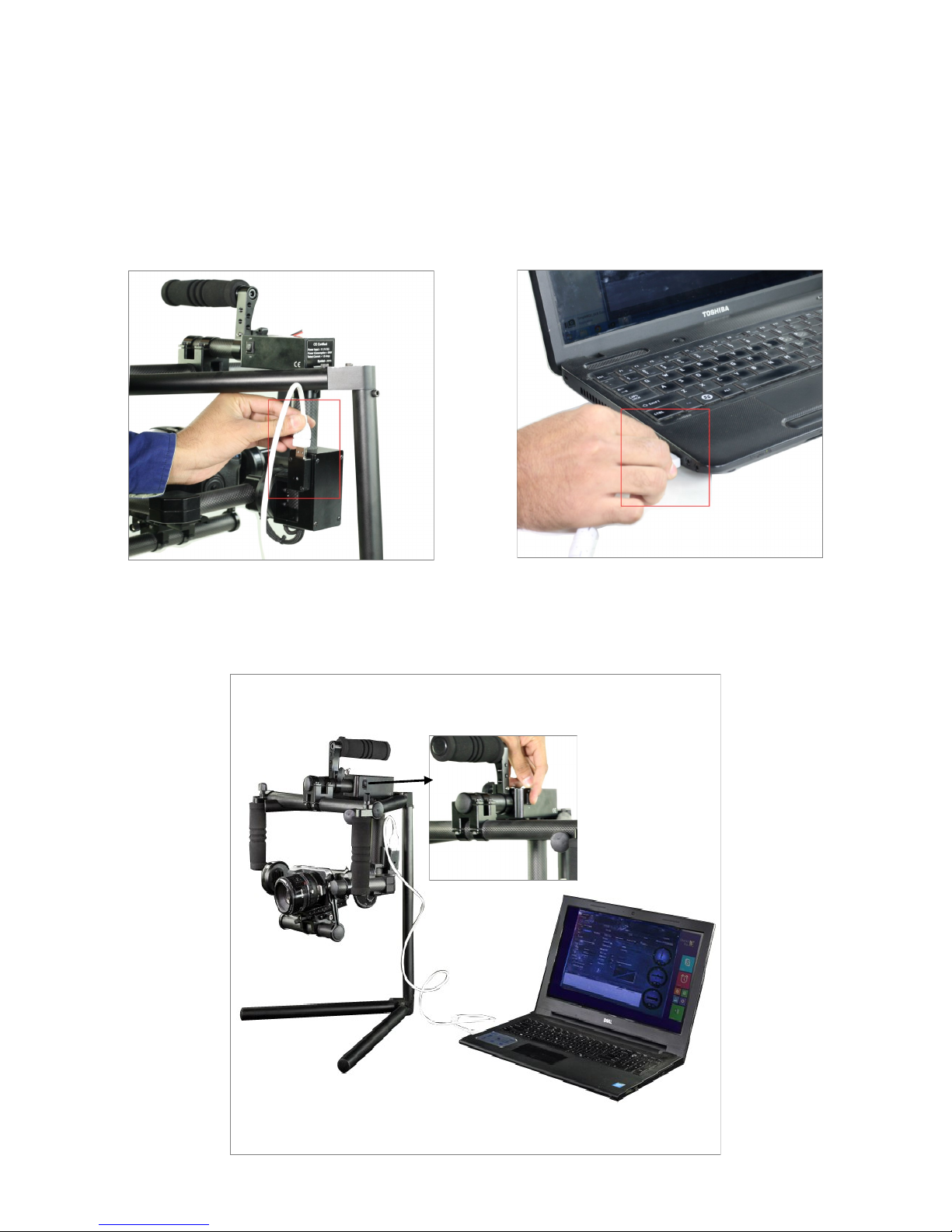

Fl yc am B u dd y Se t up & C a l i b rat io n t h ro u g h P C

You can calibrate the Flycam Buddy through your PC using the provided USB cable through soware.

 Connect the cord with the USB adapter provided on Flycam Buddy and to your PC.

 Start the GUI, select correct COM-port from the list, and click "Connect". Aer the connecon is

established, select the suitable opon to calibrate with Flycam Buddy. Then turn on the switch of

Flycam Buddy and it will get act according to calibraons..

You can download the soware through this link :

hps://www.dropbox.com/sh/efnqzz8y5gu0w/AACcCuwOgtCuacG2A7cNSqifa?dl=0

Flycam Buddy - 2 Axis Gimbal Camera Stabilizer (FLCM-BDY) 9

WARNINGS

Make sure that you are very careful when using the Flycam Buddy - 2 Axis Gimbal Camera Stabilizer

at night or in low light condions. Do not make the mistake of focusing too much on what you are

shoong that you fall over something, or wander into something dangerous like a swimming pool

etc. and be extra careful when shoong on stairs or uneven terrains etc. These cauons pertain to

dayme shoong as well.

Make sure that all children using this product have adult supervision. If you plan on

shoong while moving fast or while moving on uneven terrain, then be sure to wear knee and

elbow pads.

Us e t he F l yca m Bu dd y w i th fu l l f ree d om to a c hi ev e be st f ra me s . .

WARRANTY

We oer a limited me warranty for our products. For Mechanical products we provide a 6 month

warranty & for electronic products we provide a 3 month warranty from the date of purchase.

We will repair or replace your product, free of charge, in the event of a defect in materials or

crasmanship obtained during normal use or handling based on the user manual. Please note that we

will not cover any shipping costs for returning the product to us. If any VAT or import dues are

applied to the return, we will also charge these costs to the customer.

The warranty does not include, by the way of example, damage caused by products that we do not

supply or from mishandling in transit, accident, misuse, neglect, lack of care of the product , or service

by anyone other than our company.

Flycam Buddy - 2 Axis Gimbal Camera Stabilizer (FLCM-BDY) 10

We are not liable for incidental or consequenal damages resulng from the use of the unit or occur-

ring due to any breach of this warranty.

Replacement parts of the product will be provided at nominal cost (covering the cost price of the re-

placement parts only) to the customers aer the Warranty Period has expired. We will cover the com-

plete cost of sending replacement parts within the warranty period. Aer that, Nominal cost of the

product & Actual shipping cost will be charged.

Donot send the unit to us without rst geng a response and geng the approval to send back the

item.

In case of any kind of dissasfacon, we urge you to Contact us immediately and we shall do our best

to help you out.

For any other assistance you can reach us via email.
