What’s In The Box
Please inspect the contents of your shipped package to ensure you have received everything that
is listed below.
Flowline Master for Camera & Gimbals with Placid
Stabilizing Arm (FLCM-FLN-MSTR-PLA)
Assembly Manua l
Camera Hook
Support Bar
Side Support
Adjustment
Release
Lever
Balance Adjustment
Knob
Bag Packing
All rights reserved.
No part of this document may be reproduced, stored in a retrieval system, or transmied by any form or by any means,
electronic, mechanical, photo-copying, recording, or otherwise, except as may be expressly permied by the applicable copyright
statutes or in wring by the Publisher.
Safety Shock Cord
Tensioner Spring
Accessory Bag
2

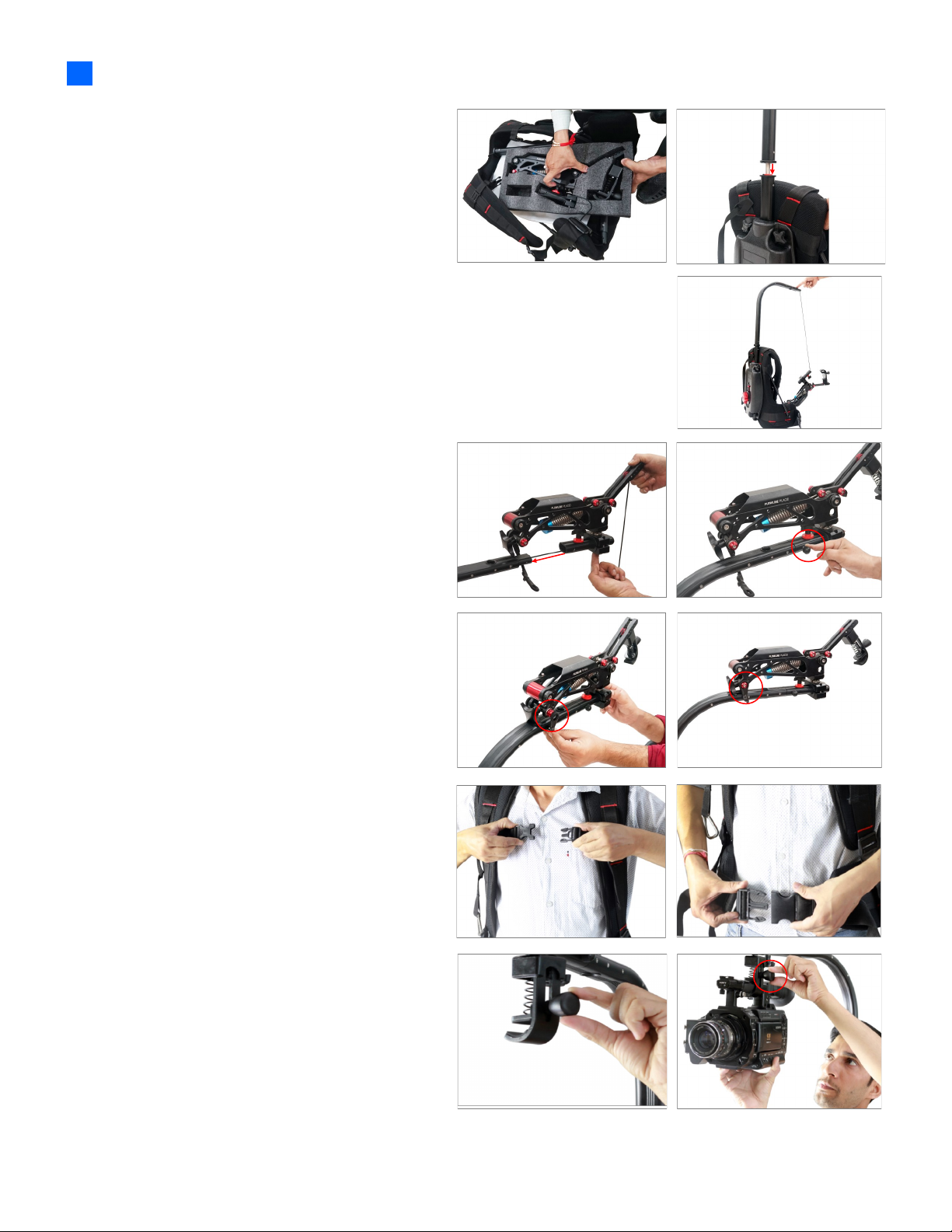

Remove placid from foam packing. The
placid arm has a cord aached to it. Join
secon 1 of the support bar to secon 2
with a simple push-t technique, as shown
in the image.
Insert the placid arm into the support bar
through the cord and secure it correctly
with the help of a knob.
Flowline Master with Placid Setup
To x the placid arm at its appropriate
posion, aach one side of the safety shock
cord to a knob on the placid arm. Then, drag
the other side of the elasc cord across the
owline support arm, and aach it to the
knob on the other side of the placid arm.
Adjust & ghten the buckles provided at the
chest and the waist.
Loosen the knob of the camera hook and
aach the camera to it. Tighten the knob to
ensure a slip-free connecon.
When assembled, the owline master will
look the same as shown in the image.
3
Detach the Placid from the Flowline Master
Get the spring o the camera hook with the
help of an Allen key.
Through the balance adjustment Knob, you
can adjust the balance an-clockwise
according to the weight of your setup.
CAUTION: Do not release the lever without
removing the setup. It may result in severe
damage to the camera.
Pull the camera hook cup through the cord
and remove the remaining cord from the
cup.
To remove the placid arm from its posion,
unscrew one side of the safety elasc cord
from the plaid arm's knob. Then, pull the
other side of the elasc cord out from the
owline support arm.
For Safety Belt
Aach one end of the safety belt with the
support jacket and make a knot with the
rest of the belt, as shown in the image. You
can aach this belt in many areas according
to your requirement.
Aach the other end to your camera for
more safety & protecon.
4
Using an allen key, pull the mounng
bracket of the placid arm out of the owline
support arm and remove the cord from the
bracket. Make sure it comes out precisely
through the hole in the placid arm.
Secure the cord properly with the cord lock
and insert the cord bundle into the cup.
Insert the cord into the cup. Then, aach
the cord lock to the cord.
Aach the camera hook to the owline
support bar, as shown in the picture.
Cord Assembly into Flowline Master
Note: The camera hook will be below the
owline support bar while using the camera,
and it will be up when aaching the placid, as
shown in the image.
5
(SHOWN WITH OPTIONAL ACCESSORIES)
Warranty: We oer one year warranty for our products from date of purchase. Within this period of
me, we will repair it without charge for labor or parts. Warranty doesn’t cover transportaon costs nor
does it cover a product subjected to misuse or accidental damage. Warranty repairs are subjected to
inspecon and evaluaon by us.
Liability: We are not liable for damage caused by products that we do not supply or from mishandling in
transit, accident, misuse, neglect, lack of care of the product, or service by anyone other than our company.
Contact Us: In case of any kind of dissasfacon, please Contact us immediately and we promise our
utmost support and care unl you use our product.

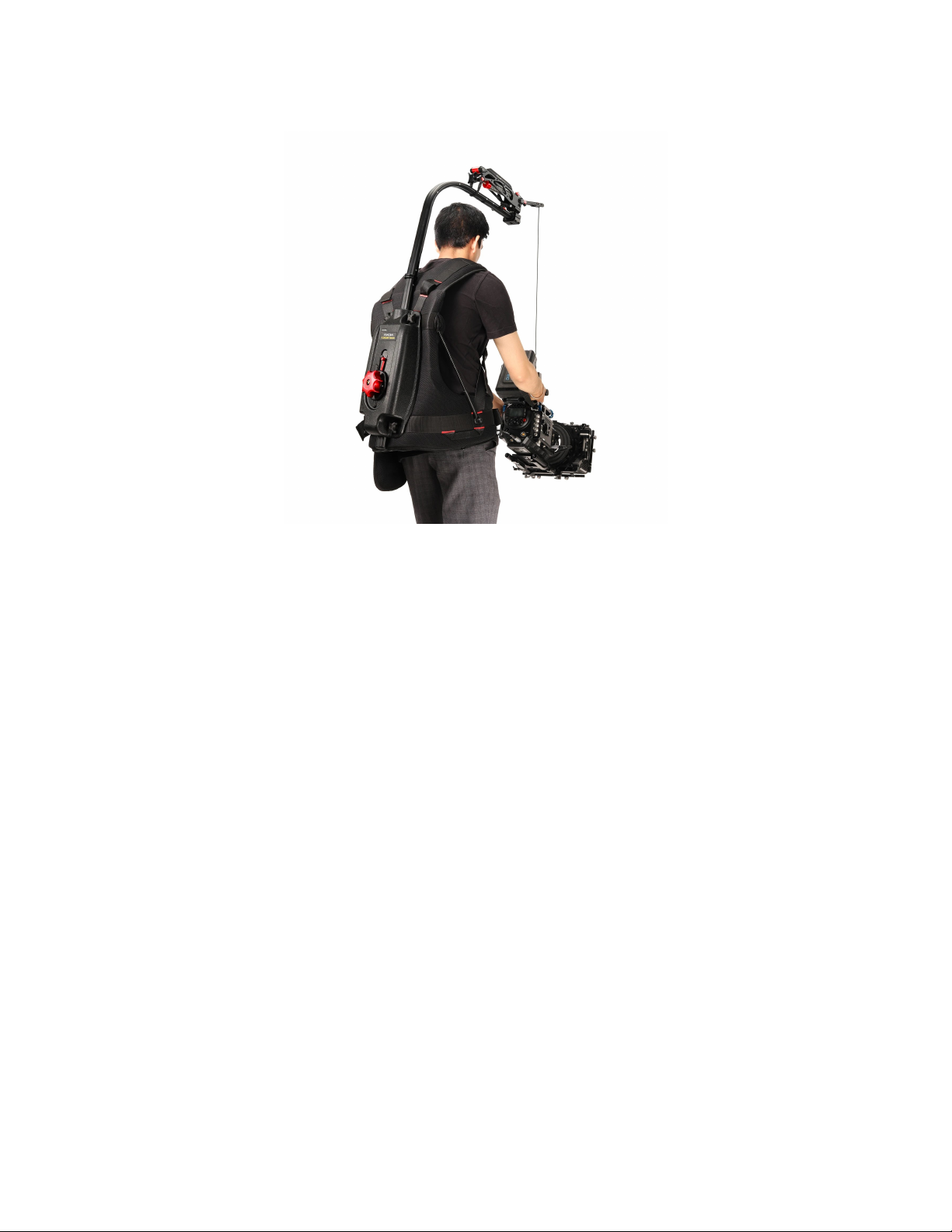

YOUR FLYCAM FLOWLINE MASTER FOR CAMERA & GIMBALS WITH PLACID
ALL DRESSED UP AND READY TO GO
