Fluke 101 Manual de usuario

July 2013, Rev. 2, 12/22

All product names are trademarks of their respective companies.

101

Digital Multimeter

Users Manual

LIMITED WARRANTY AND LIMITATION OF LIABILITY

This Fluke product will be free from defects in material and workmanship for one year from

the date of purchase. This warranty does not cover fuses, disposable batteries, or damage

from accident, neglect, misuse, alteration, contamination, or abnormal conditions of operation

or handling. Resellers are not authorized to extend any other warranty on Fluke’s behalf. To

obtain service during the warranty period, contact your nearest Fluke authorized service

center to obtain return authorization information, then send the product to that Service Center

with a description of the problem.

THIS WARRANTY IS YOUR ONLY REMEDY. NO OTHER WARRANTIES, SUCH AS

FITNESS FOR A PARTICULAR PURPOSE, ARE EXPRESSED OR IMPLIED. FLUKE IS

NOT LIABLE FOR ANY SPECIAL, INDIRECT, INCIDENTAL OR CONSEQUENTIAL

DAMAGES OR LOSSES, ARISING FROM ANY CAUSE OR THEORY. Since some states or

countries do not allow the exclusion or limitation of an implied warranty or of incidental or

consequential damages, this limitation of liability may not apply to you.

Fluke Corporation

P.O. Box 9090

Everett, WA 98206-9090

U.S.A.

Fluke Europe B.V.

P.O. Box 1186

5602 BD Eindhoven

The Netherlands

11/99

Table of Contents

Title Page

Introduction................................................................................................................. 1

Contact Fluke ............................................................................................................. 1

Safety Information ...................................................................................................... 2

Instrument Overview................................................................................................... 3

Terminals................................................................................................................ 3

Display.................................................................................................................... 4

Rotary Switch ......................................................................................................... 6

Auto Power Off ........................................................................................................... 7

Measurements............................................................................................................ 8

Data Hold ............................................................................................................... 8

Measure AC and DC Voltage ................................................................................. 8

Measure Resistance............................................................................................... 10

Test for Continuity .................................................................................................. 10

Test Diodes ............................................................................................................ 12

Measure Capacitance ............................................................................................ 12

101

Users Manual

Measure Frequency and Duty Cycle...................................................................... 14

Maintenance............................................................................................................... 16

General Maintenance............................................................................................. 16

Replace Batteries................................................................................................... 17

Service and Parts....................................................................................................... 18

General Specifications ............................................................................................... 18

Accuracy Specifications ............................................................................................. 20

Introduction

The Fluke 101 Multimeter (the Product) is a 6000-count instrument. The Product is battery

powered with a digital display.

Contact Fluke

Fluke Corporation operates worldwide. For local contact information, go to our website:

www.fluke.com

To register your product, view, print, or download the latest manual or manual supplement, go

to our website.

Fluke Corporation

P.O. Box 9090

Everett, WA 98206-9090

+1-425-446-5500

[email protected].

101

Users Manual

Safety Information

The Fluke 101 is rated to IEC 61010-1 CAT III 600 V measurement category. See General

Specifications.

A Warning identifies conditions and procedures that are dangerous to the user. A Caution

identifies conditions and procedures that could cause damage to the Product or the

equipment under test.

General Safety Information in the printed Safety Information document that ships with the

Product. It can also be found online at www.fluke.com. More specific safety information is

listed in this manual where applicable.

Digital Multimeter

Instrument Overview

Terminals

hkm01.tif

Item Description

ACommon (return) terminal for all measurements.

BInput terminal for all measurements.

101

Users Manual

Display

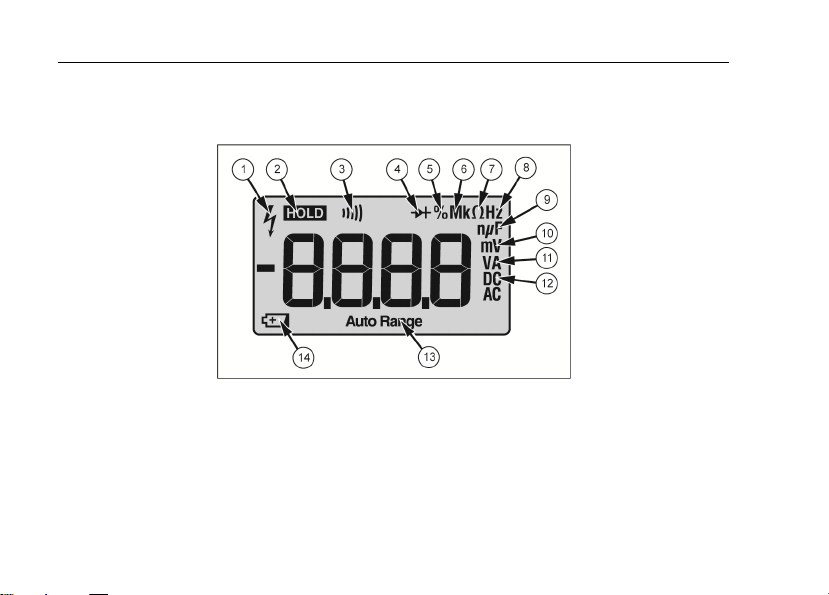

Figure 1 and Table 1 show the items on the Product display.

hkm02.tif

Figure 1. Display

Digital Multimeter

Instrument Overview

Table 1. Display

Item Description Item Description

AHigh voltage HFrequency is selected

BDisplay Hold is enabled IFarads

CContinuity selected JMillivolts

DDiode test is selected KAmps or volts

EDuty Cycle is selected LDc or ac voltage or current

FDecimal prefix MAuto Range mode is enabled

GOhms is selected NBattery is low and should be changed

101

Users Manual

Rotary Switch

hkm06.tif

Figure 2. Rotary Switch
