Description and features

Walli Outlet – E/F

FGWOE-011 | FGWOF-011

 Back To Top

 Description

FIBARO Walli Outlet is a smart electrical outlet designed to control electrical devices via Z-Wave network.

It measures active power and energy consumed by the controlled load.

You can install it with provided cover plate and socket cover or other compatible.

 Main features

Can turn ON/OFF plugged device remotely.

Available in two versions for plug types:

Type E,

Type F.

Can be used with FIBARO Walli covers or other compatible (see “Parts compatibility”):

GIRA – System 55 (Standard 55, E2, Event, Event Clear),

Legrand – Céliane,

Schneider – Odace.

Active power and energy consumption metering.

Displays current load using multicolour LED frame (with FIBARO cover plate).

Supports Z-Wave network Security Modes: S0 with AES-123 encryption and S2 Authenticated with PRNG-

based encryption.

Works as Z-Wave signal repeater (all non-battery operated devices within the network will act as

repeaters to increase reliability of the network).

May be used with all devices certied with the Z-Wave Plus certicate and should be compatible with

such devices produced by other manufacturers.

The device is a Security Enabled Z-Wave Plus product and a Security Enabled Z-Wave Controller must

be used in order to fully utilize the product.

17/06/2019 Walli Outlet - E/F | FIBARO Manuals

https://manuals.fibaro.com/walli-outlet/ 2/16

 Back To Top

 Specications

Power supply 110-230V~ 50/60 Hz

Rated load current 16A – resistive loads

Active element micro-gap relay μ

Recommended external overcurrent protection 16A type B circuit breaker

For installation in boxes Ø = 60mm, depth ≥ 50mm

Recommended wires cross-section area between 1.5-4.0mm ,

stripped 15.5-16.5mm of insulation

Operating temperature 0–40°C

Ambient humidity 0–90% RH without condensation

Radio protocol Z-Wave (500 series chip)

Radio frequency band 868.0–868.6MHz; 869.7–870.0MHz

Max. transmitting power +6dBm

Range

up to 50m outdoors

up to 40m indoors

(depending on terrain and building structure)

Dimensions

(Height x Width x Depth)

FGWOE-011: 86 x 86 x 48 mm

FGWOF-011: 86 x 86 x 51 mm

Compliance with EU directives RoHS 2011/65/EU

RED 2014/53/EU



Radio frequency of individual device must be same as your Z-Wave controller. Check information on

the box or consult your dealer if you are not sure.

 Important safety information

Read this manual before attempting to install the device!

Failure to observe recommendations included in this manual may be dangerous or cause a violation of the

law. The manufacturer, Fibar Group S.A. will not be held responsible for any loss or damage resulting from

not following the instructions of operating manual.

DANGER OF ELECTROCUTION!

The device is designed to operate in electrical home installation. Faulty connection or use may result

in re or electric shock.

17/06/2019 Walli Outlet - E/F | FIBARO Manuals

https://manuals.fibaro.com/walli-outlet/ 3/16

Installation

 Back To Top

All works on the device may be performed only by a qualied and licensed electrician. Observe

national regulations.

Even when the device is turned o, voltage may be present at its terminals. Any maintenance

introducing changes into the conguration of connections or the load must be always performed

with disabled fuse.

To avoid risk of electrical shock, do not operate the device with wet or moist hands.

Do not modify!

Do not modify this device in any way not included in this manual.

Other devices

The manufacturer, Fibar Group S.A. will not be held responsible for any damage or loss of warranty

privileges for other connected devices if the connection is not compliant with their manuals.

This product is intended for indoor use only in dry locations.

Do not use in damp or wet locations, near a bathtub, sink, shower, swimming pool, or anywhere else

where water or moisture are present.

Not a toy!

This product is not a toy. Keep away from children and animals!

 Back To Top

 Before installation

Connecting the device in a manner inconsistent with this manual may cause risk to health, life or

material damage.

Do notpower the device before fully assembling it in the mounting box,

Connect only in accordance to the diagram,

Install only in ush mounting boxes compliant with a relevant national safety standards and with depth

no less than 50mm,

Do notconnect devices which are not compliant with the specication or relevant safety standards.

Make sure you have all required parts when installing with covers other than FIBARO (see “Parts

compatibility”).

Device parts:

1 – screw, 2 – socket cover, 3 – cover plate, 4 – unit (device), 5 – mounting frame

 Preparing for installation

1Remove the screw.

17/06/2019 Walli Outlet - E/F | FIBARO Manuals

https://manuals.fibaro.com/walli-outlet/ 4/16

 Back To Top

2Take o the socket cover and cover plate.

3Prepare wires by removing 15.5-16.5mm of insulation from their ends. Groove on the back of the

unit shows maximum wire length.

 Back To Top

 Electrical connection

1Switch o the mains voltage (disable the fuse).

2Connect the device according to the diagram:

Diagram: Example connection in electrical installation

3Verify correctness of connection.

4Tighten the terminal screws using PH1 screwdriver.

 First assembly

When installing with FIBARO covers:

1Insert the device with mounting frame into the mounting box and secure with mounting claws

and screws.

2Snap the cover plate to the device.

17/06/2019 Walli Outlet - E/F | FIBARO Manuals

https://manuals.fibaro.com/walli-outlet/ 5/16

 Back To Top

3Snap the socket cover to the device.

4Secure with a screw.

5Add the device to Z-Wave network.

 Changing covers

For safety reasons the button should be used only with FIBARO cover. We recommend adding the

device to Z-Wave network before changing the cover plate.

When installing with covers other than FIBARO, we recommend disabling the LED by changing

parameter 13 to 0.

When installing with GIRA covers:

1Switch o the mains voltage (disable the fuse).

2Dismount the socket cover and cover plate.

3Dismount shutter mechanism using pliers.

4Snap the new cover plate to the device.

5Snap the new socket cover to the device.

17/06/2019 Walli Outlet - E/F | FIBARO Manuals

https://manuals.fibaro.com/walli-outlet/ 6/16

6Secure with a screw.

7Switch on the mains voltage.

When installing with Legrand covers:

1Switch o the mains voltage (disable the fuse).

2Dismount the socket cover and cover plate.

3Take the device out of the mounting box and detach the wires.

4Replace FIBARO mounting frame with Legrand mounting frame (FG-Wx-AS-4002).

5Connect wires according to “Electrical connection”

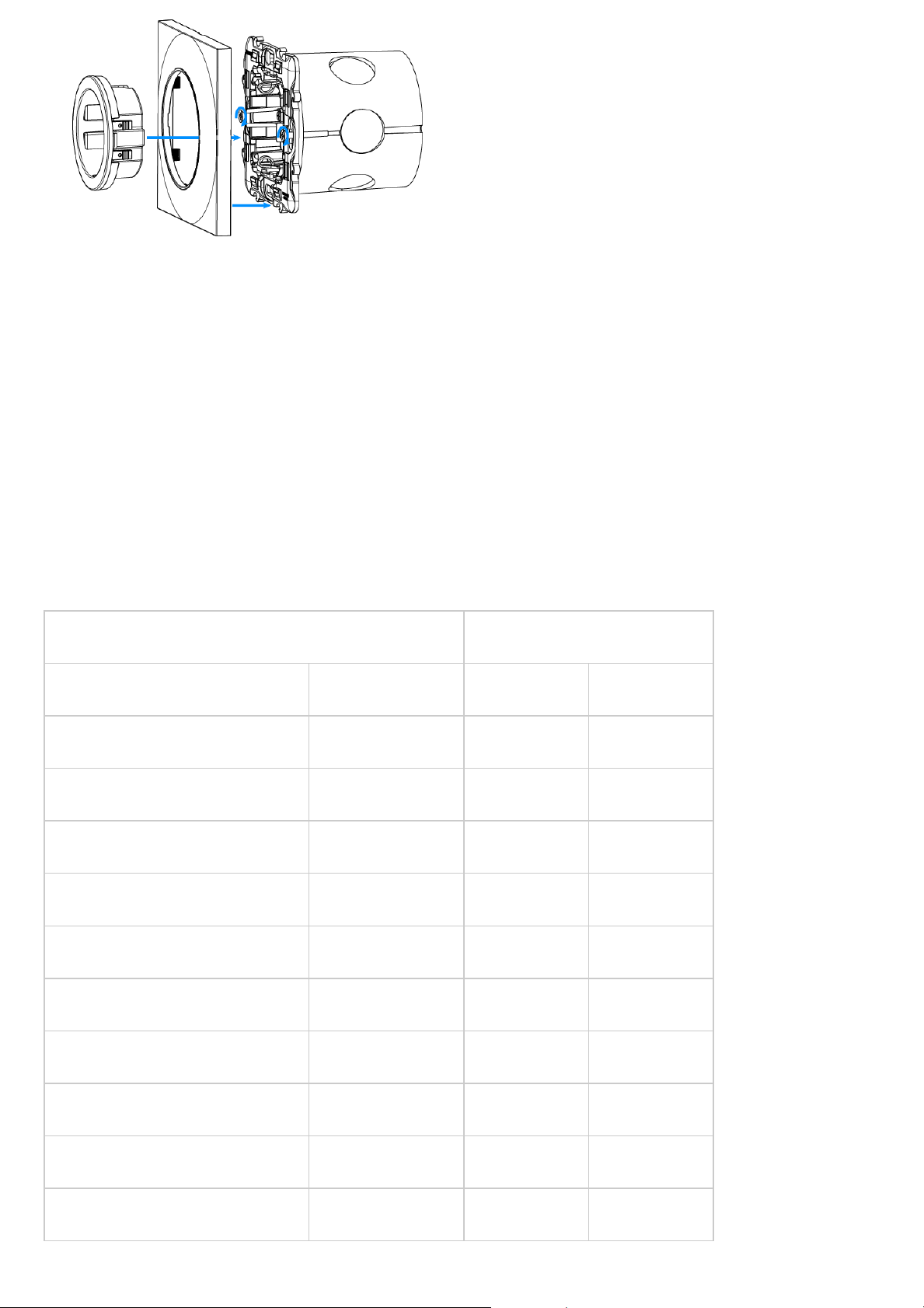

6Insert the device with mounting frame into the mounting box and secure with mounting claws

and screws.

7Snap the new cover plate to the device.

8Snap the new socket cover to the device.

9Switch on the mains voltage.

When installing with Schneider covers:

1Switch o the mains voltage (disable the fuse).

2Dismount the socket cover and cover plate.

3Take the device out of the mounting box and detach the wires.

4Replace FIBARO mounting frame with Schneider mounting frame (FG-Wx-AS-4003).

5Connect wires according to“Electrical connection”.

17/06/2019 Walli Outlet - E/F | FIBARO Manuals

https://manuals.fibaro.com/walli-outlet/ 7/16

 Back To Top

6Insert the device with mounting frame into the mounting box and secure with mounting claws

and screws.

7Snap the new cover plate to the device.

8Snap the new socket cover to the device.

9Switch on the mains voltage.

 Parts compatibility

Available FIBARO parts Included

Name Symbol FGWOF-011 FGWOE-011

Socket F Unit FG-WO-AS-4002 x

Socket E Unit FG-WO-AS-4003 x

Socket F FG-WO-PP-0010 x

Socket E FG-WO-PP-0009 x

Outer Lightguide FG-WO-PP-0004 x x

Shutter Unit FG-WO-AS-4001 x x

Mounting Frame FIBARO/GIRA FG-Wx-AS-4001 x x

Mounting Frame Legrand FG-Wx-AS-4002

Mounting Frame Schneider FG-Wx-AS-4003

Single Cover Plate FG-Wx-PP-0001 x x

17/06/2019 Walli Outlet - E/F | FIBARO Manuals

https://manuals.fibaro.com/walli-outlet/ 8/16

Double Cover Plate FG-Wx-PP-0003

Triple Cover Plate FG-Wx-PP-0004



Parts required for GIRA System 55 (only with non-metalised outer surface: Standard 55, E2, Event,

Event Clear) covers

Required FIBARO parts Socket type

Name Symbol GIRA Type F GIRA Type E

Socket F Unit FG-WO-AS-4002 x

Socket E Unit FG-WO-AS-4003 x

Mounting Frame FIBARO/GIRA FG-Wx-AS-4001 x x



Parts required for Legrand Céliane covers

Required FIBARO parts Socket type

Name Symbol Legrand Type F Legrand Type E

Socket F Unit FG-WO-AS-4002 x

Socket E Unit FG-WO-AS-4003 x

Mounting Frame Legrand FG-Wx-AS-4002 x x

Shutter Unit FG-WO-AS-4001 x x



Parts required for Schneider Odace covers

Required FIBARO parts Socket type

Name Symbol Schneider Type F Schneider Type E

Socket F Unit FG-WO-AS-4002 x

Socket E Unit FG-WO-AS-4003 x

Mounting Frame Schneider FG-Wx-AS-4003 x x

Shutter Unit FG-WO-AS-4001 x x

17/06/2019 Walli Outlet - E/F | FIBARO Manuals

https://manuals.fibaro.com/walli-outlet/ 9/16

Z-Wave network

 Back To Top

Generic Home Center SmartThings Vera Homey

 Adding to Z-Wave network

Adding (Inclusion)– Z-Wave device learning mode, allowing to add the device to existing Z-Wave network.

1Button,

2LED ring.

Full DSK code is present only on the box, make sure to keep it or copy the code.

Adding manually

Use the button only with FIBARO cover to ensure safety.

To add the device to the Z-Wave networkmanually:

1Power the device.

2Set the main controller into the adding mode (see the controller’s manual).

3Quickly, three times click the button.

4If you are adding in Security S2 Authenticated, input the underlined part of the DSK (label on

the bottom of the box).

5LED will start blinking yellow, wait for the adding process to end.

6Adding result will be conrmed by the Z-Wave controller’s message and the LED frame:

Green– successful (non-secure, S0, S2 non-authenticated),

Magenta– successful (Security S2 Authenticated),

Red– not successful.

Adding using SmartStart

SmartStartenabled products can be added to SmartStart enabled Z-Wave controller by scanning the Z-Wave

QR Code present on the product. SmartStart product will be added automatically within 10 minutes of being

switched on in the network range.

17/06/2019 Walli Outlet - E/F | FIBARO Manuals

https://manuals.fibaro.com/walli-outlet/ 10/16

 Back To Top

To add the device to the Z-Wave networkusing SmartStart:

1To use SmartStart your controller needs to support Security S2 (see the controller’s manual).

2Enter the full DSK string code to your controller. If your controller is capable of QR scanning, scan

the QR code placed on the label on the bottom of the box.

3Power the device.

4Wait for the adding process to start (up to few minutes), which is signalled with yellow LED

blinking.

5Adding result will be conrmed by the Z-Wave controller’s message and the LED frame:

Green– successful (non-secure, S0, S2 non-authenticated),

Magenta– successful (Security S2 Authenticated),

Red– not successful.

In case of problems with adding the device, please reset the device and repeat the adding

procedure.

Generic Home Center SmartThings Vera Homey

 Removing from Z-Wave network

Use the button only with FIBARO cover to ensure safety.

1Button,

2LED ring.

Removing (Exclusion)– Z-Wave device learning mode, allowing to remove the device from existing Z-Wave

network. Removing also results in resetting the device to factory defaults.

Toremovethe device from the Z-Wave network:

1Power the device.

2Set the main controller in remove mode (see the controller's manual).

3Quickly, three times click the button.

4LED will start blinking yellow, wait for the removing process to end.

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Accesorios de FIBARO

FIBARO

FIBARO FGWPG-111 Manual de usuario

FIBARO

FIBARO FGBHFS-101 Manual de usuario

FIBARO

FIBARO FGWPA-111 Manual de usuario

FIBARO

FIBARO FGBHFS-001 Manual de usuario

FIBARO

FIBARO Flood Sensor Manual de usuario

FIBARO

FIBARO FIBEFGMS-001-ZW5 Manual de usuario

FIBARO

FIBARO FGDW-002 Manual de usuario

FIBARO

FIBARO FGK-101 Manual de usuario

FIBARO

FIBARO FGBHMS-001 Guía de instalación

FIBARO

FIBARO FGWP-102 Manual de usuario

FIBARO

FIBARO FGBHCD-001 Manual de usuario

FIBARO

FIBARO Flood Sensor Manual de usuario

FIBARO

FIBARO FGFS-101 Manual de usuario

FIBARO

FIBARO FGFS-101 Manual de usuario

FIBARO

FIBARO FGMS-001-USA-A-V1.01 Manual de usuario

FIBARO

FIBARO FGMS-001 Manual de usuario

FIBARO

FIBARO FGWOE-011 Manual de usuario

FIBARO

FIBARO FGFS-101 Manual de usuario

FIBARO

FIBARO FGWPG-111 Manual de usuario

FIBARO

FIBARO FGWPB-111 Manual de usuario

FIBARO

FIBARO FGBHFS-101 Manual de usuario

FIBARO

FIBARO FGBHMS-001 Manual de usuario

FIBARO

FIBARO FGMS-001 Manual de usuario

FIBARO

FIBARO FGK Series Manual de usuario

Manuales populares de Accesorios de otras marcas

Hillco

Hillco 2810 Manual de usuario

Siemens

Siemens QSA2700D Manual del operador

Contours

Contours ZY024 Manual de usuario

Saivod

Saivod VS621 Manual de usuario

Virtuox

Virtuox VirtuCLEAN 2.0 Manual de usuario

SCE

SCE ENVIRO-THERM SCE-TE170B24VSS Manual de usuario

Z-Wave

Z-Wave HSD-200Z Manual de usuario

turck

turck FMX-IM-2UPLI63FX Manual de usuario

Decagon Devices

Decagon Devices 10HS Manual de usuario

UPPAbaby

UPPAbaby Cup Holder Manual de usuario

Elko

Elko SmartSensor Leakage Wireless Manual de usuario

Grizzly

Grizzly H8371 Manual de usuario

Panasonic

Panasonic HG-T Series Manual de usuario

IFM Electronic

IFM Electronic Efector 250 Series Guía de referencia

DigiDesign

DigiDesign 888/24 I/O Manual de usuario

PROZIS

PROZIS QUAY Manual de usuario

patagonia

patagonia PSI Vest Manual de usuario

SFC Energy

SFC Energy EFOY GO! Manual de usuario
