Festool CLEANTEC CT SYS HEPA Manual de usuario

en Original Instructions - Mobile dust extractors 6

fr Notice d’utilisation d’origine - Aspirateurs mobile 16

es Manual de instrucciones original - Sistemas móviles de aspiración 27

Read all instructions before using

Lire toutes les instructions avant de démarrer les travaux.

Lea y comprende todas las instrucciones antes de usar.

CT SYS HEPA

Festool GmbH

Wertstraße 20

73240 Wendlingen

Germany

www.festoolusa.com

708070 / C / 2021-02-02

1-4 1-5

1-6

1-7

1-10

1-3

1-9 1-8

1-1

1-2

Contents

1 Symbols.......................................................6

2 About this manual....................................... 6

3 Safety warnings...........................................7

4 Intended use..............................................10

5 Technical data........................................... 10

6 Functional description.............................. 10

7 Operation...................................................10

8 Settings......................................................11

9 Working with the dust extractor............... 13

10 Troubleshooting........................................ 14

11 Service and maintenance..........................14

12 Environment..............................................15

1 Symbols

Symbol Significance

Warning of general danger

Risk of electric shock

Read operating instructions and

safety notices!

Wear a dust mask.

Tip or advice

Handling instruction

Warning! The machine may contain

hazardous dust!

Climbing prohibited

Do not leave in the rain!

Symbol Significance

Do not absorb any water or liquids!

Risk of tilting!

W watt

h hour

min minutes

s seconds

kg kilograms

Pa pascal

dB decibel

V volts

A amperes

Hz hertz

~ a.c. alternating current

d.c. direct current

n0no load speed

Class II construction

rpm

min-1 revolutions per minute

’’ inch

lbs. pound

diameter

2 About this manual

Save these instructions

It is important for you to read and understand

this manual. The information it contains relates

to protecting your safety and preventing prob

lems. The symbols below are used to help you

recognize this information.

DANGER Description of imminent hazard and failure to avoid hazard will result in death.

WARNING Description of hazard and possible resulting injures or death.

CAUTION Description of hazard and possible resulting injuries.

English

NOTICE Statement including nature of hazard and possible result.

HINT Indicates information, notes, or tips for improving your success using the tool.

3 Safety warnings

IMPORTANT SAFETY INSTRUCTIONS

When using an electrical appliance, basis precautions should always be

followed, including the following:

READ ALL INSTRUCTIONS

BEFORE USING THIS DUST EXTRACTOR:

WARNING - To reduce the risk of fire, electric shock, or in

jury:

– Do not leave the dust extractor when plugged in. Unplug from outlet

when not in use and before servicing.

–WARNING - to Reduce the Risk Of Electric Shock - Do not use

outdoors or on wet surfaces.

– Use indoors only.

– Do not allow to be used as a toy. Close attention is necessary when used

by or near children.

– Use only as describes in this manual. Use only manufacturer's recom

mended attachments.

– Do not use with damaged cord or plug. If the dust extractor is not work

ing as it should, has been dropped, damaged, left outdoors, or dropped

into water, return it to a service center.

– Do not pull or carry by cord, use cord as a handle, close a door on cord,

or pull cord around sharp edges or corners. Do not run dust extractor

over cord. Keep cord away from heated surfaces.

– Do not unplug by pulling on cord. To unplug, grasp the plug, not the

cord.

– Do not handle plug or dust extractor with wet hands.

– Do not put any object into openings. Do not use with any opening

blocked; keep free of dust, lint, hair, and anything that may reduce air

flow.

– Keep hair, loose clothing, fingers, and all parts of body away from open

ings and moving parts.

– Turn off all controls before unplugging.

– Use extra care when cleaning on stairs.

English

IMPORTANT SAFETY INSTRUCTIONS

– Do not use to pick up flammable or combustible liquids, such as gaso

line, or use in areas where they may be present.

– Connect to a properly grounded outlet only. See Grounding instructions.

– Do not pick up anything that is burning or smoking, such as cigarettes,

matches, or hot ashes, hot chips or particles, sparks.

– Do not use without dust bag and/or filters in place.

SAVE THESE INSTRUCTIONS

GROUNDING INSTRUCTIONS

This appliance must be grounded. If it should malfunction or breakdown,

grounding provides a path of least resistance for electric current to reduce

the risk of electric shock. This vacuum cleaner is equipped with a cord hav

ing an equipment-grounding conductor and grounding plug. The plug must

be inserted into a appropriate outlet that is properly installed and ground

ed in accordance with all local codes and ordinances.

WARNING

- Improper connection of the equipment grounding conductor can result in

a risk of electric shock. Check with a qualified electrician or service person

if you are in doubt as to whether the outlet is properly grounded. Do not

modify the plug provided with the dust extractor - if it will not fit the outlet,

have a proper outlet installed by a qualified electrician.

This appliance is for use on a nominal

120-V circuit and has a grounding at

tachment plug that looks like the plug il

lustrated in sketch A in Figure beside.

Make sure that the appliance is connect

ed to an outlet having the same configu

ration as the plug. No adaptor should be

used with this appliance.

GROUNDED

OUTLET BOX

GROUNDED

OUTLET

GROUNDING METHODS - SKETCH A

Further safety instructions

– This appliance must not be used by persons (including children) with

reduced physical, sensory or mental capabilities, or lack of experience

English

and knowledge. Children need to be supervised to ensure they do not

play with the appliance.

WARNING

This machine is for dry use only.

CAUTION

This machine is for indoor use only.This ma

chine shall be stored indoors only.

– WARNING!

Do not extract embers or other ignition sources. Do not use in conjunc

tion with machines that generate sparks!

Per NFPA 484, do not collect incompatible materials that may react with

the metal particles and do not use the dust extractor to collect materials it

was not designed to collect. Doing so can result in the contents of the dust

extractor catching fire.

– This machine must not be used by people who might have a particularly

adverse reaction to an electric shock (e.g. people with cardiac pace

makers), because the possibility of the machine building up a static

charge cannot be excluded.

Health hazard by dust

WARNING!

various dust created by power sanding, sawing, grinding, drilling and other

construction activities contains chemicals known (to the State of California)

to cause cancer, birth defects or other reproductive harm. Some examples

of these chemicals are:

– lead from lead-based paints,

– crystalline silica from bricks and cement and other masonry products,

and

– arsenic and chromium from chemically treated lumber.

The risk from these exposures varies, depending on how often you do this

type of work. To reduce your exposure to these chemicals: work in a well

ventilated area, and work with approved safety equipment, such as dust

masks that are specially designed to filter out microscopic particles. Wash

hands after handling.

WARNING

TO REDUCE THE RISK OF INJURY, USER

MUST READ INSTRUCTION MANUAL.

English

4 Intended use

Dust extractor suitable for

– Extracting non-hazardous dust, dirt, sand

and chips,

– for increased loads during commercial use,

according to IEC/EN 60335-2-69.

The filtering performance of the overall unit,

which is fitted with a HEPA filter element, cor

responds to HEPA quality H 13 (medium degree

of filtration 99.95%).

Dust extractor not recommended for continu

ous aspiration and extraction of fine dust, such

as cement dust or filler.

Dust extractor not suitable for extracting water

and liquids.

The user is liable for improper or non-in

tended use.

5 Technical data

Dust extractor

Power consumption 8.3 A

Maximum appliance socket connected load 12 A

Max. suction capacity (air), extractor/turbine 108 m³/h / 180 m³/h

Max. vacuum, turbine 96 static water lift (200 hPa)

Filter surface area 4.08 ft² (3786 cm²)

Suction hose D 1 1/16 x 3/32"

(D 27 mm x 3.0 m-AS)

Length of the net cable 16.4 ft (5.0 m)

Sound pressure level as per EN 60704-2-1 / Uncertainty K 67 dB(A) / 3 dB

Protection class IP X0

Container capacity 1.19 gal. (4.5 l)

Dimensions L x W x H only CT SYS HEPA 15.6 x 11.7 x 6.2" (396 x 296 x 162 mm)

CT SYS HEPA with storage box 15.6 x 11.7 x 10.6" (396 x 296 x 270

mm)

Weight CT SYS HEPA with storage box 15.2 lbs. (6.9 kg)

6 Functional description

The pictures for the functional description are

on a fold-out page at the beginning of the in

struction manual. When reading of the manual

you can fold out this page for having always an

overview of the machine.

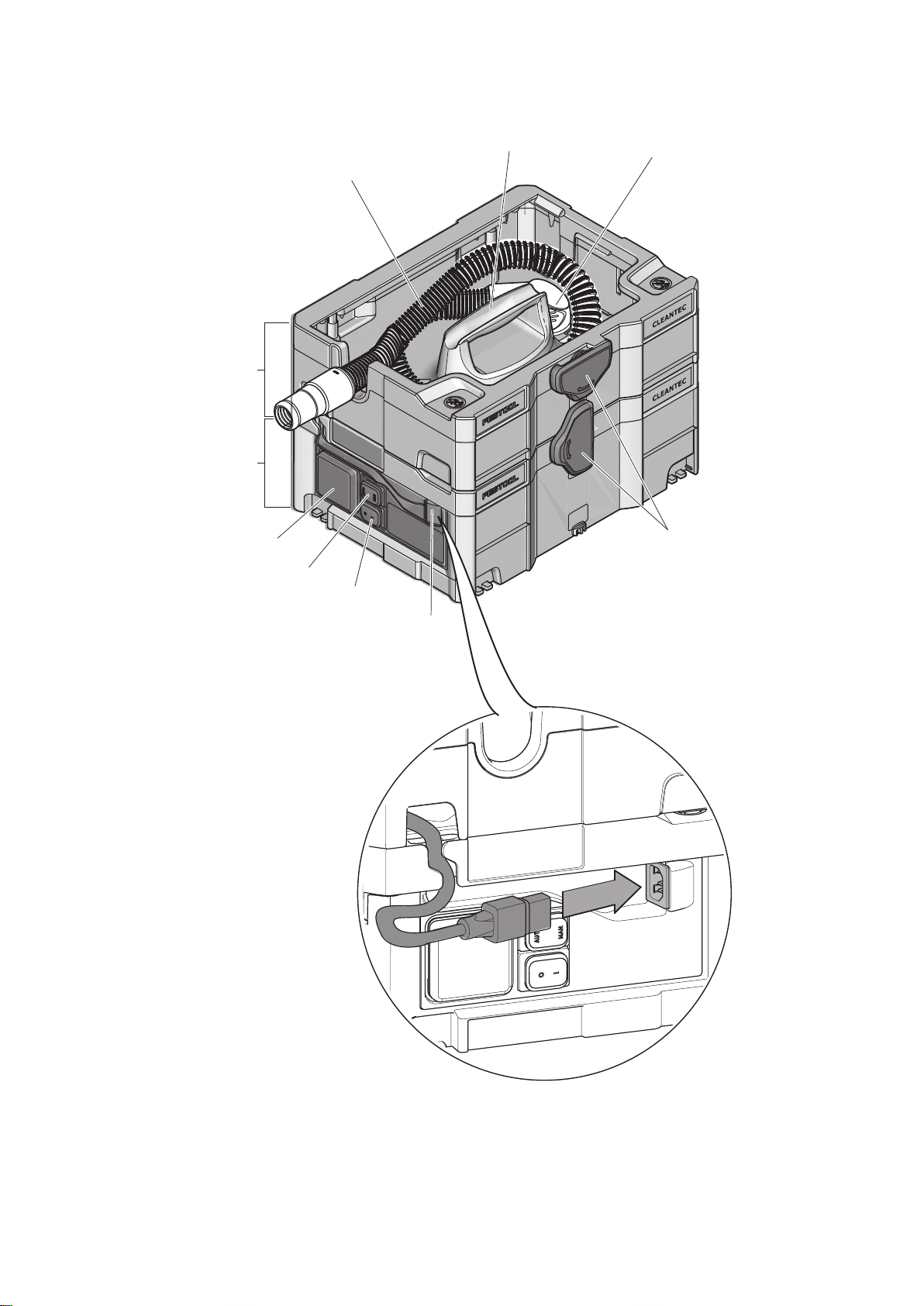

[1-1] Dust extractor

[1-2] Storage box

[1-3] Extractor hose

[1-4] Handle

[1-5] Angle adapter

[1-6] T-LOC latch for Systainers

[1-7] Cold-device plug

[1-8] On/Off switch

[1-9] AUTO/MAN switch

[1-10] Appliance socket

7 Operation

Consider the pictures on the fold-out page.

WARNING

Unauthorised voltage or frequency!

Risk of accidents

► Observe the specifications on the ma

chine’s name plate.

► Observe country-specific regulations.

English

Este manual sirve para los siguientes modelos

Tabla de contenidos

Idiomas:

Otros manuales de Aspiradora de Festool

Festool

Festool CTL 26 E Manual de usuario

Festool

Festool CTL MINI Instrucciones de instalación

Festool

Festool CLEANTEX CTL Series Manual de usuario

Festool

Festool CT 15 E Manual de usuario

Festool

Festool CT SYS HEPA Manual de usuario

Festool

Festool CLEANTEC CTLC MINI I Manual de usuario

Festool

Festool SRM 45 E-LHS 225 Planex Manual de usuario

Festool

Festool CLEANTEC CTLC SYS I Manual de usuario

Festool

Festool CT 26 E HEPA Manual de usuario

Festool

Festool CLEANTEX CTM Series Manual de usuario

Festool

Festool CTL 48 E LE EC/B22 R1 Instrucciones de instalación

Festool

Festool CLEANTEX CTL 26 E SD Instrucciones de instalación

Festool

Festool CT MINI Manual de usuario

Festool

Festool CTL Series Instrucciones de instalación

Festool

Festool CLEANTEX CT 26 E Manual de usuario

Festool

Festool CTL 48 E LE EC/B22 Instrucciones de instalación

Festool

Festool CT 15 E HEPA Manual de usuario

Festool

Festool Cleantec Series Instrucciones de instalación

Festool

Festool CTL 48 E LE EC/B22 Manual de usuario

Festool

Festool CTL 26 E Instrucciones de instalación

Festool

Festool Planex Guía

Festool

Festool CT 11 E Manual de usuario

Festool

Festool CT MINI Manual de usuario

Festool

Festool CLEANTEX CT 36 E AC Instrucciones de instalación

Manuales populares de Aspiradora de otras marcas

Bissell

Bissell LittleGreen Proheat 1425 Series Manual de usuario

Panasonic

Panasonic MC-YL637S147-AE Manual de usuario

NEFF

NEFF N17XH10 0 Series Manual de usuario

LG A9 Series Manual de usuario

Oreck

Oreck Cordless Captura BK51700 Series Manual de usuario

Kogan

Kogan KAVACROBVWA Manual de usuario

Kränzle

Kränzle VENTOS 50 ID Guía del usuario

EVVO

EVVO Ai35 Manual de usuario

DeWalt

DeWalt DWH200D Manual de usuario

Pontec

Pontec Pondomatic Vacuum Cleaner Manual de usuario

Cleanmaxx

Cleanmaxx PC-P007E Manual de usuario

Exido

Exido 240-114 Manual de usuario

RIDGID

RIDGID WD1685AU0 Manual de usuario

Ezviz

Ezviz RE4P Manual de usuario

STG global

STG global TANVAC HDV3000 Manual de usuario

Shark

Shark ROTATOR PRO COMPLETE NV550 Series Manual de usuario

Factory

Factory M3340 Manual de usuario

Shop-Vac

Shop-Vac VN92 SERIES Manual de usuario
