FeiYu Tech VIMBLE 2A Manual de usuario

3-Axis Stabilized Handheld Gimbal for Action Camera

Instructions

EN V2.1

Catalogue

1. Overview ………………………………………………………… 2

2. Start to Use ……………………………………………………… 4

2.1 Charging……………………………………………………………………… 4

2.2 Unlock / Lock ……………………………………………………………… 4

2.3 Mount Action Camera ……………………………………………………… 5

2.4 Power ON/OFF ……………………………………………………………… 5

2.5 Extend and Reset the Handle ……………………………………………… 6

3. Function Operation …………………………………………… 6

3.1 Function / Modes Introduction …………………………………………… 6

3.2 Joystick Operation ………………………………………………………… 7

3.3 Function Button Operation………………………………………………… 8

3.4 Slide Button Operation …………………………………………………… 8

3.5 Shutter Button Operation ………………………………………………… 9

3.6 Trigger Button Pperation ………………………………………………… 9

3.7 Gimbal Initialization ………………………………………………………… 10

3.8 Manual Lock ………………………………………………………………… 11

3.9 Portrait Mode ……………………………………………………………… 11

3.10 Light Indicator …………………………………………………………… 12

4. Feiyu ON App …………………………………………………… 12

4.1 Download the Feiyu ON App ……………………………………………… 12

4.2 Connect Feiyu ON App …………………………………………………… 13

4.3 Firmware Upgrade ………………………………………………………… 14

5. Action camera connection steps ……………………………… 15

6. Speci󽗉cations …………………………………………………… 16

Disclaimer …………………………………………………………… 17

www.feiyu-tech.com 12

3-Axis stabilized handheld gimbal for action camera with small size and

portable, extendable feature. It supports portrait mode and landscape mode,

well control the recording/photo/timelapes of action camera.

Suggestion

Vimble 2A includes below information, please read the

information before using the gimbal

1. Quick start guide

2. Online instruction

3. Tutorial

The tutorial videos can be watched at FeiyuTech o󽗋cial website or scan the QR

code at the right side.

https://www.feiyu-tech.com/play/

Download Feiyu ON App

Feiyu ON App is needed while using the gimbal. Please download Feiyu ON at

your smartphone App Store or scan the QR code as below. See P12 for more.

www.feiyu-tech.com 2

1. Overview

* The gimbal dose NOT include action camera.

www.feiyu-tech.com 32

www.feiyu-tech.com 4

2. Start to Use

TIPS

(1) Please fully charge gimbal before power on for the 󽗉rst time.

(2) If the power is too low, the indicator will 󽗊ash red for three times every 󽗉ve

seconds. It is recommended to charge it immediately.

(3) When not in use, please turn o󽗈 the gimbal.

(4) Unlock pan axis position lock & roll axis position lock before using.

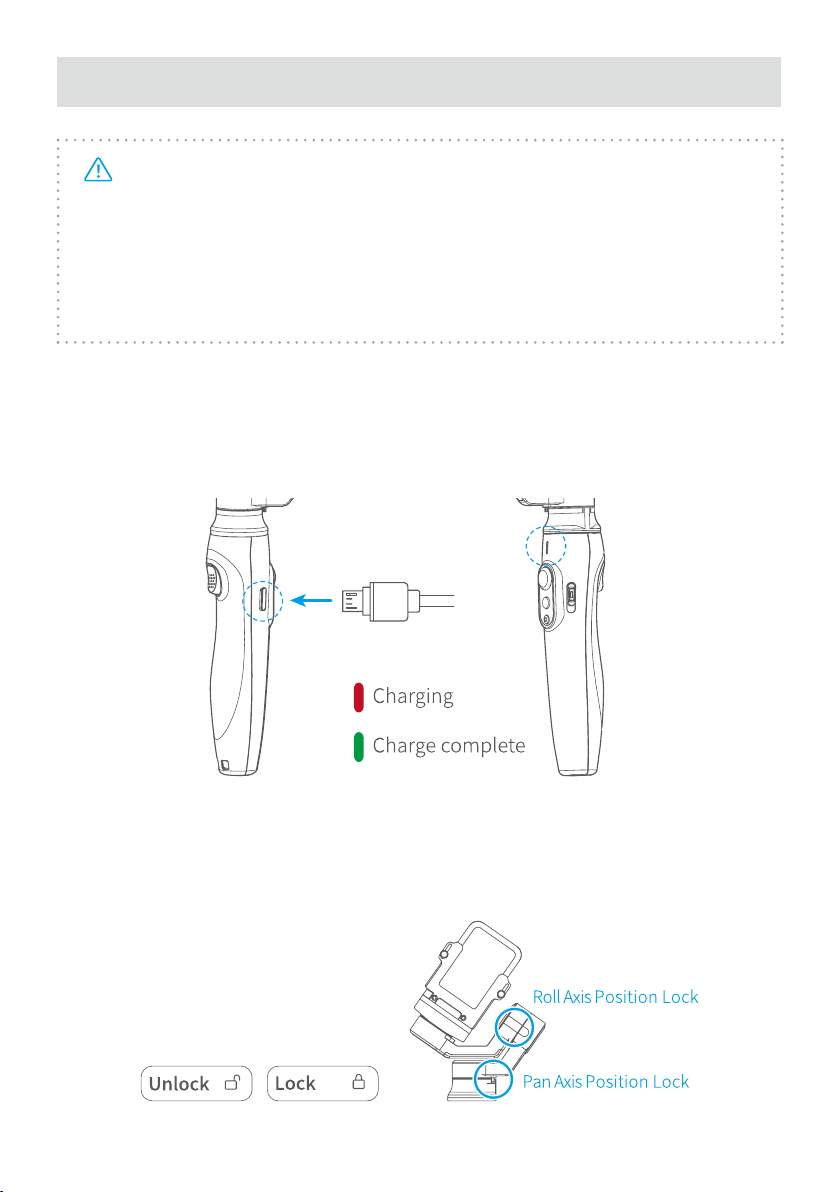

2.1 Charging

When charging with Micro USB cable, indicator keeps solid red. When fully

charged, the indicator keeps solid green.

2.2 Unlock / Lock

When the axes are lock, please turn the motor to left or right to unlock them with

the guidence of Lock & Unlock symbol.

www.feiyu-tech.com 54

Take the pan axis position lock for example.

2.3 Mount Action Camera

Take the GoPro HERO8 camera for example.

1) Loosen the thumb screw.

2) Put the camera on mounting plate, then tighten the camera with retainer bar

and screw.

* It is recommended to install GoPro HERO8 upsidedown as pictured below.

2.4 Power ON/OFF

TIPS:

(1) Unlock pan axis position lock & roll axis position lock before using.

(2) Tighten action camera before power on gimbal.

Power ON/Power OFF:

Long press function button, release the button after hearing beep sound.

www.feiyu-tech.com 6

2.5 Extend and Reset the Handle

1) Hold the handle with one hand, hold upper grip with other hand.

2) Extending: Pull the extendable bar out to suitable length (range from 0mm to

183mm)

Reset: Push upper grip to make the extendable bar down to handle part.

3. Function Operation

3.1 Function / Modes Introduction

www.feiyu-tech.com 76

Mode Function

Pan Mode

(Default mode)

The roll and tilt direction are fixed, and the camera

moves according to the left-right movements of the

user's hand.

Follow Mode

The roll direction is 󽗉xed, and the smartphone moves

according to the left-right movements, up-down

movements of the user's hand.

Lock Mode The orientation of the camera is 󽗉xed.

Reset Return to pan mode, three axises return to default

position.

Manual Lock

Manually rotate the camera to a certain pan angle and

tilt angle, and wait for half second to make the camera

stay at that position.

Landscape and

Portrait Shot Assist landscape or portrait shooting.

3.2 Joystick Operation

Joystick Operation Function

Upward Camera lens upward

Downward Camera lens downward

Move to left Camera lens move to left

Move to right Camera lens move to right

www.feiyu-tech.com 8

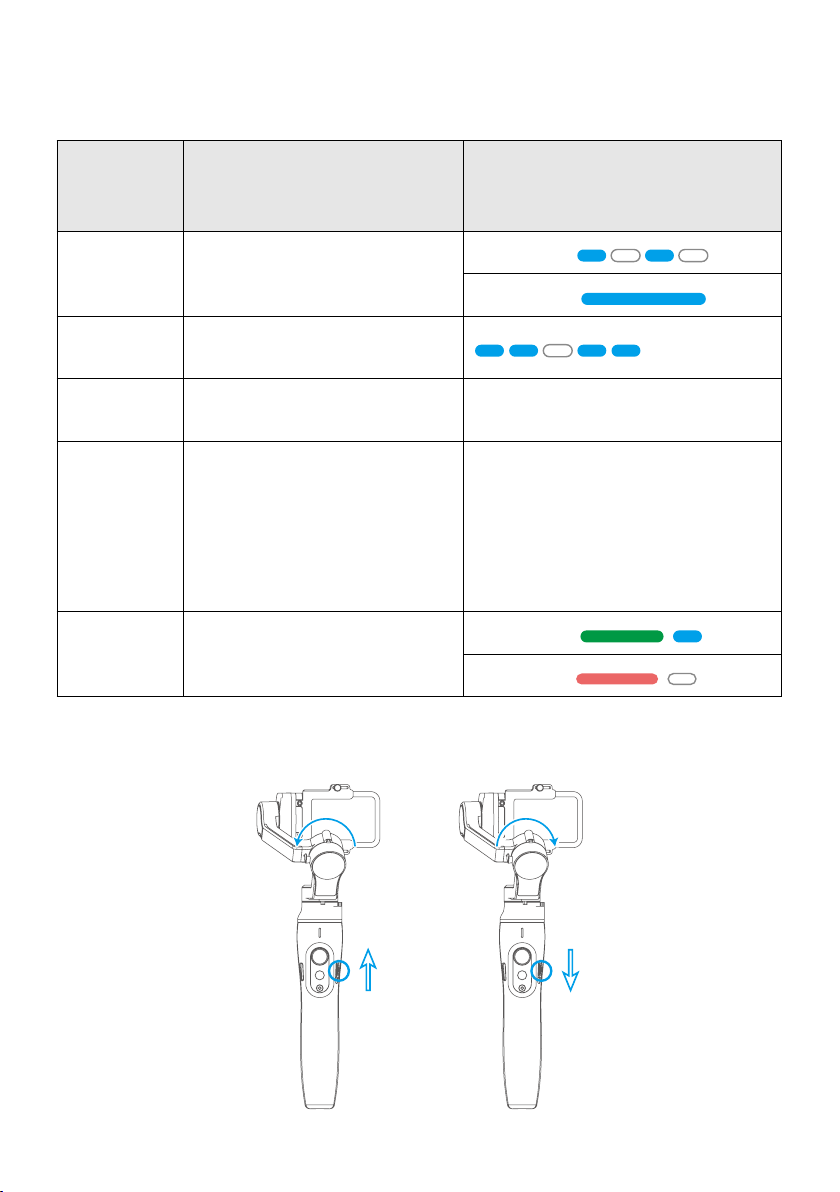

3.3 Function Button Operation

Identify the current working mode through status indicator.

Function

Button

Operation

Function Indicator Status

Single Tap Switch Between Pan Mode/

Lock Mode

Pan Mode

Lock Mode

Double Tap Follow Mode

(Pan and Tilt Axis Will Follow)

Triple Tap All Follow Mode

(pan, tilt and roll axis will follow) /

Five Tap Gimbal Initialization

Motors will stop working after the

tone. Status indicator turns solid

blue. The blue light will 󽗊ash three

times to indicate end of the reset

process. After the initialization is

successful, single tap the function

button again to wake up.

Long Press Power On / O󽗈 Power On

Power O󽗈

3.4 Slide Button Operation
