FeiYu Tech Double-hand foldable set Manual de usuario

Double-hand foldable set

Applicable for a series gimbal

Guilin Feiyu Technology Incorporated Company

V 1.0E NUser Manual

1.Product Overview

Trigger Button Indicator

Joystick

Function Button

Shutter Button

Retaining Ring

Fixed Pulley

Tips： 1. The connectors on the foldable set are ﬁtted with 1/4-inch threaded holes.

2. Refer to the a series product manual for functions and operation.

Battery

Compartment

USB Interface

USB Cable Battery X2

(Type: 18650) Smart Charger Cold Shoe

Mount

Basic Accessories

Charging

Indicator

1/4 Inch Screw

2.Operation Mode

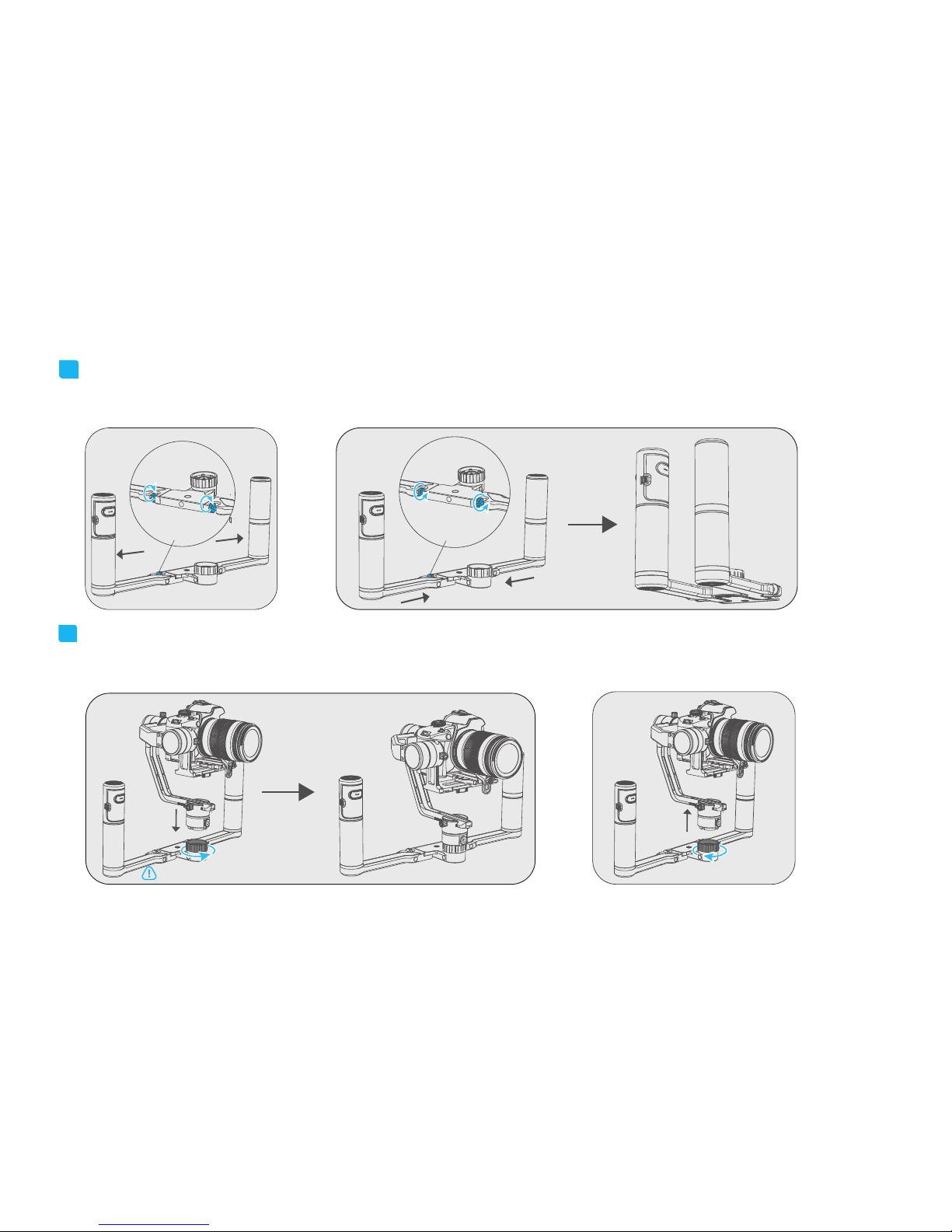

1Expansion and closure of folding arm：

①Expand the folding arm and tighten the two ﬁxed pulleys at the interface；②Loosen the two ﬁxed pulleys at the

interface and close the folding arm.

Installation and disassembly of a series gimbal：

①Install the a series gimbal, tighten the retaining ring；②Loosen the retaining ring and remove the a series

gimbal gently.

After installation, please tighten

the retaining ring.

①

②

4.Parameters

3.Usage Way

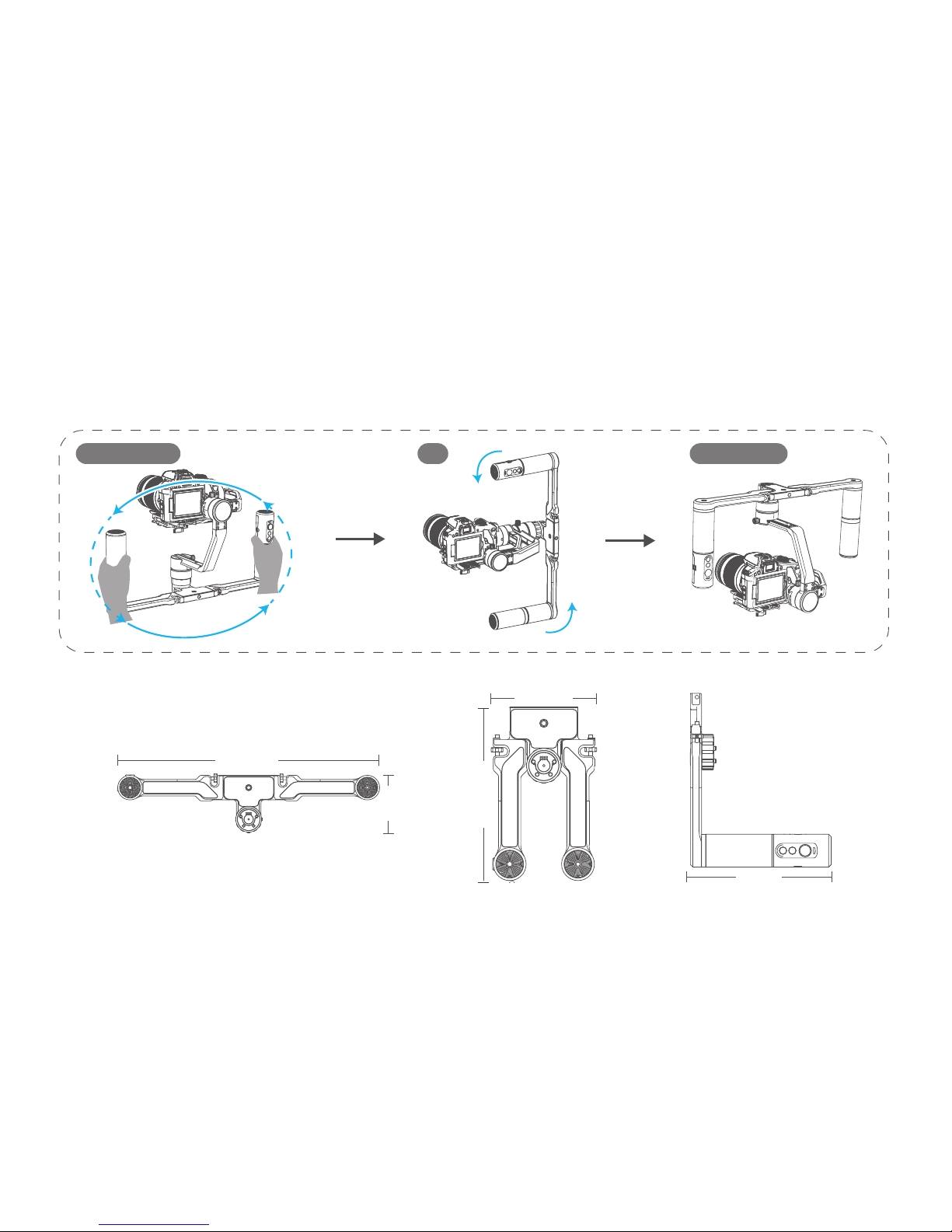

Double-hand foldable set can be used in many ways, such as positive holding and reverse holding. Turn positive

holding to reverse holding as shown in the following, in positive holding, both hands hold the hand grip, began

to rotate, turn to 90 degrees, alternating hands, continue to rotate 90 degrees, to the back of reverse holding.

426.2mm

93mm

171.4mm

128.5mm

211.5mm

positive holding 90° reverse holding

D I S C L A I M E R

FeiyuTech reserves the right to amend this manual and the terms and conditions of use the gimbal at

any time.

You can get the latest user manual from the oﬃcial website: www.feiyu-tech.com.

The Company assumes no liability for any risks related to or resulting from the debug and use of this

product (including the direct, indirect or third-party losses).

Prohibit any user for any illegal purpose. Users will be responsible for all behaviors of purchase and

use products.

For any unknown sources of using, we will not be at any services.

The updating and changes of product ﬁrmware and program may cause changes in function

descriptions in this user manual, please read the instructions carefully before upgrading the ﬁrmware

and use the corresponding user manual.

Guilin Feiyu Technology Incorporated Company

For more information, please visit our oﬃcial website

Due to software and hardware improvements, your actual product might diﬀer from the descriptions

and pictures in this user manual. You can get the latest user manual from the oﬃcial website.
