FeiYu Tech G6 Manual de usuario

3-Axis Stabilized Handheld Gimbal

Guilin Feiyu Technology Incorporated Company

User Manual EN V1.3

1. Product Overview

The showing sports camera is not included in the package

1/4-20 Thread Mount

Pan Axis

Positioning Pin

Trigger

Button

Vertical Arm

Tilt Axis

Roll Axis

Handle

Knob Ring

Cross Arm

Mounting Plate

Thumb Screw

Horizontal

Adjustment

Button

Micro USB Port

Function Button

Setting Button

Display

Joystick

1/4-20 Thread Mount

Retainer Bar

Shutter Button

Micro USB cable x1

26650 Li-ion

rechargable

battery x1

Thumb Screw x2

Accessories

2. Quick Start Guide

1Install Battery

2Put the camera on

Please fully charge the battery before power on the gimbal for

the ﬁrst time.

Please mount the camera before power on the gimbal.

When not in use, turn oﬀ the gimbal and then remove the camera.

Remove the bottom cap, insert a 26650 battery and

then tighten the cap.

1-Normal Position1-Normal Position

Option 1

2-Reverse Position2-Reverse Position

Option 2

To work with RX0 camera, please change RX0 camera adapter kit.

RX0 Adapter

Plate

Put the RX0 camera on

*RX0 camera adapter kit is optional.

* It is suggested to turn on the camera before installation for normal position.

（1）Loose and take down the original ﬁxed plate of the gimbal

（2）Install RX0 adapter plate and tighten the screw

（3）Insert the set screw of the camera from the bottom of RX0 adapter plate

（4）Place the camera and tighten the set screw

Replacement steps

1 2

Put the camera on mounting plate,then tighten the camera

with retainer bar and screw.

Take the GoPro HERO 5 camera for example.

3Balance the Gimbal

Best balance

Right-tilting

Left-tilting

If camera tilts to the left, loosen the knob ring , pull cross arm out to the right until camera is horizontal.

If camera tilts to the right, loosen the knob ring , push cross arm in to the left until camera is horizontal.

4Power on / oﬀ

Best balance

Power on / oﬀ: Long press the function button, the display will show and release it when you hear the beep tone.

Cross arm

Knob ring

Cross arm

Knob ring

( Before power on )

Connect the camera with the gimbal via

charging cable, the camera can be

charged when gimbal is powered on.

3. Charging

Charging

Port

Charging

Port

Camera G6

Micro Port

Micro USB Port USB Port

Micro USB

Cable

(Equipped by user)

Output

5V / 2A

Camera power-

supply port

Camera power-

supply port

Charging

Charging icons on display screen

Charging

Completes

Charging for Camera

Charging for Gimbal

Charging with Micro USB cable

Main interface of

the display screen

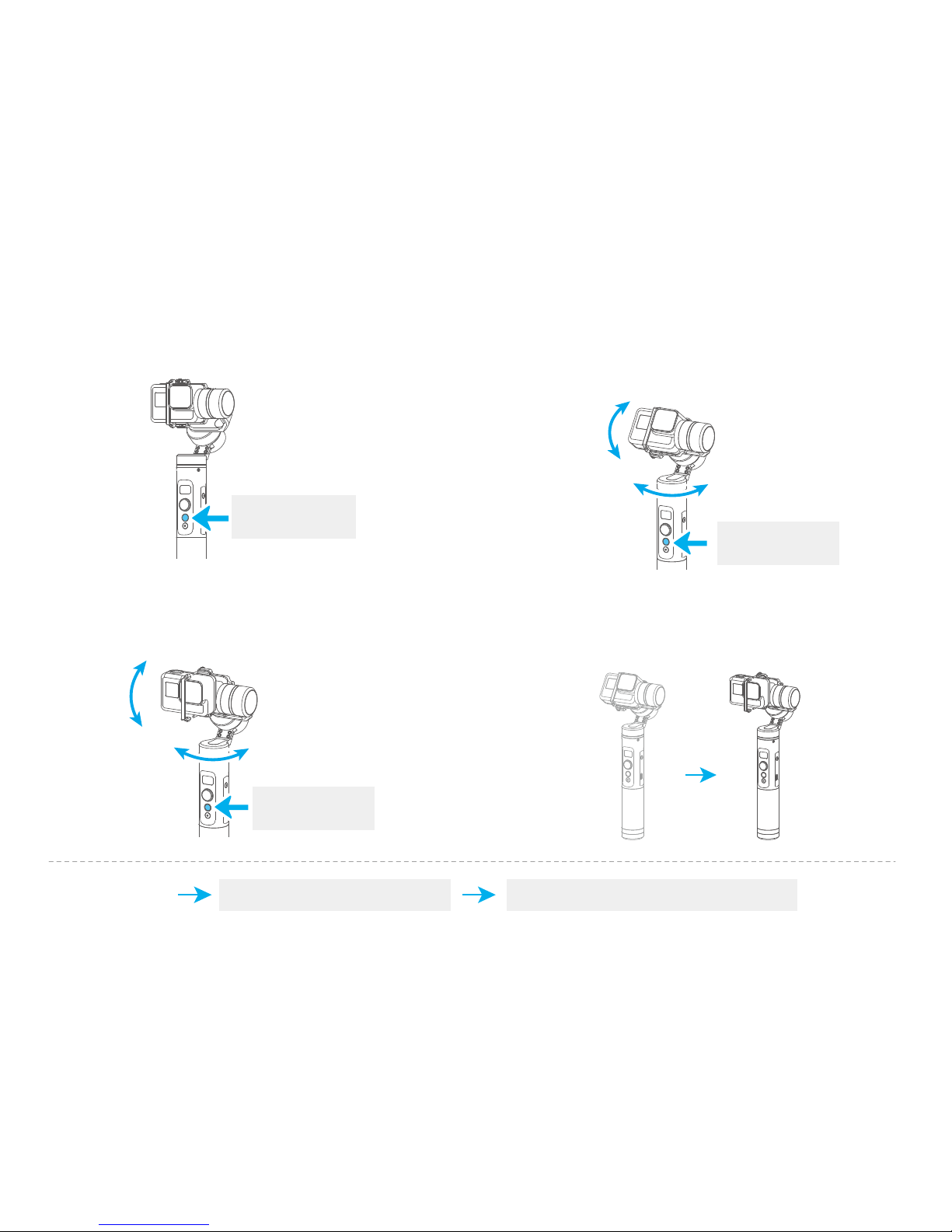

4. Functions

The roll and tilt direction are ﬁxed, and the camera moves

according to the left-right movements of the user's hand.

The orientation of the camera is ﬁxed.

The roll direction is ﬁxed, and the camera moves according

to the left-right movements, up-down movements of the

user's hand.

Return to panning mode, three axises return to default position.

Panning Mode (Default mode )

Follow Mode

Reset

Lock Mode

Modes Display

Horizontal

Adjustment

Button

Trigger

Button

Joystick

Left Right

Function Button

Shutter Button

Joystick

Display

Setting Button

Buttons

Panning Mode

Follow Mode

Lock Mode

Modes

Camera ModeBattery Level

Bluetooth

Time-lapse video shooting

Photo shooting

Video shooting

Note: The ﬁrmware upgrade may occur manual operation function and the actual product features do not match. Please ﬁnd the latest manual on the oﬃcial website.

Swith the interface for

camera parameters

Swith camera modes /

main interface

Long press in the main interface can swith to the interface for camera

parameters

In the panning mode or follow mode, press and hold the trigger button to

enter the lock mode, release it to return previous mode

Under follow mode, control the pan axis by moving the joystick to the left

or right

Single tap in the main interface can switch to camera modes (camera needs to be

connected)

Single tap in the interface for camera parameters can switch to the main interface

Double tap

Long press

Single tap

Press and hold Lock mode

Five tap

Quadruple tap

Triple tap

Double tap

Single tap Panning Mode / Lock Mode

Single tap to switch between panning mode and lock mode

Follow mode

Rotate 180° in horizontal Make the camera lens rotate 180 °

Auto-rotation Mode Enter auto-rotation mode

Initialization Enter initialization

Reset

Return to panning mode, tilt,roll and pan axis return to initial level

Please refer to the chapter "Auto-rotation Mode" in

page 8~9

Please refer to the chapter "Gimbal Initialization" in page 12

Function Button Function Explanation

Trigger Button Function Explanation

Setting Button Function Explanation

Operation and explanation of some buttons

Display Icons Mode / Status

Panning mode

Follow mode

Lock mode

SET WIFI VIA APP Prompt for users to open the App

settings in order to connect via WiFi

Bluetooth is connected

Bluetooth is not connected

Camera photo shooting

Camera video shooting

Camera time-lapse video shooting

WiFi is connected

WiFi is not connected

Battery level

Camera is not connected

Using the joystick

to set up parameters

Setting

button

Long press

Setting

button

Long press

Setting

button

Long press

Field of View

Conﬁrm Button

The parameters interface shall

be diﬀerent when connecting

to RX0 camera.

Note:

Main interface of

the display screen

① Please refer to the chapter "Connecting to camera" in page 11

①

Interface for camera

parameters

W4K

W12MP

HF W4K

Left Right

Down

After connecting the gimbal to camera via Feiyu On App, single tap the

button can control the camera for shooting.

ResolutionResolution

Mega Pixel

Frame Rate

Display Description

Move to left / right Switch content

Move to right until

“OK” displays

Move to right again

for conﬁrmation

Move to up / down Setting parameters

Setting Parameters:

Joystick Explanation

Setting Parameters

Shutter Button Operation

The G6 gimbal can easily create constant speed movements in the auto-rotation mode. This mode can be used for

recording both regular video and motion timelapse photography. For better performance, attach gimbal to the

FeiyuTech tripod, or other tripod, to keep it completely still.

Set rotation speed in Feiyu ON App

Note: Both the pan and tilt directions can be rotated.

Rotation Speed

18s/

turn

12s/

turn

24s/

turn

30s/

turn

1min/

turn

2min/

turn

15min/

turn

8min/

turn

4min/

turn

4h/

turn

1h/

turn

(Default)

8h/

turn

30min/

turn

Connect to the Feiyu ON App and select desired speed from the auto-rotation mode rate option in the settings menu.

Manually move camera to desired position,and hold for half a

second. New tilt and/or pan positions are automatically saved.

Take the tilt axis setting for example:

Camera can be manually positioned while in panning mode ,

follow mode or lock mode. Both the pan axis and tilt axis can

be manually set up.

You can control the horizon angle via the horizontal

adjustment button while in panning mode, follow

mode or lock mode.

Horizontal

adjustment

button

Horizontal

adjustment

button

Move the horizontal adjustment button

to left or right

Auto-rotation Mode

Horizontal Angle Control Manual Lock

Record the ﬁrst position (rotation start position) by manually moving

camera to desired position. Hold in position for half a second. Single

tap the function button to record rotation start position.

( 2 ) Set rotation start position

Record the second position (rotation end position) by manually

moving camera to desired position. Hold in position for half a second.

Single tap the function button to record rotation end position.

( 3 ) Set rotation end position

The gimbal automatically restores to the start position, while the

tilt axis and pan axis start rotating at a constant speed according

to pre-set speed to end position, repeat step (2) (3) to start again.

( 4 ) Start auto rotation movements

( 1 ) Enter auto-rotation mode

Enter auto-rotation mode by quadruple tapping the function

button.

Function Button

Quadruple Tap

Function Button

Single Tap

Function Button

Single Tap

Pan

Tilt

Pan

Tilt

Trigger button Exit the auto-rotation mode and reset

Double tap

Exit
