FDS FD171CV-C-4 Manual de usuario

Document Number:

MAN –FD171CV-C-4

Rev:

Revision Date:

01/11/2017

Page 1 of 14

TECHNICAL SUPPORT

470-239-7421 or FDSAvionics.com

Installation and Operation Manual

FD171CV-C-4

17” HDSDI Special Mission Quad Monitor

Table of Contents

Document Number:

MAN –FD171CV-C-4

Rev:

Revision Date:

01/11/2017

Page 2 of 14

TECHNICAL SUPPORT

470-239-7421 or FDSAvionics.com

General Information......................................................................................................................3

Front View.....................................................................................................................................3

Additional Information ..............................................................................................................3

Specifications................................................................................................................................4

Installation Instructions .............................................................................................................4

Power..............................................................................................................................................4

Wiring Suggestions .....................................................................................................................5

Composite/S-Video......................................................................................................................5

VGA Wiring ..................................................................................................................................6

Power and Ground Wiring.........................................................................................................7

Power/Video..................................................................................................................................8

Connectors Defined.....................................................................................................................8

Rear View with Connectors .......................................................................................................9

Operation Instructions..............................................................................................................10

Button Control ...................................................................................................................... 10-11

Technical Drawing.....................................................................................................................11

Technical Support......................................................................................................................12

Instructions for Continued Airworthiness ...........................................................................12

Warranty ......................................................................................................................................13

Log of Revisions.........................................................................................................................14

Document Number:

MAN –FD171CV-C-4

Rev:

Revision Date:

01/11/2017

Page 3 of 14

TECHNICAL SUPPORT

470-239-7421 or FDSAvionics.com

General Information

The FD171CV-C-4 is a special mission panel mounted 17” monitor with quad view HDSDI.

Front View

Additional Information

The LCD supports 7 video source inputs. Four (4) HD-SDI inputs for the quad view, one (1)

VGA, one (1) S-Video and one (1) composite. There is also one (1) HD-SDI loop through driver

output, this will output the HDSDI image shown on the display.

The monitor casing is made of all metal components.

Document Number:

MAN –FD171CV-C-4

Rev:

Revision Date:

01/11/2017

Page 4 of 14

TECHNICAL SUPPORT

470-239-7421 or FDSAvionics.com

Specifications

Display Type

17.1” TFT Color LCD

Display Color

16.7 Million Colors

Screen Resolution

1440 x 900

Brightness

250 cd/m2

Dimensions

16.25”(W) x 11.00” (H) x 3.04”(D)

Display Size

14.36”(W) x 8.950”(H)

Weight

8.60 Lb.

Power @ Amp

28V DC @ 2.0A Max. Cont. Steady-

State

Video Type Supported

NTSC/PAL

Video Sources

(4) HD-SDI Quad (In), (1) VGA, (1) S-

Video, (1) Composite, (1) HD-SDI

Loop-Through Driver Output

Screen Control

On Screen Display Menu

Materials

Aluminum

Pixel Pitch

.255 mm X .255 mm

Operating Temperature

0-50° C (32-122° F)

Test Certifications

N/A

Installation Instructions

All cabin equipment, such as the FD171CV-C-4, should be installed on a non-essential bus and

have a dedicated circuit breaker. It is a requirement that a switch be installed in the cockpit so

that the flight crew can de-energize the system should it become necessary.

There are (8) 8-32 UNC mounting holes located on the sides and back of the display. Four

mounting points are located on the rear and two on each side of the bezel. See installation

drawing at end of manual for dimensional details.

Power

This is a 28VDC monitor that requires 2.0 Amps of maximum continuous steady-state power to

operate. The unit turns on automatically upon power application.

Document Number:

MAN –FD171CV-C-4

Rev:

Revision Date:

01/11/2017

Page 5 of 14

TECHNICAL SUPPORT

470-239-7421 or FDSAvionics.com

Wiring Suggestions

For balanced signals on twisted pair cable, all shields should be grounded to the connector at the

source, and floating at the display.

Avoid routing video wiring parallel to:

AC wiring

Strobe wiring

DC motor supply cables

Inverter cabling

Or any other potential noise source.

Composite and S-Video Wiring

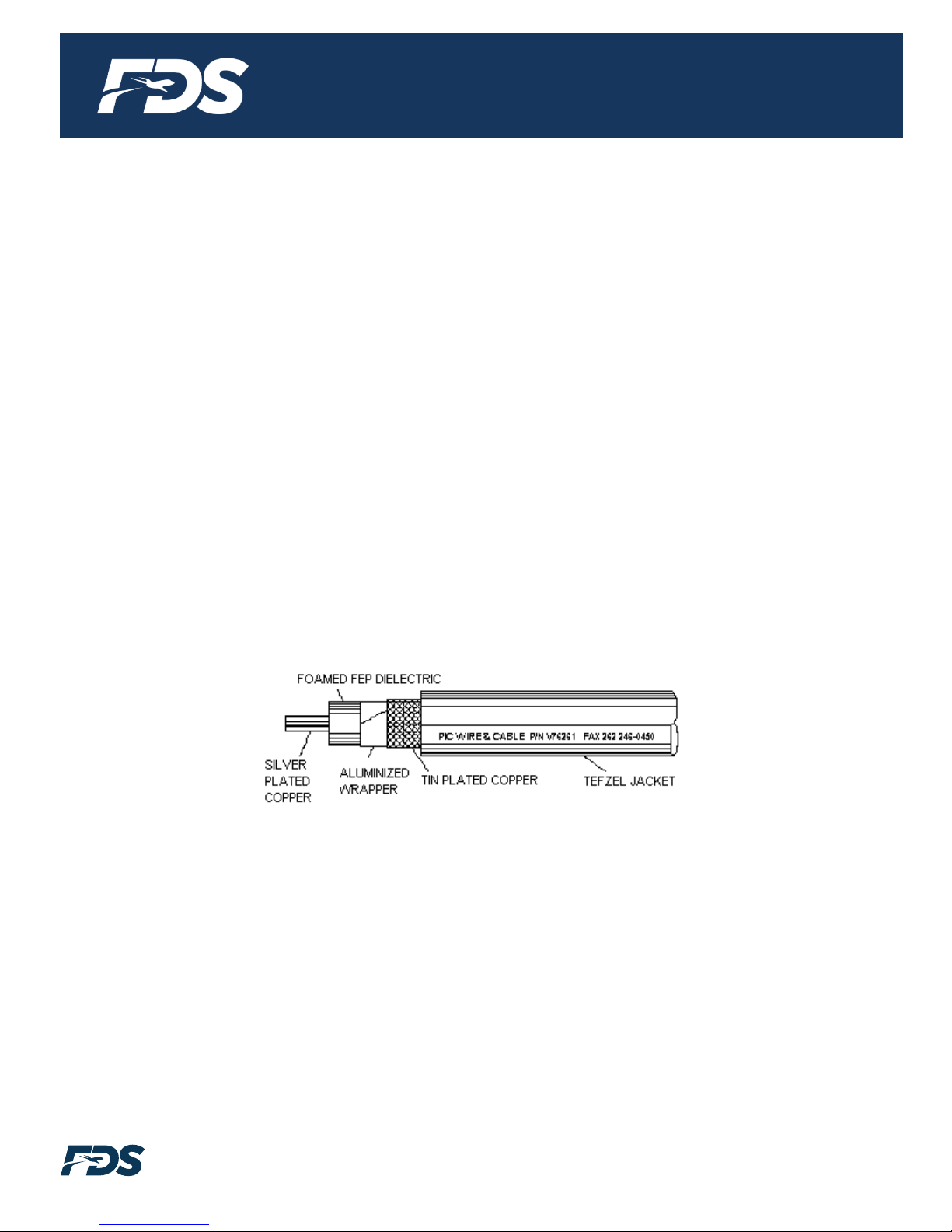

Recommended cable for s-video and audio purposes is PIC 75 Ohm Coax, P/N V76261. This is a

lightweight, flexible, and low signal loss cable which meets FAA flammability requirements of FAR

23.1359(d), FAR 25.853(a) and FAR 25.869(a)(4).

Similar aviation coaxial cable can be used from other vendors, as well.

Some aircraft are prone to AC noise - we recommend adding to the composite source a 75 Ohm

video isolation transformer such as Deerfield Laboratory, Inc. Part No. 162-1

(www.deerfieldlab.com, (650) 632-4090). In most cases this should be added to the video output

of the source.

Document Number:

MAN –FD171CV-C-4

Rev:

Revision Date:

01/11/2017

Page 6 of 14

TECHNICAL SUPPORT

470-239-7421 or FDSAvionics.com

VGA Wiring

Coax cables should be terminated using solder sleeve coaxial cable terminators, Raychem

P/N: CWT-4174-W122-5/9

Document Number:

MAN –FD171CV-C-4

Rev:

Revision Date:

01/11/2017

Page 7 of 14

TECHNICAL SUPPORT

470-239-7421 or FDSAvionics.com

Power and Ground Wiring

22 AWG wire is recommended for Power and Ground applications.

This is a 28VDC monitor that requires 2 amps of power to operate. To operate properly this monitor

requires an input voltage of 24-29VDC.

The rated current of the equipment and associated voltage drop should be taken into consideration

when selecting wire gauge. The following example is based on an install with a 28VDC power system

and a total of 50 feet of wire between the circuit breaker, monitor and ground.

Example: 22awg wire has 16.2 Ohms per 1000 feet, this equates to .81 Ohms for 50 feet. 2 Amps of

current on .81 Ohms will drop 1.62 Volts.

Resistance of Wire Type M22759/16-**

(** = Gauge)

Gauge (AWG)

OHMS/1000’

26.20

16.20

9.88

4.81

2.02

1.26

.70

Also, use short heavy gauge wire and a clean tight connection for ground.

It is the installer's responsibility to understand the product's requirements to install the product in

compliance with industry standards and safety.

Document Number:

MAN –FD171CV-C-4

Rev:

Revision Date:

01/11/2017

Page 8 of 14

TECHNICAL SUPPORT

470-239-7421 or FDSAvionics.com

POWER and VIDEO

P1 (Video/Power)

High Density DB-15 Receptacle (supplied)

Connector P/N: M24308/2-286 or Equivalent

Crimp Contacts P/N: M39029/57-354 or Equivalent

Pin Number

Description

28VDC Power

28VDC Ground

Composite Video 1 - Signal

Composite Video 1 - Shield

S-Video Y Signal

S-Video Y Shield

S-Video C Signal

S-Video C Shield

Red Video (Pin 1 on Standard VGA)

Green Video (Pin 2 on Standard VGA)

Blue Video (Pin 3 on Standard VGA)

Video Ground

Sync Ground

Horizontal Sync (Pin 13 on Standard VGA)

Vertical Sync (Pin 14 on Standard VGA)

P2 (Quad HDSDI Input)

P3 (HDSDI Loop-through Output)

P4 –P7 (HDSDI Inputs 1 through 4)

P8 (Quad HDSDI Output)

Standard 75Ω BNC Plug (RG179 connector supplied)

Description

Center

Video Signal

Shell

Video Return

Document Number:

MAN –FD171CV-C-4

Rev:

Revision Date:

01/11/2017

Page 9 of 14

TECHNICAL SUPPORT

470-239-7421 or FDSAvionics.com

Rear View

* For Quad View to function properly a connection must exist between J8 and J2

Document Number:

MAN –FD171CV-C-4

Rev:

Revision Date:

01/11/2017

Page 10 of 14

TECHNICAL SUPPORT

470-239-7421 or FDSAvionics.com

Operation Instructions

The FD171CV-C-4 is continuously on but can be de-energized by removing power from the video

system. No pilot or aircrew action is necessary during flight or ground operation.

The operator can change the video from the FD171CV-C-4 using the Source button on the top of the

display (SDI, Analog, S-Video & Composite). When the SDI source is selected, the buttons on the

front of the display will control the quad inputs to be displayed.

When applying 28VDC power, the display will turn on and look for a valid input on the last known

source. If no input is found, the display will go to standby mode. Pressing the Source button will select

new video input.

J2 HDSDI OUT will output the current HDSDI video displayed on the monitor.

Button Controls

Located on the top of the FD171CV-C-4 are 8 buttons for display control.

BUTTON

DESCRIPTION

PWR

Turns ON/OFF the system.

Activates the OSD menu or goes to previous menu.

AUTO

Auto-adjustment in RGB.

Moves the highlight icon up to the function that user

wants.

Moves the highlight icon down to the function that user

wants.

Decreases the adjustment of the selected function.

Increases the adjustment of the selected function.

SCE

(Source) Selects the Input Signal among Analog RGB/S-

Video/Composite/HDSDI.
