Extron electronics USB HUB4 Series Manual de usuario

68-1735-01 Rev. D

06 22

User Guide

USB HUB4 Series

USB Hubs

AAP and MAAP USB Hubs

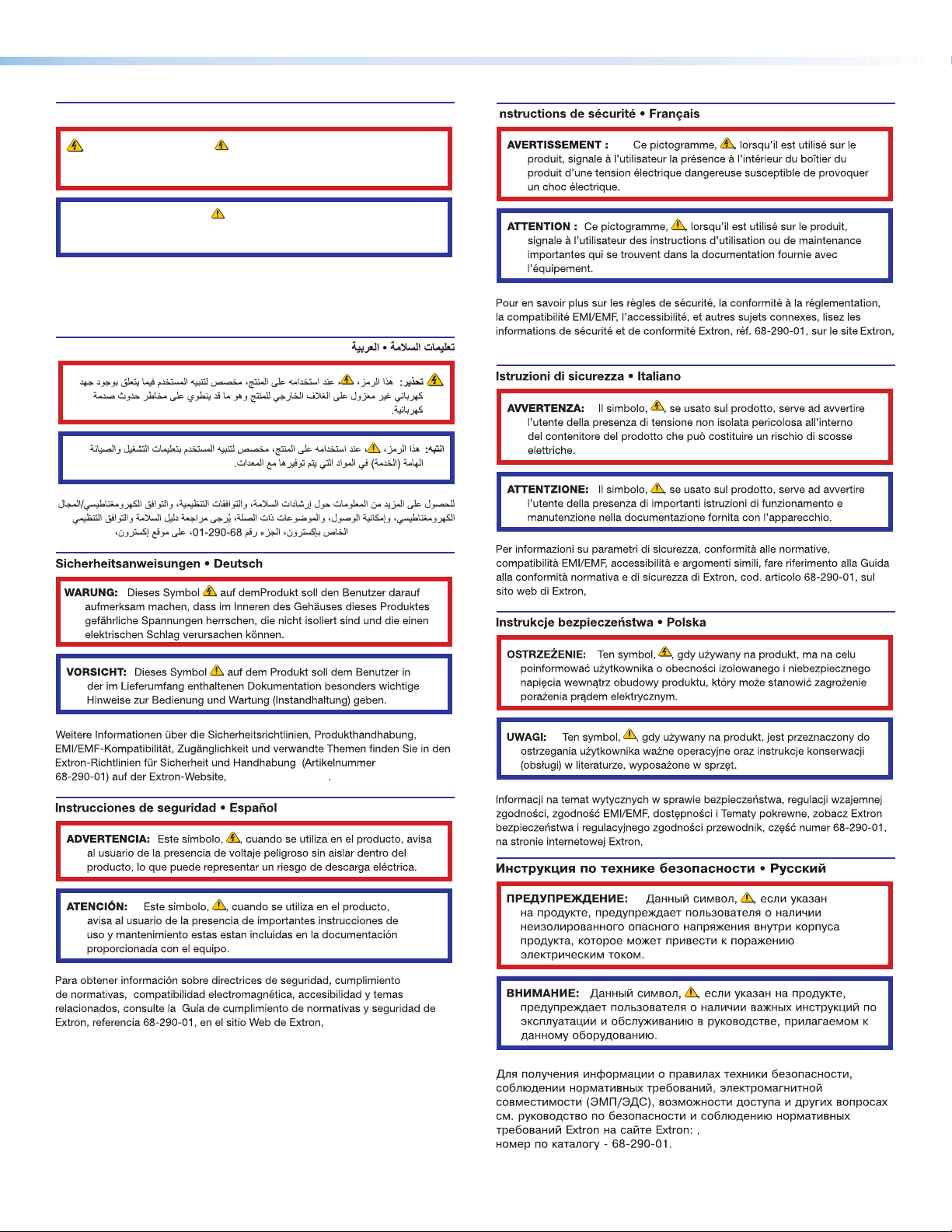

Safety Instructions

Safety Instructions • English

WARNING: This symbol, , when used on the product, is intended to

alert the user of the presence of uninsulated dangerous voltage within

the product’s enclosure that may present a risk of electric shock.

ATTENTION: This symbol, , when used on the product, is intended

to alert the user of important operating and maintenance (servicing)

instructions in the literature provided with the equipment.

For information on safety guidelines, regulatory compliances, EMI/EMF

compatibility, accessibility, and related topics, see the Extron Safety and

Regulatory Compliance Guide, part number 68-290-01, on the Extron website,

www.extron.com.

www.extron.com



www.extron.com

Trademarks

All trademarks mentioned in this guide are the properties of their respective owners.

The following registered trademarks (®), registered service marks (SM), and trademarks (TM) are the property of RGBSystems, Inc. or Extron (see the

current list of trademarks on the Terms of Use page at www.extron.com):

Registered Trademarks (®)

Extron, Cable Cubby, ControlScript, CrossPoint, DTP, eBUS, EDID Manager, EDID Minder, eLink, Flat Field, FlexOS, Glitch Free, GlobalConfigurator,

GlobalScripter, GlobalViewer, Hideaway, HyperLane, IPIntercom, IPLink, KeyMinder, LinkLicense, LockIt, MediaLink, MediaPort, NAV,

NetPA, PlenumVault, PoleVault, PowerCage, PURE3, Quantum, ShareLink, Show Me, SoundField, SpeedMount, SpeedSwitch, StudioStation,

SystemINTEGRATOR, TeamWork, TouchLink, V-Lock, VN-Matrix, VoiceLift, WallVault, WindoWall, XPA, XTP, XTPSystems, and ZipClip

Registered Service Mark(SM) : S3 Service Support Solutions

Trademarks (™)

AAP, AFL (Accu-RATEFrameLock), ADSP(Advanced Digital Sync Processing), AVEdge, CableCover, CDRS(ClassD Ripple Suppression),

CodecConnect, DDSP(Digital Display Sync Processing), DMI (DynamicMotionInterpolation), DriverConfigurator, DSPConfigurator, DSVP(Digital

Sync Validation Processing), EQIP, Everlast, FastBite, Flex55, FOX, FOXBOX, IP Intercom HelpDesk, MAAP, MicroDigital, Opti-Torque,

PendantConnect, ProDSP, QS-FPC(QuickSwitch Front Panel Controller), RoomAgent, Scope-Trigger, SIS, SimpleInstructionSet, Skew-Free,

SpeedNav, Triple-Action Switching, True4K, True8K, Vector™ 4K, WebShare, XTRA, and ZipCaddy

FCC Class A Notice

This equipment has been tested and found to comply with the limits for a Class A digital

device, pursuant to part15 of the FCC rules. The ClassA limits provide reasonable

protection against harmful interference when the equipment is operated in a commercial

environment. This equipment generates, uses, and can radiate radio frequency energy and,

if not installed and used in accordance with the instruction manual, may cause harmful

interference to radio communications. Operation of this equipment in a residential area is

likely to cause interference. This interference must be corrected at the expense of the user.

NOTES: For more information on safety guidelines, regulatory compliances, EMI/EMF

compatibility, accessibility, and related topics, see the “Extron Safety and

Regulatory Compliance Guide” on the Extron website.

VCCI-A Notice

この装置は、クラスＡ情報技術装置です。この装置を家庭環境で使用すると、電波妨害を引き

起こすことがあります。その場合には使用者が適切な対策を講ずるよう要求されることがあります。

ＶＣＣI－Ａ

Conventions Used in this Guide

Notifications

The following notifications are used in this guide:

CAUTION: Risk of minor personal injury.

ATTENTION : Risque de blessuremineure.

ATTENTION:

• Risk of property damage.

• Risque de dommages matériels.

NOTE: A note draws attention to important information.

Specifications Availability

Product specifications are available on the Extron website, www.extron.com.

Extron Glossary of Terms

A glossary of terms is available at http://www.extron.com/technology/glossary.aspx.

viiUSB HUB4 Series • Contents

Contents

Introduction ............................................... 1

About this Guide.................................................. 1

About the USB HUB4.......................................... 1

Features .............................................................. 1

Application Diagram ............................................ 2

Installation................................................. 3

Installation Overview ............................................ 3

Rear Panel Features ............................................ 4

Connecting to the Captive Screw USB Port..... 5

Connecting the External Power Supply ............ 6

Front Panel Features............................................ 9

Mounting.................................................. 10

Mounting the USB HUB4................................... 10

Wall or Furniture Mounting ............................. 10

Rack Mounting .............................................. 14

UL Guidelines for Rack Mounting................... 14

Extron Warranty ....................................... 16

FCC Class A Notice............................................. iv

VCCI-A Notice..................................................... iv

Notifications......................................................v

Speciﬁcations Availability ......................................v

Extron Glossary of Terms......................................v

USB HUB4 Series • Introduction 1

Introduction

• About this Guide

• About the USB HUB4

• Features

• Application Diagram

About this Guide

This guide contains information about the installation and operation of the Extron

USBHUB4AAP and the USBHUB4MAAP. The terms “hub” and “HUB4” refer to both

models interchangeably when instructions apply to both.

About the USB HUB4

The USBHUB4AAP and USBHUB4MAAP are compact, four-port USB hubs designed to

mount within a double-sized Extron AAP or MAAP frame. They enable multiple USB devices

to be connected to a single USB port on a host computer and can be mounted in a variety

of locations. The MAAP models are available in a black or white finish. The AAP models are

available in black and white.

Features

• USB 2.0 compatibility — The HUB4 is compatible with USB 2.0, enabling

communication with a variety of USB peripheral devices.

• Supports data transfer rates up to 480 Mbps — Allows high speed transfer from

thumb drives and other mass storage devices.

• Four port output hub with 5 V, 500 mA available on each port — Allows

simultaneous connection to multiple peripheral devices such as mass storage devices,

keyboards, mice, or other HID – Human Interface Devices. When used with an energy-

efficient external universal power supply, the USB HUB4 can provide 5 V, 500 mA on

each port for attached peripheral devices.

• Choice of USB Type B and captive screw host inputs — A captive screw

input option and overall shallow depth allows installation in junction boxes, behind

whiteboards, in lecterns, and other space-constrained environments.

• Mounting options — The HUB4 faceplate can be mounted on a wall, furniture, or in

Extron architectural products (such as HSA Hideaway Surface Access enclosures) that

accept double-sized MAAP or AAP connector panels.

• Power — The USB HUB4 can be powered directly from a computer via the USB

connection, or with an optional Extron PS 1215 external 1.5 A, 12 VDC power supply

(see www.extron.com for more information).

• Front panel LEDs — The Activity LED lights when a peripheral device has been

recognized by the host and is in communication with it. The Power LED lights with the

USB HUB4 is receiving power.

USB HUB4 Series • Introduction 2

Application Diagram

The following diagram shows an example of a USBHUB4AAP mounted to an MLM

wallplate and installed in a podium.

RGB202

VTG

BOOST CONTROL

PEAK

INPUT

WITHADSP

CENTERING

DISPLAY

MediaLink

VOLUME

CONFIG

ON OFF AUTO


MUTE

DISPLAY

MediaLink

VOLUME

CONFIG

ON OFF

AUTO


MUTE

USBHUB4AAP

ACTIVITY

USB HUB4 AAP

ACTIVITY

Extron

MLM 104 LAAP

with

MLC 104 IP Plus

Extron

USB HUB4 AAP

Four-Port USB 2.0 Hub

Mouse

Keyboard

One USB Cable

from PC to

USB HUB4 AAP

Figure 1. Application Diagram for a USBHUB4AAP
