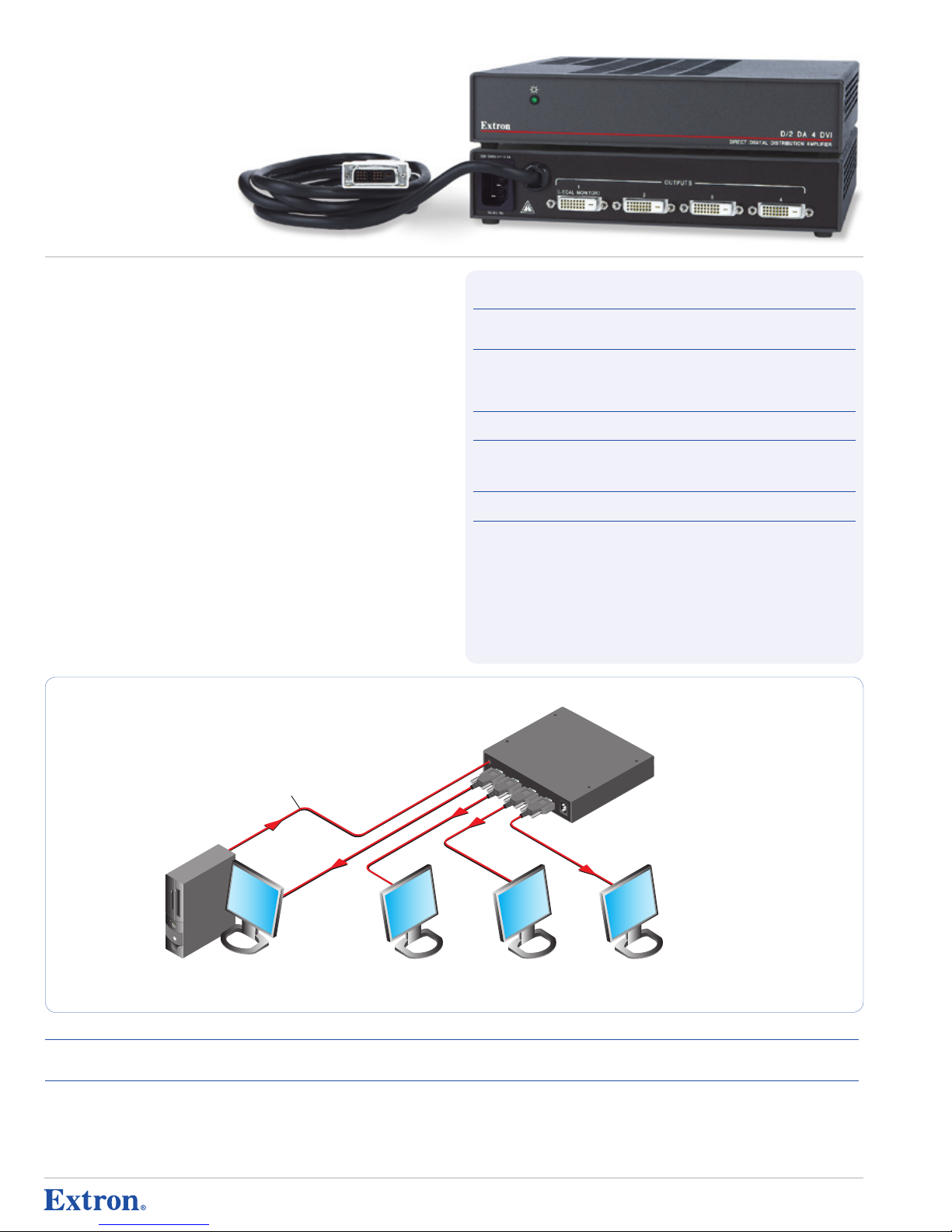

Extron electronics D/2 DA4 DVI Manual de usuario

DVI Output

Extron

D/2 DA4 DVI

Distribution Amplier

LCD Display

with DVI Input

www.extron.com

Pricing and speciﬁcations may change without notice.

USA West

+1.714.491.1500 / +800.633.9876

+1.714.491.1517 FAX

USA East

+1.919.863.1794 / +800.633.9876

+1.919.863.1797 FAX

China

+86.21.3760.1568 / +400.883.1568

+86.21.3760.1566 FAX

Japan

+81.3.3511.7655

+81.3.3511.7656 FAX

Europe

+31.33.453.4040 / +800.3987.6673

+31.33.453.4050 FAX

Dubai

+971.4.2991800

+971.4.2991880 FAX

Asia

+65.6383.4400 / +800.7339.8766

+65.6383.4664 FAX

www.extron.com

Pricing and speciﬁcations may change without notice.

USA West

+1.714.491.1500 / +800.633.9876

+1.714.491.1517 FAX

USA East

+1.919.863.1794 / +800.633.9876

+1.919.863.1797 FAX

China

+86.21.3760.1568 / +400.883.1568

+86.21.3760.1566 FAX

Japan

+81.3.3511.7655

+81.3.3511.7656 FAX

Europe

+31.33.453.4040 / +800.3987.6673

+31.33.453.4050 FAX

Dubai

+971.4.2991800

+971.4.2991880 FAX

Asia

+65.6383.4400 / +800.7339.8766

+65.6383.4664 FAX

sPECIfICAtIons

VIDEo

Maximum bit rate ............... 4.9 gigabits per second (1.6 gigabits/second/color)

Maximum bandwidth ........... 165 MHz

VIDEo InPut

Number/signal type............. 1 single-link DVI-D

Connectors ....................... 1 attached cable with male DVI-D connector

Minimum input voltage......... 0.15 Vp-p

Resolution range ................ Up to 1920x1200 or 1080p @ 60 Hz

VIDEo sIGnAl CHArACtErIstICs

Rise / fall time ................... 220 ps, maximum 350 ps

VIDEo outPut

Number............................ 4 DVI

Connectors ....................... 4 DVI female

Minimum output voltage....... 0.6 Vp-p

DDC AnD HDCP CoMMunICAtIon

DDC and HDCP signals ......... Connected to output 1

GEnErAl

Power.............................. 100 VAC to 240 VAC, 50/60 Hz, 13 watts, internal, universal

Temperature / humidity ........ Storage: -40 to +158 °F (-40 to +70 °C) / 10% to 90%, noncondensing

Operating: +32 to +122 °F (0 to +50 °C) / 10% to 90%, noncondensing

Rack mount ...................... Yes, with optional 1U rack shelf, part #60-190-01 or 60-604-01

Enclosure type ................... Metal

Enclosure dimensions.......... 1.75" H x 8.75" W x 9.4" D (1U high, half rack wide)

4.4 cm H x 22.2 cm W x 23.9 cm D (Depth excludes connectors.)

Product / shipping weight . . . . 2.8 lbs (1.3 kg) / 5 lbs (3 kg)

Vibration .......................... ISTA 1A in carton (International Safe Transit Association)

Listings / compliances ......... UL, CUL / CE

MTBF .............................. 30,000 hours

Warranty .......................... 3 years parts and labor

DVI DIstrIbutIon AMplIfIErs

D/2 DA4 DVI

Four Output DVI Distribution Amplifier

fEAturEs

•Input: DVI-D male on attached cable

•Output: Four DVI-D female connectors

•Supports single link DVI-D signals up to 1920x1200, including HDTV 1080p/60

•DDC signals are routed to output 1

•Internal international power supply

DEsCrIPtIon

The Extron D/2 DA4 DVI is a one input, four output distribution ampliﬁer for DVI digital video

signals. It accepts DVI - Digital Visual Interface signals from a computer and distributes up to

four identical, independently buffered outputs. The DVI digital output signal can be run up to

15 feet (4.6 meters) using standard DVI patch cables. For applications requiring longer cable

runs, Extron has developed the IN9700 Series long distance DVI cables which allow DVI signals

to be transmitted up to 75 feet (22.9 meters). For applications requiring even greater lengths,

the Extron DVI 201 transmitter and receiver are capable of sending DVI signals up to 200 feet

(60 meters) using CAT 5 cable, and the FOX 500 DVI ﬁber optic transmitter and receiver set

can achieve transmissions at extreme distances up to 30 km (18.75 miles). The D/2 DA4 DVI

accepts TMDS Transition Minimized Differential Signaling DVI signals at a bit rate of up to

1.6 gigabits/sec/color. It is equipped with DVI-D connectors for a single link of DVI-D.

MoDEl VErsIon DEsCrIPtIon PArt #

D/2 DA4 DVI Four Output DVI Distribution Amplifier ................................................................ 60-315-02

oPtIonAl ACCEssorIEs MoDEl DEsCrIPtIon PAGE PArt #

DVI 201 Tx/Rx DVI Extender..........................................................................page 550 60-734-03

IN9700 Series Single Link DVI-D Male to Male Long Distance Extension Cables ................page 783 26-584-0X

RSU 129 1U 9.5" Deep Universal Rack Shelf Kit .............................................page 819 60-190-01

MBU 129 1U, 1/2 Rack Width Under-Desk Mount Kit for Four-Piece Enclosure ............page 816 70-219-01

564
