DA2 HD 8K L • Setup Guide

IMPORTANT NOTE:

Go to www.extron.com for the complete user guide, installation instructions, and specications before connecting

the product to the power source.

This guide provides basic instructions for an experienced technician to install the DA2 HD 8K L distribution amplier.

Overview

The Extron DA2 HD 8K L distribution amplier distributes one HDMI input signal to two outputs simultaneously at resolutions up to

8K @ 30 Hz 4:4:4 or 8K @ 60 Hz 4:2:0, and complies with HDMI 2.1 and HDCP 2.2. The DA2 also features EDID Minder®, remote

control and monitoring via Ethernet or USB, and discrete display control via CEC.

For complete instructions, see the DA2 HD 8K L User Guide at www.extron.com.

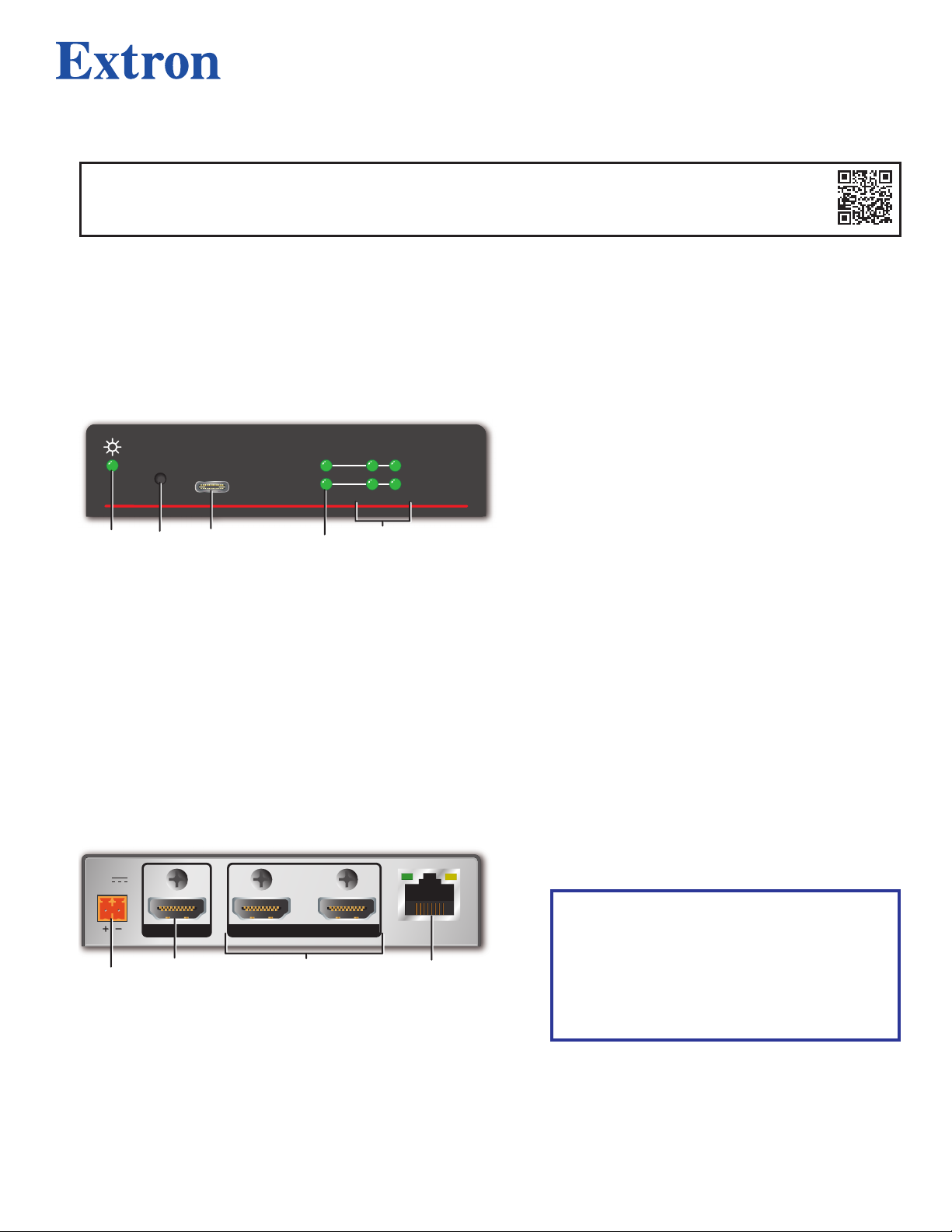

Front Panel

DA2 HD 8K L

CONFIG

INPUT 1

SIGNAL

HDCP

OUTPUTS

Figure 1. DA2 HD 8K L Front Panel

CUSB-C Config port — Connect a PC to this port to configure

and monitor the DA via SIS™ or PCS.

DInput LEDs —

• Signal LED — Lights when a TMDS signal is detected on

the HDMI input. If the source requires HDCP encryption, this

LED may light only when HDCP is authenticated.

• HDCP LED — Lights when the source requires HDCP

encryption and it has been authenticated with the HDMI

input.

EOutputs LEDs —

APower status LED — Lights when power is applied to

the unit.

BReset button — Use an Extron Tweeker or small

screwdriver to press and hold the button while the DA is

running or while powering up, for different reset levels.

• Press and hold the reset button while applying

power to revert to factory default rmware for a

single power cycle, but maintain IP settings.

• Press and hold the reset button for 3 seconds and

again for <1 second within 1 second to reset the

unit to factory settings.

• Press and hold the reset button for 6 seconds and

again for <1 second after the LED blinks twice to

reset all IP settings back to factory defaults.

• Press and hold reset button for 9 seconds and

again for <1 second after the LED blinks 3 times to

reset all settings to default except the rmware.

• HDCP LEDs — Light when HDCP is authenticated between a DA output and the corresponding sink device.

• Signal LEDs — Light when HPD is detected from the corresponding sink device and a TMDS signal is detected at the input.

Rear Panel

POWER

12V

--A MAX

INPUT OUTPUTS LAN

A B

Figure 2. DA2 HD 8K L Rear Panel

BHDMI input — Connect a source device to this female HDMI

type A input.

A Power input — Connect the provided 12 VDC, 3.0 A

power supply to this 2-pole 3.5 mm captive screw port.

ATTENTION:

• Do not connect the power supply before

reading the Attention in the Power Supply

section of the DA2 HD 8K L User Guide.

• Ne branchez pas la source d’alimentation

externes avant d’avoir lu les mises en

garde dans la section « Power Supply » du

DA2 HD 8K L User Guide.

CHDMI outputs — Connect up to two display devices to these female HDMI type A outputs.

DLAN port — Connect to an Ethernet LAN or WAN via this RJ-45 port to control the DA from a remote location. When connected

to an Ethernet LAN or WAN, the DA can be accessed and operated from a computer running a standard internet browser.

Ethernet connection indicators — The Link and Activity LEDs indicate the status of the Ethernet connection.

• Green Link LED — Indicates the distribution amplifier is properly connected to an Ethernet LAN. This LED lights steadily.

• Amber Activity LED — Indicates a transmission of data packets on the RJ-45 connector. This LED flickers as the distribution

amplifier communicates.

68-3435-51 Rev. A

10 23

Installation

1. Mount the DA in a suitable location with one of the recommended mounting kits (see www.extron.com for mounting options).

Follow the instructions provided with the mounting kit.

2. If required, connect a control PC to the USB-C Cong port (see gure1, Con

page 1) or LAN port (see gure2, Don page 1).

NOTE: Use Product Conguration Software (PCS) to congure EDID

Minder, mute the video signal, mute the audio signal, adjust the video color

bit depth, or monitor the signal and HDCP status (see the DA2 HD 8K L

Help File).

3. Connect the display devices to the rear panel HDMI outputs and power them on.

4. Connect the source device to the rear panel HDMI input.

NOTE: Use the provided LockIt® HDMI cable lacing brackets to secure the

HDMI connectors.

12345678

RJ-45 Connector

Insert Twisted

Pair Wires

Pins:

Wire color

White-green

Green

White-orange

Blue

White-blue

Orange

White-brown

Brown

Wire color

T568A T568B

White-orange

Orange

White-green

Blue

White-blue

Green

White-brown

Brown

Figure 3. Wiring the RJ-45 Connector

Follow these instructions to secure the input and output HDMI connectors to the unit with

the LockIt HDMI lacing brackets provided:

a. Plug the HDMI cable into the rear panel connection (1).

b. Loosen the HDMI connection mounting screw from the rear panel enough to allow

the LockIt lacing bracket to be placed over it (2). The screw does not have to be

removed.

c. Place the LockIt lacing bracket on the screw and against the HDMI connector,

then tighten the screw to secure the bracket (3).

ATTENTION:

• Do not overtighten the HDMI connection mounting screw. The shield it

fastens to is very thin and can easily be stripped.

• Ne serrez pas trop la vis de montage du connecteur HDMI. Le blindage

auquel elle est attachée est très fin et peut facilement être dénudé.

d. Loosely place the included tie wrap around the HDMI connector and the LockIt lacing

bracket as shown (4).

e. While holding the connector securely against the lacing bracket, tighten the tie wrap,

then remove any excess length.

Figure 4. LockIt Bracket Diagram

5. Connect the provided 12 VDC, 3.0 A power supply to the 2-pole captive screw inlet (see gure 5 to wire the 2-pole captive screw

connector).

SECTION A–A

Ridges

Smooth

3/16"

(5 mm) Max.

POWER

12V

--A MAX

Figure 5. Wiring the Power Connector

ATTENTION:

• Do not connect the power supply before reading

the Attention in the Power Supply section of the

DA HD 8K L Series User Guide.

• Ne branchez pas la source d’alimentation externes

avant d’avoir lu les mises en garde dans la section

« Power Supply » du DA HD 8K L Series User Guide.

6. Power on the source device.

For information on safety guidelines, regulatory compliances, EMI/EMF compatibility, accessibility, and related topics, see the Extron

Safety and Regulatory Compliance Guide on the Extron website.

All trademarks mentioned are the property of their respective owners.

Worldwide Headquarters: Extron USA West, 1025 E. Ball Road, Anaheim, CA 92805, 800.633.9876
