Extech Instruments PH90 Manual de usuario

USERMANUAL



WaterproofpH/TemperatureMeter



ModelPH90

www.GlobalTestSupply.com

Find Quality Products Online at: sales@GlobalTestSupply.com

PH90‐en‐GB_V1.46/16

Introduction

ThankyouforselectingtheExtechModelPH90waterproofpH/Temperaturemeter.This

instrumentisequippedwithaflatsurfacepHelectrode(modelpH95)forreliabletestresults.

Thisdeviceisshippedfullytestedandcalibratedand,withproperuse,willprovideyearsof

reliableservice.Pleasevisitourwebsite(www.extech.com)tocheckforthelatestversionofthis

UserGuide,ProductUpdates,ProductRegistration,andCustomerSupport.

Features

Rugged,replaceable,flatsurfacepHelectrode(pH95)forquickpHmeasurements

LCDdisplayshowspHandtemperaturemeasurementssimultaneously

Calibrationautomaticallyrecognizesbuffersolution

PTS(percentofslope)featurealertsuserwhenelectrodereplacementisnecessary

ATC(automatictemperaturecompensation)

Waterproofdesign(IP57);metercanfloatinwater

Autopoweroffafter10minutesofinactivity

EasytoreplacepHelectrode



www.GlobalTestSupply.com

Find Quality Products Online at: sales@GlobalTestSupply.com

PH90‐en‐GB_V1.46/16

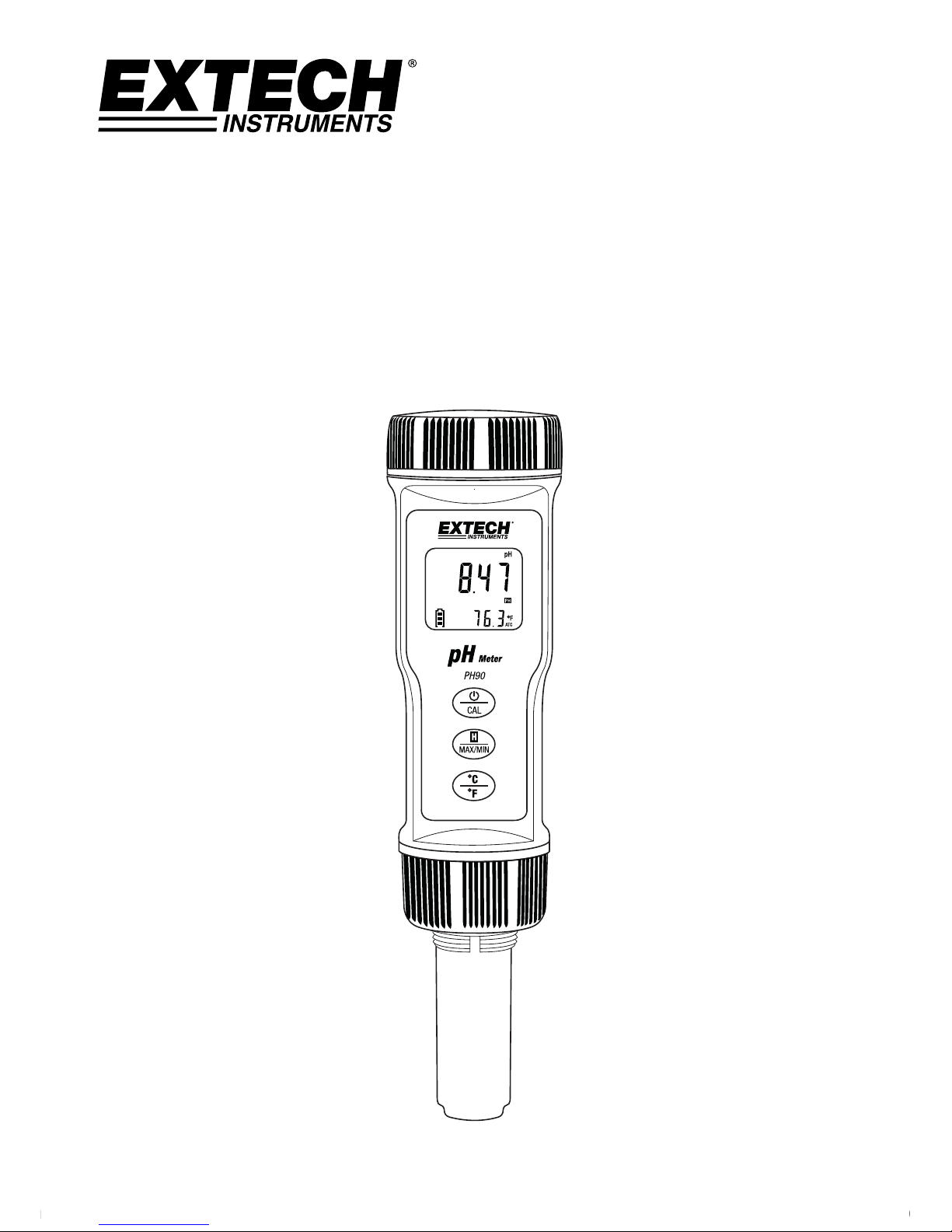

Description



1. Batterycompartmentcap

2. LCDDisplay

3. PowerandCALbutton

4. HOLDandMAX/MINbutton

5. °C/°Fbutton

6. Electrodecollar

7. Electrode(PN:PH95;replaceable)

CAUTIONS

Thisdevicecontainssmallobjectsthatcanbeswallowed;donotallowchildrenorpetsto

handleorplaywiththisdevice.

Donotallowchildrenorpetstohandleorplaywiththebatteriesandpackingmaterial,

theseitemsposeahazard.

Ifthisdeviceistobestoredunusedforanextendedperiodoftime,removethebatteries.

Expiredordamagedbatteriescancausecauterizationoncontactwithskin.Alwaysuse

suitablehandprotection.

Pleaseensurethatthebatteriesarenotshort‐circuited.

Donotdisposeofbatteriesinafire.

www.GlobalTestSupply.com

Find Quality Products Online at: sales@GlobalTestSupply.com

PH90‐en‐GB_V1.46/16

Overview

pHOverview

pHisaunitofmeasure(rangingfrom0to14pH)indicatingthedegreeofacidityoralkalinityofa

solution.SolutionswithapHlowerthan7areconsideredacidic,solutionswithapHhigherthan

7areknownasbases,andsolutionswithapHofexactly7areconsidered‘neutral’.

ThepHscaleislogarithmicso,forexample,ifsample‘A’is1pHlowerthanSample‘B’,then

Sample‘A’is10timesmoreacidicthanSampleB.Adifferenceof1pHrepresentsaten‐fold

differenceinacidity.

GettingStarted

Fornewmeters,removethebatterycap(1)atthetopofthemeterandinstall2batteries

observingcorrectpolarity.

Removethecapfromthebottomoftheinstrument(7)toexposetheflatsurfaceelectrodeand

referencejunction.

Beforefirstuse,rinsetheelectrodewithcleantapwaterandwipedry.

Thespongeshouldbekeptmoistenedatalltimestoensureaccuracy.

ReplacingElectrodes

ThePH90isshippedwithaflatsurfacepHelectrodeattached(7).Electrodelifeislimited,andis

dependenton(amongotherfactors)frequencyofuseandcare.Iftheelectrodeneedstobe

replaced,followthesestepsforremovingandconnectingelectrodes.ReplacementpH

electrodes(partnumberpH95)areavailablefromExtechInstruments.

1. Unscrewtheelectrodecollar(6)clockwise,andremoveitcompletely.

2. PullthepHelectrodemoduleoutfromthetester.

3. Carefully,pluganewelectrodemoduleintothetestersocket.

4. Replaceandtightentheelectrodecollartoensureagoodseal.

AutomaticElectrodeRecognition

Whenthemeterispowered,itrecognizesthetypeofelectrodethatisconnectedanddisplays

theappropriateunitofmeasure.Attachtheelectrodebeforepoweringthemeter;neverpower

themeterwithoutanelectrodeattached.

PoweringtheMeter

Thebatteriesarealreadyinstalledinthemeter.Pressthepowerbutton(3)topowerONorOFF.

Thedisplayedbatteryindicatorletstheuserknowthestatusofthebatterystrength.TheAuto

Powerofffeatureshutsthemeteroffautomaticallyafter10minutesofinactivitytopreserve

batterylife.

www.GlobalTestSupply.com

Find Quality Products Online at: sales@GlobalTestSupply.com

PH90‐en‐GB_V1.46/16

Operation

UnderstandingthePH90Display

Whenanelectrodeisplacedinasolution,themaindisplayindicatesthepHreadingwhilethe

lowerdisplayshowstemperature.

pHCalibration

Atwopointcalibrationwithabufferof7and4or10(whicheverisnearesttotheexpected

samplevalue)isalwaysrecommended.Forbestaccuracy,alwayscalibrateatthesample

temperature.

1. CheckthatthepHiconisdisplayedontheLCD.

2. DiptheelectrodeintothepH7buffersolution.Stirgentlyandwaitforastablereading.

3. PressandholdtheCALbutton(3)toentercalibrationmode.

4. TheLCDwilldisplaytheCALiconandthenflash7.00.

5. WhencalibrationiscompletethemeterwillstopflashingandindicateSAandEND.

6. Rinsetheelectrodewithcleantapwaterandwipedry.

7. DiptheelectrodeinpH4(orpH10)buffersolution.

8. Stirgentlyandwaituntilthedisplayisstable.

9. PressandholdtheCALbuttontoentercalibrationmode.

10. TheLCDwilldisplaytheCALiconandthenflash4.00or10.00.

11. Whencalibrationiscompletethemeterwillstopflashingandindicate%(percentofslope),

SAandEND.

12. AfterthecalibrationofpH4orpH10,thedisplaywillindicatetheslopepercentage(PTS),

indicatingthestatusoftheelectrode.

13. IfthePTSis<70%or>130%theelectrodemustbereplaced.Aslopeof100%isideal.



Note:TheSAiconwillnotappearifthecalibrationfails.

Note:CalibratewithapH7bufferfirstandthenfollowwithapH4orpH10calibration.



www.GlobalTestSupply.com

Find Quality Products Online at: sales@GlobalTestSupply.com

PH90‐en‐GB_V1.46/16

pHMeasurements

Aftercalibration(detailedearlier),rinsetheelectrodewithcleantapwaterandwipedry.Dipthe

electrodeintothesamplesolutiontobemeasured.Stirgentlyandwaitforastablereading.

AutomatictemperaturecompensationisalwaysactivewhenmeasuringpH(ATCiconshownon

LCD).

TemperatureUnitsSelection(oC/oF)

PressandholdtheC/Fbuttontotogglethedisplayedtemperatureunitsofmeasure.

DataHold

MomentarilypresstheHOLD/MAX‐MINbutton(4)toentertheHOLDmode;thedisplayed

readingwillfreeze.TheiconHOLDwillbedisplayedontheLCDwhileinthismode.Pressthis

buttonagaintoexittheDataHoldmodeandreturntothemeasurementmode.TheHOLDicon

willdisappearandthereadingwillreturntothereal‐timevalue.

MAX/MIN

PressandholdtheHOLD/MAXMINbutton(4)untiltheMAXorMINiconflashesonthedisplay.

MomentarypressesofthisbuttonwillnowtoggletheMAX(highestreadingshown)andMIN

(lowestreadingshown)modes.PressandholdthisbuttontoexittheMAX/MINmodeand

returntothemeasurementmode(theMAX/MINiconswilldisappear).Notethatthemeterwill

notAutoPowerOFFwhileintheMAX/MINmode.

FactoryDefaultRESETProcedure

Torestorethemetertothefactorydefaultsettings,poweronthemeterandpressandhold

thesetwobuttons whilepoweringthemeterOFF.

www.GlobalTestSupply.com

Find Quality Products Online at: sales@GlobalTestSupply.com

PH90‐en‐GB_V1.46/16

BatteryReplacement

1. Unscrewthebatterycompartmentcapcounterclockwisetoaccessthebatterycompartment.

2. Replacethetwo(2)2032batteriesobservingcorrectpolarity.

3. Replacethebatterycompartmentcapsecurely.



Neverdisposeofusedbatteriesorrechargeablebatteriesinhouseholdwaste.

Asconsumers,usersarelegallyrequiredtotakeusedbatteriestoappropriatecollectionsites,the

retailstorewherethebatterieswerepurchased,orwhereverbatteriesaresold.



Disposal:Donotdisposeofthisinstrumentinhouseholdwaste.Theuserisobligatedtotakeend‐

of‐lifedevicestoadesignatedcollectionpointforthedisposalofelectricalandelectronic

equipment.

Specifications

DisplaypHTemp

Range0to14.00pH0to90.0°C

(32to194°F)

Accuracy±(0.01pH+1dgt) ±0.5°C+1dgt

(±0.9°F+1dgt)

Resolution0.01pH0.1°F/C

ATC

(Autotemperature

compensation)

0to90°C

(32to194°F)n/a

CalibrationpointspH4.00,7.00,and10.00

Power2x3VLithiumbatteries(CR2032)

Dimensions36x170x36mm(1.4x6.7x1.4”)

Weight85g(3oz.)



Allrightsreservedincludingtherightofreproductioninwholeorinpartinanyform

ISO‐9001Certified

www.extech.com

www.GlobalTestSupply.com
