User Guide

ExStikTM pH Waterproof Meters

Models PH100 & PH110

Patent Pending

PH100-PH110 Version 5.0 06/05

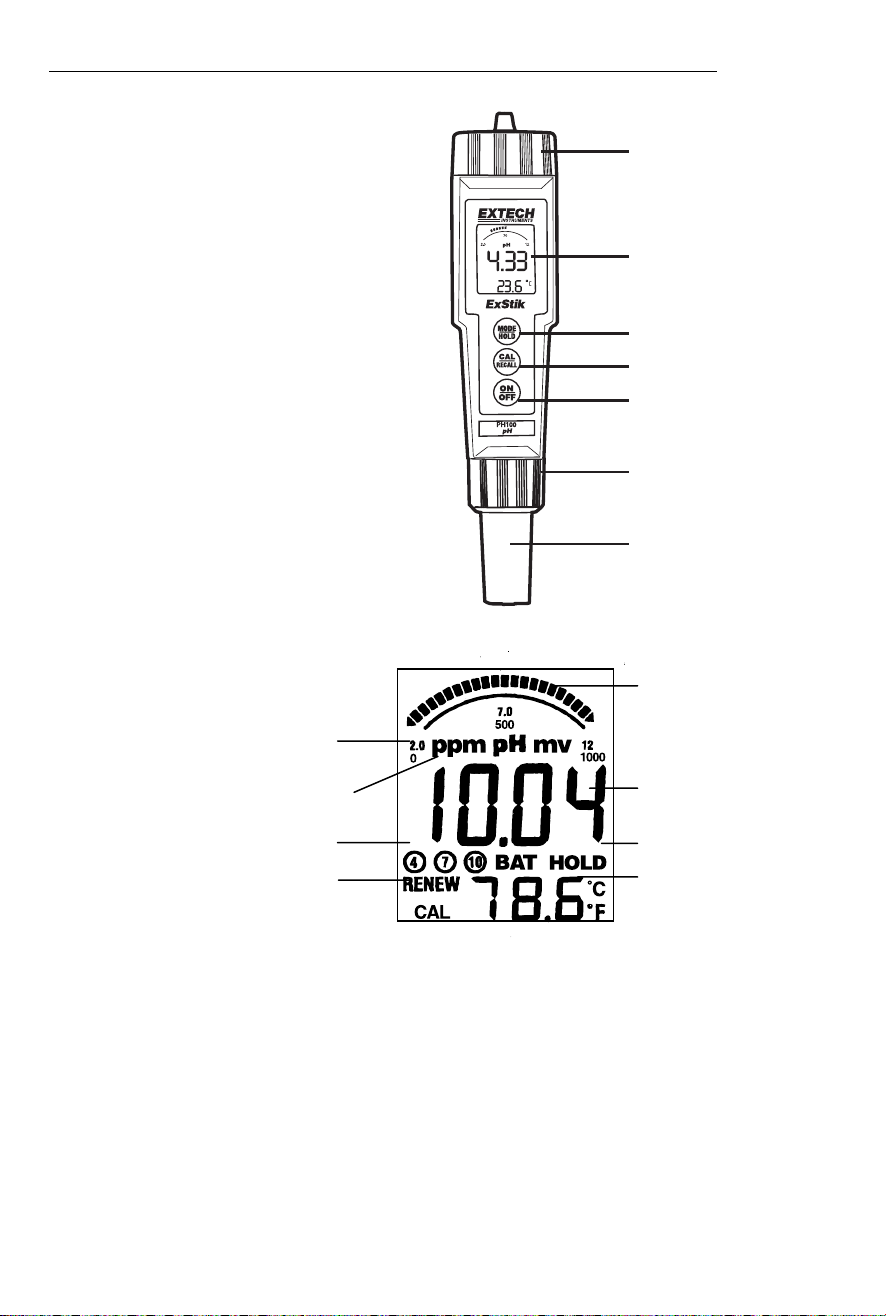

ExStikTM Description

Front Panel Controls

1. Battery compartment cap

2. LCD Display

3. MODE / HOLD button

4. CAL / RECALL button

5. ON/OFF button

6. Electrode collar

7. Electrode (refillable on PH110)

(Electrode cap is not shown)

Display

1. Bargraph reading

2. Measurement reading

3. BAT (low battery) and

HOLD (data hold) indicators

4. Temperature display

5. Bargraph scale designations

6. Units of measure

7. Calibration indicators

8. RENEW and CAL indicators

PH100-PH110 Version 5.0 06/05

Overview

pH Overview

pH is a unit of measure (ranging from 0 to 14pH) indicating the degree of acidity or

alkalinity of a solution. pH tests are the most commonly performed measurements in water

analysis and reports the negative log of the hydrogen ion activity of a solution which is an

indicator of acidity or alkalinity. Solutions with a pH less than 7 are considered acidic,

solutions with a pH higher than 7 are known as bases, and solutions with a pH of exactly 7

are neutral.

The pH scale is logarithmic so, for example, if sample A is 1 pH less than Sample B, this

means that Sample A is 10 times more acidic then Sample B. A difference of 1 pH

represents a ten-fold difference in acidity.

Getting Started

•Remove the cap from the bottom of the ExStikTM to expose the electrode glass surface

and reference junction

•Before first use or after extended storage, soak the electrode (with its cap removed) in a

pH 4 solution for about 10 minutes (PH100 only)

•White KCL crystals may be present in the cap. These crystals will dissolve in the soak or

they can be simply rinsed with tap water

•Always calibrate close to the expected measurement value

•Before first use, twist off the battery compartment cap to access the battery. Locate and

remove the plastic battery insulating tab.

•A sponge is located in the electrode protective cap. Keep this sponge soaked with a pH 4

solution to preserve Electrode life during storage

Replacing Electrodes

The ExStikTM is shipped with an electrode attached. Electrode life is limited and is

dependent on (among other factors) frequency of use and care. If the electrode needs to

be replaced, follow these steps for removing and connecting electrodes. Note that the

PH110 has a refillable electrode and the PH100 does not.

1. To remove an electrode, unscrew and completely remove the electrode retaining

collar.

2. Gently rock the electrode from side to side, pulling it away from the meter, until it

disconnects.

3. To attach an electrode, carefully plug the electrode into the meter socket (note that

the electrode connector is keyed, ensuring proper connection).

4. Secure the electrode in place by tightly turning the collar in place. (a rubber gasket

seals the electrode with the meter).

Automatic Electrode Recognition

When the ExStikTM is turned on, it recognizes the type of electrode that is connected and

displays the appropriate unit of measure. Attach electrode before turning the ExStikTM on.

Powering the ExStik™

If the batteries are weak, the ‘BAT’ indicator appears on the LCD. Press the ON/OFF key

to turn the ExStikTM on or off. The auto power off feature shuts the ExStikTM off

automatically after 10 minutes of inactivity to preserve battery life.

PH100-PH110 Version 5.0 06/05

Operation

Overview

When the electrode is placed in a solution, the main display and bargraph indicate the pH

reading while the lower display reads temperature (readings flash until they have

stabilized). The bargraph is ‘center zero’, i.e. at pH 7 there is no display. As the pH rises,

the bar moves from the center to the right. If the pH drops, the bar moves from the center

to the left.

pH Calibration (1, 2, or 3 points)

A two point calibration with a buffer of 7 plus 4 or 10 (whichever is nearest to the expected

sample value) is always recommended. A one point calibration (choose the value closest

to the expected sample value) is also valid. For best accuracy, always calibrate at the

sample temperature.

1. Place the electrode into a buffer solution (4, 7, or 10) and momentarily press the CAL

key. pH 7 should be calibrated first, then 4 and/or 10 pH.

2. The ExStikTM automatically recognizes the solution and calibrates itself to that value.

Note: If the solution is more than 1pH off from the 4, 7, or 10pH standard, the

ExStikTM will assume an error and abort the calibration. CAL and END will be

displayed.

3. During calibration, the pH reading flashes on the main display.

4. When calibration is complete, the ExStikTM automatically displays ‘END’ and returns

to normal operation mode.

5. The appropriate circled indicator ➃,➆, or ➉will appear on the LCD when a

calibration has been completed. The calibration data is stored until a new calibration

is performed.

6. For a two or three point calibration, repeat steps 1-4.

Note: Always turn the meter off and then on before calibrating to allow sufficient time to

complete the calibrations during one power cycle. If the meter auto powers off during

calibration the calibrations remain valid, but new calibrations will turn the circled

indicators off.

Changing the Displayed Temperature Units

Press and hold the CAL button for approx. 3 seconds. The oC or oF icon will change first

and the numerical temperature value will change after the button is released. If the

Calibration mode is accidentally accessed ‘CAL’ appears on the LCD. Simply turn the

ExStikTM off and start again.

Data Hold

Momentarily press the MODE button to freeze the current reading. The HOLD display icon

will appear along with the held reading. The held reading will also be stored in memory.

Momentarily press the MODE key to return to normal operation.

PH100-PH110 Version 5.0 06/05

15-Storing Readings into Memory

1. Momentarily press the MODE button to store a

reading. The LCD will briefly display the

memory location number and then the value

stored (Data Hold will activate).

2. Momentarily press MODE again to return to

normal operation.

3. Repeat step 1 to store the next reading and so

on.

4. After 15 readings are stored the ExStikTM will return to memory location 1 and start

overwriting existing data with newly stored data.

Recalling Stored Readings

Note: Check that the HOLD symbol is not displayed. If it is, exit the HOLD function by

momentarily pressing the MODE button.

1. Momentarily press the CAL button and then press the MODE button immediately after

CAL is displayed; the storage location number (1 through 15) will flash. If the CAL

mode is accidentally accessed (display flashing), press the CAL button again to exit.

2. The last reading stored will be displayed first. To advance through the stored

readings, momentarily press the MODE button. The location number is displayed first,

followed by the reading stored in that location.

3. To exit the recall mode, momentarily press the CAL button and the ExStikTM will return

to normal operation.

CAL Reminder Display

When the ExStikTM is turned on in the pH mode for the 15th time without recalibration, the

‘CAL’ icon appears on the LCD indicating that the ExStikTM may require calibration. Some

applications may require recalibration of the electrode more frequently than others. The

CAL display is simply a reminder and will turn off when the pH electrode is recalibrated.

RENEW Display

A flashing ‘RENEW’ warning indicates that the probe may be nearing the end of its useful

life. If cleaning or recalibration does not cause the RENEW icon to disappear, replace the

electrode. The RENEW display appears when the output of the pH electrode fails a

diagnostic test.

Considerations

•If the unit appears to be locked (display frozen) it is possible that the Data Hold mode

has been inadvertently accessed by pressing the MODE button. Simply press the

MODE button again or turn the meter off and restart if the display appears frozen.

•If the meter does latch up and no button presses revive it, remove the batteries, push

the ON button for 3 seconds and then reinsert the batteries.

•Note that if the batteries are removed, any stored readings will be discarded. Also, the

user calibration data for pH will be cleared. New user pH calibration data is required.

Factory calibration data for all models will be retained, however.

PH100-PH110 Version 5.0 06/05

Battery Replacement

1. Twist off the battery compartment cap

2. Replace the four (4) 2032 batteries observing polarity.

3. Replace the battery compartment cap

pH Electrode Refilling (pH110/115 refillable electrode only)

The refillable electrode does not need to be detached from the

body of the ExStikTM in order to perform the refilling procedure.

Refillable electrodes (PH115) have a removable reference junction

(slotted) and the word REFILLABLE on the side of the electrode

housing.

Removing the Reference Junction

The removal tool supplied with the

PH113 Refill Kit is used to remove

the reference junction from the

sensing surface of the electrode. If

the reference junction does not have

slots for the ‘teeth’ of the removal

tool to lock onto, the electrode is

NOT refillable.

Holding the electrode upside down, unscrew and remove the reference junction using the

removal tool.

Filling the Electrode

1. Once the reference junction is removed, fill the cavity with the refill solution

supplied in the Refill Kit.

2. Replace the reference junction using the removal/installation tool. (Spare junctions

are provided if needed).

Filling Solution

The supplied container includes 15ml of filling solution. There is enough solution for 4 to 5

refills. Use only the supplied solution for refilling the electrode.

Refillable

pH Module

Reference junction

Junction removal tool

PH100-PH110 Version 5.0 06/05

Specifications

Display Multifunction LCD with Bargraph

Operating conditions 32 to 122oF (0 to 50oC) / < 80% RH

Range and Accuracy 0.00 to 14.00 / ± 0.01pH typical

Temp. Compensation Automatic from 32 to 194oF (0 to 90oC)

Temperature Range 23 to 194oF (-5 to 90oC)

Temperature Resolution 0.1oup to 99.9 then 1othereafter

Temperature Accuracy ± 1.8oF / 1oC [from 23 to 122oF (-5 to 50oC)]

± 5.4oF / 3oC [from 122 to 194oF (50 to 90oC)]

Measurement storage 15 tagged (numbered) readings

Power Four (4)CR2032 button batteries

Low battery indication ‘BAT’ appears on the LCD

Auto power off After 10 minutes of inactivity

Dimensions 35.6x172.7x40.6mm (1.4x6.8x1.6”); 110g (3.85oz)

Optional Accessories

•Tripak buffers with 4, 7 & 10 pH capsules (6 each) plus two rinsing solutions (Part

Number: PH103)

•pH 4.01 buffer, pint, (Part Number PH4-P)

•pH 7.00 buffer, pint, (Part Number PH7-P)

•pH 10.00 buffer, pint, (Part Number PH10-P)

•Spare pH Electrode – non-refillable (Part Number: PH105)

•Spare pH Electrode - refillable (Part number PH115)

•Electrode Refill solution (Part number PH113)

•Spare ORP electrode (Part Number: RE305)

•Spare Chlorine electrode (Part Number: CL205)

•Weighted base with 5 solution cups (Part Number: EX006)

•DO600-1C 3ft. extension cable

•DO600-5C 16ft. extension cable

Note: If the unit is to be converted for ORP or Chlorine use by attaching the proper

electrode, please visit www.extech.com to download the proper User Guide

PH100-PH110 Version 5.0 06/05



Support line (781) 890-7440

Technical support: Extension 200; E-mail: [email protected]

Repair & Returns: Extension 210; E-mail: repair@extech.com

Product specifications subject to change without notice

For the latest version of this User’s Guide, Software updates, and other

Up-to-the-minute product information, visit our website: www.extech.com

Warranty

EXTECH INSTRUMENTS CORPORATION warrants this instrument to be free of defects in parts and

workmanship for one year from date of shipment (a six month limited warranty applies on sensors and

cables). If it should become necessary to return the instrument for service during or beyond the warranty

period, contact the Customer Service Department at (781) 890-7440 ext. 210 for authorization or visit our

website at www.extech.com (click on ‘Contact Extech’ and go to ‘Service Department’ to request an RA

number). A Return Authorization (RA) number must be issuedbefore any product is returned to Extech. The

sender is responsible for shipping charges, freight, insurance and proper packaging to prevent damage in

transit. This warranty does not apply to defects resulting from action of the user such as misuse, improper

wiring, operation outside of specification, improper maintenance or repair, or unauthorized modification.

Extech specifically disclaims any implied warranties or merchantability or fitness for a specific purpose and

will not be liable for any direct, indirect, incidental or consequential damages. Extech's total liability is limited

to repair or replacement of the product. The warranty set forth above is inclusive and no other warranty,

whether written or oral, is expressed or implied.

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Instrumento de medición de Extech Instruments

Extech Instruments

Extech Instruments PQ3450-30 Manual de usuario

Extech Instruments

Extech Instruments 407117 Manual de usuario

Extech Instruments

Extech Instruments EC170 Manual de usuario

Extech Instruments

Extech Instruments 407750 Manual de usuario

Extech Instruments

Extech Instruments SDL710 Manual de usuario

Extech Instruments

Extech Instruments SL510 Manual de usuario

Extech Instruments

Extech Instruments SL130W Manual de usuario

Extech Instruments

Extech Instruments 461891 Manual de usuario

Extech Instruments

Extech Instruments MO265 Manual de usuario

Extech Instruments

Extech Instruments 445580 Manual de usuario

Extech Instruments

Extech Instruments 380460 Manual de usuario

Extech Instruments

Extech Instruments HD450 Manual de usuario

Extech Instruments

Extech Instruments 380942 Manual de usuario

Extech Instruments

Extech Instruments LT250W Manual de usuario

Extech Instruments

Extech Instruments HD755 Manual de usuario

Extech Instruments

Extech Instruments LT45 Manual de usuario

Extech Instruments

Extech Instruments SDL550 Manual de usuario

Extech Instruments

Extech Instruments RH600 Manual de usuario

Extech Instruments

Extech Instruments RPM33 Manual de usuario

Extech Instruments

Extech Instruments SDL700 Manual de usuario

Extech Instruments

Extech Instruments 475040 Manual de usuario

Extech Instruments

Extech Instruments ExStik SX800 Series Manual de usuario

Extech Instruments

Extech Instruments 461920 Manual de usuario

Extech Instruments

Extech Instruments 407703A Manual de usuario

Manuales populares de Instrumento de medición de otras marcas

Suaoki

Suaoki D40 Manual de usuario

Elster

Elster BK-G1.6 Manual de usuario

Endress+Hauser

Endress+Hauser Deltabar FMD71 Manual

Duratool

Duratool D03128 Manual de usuario

Vega

Vega VEGAPULS 65 Manual de usuario

Tonghui

Tonghui TH2618B Manual de usuario

Tenmars

Tenmars TM-801 Manual de usuario

MSR

MSR 145 Manual de usuario

TPS

TPS WP-82 Manual de usuario

ELMETRON

ELMETRON CP-511 Manual de usuario

PCB Piezotronics

PCB Piezotronics 003C30 Manual de usuario

Tenma

Tenma 72-10465 Manual de usuario

Endress+Hauser

Endress+Hauser Proline Promag 50 Especificaciones técnicas

Siemens

Siemens SITRANS F Coriolis FCT030 Manual de lista de piezas

KLINGER

KLINGER CMF V Series Manual de usuario

EXFO

EXFO FTB-2 Manual de operación y mantenimiento

Keysight

Keysight M8290A Manual de usuario

ADTEK

ADTEK MW-5 Manual de usuario
