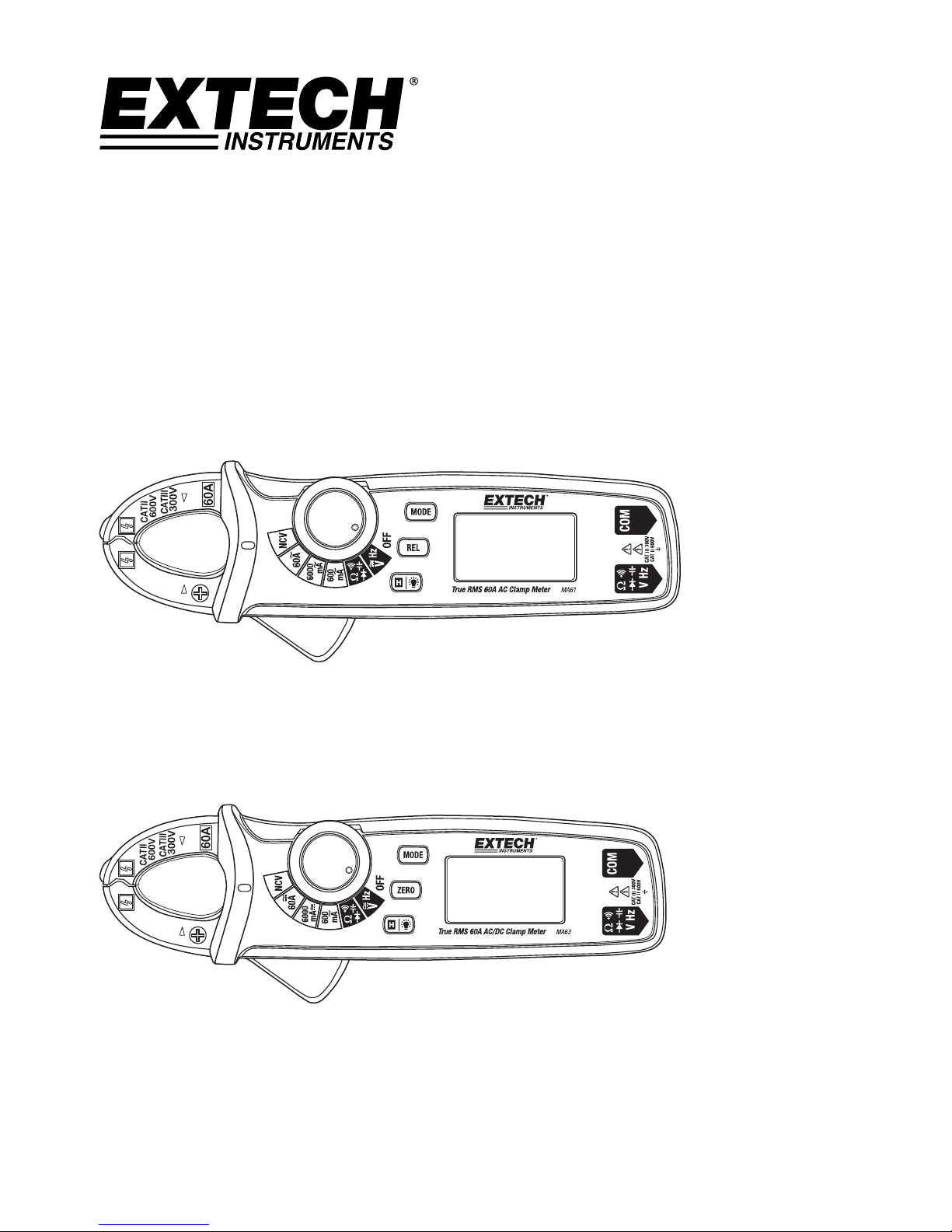

Extech Instruments MA61 Manual de usuario

USERGUIDE



TrueRMSMiniClampMeters



MA6160AACClampMeter



MA6360AAC/DCClampMeter

MA61_MA63-en-GB_V1.0 3/15

Introduction

ThankyouforselectingtheExtechInstrumentsTrueRMSMiniClampMeter.TheMA61

measuresACCurrentwhiletheMA63measuresACandDCCurrent.Bothmetersalsomeasure

AC/DCVoltage,Frequency,Resistance,Capacitance,Diode,andContinuity.



TheMiniClampMetersmeasurecurrentinthreeACranges600mA,6000mA,and60A.The

MA63onlymeasuresDCcurrentintworanges6000mADCand60ADC.



TheclampmetersofferadvancedfeaturesthatincludesNCV(non‐contactvoltage)detection

andVFC(variablefrequencycontrol)thatinsertsalowpassfilterinthemeasurementcircuit.



Thisdeviceisshippedfullytestedandcalibratedand,withproperuse,willprovideyearsof

reliableservice.Pleasevisitourwebsite(www.extech.com)tocheckforthelatestversionofthis

UserGuide,ProductUpdates,ProductRegistration,andCustomerSupport.



Features

•TrueRMSforaccuratereadingsofnoisy,distorted,ornon‐sinusoidalwaveforms

•ModelMA61forACCurrent,AC/DCVoltageMeasurements,andRelativefunction

ModelMA63forAC/DCCurrent/VoltageMeasurements,andZerofunction

Frequency,Resistance,andCapacitanceMeasurements

•Compact0.7"(17mm)jawsizeaccommodatesconductorsupto300MCM

•VariableFrequencyControl(VFC):Lowpassfilterforaccuratemeasurementofvariable

frequencydrivesignalsbyfilteringhigh‐frequencyinterference.

•Built‐inNon‐ContactVoltage(NCV)detector

•Fullrangeoverloadprotection

•6000countbacklitLCDdisplay

•DataHoldfreezesreadingondisplay

•LowbatteryindicatorandAutoPowerOfffeaturewithdisable

•CATII‐600VCATIII‐300Vsafetyrating

•Completewithtestleads,carryingcase,andtwoAAAbatteries

MA61_MA63-en-GB_V1.0 3/15

Safety

TheproductdesignmeetsIEC/EN61010‐1andEN61010‐2‐033.PleasereadtheUserGuide

beforeuseandcomplywithallsafetyinstructions.

ThisproductconformstoULStandards61010‐1,61010‐2‐030,61010‐2‐032,61010‐2‐033andis

CertifiedtoCSAstandardsC22.2no.61010‐1,61010‐2‐030andIECstandards61010‐2‐032and

61010‐2‐033.

SafetyNotices

1. PleaseusetheclampmeteraccordingtothisUserGuideotherwisethebuilt‐inprotections

maybecompromised.

2. Pleasecomplywithwithnationalsafetyregulationswithregardtowearingpersonal

protectiveattireandgeartoavoidinjurayanddamagecausedbyarcdischargingincases

wheretheliveconductorisexposed.

3. Donotallowthefingersorthehandabovetheprotectivefingerguardwhiletesting.

4. Pleasechecktheclampmeterhousing,buttons,switches,andinsulatedwiresforcracksor

otherdamagebeforeeachuse.Serviceorreplaceifnecessary.

5. Pleaseremovetheclampmeterfromalllivecircuitsanddisconnectthetestleadsbefore

removingtherearbatterycompartmentcover.

6. Pleasedonotusetheclampmetertomeasuressignalsgreaterthan600Vorfrequencies

higherthan400Hz.

7. Over‐voltagelevel:CATII600V;CATIII300V,pollutionclass2.

8. Workingnearexposedconductorsmustbedonesousingthehighestcaution.Such

conductorspresentalethalelectricshockhazard.

9. Usecautionmeasuringvoltageequaltoorgreaterthan60VDC,30VACor42VAC(peak)as

thesepresenttheriskofelectricshock.

10. Thisdevicehasamaximummeasurementvoltagelimitof600Vandthesafetystandard

complieswithCE/ETLcertification(EN61010‐1,EN61010‐2‐033,andEN61010‐2‐032).

InternationalSafetySymbols

MA61_MA63-en-GB_V1.0 3/15

MeterDescription

1. ClampJaws

2. MeasuredConductor

3. NCVNon‐ContactVoltageDetectorlamp

4. FunctionSelectSwitch

5. MODEButton

6. LCDDisplay

7. COMInputTestLeadTerminal

8. PositiveInputTestLeadTerminal

9. REL(Relative)buttononMA61;ZERObuttononMA63

10. DisplayHold/backlightbutton

11. Jawtriggeropen/closecontrol



Fig‐1MeterParts

23 4 5 6

910

ControlButtonsDescription

ButtonDescription

PressandholdtoselectVFC(variablefrequencycontrol,lowpassfilter)

MA63only:ShortpresstoselectDC,ACorFrequency(Hz)

MA63only;PresstoaccesstheZEROmode

MA61only;PresstoaccesstheRelativemode

Shortpresstofreeze/unfreezethedisplayedreading

PressandholdtotogglethebacklightON‐OFF

MA61_MA63-en-GB_V1.0 3/15

Function Switch Description

MODELMA61

1. NCV:Non‐ContactVoltageDetector

2. 60AACMeasurements

3. 600mAACMeasurements

4. 6000mAACMeasurements

5. Resistance,Diode,Continuity,andCapacitanceMeasurements

6. ACorDCVoltageandFrequencyMeasurement

7. POWEROFFselection

8. FunctionSelectorDial

MODELMA63

9. NCV:Non‐ContactVoltageDetector

10. 60AACwithFrequencyorDCMeasurements

11. 600mAACwithFrequencyorDCMeasurements

12. 6000mAACwithFrequencyorDCMeasurements

13. Resistance,Diode,Continuity,andCapacitanceMeasurements

14. ACorDCVoltageandFrequencyMeasurements

15. POWEROFFselection

16. FunctionSelectorDial

Fig‐2FunctionSwitch

15 16

Model MA61 Model MA63

MA61_MA63-en-GB_V1.0 3/15

Display Icon Descriptions

LowBattery

TrmsTrueRMSmeasurement

DCDirectcurrent

ACAlternatingcurrent

AUTOAutomaticrange

‐ Minussign;negativereading

)))AudibleContinuitymode

Diodetest

HDisplayhold

AutoPowerOFF(APO)icon(switchesoffwhenAPOisdisabled)

ZERO/RELZero(MA63)andRelative(MA61)functions

VFCVariableFrequencyControl(lowpassfilter)forACVoltage/Current

EFNCV(Non‐ContactVoltage)Detector(EF:ElectromotiveForce)

mA,AAmpere:Unitofcurrent

mV,VVolt:Unitofvoltage

Ω,kΩ,MΩOhm:Unitofresistance

F,µF,nF Farad:Unitofcapacitance

O.LOver‐rangemeasurement

Measurementunitprefixes

m(milli‐)10‐3

µ(micro‐)10‐6

n(nano‐)10‐9

k(kilo‐)103

M(mega‐)106



MA61_MA63-en-GB_V1.0 3/15

Operation

MeterPower

Caution:Donotusethemeterwithbatterycompartmentopenorunsecured.

Theclampmeterispoweredbytwo(2)AAAbatteries.Thebatterycompartmentislocatedonthe

backofthemeter.ThebatterycompartmentissecuredbyonePhillipsheadscrew.Refertothe

BatteryReplacementsectionlaterinthisguideformoreinformation.

AutomaticPowerOFF(APO)

Themeterautomaticallyswitchesoffafter15minutesofinactivity.Beforeswitchingoff,themeter

beepsseveraltimestoalerttheuser.TodisableAPO,holddowntheMODEbuttonwhilepowering

upthemeter.Themeterwillbeepfive(5)timesindicatingthatAPOisdisabled;releasethebutton.

NotethattheAPOiconisnotvisibleonthedisplaywhenAPOisdisabled.APOisre‐enabledon

thenextcyclingofmeterpower.

CurrentMeasurements‐ClampingTechnique

Clamparoundonlyoneconductor.RefertoFig‐3below.Thediagramatleftiscorrectandthe

diagramatrightisincorrect.



Fig‐3CorrectandIncorrectClampingTechniques

MA61_MA63-en-GB_V1.0 3/15

ACCurrentMeasurements

WARNING:Toavoidelectricshock,disconnectthetestleadsfromthemeterbeforemaking

currentmeasurements.

CAUTION:ObserveCATII600V,CATIII300VwithrespecttoEarthGroundfortheJaw.

1. SettheFunctionswitchtothe600mA,6000mA,or60Arange.

2. FortheMA63,shortpresstheMODEbuttontoSelectAC,Frequency(orDC)

3. PresstheTriggertoopentheclampjaw.

4. Clampontoasingleconductor(fullyenclosingit).Donotallowagapbetweenthetwohalves

ofthejaw.RefertoFig‐3earlierintheOperationsection.

5. Whenmeasuringvariablefrequencydevices,pressandholdtheVFCbuttontostart/stop

measuringwiththelowpassfilter.

6. ReadtheACAvalueontheLCD.

DCCurrentMeasurements(MA63only)

WARNING:Toavoidelectricshock,disconnectthetestleadsfromthemeterbeforemaking

currentmeasurements.

CAUTION:ObserveCATII600V,CATIII300VwithrespecttoEarthGroundfortheJaw.

1. SettheFunctionswitchtothe600mA,

6000mA,or60Arange.

2. UsetheMODEbuttontoselectDC.

3. PresstheZERObuttonseveraltimestonull

themeterdisplaywithoutaconductorin

theclampjaw.Zerothemeterwiththe

clampheldinthesameorientationasthe

actualmeasurement(seeFig‐4).

4. PresstheTriggertoopenthecurrentsense

Jaw.

7. Fullyencloseasingleconductor.Donot

allowagapbetweenthetwohalvesofthe

jaw.RefertoFig‐3earlierinthisguide.

5. ReadtheDCAvalueontheLCD.



Fig‐4CorrectandIncorrectZERO

techniques

ZERO

MA61_MA63-en-GB_V1.0 3/15

FrequencyMeasurements

WARNING:Toavoidelectricshock,disconnectthetestleadsfromthemeterbeforemaking

currentmeasurements.

CAUTION:ObserveCATII600V,CATIII300VwithrespecttoEarthGroundfortheJaw.

1. SettheFunctionswitchtotheHzposition.

2. PresstheTriggertoopenthejawandfullyencloseoneconductor.RefertotheFig‐3inthe

CurrentClamptechniquesectionabove.

3. ReadtheFrequencymeasurementontheLCDinHz.

VoltageMeasurements

WARNING:Donotapply>600VAC/DCbetweenthemeter’sterminalsandearthground

CAUTION:Whenconnectingthetestleadstothecircuitordeviceundertest,connectthe

blackleadbeforethered;whenremovingthetestleads,removetheredbeforetheblacklead.

ACVoltageMeasurements

1. Inserttheblacktestleadbananaplugintothenegative

(COM)jackandtheredtestleadbananaplugintothe

positive(V/Ω)jack.

2. TurnthefunctionswitchtotheVposition.

3. UsetheMODEbuttontoselectACifnecessary.Usethe

MODEbuttontoalsoselectthefrequencyofthemeasured

voltage.

4. Touchthetestprobetipstothecircuitundertest.

5. Readthevalueinthedisplay.Thedisplaywillindicatethe

properdecimalpoint.



Fig‐5ACVOLTAGEMEASUREMENT

MA61_MA63-en-GB_V1.0 3/15

DCVoltageMeasurements

1. Inserttheblacktestleadbananaplugintothenegative(COM)jackandtheredtestlead

bananaplugintothepositive(V/Ω)jack.

2. MovetheFunctionSwitchtotheVposition.

3. PresstheMODEbuttontoselectDCifnecessary.

4. Touchthetestprobetipstothecircuitundertest.Besureto

observethecorrectpolarity(redleadtopositive,blackleadto

negative).

5. Readthevoltageinthedisplay.Thedisplaywillindicatethe

properdecimalpointandvalue.Ifthepolarityisreversed,the

displaywillshow(‐)minusbeforethevalue.

6. ThemeteriscapableofdetectingDCvoltagesto600V.

7. Whenvoltageismeasured,theNCVvoltagedetectLEDwillbe

lit.



Fig‐6DCVOLTAGEMEASUREMENT



ResistanceMeasurements

Cautions:SwitchOFFpowertothedeviceundertestbeforemeasuring.Donottestoncircuits

ordeviceswhere60VDCor30VACispresent.

1. Inserttheblacktestleadbananaplugintothenegative

(COM)jack.Inserttheredtestleadbananaplugintothe

positive(V/Ω)jack.

2. TurntheFunctionSwitchtotheΩposition.

3. UsetheMODEbuttontoselecttheΩicononthedisplay

indicatingresistanceonly(withouttheaudiblecontinuity

iconshowing).

4. Touchthetestprobetipsacrossthecircuitorpartunder

test.Itisbesttodisconnectonesideofthepartundertest

sotherestofthecircuitwillnotinterferewiththe

resistancereading.

5. Readtheresistanceinthedisplay.Thedisplaywillindicate

theproperdecimalpointandvalue.



Fig‐7RESISTANCEMEASUREMENT

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Instrumento de medición de Extech Instruments

Extech Instruments

Extech Instruments 407735 Manual de usuario

Extech Instruments

Extech Instruments 407768 Manual de usuario

Extech Instruments

Extech Instruments HDV7C-A2-39-HD-1 Manual de usuario

Extech Instruments

Extech Instruments CO10 Manual de usuario

Extech Instruments

Extech Instruments ExStik PH100 Manual de usuario

Extech Instruments

Extech Instruments 45320 Manual de usuario

Extech Instruments

Extech Instruments LT250W Manual de usuario

Extech Instruments

Extech Instruments EC170 Manual de usuario

Extech Instruments

Extech Instruments 461825 Manual de usuario

Extech Instruments

Extech Instruments 407114 Manual de usuario

Extech Instruments

Extech Instruments EC100 Manual de usuario

Extech Instruments

Extech Instruments 461920 Manual de usuario

Extech Instruments

Extech Instruments SDL550 Manual de usuario

Extech Instruments

Extech Instruments PQ34-12 Manual de usuario

Extech Instruments

Extech Instruments MO270 Manual de usuario

Extech Instruments

Extech Instruments 407850 Manual de usuario

Extech Instruments

Extech Instruments SL510 Manual de usuario

Extech Instruments

Extech Instruments DO210 Manual de usuario

Extech Instruments

Extech Instruments CO230 Manual de usuario

Extech Instruments

Extech Instruments EX810 Manual de usuario

Extech Instruments

Extech Instruments SL355 Manual de usuario

Extech Instruments

Extech Instruments TKG250 Manual de usuario

Extech Instruments

Extech Instruments CG206 Manual de usuario

Extech Instruments

Extech Instruments 401027 Manual de usuario

Manuales populares de Instrumento de medición de otras marcas

Suaoki

Suaoki D40 Manual de usuario

Elster

Elster BK-G1.6 Manual de usuario

Endress+Hauser

Endress+Hauser Deltabar FMD71 Manual

Duratool

Duratool D03128 Manual de usuario

Vega

Vega VEGAPULS 65 Manual de usuario

Tonghui

Tonghui TH2618B Manual de usuario

Tenmars

Tenmars TM-801 Manual de usuario

MSR

MSR 145 Manual de usuario

TPS

TPS WP-82 Manual de usuario

ELMETRON

ELMETRON CP-511 Manual de usuario

PCB Piezotronics

PCB Piezotronics 003C30 Manual de usuario

Tenma

Tenma 72-10465 Manual de usuario

Endress+Hauser

Endress+Hauser Proline Promag 50 Especificaciones técnicas

Siemens

Siemens SITRANS F Coriolis FCT030 Manual de lista de piezas

KLINGER

KLINGER CMF V Series Manual de usuario

EXFO

EXFO FTB-2 Manual de operación y mantenimiento

Keysight

Keysight M8290A Manual de usuario

ADTEK

ADTEK MW-5 Manual de usuario
