Extech Instruments 407113 Manual de usuario

User Guide

Heavy Duty CFM Thermo-Anemometer

Model 407113

www.GlobalTestSupply.com

Find Quality Products Online at: sales@GlobalTestSupply.com

407113-EN v3.6 4/14

Introduction

Congratulations on your purchase of the Extech 407113 CFM meter. This handheld meter can

display Air Flow (CFM) with Area or Air Velocity with Temperature on a 10,000-count (0 to 9999)

dual display LCD. Other functions include MIN/MAX Record/Recall, RS-232 PC interface, and

Data Hold. The metal vane sensor offers rugged durability and higher temperature withstand than

comparable devices. Careful use of this meter will provide years of reliable service.

Specifications

General Specifications

Display Dual Display Multi-function 10,000-count (0 to 9999) LCD

Measurements Air Velocity: m/s, km/h, ft/min, knots, mph;

Air Flow: CMM (m3/min) and CFM (ft3/min); Temperature: °C and °F

Data Hold Freezes displayed reading

Sampling rate One (1) reading per second

Sensors Air velocity/flow sensor: Metal angled vane arms with low-friction ball

bearing. Temp. Sensor: Precision thermistor

MIN/MAX Records/Recalls lowest and highest readings

Auto Power OFF Automatic shut off after 15 minutes

PC Interface RS-232 Serial Communications (16-bit data stream)

Over range indication 1___ appears on the LCD

Low battery indication LBT appears on the LCD

Power supply 9V Battery (consumption 8.3mA approx.)

Operating conditions Meter: 32 to 122oF (0 to 50oC); 80% RH max.

Sensor: 32 to 175oF (0 to 80oC)

Dimensions / Weight Main instrument: 7.1 x 2.8 x1.3" (180 x 72 x 32mm)

Sensor head: 2.8 (72mm) diameter

Weight 0.84 lbs. (381g) for meter and sensor

www.GlobalTestSupply.com

Find Quality Products Online at: sales@GlobalTestSupply.com

407113-EN v3.6 4/14

Range Specifications

Air Velocity Measurements Range Resolution Accuracy (%rdg)

m/s (meters per second) 0.50 - 35.00 m/s 0.01 m/s ± (2% + 0.2m/s)

km/h (kilometers per hour) 1.8 126.0 km/h 0.1 km/h ± (2% + 0.8km/h)

ft/min (feet per minute) 100 6890 ft/min 1 ft/min ± (2% + 40ft/min)

mph (miles per hour) 1.1 78.3 mph 0.1 mph ± (2% + 0.4m/h)

knots (nautical miles per hour ) 1.0 to 68 knots 0.1 knots ± (2% + 0.4knots)

Air Flow Measurements Range Resolution Area

CMM (cubic meters per minute) 0-999,900 m3/min 0.001 to 100 0 to 9,999m2

CFM (cubic feet per minute) 0-999,900 ft3/min 0.001 to 100 0 to 9,999ft2

Air Temperature Range Resolution Accuracy

32 to 175oF (0 to 80oC) 0.1oF/C 1.5oF (0.8oC)

www.GlobalTestSupply.com

Find Quality Products Online at: sales@GlobalTestSupply.com

407113-EN v3.6 4/14

Meter Description

1. Sensor Input

2. RS-232 PC Interface jack

3. LCD Display

4. Vane

5. Rubber Holster

6. Keypad

7. Battery compartment (rear)

Note: To access the rear battery compartment, first remove the rubber holster that jackets the meter.

www.GlobalTestSupply.com

Find Quality Products Online at: sales@GlobalTestSupply.com

407113-EN v3.6 4/14

Operation

Air Velocity Measurements

1. Connect the sensor to the sensor input jack on top of the meter.

2. Turn on the meter using the Power button.

3. Select the VELOCITY function using the FLOW / VELOCITY button. The LCD will display VEL

when the velocity mode is selected.

4. Select the desired temperature units using the C/F select button. The LCD will reflect the current

unit selection.

5. Select the desired air velocity units

using the UNIT button. The LCD will

reflect the current unit selection.

6. Place the sensor in the air current to

be measured with the

symbol on the inlet side of the vane

(see diagram).

7. View the air velocity and

temperature readings on the LCD

Display. The large main LCD

display shows the Air Velocity

reading. The lower LCD sub-display

shows the temperature reading.

Data Hold

1. While taking measurements, press the HOLD button to freeze the LCD reading.

2. The HOLD indicator will appear on the LCD when the display is in Data Hold mode.

3. Press HOLD again to return to normal operation.

Maximum and Minimum Recording

The 407113 allows the user to record and view the highest (MAX) and lowest (MIN) readings.

1. Press the RECORD/RECALL button once. The REC indicator will appear on the display and

the meter will begin recording the MAX and MIN values.

2. Press the RECORD/RECALL button to stop the MAX/MIN recording and display the maximum

reading. The MAX indicator along with the maximum reading will appear on the LCD display

3. Press RECORD/RECALL again to view the minimum value. The MIN indicator along with the

minimum reading will appear on the LCD display.

4. To return to normal operation, press and hold the RECORD/RECALL button for approx. 3

seconds. The display indicators REC, MAX, and MIN will disappear.

NOTE: Placing the meter in the RECORD/RECALL mode by pressing

the RECORD/RECALL button disables the AUTO POWER OFF feature.

NOTE: Handle the vane carefully. If the metal vane blades are inadvertently

bent or damaged erroneous readings may result.

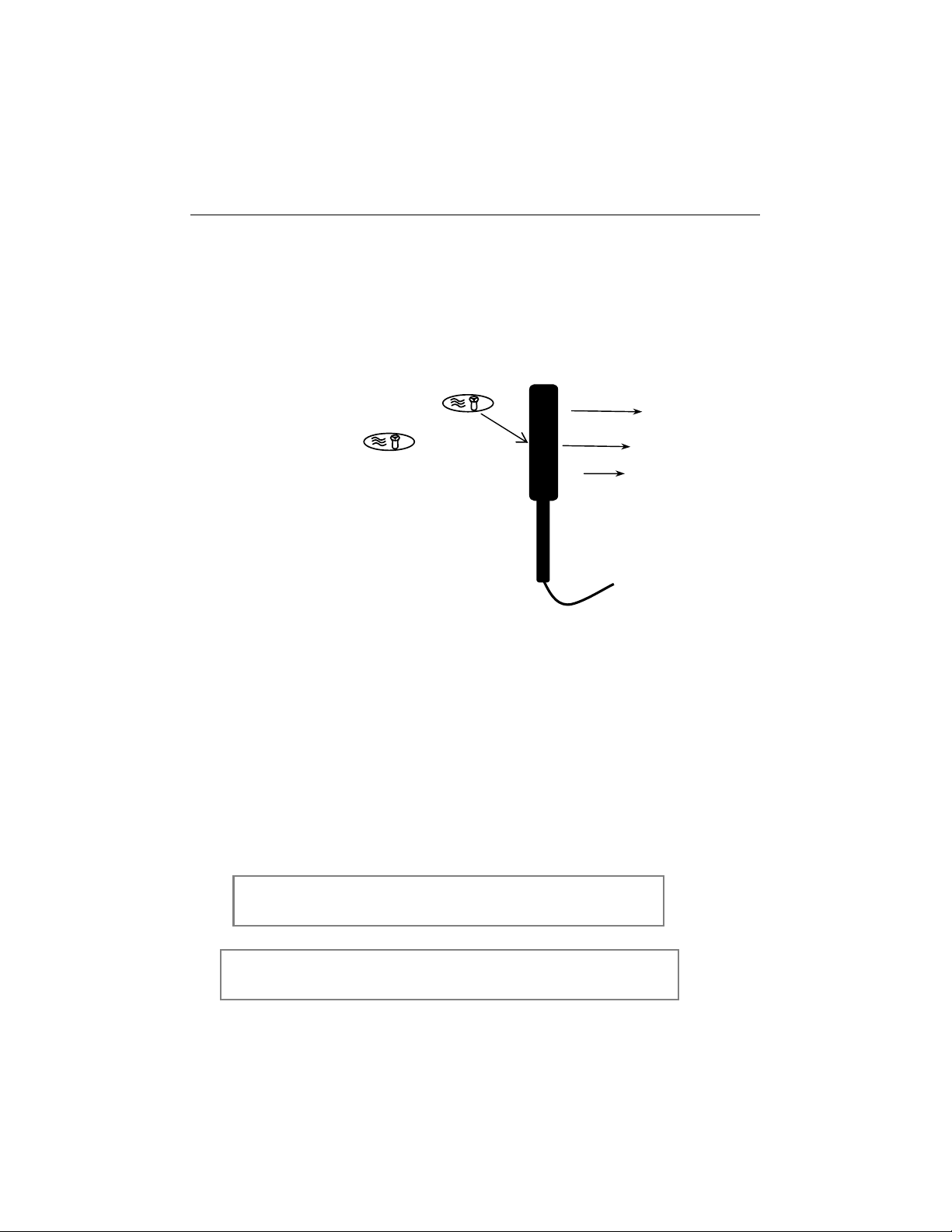

Air Direction

www.GlobalTestSupply.com

Find Quality Products Online at: sales@GlobalTestSupply.com

407113-EN v3.6 4/14

Air Flow (Volume) Measurements (CMM / CFM)

1. Connect the sensor to the sensor input jack on top of the meter.

2. Turn on the meter using the POWER button.

3. Select the FLOW mode using the FLOW/VELOCITY button. The LCD will display FLOW CFM or

FLOW CMM when the flow function has been selected.

4. Select the desired air flow units: CMM (cubic meters per minute) or CFM (cubic feet per minute)

using the UNIT button. The LCD will reflect the selection.

5. Measure the dimensions of the duct or vent and calculate the area in square feet or square

meters

Note: If the dimensional measurements are made in inches (or cm), convert them feet (or meters)

before calculating the square area.

6. Press the AREA button to begin entering the area in m2 or ft2. Use the button to increment

the flashing digit, use the button to decrement, use the button to select the next digit, and

use the button to set the decimal point.

7. Press the ENTER/RESET button after the area value has been entered. The bottom display will

indicate the area entered in ft2 or m2. The main LCD displays the Air Flow in CFM (cubic feet per

minute) or CMM (cubic meters per minute). If the CFM or CMM reading exceeds 9999, use the

displayed X10 or X100 multiplier to calculate the reading.

8. Note that for FLOW measurements, three modes apply: The normal, default mode, where the

actual flow is indicated and the two modes described below under 2/3 MAX Flow and AVG

Flow.

Note: The temperature function is not active in the FLOW mode.

2/3V MAX Flow Mode

In this mode the meter will display two-thirds the measured Flow (Volume). To access this mode,

ensure that the meter is in the FLOW mode (via the FLOW/VELOCITY button) and then press the

FLOW MODE button until the 2/3V MAX display icon appears. Now the Flow display will be 2/3 the

actual measurement. To return to the normal display mode, press the FLOW MODE button until the

2/3VMAX and the AVG icons switch off.

AVG (Average) Flow Mode

In this mode the meter will display the AVERAGE Flow for up to 20 readings. To access this mode,

ensure that the meter is in the FLOW mode (via the FLOW/VELOCITY button) and press the FLOW

MODE button until the AVG display icon appears. Now each time the AVG/START button is pressed

a reading will be taken and averaged. The lower LCD display becomes a 20-reading counter and

with each reading taken the counter is incremented. Allow 3 or 4 seconds between AVG/START

button presses for the display counter to update. The main LCD displays the averaged Air Flow

value. To return to the normal display mode, press the FLOW MODE button until the AVG icon

switches off.

RS-232 PC Interface

The 407113 is equipped with a 3.5mm phone jack (meter top) for connection to a PC for data

acquisition purposes. For streaming of data to a PC via the RS232 Output jack, the optional

407001-USB kit (RS232 to USB cable and driver CD) along with the 407001 software

at are required. Instructions for use are provided with the data acquisition

software/hardware kits.

www.GlobalTestSupply.com

Find Quality Products Online at: sales@GlobalTestSupply.com

407113-EN v3.6 4/14

Battery Replacement

When the LBT icon appears on the LCD, the 9V battery must be replaced.

1. Remove the rubber holster that surrounds the entire meter

2. Slide off the rear battery compartment

3. Replace the 9V battery

4. Affix the battery compartment cover and the meter holster

Useful Equations and Conversions

Area equation for rectangular or square ducts

Area equation for circular ducts

Cubic equations

NOTE: Measurements made in inches

must be converted to feet or meters before using the above formulae.

Unit of Measure Conversion Table

m/s ft/min knots km/h MPH

1 m/s 1 196.87 1.944 3.6 2.24

1 ft/min 0.00508 1 0.00987 0.01829 0.01138

1 knot 0.5144 101.27 1 1.8519 1.1523

1 km/h 0.2778 54.69 0.54 1 0.6222

1 MPH 0.4464 87.89 0.8679 1.6071 1

Width (W)

Height (H) Area (A) = Width (W) x Height (H)

CFM (ft3/min) = Air Velocity (ft/min) x Area (ft2)

CMM (m3/min) = Air Velocity (m/sec) x Area (m2) x 60

Radius Area (A) = pi x r2

Where pi = 3.14 and r2 = radius x radius

www.GlobalTestSupply.com

Find Quality Products Online at: sales@GlobalTestSupply.com

407113-EN v3.6 4/14

Warranty

FLIR Systems, Inc. warrants this Extech Instruments brand device to be free of defects in parts and workmanship for one year

from date of shipment (a six month limited warranty applies to sensors and cables). If it should become necessary to return the

instrument for service during or beyond the warranty period, contact the Customer Service Department for authorization. Visit

the website for contact in formation. A Return Authorization (RA) number must be issued before any product is

returned. The sender is responsible for shipping charges, freight, insurance and proper packaging to prevent damage in transit.

This warranty does not apply to defects resulting from action of the user such as misuse, improper wiring, operation outside of

specification, improper maintenance or repair, or unauthorized modification. FLIR Systems, Inc. specifically disclaims any implied

warranties or merchantability or fitness for a specific purpose and will not be liable for any direct, indirect, incidental or

consequential damages. 

FLIR s total liability is limited to repair or replacement of the product. The warranty set forth above is

inclusive and no other warranty, whether written or oral, is expressed or implied.

Calibration, Repair, and Customer Care Services

FLIR Systems, Inc. offers repair and calibration services for the Extech Instruments products we

sell. NIST certification for most products is also provided. Call the Customer Service Department for

information on calibration services available for this product. Annual calibrations should be

performed to verify meter performance and accuracy. Technical support and general customer

service is also provided, refer to the contact information provided below.

Support Lines: U.S.

Technical Support: Option 3; E mail:

Repair & Returns: Option 4; E mail:

Product specifications are subject to change without notice

Please visit our website for the most up to date information

FLIR Commercial Systems, Inc.

www.GlobalTestSupply.com

Find Quality Products Online at: sales@GlobalTestSupply.com

407113-EN v3.6 4/14

Garantie

FLIR Systems, Inc. garantit que cet appareil Extech Instruments est exempt de défauts matériaux et de fabrication pendant un

an à partir de la date 

d envoi (une garantie limitée de six mois 

s applique aux capteurs et aux câbles). Si le renvoi de 

l appareil

pour réparation devient nécessaire durant ou après la période de garantie, contactez le service client pour autorisation. Pour

obtenir les coordonnées, visitez le site Web suivant : Un num éro 

d autorisation de retour (AR) doit être délivré

avant tout retour de produit. 

L expéditeur prend à sa charge les frais 

d expédition, le fret, 

l assurance et 

l emballage correct de



l appareil afin de prévenir toute détérioration durant le transport. Cette garantie ne 

s applique pas aux dommages imputables à



l utilisateur, tels que 

l usage impropre ou abusif, un mauvais câblage, une utilisation non conforme aux spécifications, un

entretien ou une réparation incorrecte, ou toute modification non autorisée. FLIR Systems, Inc. déclinera spécifiquement toute

garantie ou qualité marchande ou aptitude à 

l emploi prévu, et ne sera en aucun cas tenu responsable pour tout dommage

conséquent, direct, indirect ou accidentel. La responsabilité totale de FLIR est limitée à la réparation ou au remplacement du

produit. La garantie définie ci dessus est inclusive et aucune autre garantie, écrite ou orale, 

n est exprimée ou implicite.

Calibrage, réparation et services après vente

FLIR Systems, Inc. offre des services de calibrage et de réparation pour les produits Extech

Instruments que nous commercialisons. Nous fournissons également une certification NIST pour la

plupart des produits. Contactez notre service client pour toute information sur les services de

calibrage disponibles pour ce produit. Un calibrage doit être effectué chaque année pour vérifier

les performances et la précision du mètre. Nous offrons également une assistance technique et un

service à la clientèle. Veuillez vous reporter aux coordonnées fournies ci dessous.

Lignes 

d assistance:

Service 

d assistance technique : Option 3 ; E mail

Réparations et retours : Option 4 ; E mail

Les spécifications produit sont sujettes à modifications sans préavis.

Pour les toutes dernières informations, veuillez visiter notre site Web.

FLIR Commercial Systems, Inc.

www.GlobalTestSupply.com

Find Quality Products Online at: sales@GlobalTestSupply.com

407113-EN v3.6 4/14

Garantía

FLIR Systems, Inc., garantiza este dispositivo marca Extech Instruments para estar libre de defectos en partes o mano de obra

durante un año a partir de la fecha de embarque (se aplica una garantía limitada de seis meses para cables y sensores). Si fuera

necesario regresar el instrumento para servicio durante o después del periodo de garantía, llame al Departamento de Servicio a

Clientes para obtener autorización. Visite para Información de contacto. Se debe expedir un número de

Autorización de Devolución (AD) antes de regresar cualquier producto. El remitente es responsable de los gastos de embarque,

flete, seguro y empaque apropiado para prevenir daños en tránsito. Esta garantía no se aplica a defectos resultantes de las

acciones del usuario como el mal uso, alambrado equivocado, operación fuera de las especificaciones, mantenimiento o

reparación inadecuada o modificación no autorizada. FLIR Systems, Inc., rechaza específicamente cualesquier garantías

implícitas o factibilidad de comercialización o idoneidad para cualquier propósito determinado y no será responsable por

cualesquier daños directos, indirectos, incidentales o consecuentes. La responsabilidad total de FLIR está limitada a la

reparación o reemplazo del producto. La garantía precedente es inclusiva y no hay otra garantía ya sea escrita u oral, expresa o

implícita.

Servicios de calibración, reparación y atención a clientes

FLIR Systems, Inc., ofrece servicios de reparación y calibración para los productos que vendemos

de Extech Instruments. Además ofrecemos certificación NIST para la mayoría de los productos.

Llame al Departamento de Servicio al Cliente para solicitar información de calibración para este

producto. Para verificar el funcionamiento y precisión se debe realizar la calibración anual. Además

se provee Soporte Técnico y servicios generales al cliente, consulte la información de contacto en

seguida.

Las especificaciones del producto están sujetas a cambios sin aviso

Por favor visite nuestra página en Internet para la información más actualizada

FLIR Commercial Systems, Inc.

Certificado ISO 9001

Reservados todos los derechos, incluyendo el derecho de reproducción total o parcial en cualquier medio

www.GlobalTestSupply.com

Find Quality Products Online at: sales@GlobalTestSupply.com

Otros manuales para 407113

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Instrumento de medición de Extech Instruments

Extech Instruments

Extech Instruments MA3010 Manual de usuario

Extech Instruments

Extech Instruments 407119 Manual de usuario

Extech Instruments

Extech Instruments PH90 Manual de usuario

Extech Instruments

Extech Instruments EC170 Manual de usuario

Extech Instruments

Extech Instruments MO57 Manual de usuario

Extech Instruments

Extech Instruments LT10 Manual de usuario

Extech Instruments

Extech Instruments 45160 Manual de usuario

Extech Instruments

Extech Instruments AM600 Manual de usuario

Extech Instruments

Extech Instruments MO210 Manual de usuario

Extech Instruments

Extech Instruments EMF510 Manual de usuario

Extech Instruments

Extech Instruments 380652 Manual de usuario

Extech Instruments

Extech Instruments UM200-NIST Manual de usuario

Extech Instruments

Extech Instruments HDV7C-55-HD-1 Manual de usuario

Extech Instruments

Extech Instruments RPM33 Manual de usuario

Extech Instruments

Extech Instruments SL510 Manual de usuario

Extech Instruments

Extech Instruments ExStik SX800 Series Manual de usuario

Extech Instruments

Extech Instruments 407510 Manual de usuario

Extech Instruments

Extech Instruments NON-DISPLAY PORTABLE Manual de usuario

Extech Instruments

Extech Instruments LT300 Manual de usuario

Extech Instruments

Extech Instruments SP505 Manual de usuario

Extech Instruments

Extech Instruments MA640 Manual de usuario

Extech Instruments

Extech Instruments TKG250 Manual de usuario

Extech Instruments

Extech Instruments 407119-NIST Manual de usuario

Extech Instruments

Extech Instruments 407777 Manual de usuario

Manuales populares de Instrumento de medición de otras marcas

Suaoki

Suaoki D40 Manual de usuario

Elster

Elster BK-G1.6 Manual de usuario

Endress+Hauser

Endress+Hauser Deltabar FMD71 Manual

Duratool

Duratool D03128 Manual de usuario

Vega

Vega VEGAPULS 65 Manual de usuario

Tonghui

Tonghui TH2618B Manual de usuario

Tenmars

Tenmars TM-801 Manual de usuario

MSR

MSR 145 Manual de usuario

TPS

TPS WP-82 Manual de usuario

ELMETRON

ELMETRON CP-511 Manual de usuario

PCB Piezotronics

PCB Piezotronics 003C30 Manual de usuario

Tenma

Tenma 72-10465 Manual de usuario

Endress+Hauser

Endress+Hauser Proline Promag 50 Especificaciones técnicas

Siemens

Siemens SITRANS F Coriolis FCT030 Manual de lista de piezas

KLINGER

KLINGER CMF V Series Manual de usuario

EXFO

EXFO FTB-2 Manual de operación y mantenimiento

Keysight

Keysight M8290A Manual de usuario

ADTEK

ADTEK MW-5 Manual de usuario
