Extech Instruments Extech 380976 Manual de usuario

User Guide

1Φ/3Φ1000 Amp True RMS Power Clamp-On

Model 380976

380976 V3.2 4/11

Introduction

Congratulations on your purchase of the Extech 380976 Power Clamp-On Meter. This device

measures 1Φ/3ΦPower (True, Apparent, and Reactive), Horsepower, Phase Angle, True RMS

Current/Voltage, Resistance, Capacitance, Frequency, & Temperature. Power measurements can

be achieved on 3- or 4-wire configurations. Please read the entire manual to get the most from the

meter’s wide array of capabilities. This meter is shipped fully tested and calibrated and, with

proper use, will provide years of reliable service.

Table of Contents

Warranty .................................................................................................................................. 3

Safety Information .................................................................................................................. 3

Meter Description ................................................................................................................... 4

AC + DC Voltage Measurements ........................................................................................... 5

AC Current Measurements .................................................................................................... 5

1ΦKW, KVA, KVAR, Power Factor & Phase Angle Measurement..................................... 6

3Φ3-Wire KW, HP, KVA, KVAR, Power Factor & Phase Angle Measurement.................. 7

3Φ4-Wire KW, HP, KVA, KVAR, Power Factor & Phase Angle Measurement................ 10

Resistance and Audible Continuity Measurements .......................................................... 13

Capacitance Measurements ................................................................................................ 14

Diode Tests ........................................................................................................................... 14

Temperature Measurements................................................................................................ 14

AC and DC

µA

Current Measurements ............................................................................... 14

Meter Control Keys............................................................................................................... 15

Automatic Sleep Mode and Battery Replacement ............................................................. 16

Specifications ....................................................................................................................... 17

Calibration, Repair, and Technical Support Services ....................................................... 20

380976 V3.2 4/11

Warranty

EXTECH INSTRUMENTS CORPORATION warrants this instrument to be free of defects in parts

and workmanship for one year from date of shipment (a six month limited warranty applies to

sensors and cables). If it should become necessary to return the instrument for service during or

beyond the warranty period, contact the Customer Service Department at (781) 890-7440 ext. 210

for authorization or visit our website www.extech.com for contact information. A Return

Authorization (RA) number must be issued before any product is returned to Extech. The sender is

responsible for shipping charges, freight, insurance and proper packaging to prevent damage in

transit. This warranty does not apply to defects resulting from action of the user such as misuse,

improper wiring, operation outside of specification, improper maintenance or repair, or unauthorized

modification. Extech specifically disclaims any implied warranties or merchantability or fitness for a

specific purpose and will not be liable for any direct, indirect, incidental or consequential damages.

Extech's total liability is limited to repair or replacement of the product. The warranty set forth above

is inclusive and no other warranty, whether written or oral, is expressed or implied.

Safety Information

•Read the following safety information carefully before attempting to operate or service the

meter.

•To avoid damage to the instrument do not exceed the maximum input limits shown in the

technical specifications.

•Do not use the meter or test leads if they appear damaged.

•Use extreme caution when working around bare conductors or bus bars. Accidental contact

with the conductor could result in electric shock.

•Use the meter only as specified in this manual; otherwise, the protection provided by the

meter may be impaired.

•Read the operating instructions before use and follow all safety information.

•Use caution when working with voltages above 60VDC or 30VAC RMS. Such voltages

represent a shock hazard.

•Before taking resistance measurements or testing continuity, disconnect the circuit under test

from the main power supply and remove all loads from the circuit.

Safety symbols

Caution! Refer to this manual before using the meter.

Dangerous voltages.

Meter is protected throughout by double insulation or

reinforced insulation.

When servicing, use only specified replacement parts.

Complies with EN-61010-1, IEC 1010-2-32

380976 V3.2 4/11

Meter Description

1. Transformer Jaws

2. Jaw opening trigger

3. Data Hold & MX/MN button

4. Function Selector

5. Range button

6. Temperature input jack

7. LCD Display

8. ‘COM’ input jack

9. ‘V’ input jack

10. Ω

µA

input jack

380976 V3.2 4/11

Measurements

AC + DC Voltage Measurements

WARNING

The maximum input is 600V. Do no attempt voltage measurements above this limit. Exceeding

this limit could cause electrical shock and damage to the meter.

1. Set the rotary switch to the ‘ V’ position.

2. Insert the test leads into the meter’s input jacks. (Black to

‘COM’ and Red to ‘V’)

3. Connect the test leads to the measured circuit.

4. The meter will automatically detect and display AC or DC

voltage. The meter will also automatically select the

appropriate range.

5. Read the voltage (main display) and frequency (upper,

smaller display digits) on the LCD.

NOTE: The sensitivity for Automatic AC/DC Voltage detection is 1V.

Voltage below 1V may indicate DC.

NOTE: The sensitivity for voltage measurements is 1.2V and the frequency range is 40Hz to 1

KHz. If the frequency is less than 40Hz the LCD may display ‘Hz’.

AC Current Measurements

1. Set the rotary switch to the "~A" position.

2. Press the Trigger to open the jaw.

3. Fully enclose the conductor that is being measured in the jaw. No gap should exist between the

two jaw halves. The conductor under test must be a single wire; if there are multiple wires in a

cable the conductor must first be isolated (see diagram below).

4. The meter selects the range automatically.

5. Read the measured current (main display) and frequency (upper display) on the LCD.

NOTE: The sensitivity for current measurements is 6A and the frequency range is 40Hz to

400Hz. If the frequency is less than 40Hz the LCD may display ‘Hz’.

380976 V3.2 4/11

AC Power Measurements

1ΦKW, KVA, KVAR, Power Factor & Phase Angle Measurement

1. Set the rotary switch to the ‘KW/KVA’

position.

2. Insert the test leads to the meter as

follows: Black to ‘COM’ and Red to ‘V’.

3. Connect the black lead to the neutral line.

4. Connect the red lead to the power line

and clamp onto the same lead to which

the red lead is connected.

5. The meter selects the best range

automatically.

6. Select the desired display combination

using the RANGE key. Press RANGE to

scroll through the following combination displays:

kW and HP (horsepower)

kW and PF (power factor)

kW and KVAR (reactive power)

KVA and phase angle (θ)

V and A

Note that LEAD and LAG icons are also displayed on the LCD to inform the user that the voltage is

leading or lagging the current with regard to phase.

Note: Allow 2 seconds after each RANGE key press for the meter to update the display.

1 HP = 746 Watts

PF KW

KVA

== cosθ

KVA (Apparent Power) = (V*A) / 1000

KVAR (Reactive Power) = (KVA) (KW)

−= KVA * sinθ

NOTES

1. The ‘+’ sign printed on the meter must face the power source for best accuracy.

2. If the device under test is a switching mode power supply, the KW, PF, and Phase angle

measurements may not be accurate.

380976 V3.2 4/11

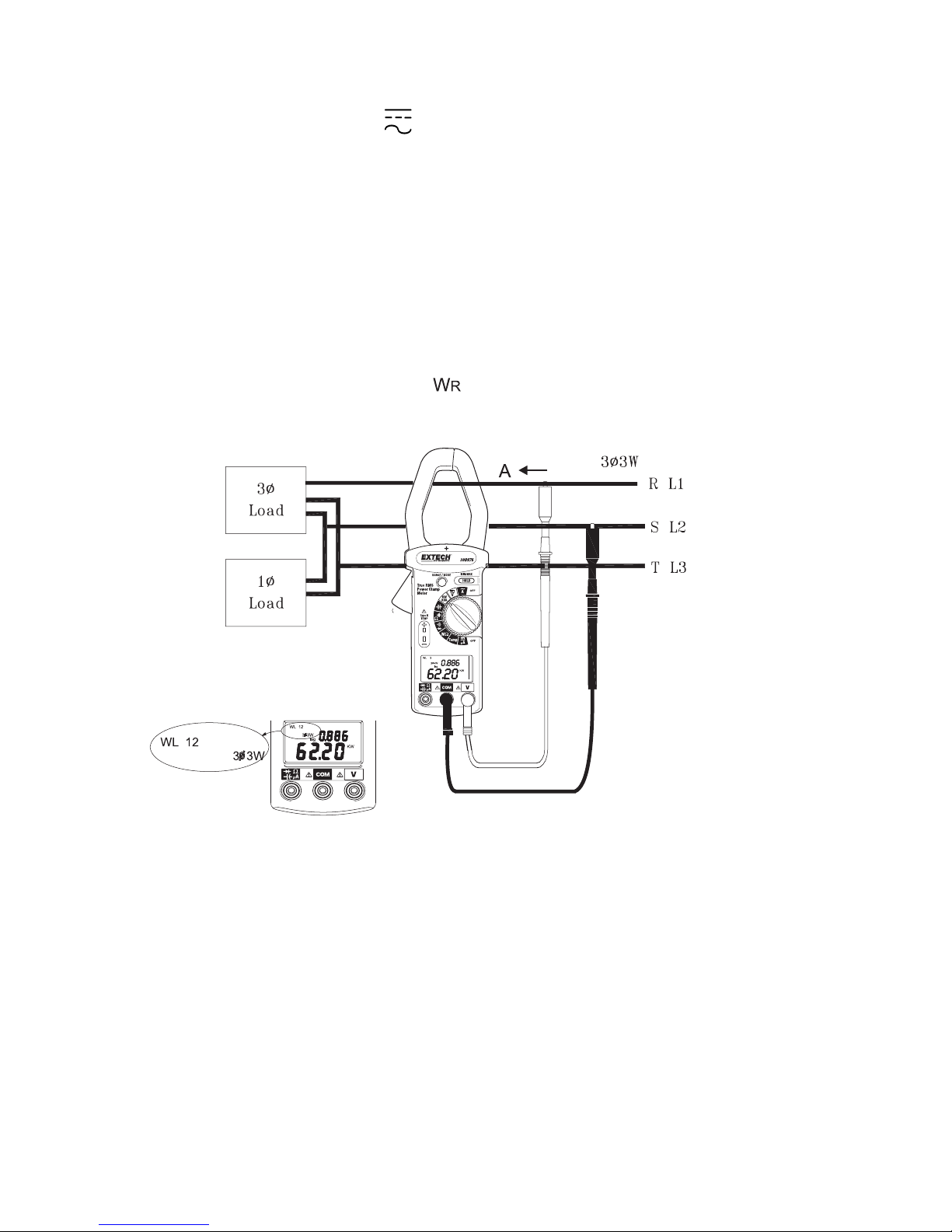

3Φ3-Wire KW, HP, KVA, KVAR, Power Factor & Phase Angle Measurement

First, measure WRS(L1L2) (refer to the diagram below).

a. Set the rotary switch to the “ V”.

b. Press and hold the “HOLD” key while setting the rotary switch to “KW/KVA”, the 3φ3W and

WL12 symbols will appear.

c. Insert the test leads into the jacks.

d. Select a phase (e.g. S or L2) as COM and connect the test probe of the COM (black)

terminal to that phase (e.g. S or L2).

e. Connect the test probe of V (red) terminal to the second phase (e.g. R or L1).

f. Clamp the same phase as step e. (e.g. R or L1).

g. The power clamp will automatically select the proper range.

h. Wait until the reading is stable (about 6 seconds). Press the “HOLD” key to store the

measured value. The WL23 symbol will appear.

Second, measure WTS(L3L2) (refer to the diagram that follows the steps below).

a. Disconnect the test probe from the phase where the jaw clamp was set in the previous

measurement.

b. Connect the test probe to the third phase (e.g. T or L3).

c. Clamp the third phase where test probe is connected to (e.g. T or L3)

d. The power clamp will automatically select the proper range.

e. Wait until the reading is stable (about 6 seconds) and then press the “HOLD” key to store

the measured value.

380976 V3.2 4/11

The power clamp will process these two sets of data (WL12 ,WL23), and show the result on the

LCD. The WL123 symbol will be shown to indicate 3φ3W power. The 3φ3W power (in watts) is

stored in the meter memory.

4. To read a single data record, press the “

HOLD

” key to select desired

WL12 , WL23 or WL123

display then

press the “RANGE” key to select KW+HP (Horse Power), KW+PF (Power

Factor), KW+KVAR, KVA+θ(Phase Angle) or A+V.

3W = WRS(L1L2) + WTS(L3L2)

WKVARW

KWKVA 33

φφφ

PF K

KVA

6. Set the rotary switch to another position to exit this mode and clear the stored data.

380976 V3.2 4/11

NOTE

Once a phase is selected as COM, users can not change this selection in the

subsequent measurement. For example, if S (or L2) phase is selected, S (or L2)

phase is always connected to the COM during measurement of WRS (or WL1L2) and

WTS (or WL3L2) in 3φ3W unbalanced power.

NOTE

1. The "+" sign printed on Panel must face the power source for accurate

measurement.

2. If the device under test is a switching power supply, the meter KW, PF and θ

reading maybe incorrect.

NOTE

For 3φ3W unbalanced power measurements, WRS or WTS could be negative.

Ensure that all connections are correct before accepting a reading as valid.

380976 V3.2 4/11

3Φ4-Wire KW, HP, KVA, KVAR, Power Factor & Phase Angle Measurement

First, measure WR(L1) (refer to the diagram below).

a. Set the rotary switch to the “ V” position.

b. Press and hold the “RANGE” key while setting the rotary switch to the “KW/KVA” position,

the 3φ4W and WL1 symbols should appear.

c. Insert the test leads into the input jacks.

d. Connect the neutral line to the COM (black) terminal.

e. Connect the test probe of the V (red) terminal to the first phase (e.g. R or L1).

f. Clamp on to the same phase (e.g. R or L1).

g. The power clamp meter will automatically select the proper range.

h. Wait until the reading is stable (about 6 seconds) and then press the “HOLD” key; the WL1

symbol will clear and the WL2 symbol will appear in order to instruct users to take the WS(L2)

measurement.

Second, measure WS(L2) (refer to the diagram that follows the steps below)

a. Disconnect the test probe from the phase where the jaw was clamped in the previous

measurement.

b. Connect the test probe of the V (red) terminal to the second phase (e.g. S or L2).

c. Clamp on to the phase where the test probe is connected (e.g. S or L2 phase)

d. The power clamp will automatically select proper range.

e. Wait until the reading is stable (about 6 seconds) and then press the “HOLD” key; the WL2

symbol will disappear. The WL3 symbol will appear to instruct users to take the WT(L3)

measurement.

Tabla de contenidos

Otros manuales de Instrumento de medición de Extech Instruments

Extech Instruments

Extech Instruments AUT10 Manual de usuario

Extech Instruments

Extech Instruments 380460 Manual de usuario

Extech Instruments

Extech Instruments EX810 Manual de usuario

Extech Instruments

Extech Instruments ExStik SX800 Series Manual de usuario

Extech Instruments

Extech Instruments 380580 Manual de usuario

Extech Instruments

Extech Instruments 475055 Manual de usuario

Extech Instruments

Extech Instruments 45320 Manual de usuario

Extech Instruments

Extech Instruments 461880 Manual de usuario

Extech Instruments

Extech Instruments MG310 Manual de usuario

Extech Instruments

Extech Instruments 401025 Manual de usuario

Extech Instruments

Extech Instruments CO10 Manual de usuario

Extech Instruments

Extech Instruments 407850 Manual de usuario

Extech Instruments

Extech Instruments 407510 Manual de usuario

Extech Instruments

Extech Instruments MultiScope 381270 Manual de usuario

Extech Instruments

Extech Instruments 382400 Manual de usuario

Extech Instruments

Extech Instruments 45168CP Manual de usuario

Extech Instruments

Extech Instruments AM600 Manual de usuario

Extech Instruments

Extech Instruments SDL720 Manual de usuario

Extech Instruments

Extech Instruments ExStik EC500 Manual de usuario

Extech Instruments

Extech Instruments 475040 Manual de usuario

Extech Instruments

Extech Instruments MO290-NISTL Manual de usuario

Extech Instruments

Extech Instruments SDL350-NIST Manual de usuario

Extech Instruments

Extech Instruments EC100 Manual de usuario

Extech Instruments

Extech Instruments PQ34-12 Manual de usuario

Manuales populares de Instrumento de medición de otras marcas

Suaoki

Suaoki D40 Manual de usuario

Elster

Elster BK-G1.6 Manual de usuario

Endress+Hauser

Endress+Hauser Deltabar FMD71 Manual

Duratool

Duratool D03128 Manual de usuario

Vega

Vega VEGAPULS 65 Manual de usuario

Tonghui

Tonghui TH2618B Manual de usuario

Tenmars

Tenmars TM-801 Manual de usuario

MSR

MSR 145 Manual de usuario

TPS

TPS WP-82 Manual de usuario

ELMETRON

ELMETRON CP-511 Manual de usuario

PCB Piezotronics

PCB Piezotronics 003C30 Manual de usuario

Tenma

Tenma 72-10465 Manual de usuario

Endress+Hauser

Endress+Hauser Proline Promag 50 Especificaciones técnicas

Siemens

Siemens SITRANS F Coriolis FCT030 Manual de lista de piezas

KLINGER

KLINGER CMF V Series Manual de usuario

EXFO

EXFO FTB-2 Manual de operación y mantenimiento

Keysight

Keysight M8290A Manual de usuario

ADTEK

ADTEK MW-5 Manual de usuario
