User's Guide

RF EMF Strength Meter

Model 480836

480836 V5.0 8/09

1.0 - Safety Information

CAUTION

•Before making a measurement, check if the low battery symbol ( +) is

shown on the display when the meter is switched on. Replace the

battery if the symbol is displayed.

•In the case of prolonged storage, it is preferable to remove the battery from

the meter.

•Avoid shaking the meter, particularly in the measurement mode.

•The accuracy and function of the meter may be adversely affected by

exceeding the specified limits as well as by improper handling.

DANGER!

•Use caution when working in the vicinity of powerful radiation sources.

•Persons with electronic implants (e.g. cardiac pacemakers) should avoid

powerful radiation sources.

•Observe the local safety regulations.

•Observe the operating instructions for equipment that is used to generate or

conduct electromagnetic energy.

•Be aware that secondary radiators (e.g. reflective objects such as a metallic

fence) can cause a local amplification of the field.

•Be aware that the field strength in the near vicinity of radiators increases

proportionally to the inverse cube of the distance. This means that enormous

field strengths can result in the immediate vicinity of small radiation sources

(e.g. leak in waveguides, inductive ovens).

•Field strength measuring devices can underrate pulsed signals, particularly with

radar signals in which case significant measurement errors can arise.

•All field strength measuring devices have a limited specified frequency range.

Fields with spectral components outside of this frequency range are generally

incorrectly evaluated and tend to be underrated. Before using field strength

measuring devices, you should thus be certain that all field components to be

measured lie in the specified frequency range of the measuring device.

480836 V5.0 8/09

2.0 - Introduction

2-1 Fundamentals

Electromagnetic Radiation

This meter is used to indicate radiated electromagnetic fields. Wherever there is

a voltage or a current, electric (E) and magnetic (H) fields arise. Examples

include the electromagnetic fields from radio broadcasting and TV transmitters.

Electric Field Strength

This is a field vector quantity that represents the force (F) on an infinitesimal unit

positive test charge (q) at a point divided by that charge. Electric field strength is

expressed in units of volts per meter (V/m).

Use the units of electric field strength for measurements in the following situations:

•In the near-field area of the source

•Where the nature of the electromagnetic field is unknown

Magnetic field strength (H) :

This is a field vector that is equal to the magnetic flux density divided by the

permeability of the medium. Magnetic field strength is expressed in units of

amperes per meter (A/m).

Power density (S) :

Power per unit area in the direction of propagation, usually expressed in units of

watts per square meter (W/m2) or, for convenience, units such as milliwatts per

square centimeter (mW/cm2).

The characteristic of electromagnetic fields :

Electromagnetic fields propagate as waves and travel at the speed of light (c).

The wavelength is proportional to the frequency.

λ(wavelength) = c (speed of light)

f (frequency)

Near-field is assumed if the distance to the field source is less than three

wavelengths. For far-fields, the distance is more than three wavelengths. In the

near-field, the ratio of electric field strength (E) and magnetic field strength (H) is

not constant, so measure each separately. In the far-field, however, it is enough

to just measure one field quantity, and compute the other accordingly.

2-2 Application

High frequency (RF) electromagnetic wave field strength measurement

Mobile phone base station antenna radiation power density measurement

Wireless communication applications (CW, TDMA, GSM, DECT)

RF power measurement for transmitters

Wireless LAN (Wi-Fi) detection, installation

Spy camera, wireless bug finder

Cellular/Cordless phone radiation safety level

Microwave oven leakage detection

Personal, environmental EMF safety

480836 V5.0 8/09

2-3 Features

This meter is a broadband device for monitoring high-frequency radiation in the specific

ranges of 900MHz, 1800MHz, and 2.7GHz. Other measurements can be made, for

reference purposes only, using the entire range of 50MHz to 3.5GHz. The non-

directional electric field and high sensitivity also allow measurements of electric field

strength in TEM cells and absorber rooms.

The unit of measurement and the measurement types are expressed in units of electrical

and magnetic field strength and power density.

At high frequencies, the power density is of particular significance. It provides a measure

of the power absorbed by a person exposed to the field. This power level must be kept

as low as possible at high frequencies. The meter can be set to display the

instantaneous value, the maximum value measured or the average value. Instantaneous

and maximum value measurements are useful for orientation, e.g. when first entering an

exposed area.

Measurements in the specific frequency ranges of 900MHz, 1800MHz, and 2.7GHz

For isotropic measurements of electromagnetic fields

Non-directional (isotropic) measurement with three-channel measurement sensor

High dynamic range due to three-channel digital processing

Configurable alarm threshold and memory function

480836 V5.0 8/09

3.0 - Specifications

3-1 General Specifications

•Measurement method: Digital, triaxial measurement.

•Directional characteristic: Isotropic, triaxial.

•Measurement ranges: One continuous range

•Display resolution: 0.1mV/m, 0.1μA/m, 0.1μW/m2, 0.001μW/cm2

•Setting time: Typically 1s (0 to 90% of measurement value).

•Display refresh rate: Typically 0.5 seconds

•Display type: 4-digit Liquid-crystal display (LCD)

•Audible alarm: Buzzer.

•Units: mV/m, V/m, μA/m, mA/m, μW/m2, mW/m2, W/m2, μW/cm2, mW/cm2

•Display value: Instantaneous measured value, maximum value, or maximum

average value.

•Alarm function: Adjustable threshold with ON/OFF.

•Manual data memory and read storage: 99 data sets.

•Dry batteries: 9V NEDA 1604/1604A

•Battery life: > 15 hours

•Auto power off: 15 minutes.

•Operating temperature range: 0°C to +50°C

•Operating humidity range: 25% to 75%RH

•Storage temperature range: -10°C to +60°C

•Storage humidity range: 0% to 80%RH

•Dimensions: Approx. 60(W)×60(T)×237(L)mm.

•Weight (including battery): Approx. 200g

•Accessories: Instruction manual, battery, carrying case.

480836 V5.0 8/09

3-2 Electrical Specifications

Unless otherwise stated, the following specifications hold under the following

conditions:

•The meter is located in the far-field of a source, the sensor head is pointed towards

the source.

•Ambient temperature: +23℃±3℃

•Relative air humidity: 25% to 75%

Sensor type: Electrical field (E)

Frequency ranges: 900MHz, 1800MHz, and 2.7GHz (measurements can be made, for

reference purposes only, using the entire range of 50MHz to 3.5GHz)

Specified measurement range:

•CW signal (f > 900MHz): 20mV/m to 108.0V/m ,

53μA/m to 286.4mA/m,

1μW/m2 to 30.93W/m2,

0μW/cm2 to 3.093mW/cm2

Dynamic range: Typically 75dB

Absolute error at 1 V/m and 50 MHz: ±1.0dB

Frequency response:

•Sensor (taking into account typical CAL factors):

±1.0dB (900MHz, 1800MHz)

±2.4dB (2.7GHz)

•Isotropy deviation: Typically ±1.0dB (f>900MHz)

•Overload limit: 10.61mW/cm2(200V/m)

•Thermal response (0 to 50℃): ±0.2dB

480836 V5.0 8/09

4.0 - Operation

4-1 Front Panel Description

(1). E-field sensor.

(2). LCD display.

(3). MAX/AVG/↵key :

cPress this key to scroll through the following:

“Instantaneous”→“Max. instantaneous” →

“Average” →“Max. average”.

dIn the read mode, press this key to exit.

eIn the alarm setting mode, press this key to store the

setting value.

fPress and hold this key while turning the meter on to

disable the audible sound. The “ ” symbol will

disappear.

(4). MODE/ALARM key :

cPress this key to change the sensor axis: “XYZ axis”

→“X axis” →“Y axis” →“Z axis”.

dPress and hold this key while turning the meter on to

switch the device to the alarm setting mode.

ePress this key for 2 seconds to switch the alarm

function on or off.

(5). UNIT/ key:

cPress this key to change the units: “mV/m or V/m” →

“μA/m or mA/m” →“μW/m2 or mW/m2 or W/m2“ →“μW/cm2 or mW/cm2“

dPress this key for 2 seconds to turn the backlight on. The backlight turns off

automatically in 15 seconds later.

ePress and hold this key and turn on the meter again to disable the backlight auto off

function.

(6). key: Press this key to turn the meter on or off.

(7). MEM/▲key:

cPress this key momentarily to store one data set to memory.

dPress and hold this key while turning the meter ON to enter the manual clear

recorded data mode.

eIn the manual data reading mode, press this key to read the next stored data.

fIn the alarm setting mode, press this key to increase the setting value.

(8). READ/▼key:

cPress this key to switch to the manual data reading mode.

dPress and hold this key while turning the meter on to disable the auto power off

function.

eIn the manual data reading mode, press this key to read the previous stored data.

fIn the alarm setting mode, press this key to decrease the setting value.

480836 V5.0 8/09

4-2 LCD display description

(1). : Auto power off function on / off.

(2). : Audible sound function on / off.

(3). MAX: Maximum measured value displayed.

MAX AVG: Maximum average value displayed.

(4). AVG: Average measured value displayed.

(5). +: Low battery indication.

(6). Units : mV/m and V/m : Electric field strength.

μA/m and mA/m : Magnetic field strength.

μW/m2, mW/m2, W/m2, μW/cm2and mW/cm2: Power density

(7). : Measured value displayed as per selected mode and selected units.

(8). : Manual data memory mode indication.

(9). : Manual data memory address number (1~99).

: The manual data memory clear mode.

(10). : Stored measured value to memory indication.

(11). ALM: Alarm function on / off or alarm setting indication.

(12). ▲: Displays when the alarm function is on and the instantaneous measured value

exceeds the limit value indication.

(13). : Analog bargraph of each axis (X,Y or Z) measured dynamic range indication

for observing trends.

(14). X: X axis measured value displayed.

(15). Y: Y axis measured value displayed.

(16). Z: Z axis measured value displayed.

480836 V5.0 8/09

4-3 Using E-field sensor

The 3-channel sensor is located at the top of the meter. The three voltages generated

by the sensor are fed back to the meter. In far-fields, an E-field sensor is preferable due

to the greater bandwidth. The E-field sensor frequency ranges from 50MHz to 3.5GHz

(calibration accuracy only supports measurements in the 900MHz, 1800MHz, and

2.7GHz ranges, other measurements made in the 50MHz to 3.5GHz range are for

reference purposes only).

The meter is a small portable instrument that measures the electric field in the atmosphere of

the sensor’s surroundings. The measurement of the field is done by moving the aerial of the

sensor in the desired measured environment.

A direct wide band measurement is obtained of the field that the measurement sensor is

subjected to. To find the value of the field emitted by a source of interference, simply

point the aerial towards it and get as close as possible (the value of the field is inversely

proportional to the distance of the sensor/emission source). The operator must take care

not to be between the source of disturbance and the zone to be checked. The human

body shields electromagnetic fields. The E-field sensor is isotropic; it does not require

special handling. It measures the field according to 3 axes without the aerial having to

be moved in the 3 planes. Simply point it at the target to make the measurement.

4-4 Explanatory notes

4-4-1 Units of measurement

The meter measures the electrical component of the field; the default units are those of

electrical field strength (mV/m, V/m). The meter converts the measurement values to the

other units of measurement, i.e. the corresponding magnetic field strength units (μA/m,

mA/m) and power density units (μW/m2, mW/m2, W/m2, μW/cm2or mW/cm2) using the

standard far-field formulate for electromagnetic radiation.

The conversion is invalid for near-field measurements, as there is no generally valid

relationship between electrical and magnetic field strength in this situation. Always

use the default units of the sensor when making near-field measurements.

4-4-2 Result modes

The bar graph display always shows each axis (X, Y or Z) the instantaneous

measured dynamic range value. The digit display shows the measurement

according to one of four selectable modes:

•Instantaneous: The display shows the last value measured by the sensor, no

symbol is displayed.

•Maximum instantaneous (MAX): The digital display shows the highest

instantaneous value measured, the “MAX” symbol is displayed.

•Average (AVG): The digital display shows the average value measured, the “AVG”

symbol is displayed.

•Maximum average (MAX AVG): The digital display shows the highest average

value measured, the “MAX AVG” symbol is displayed.

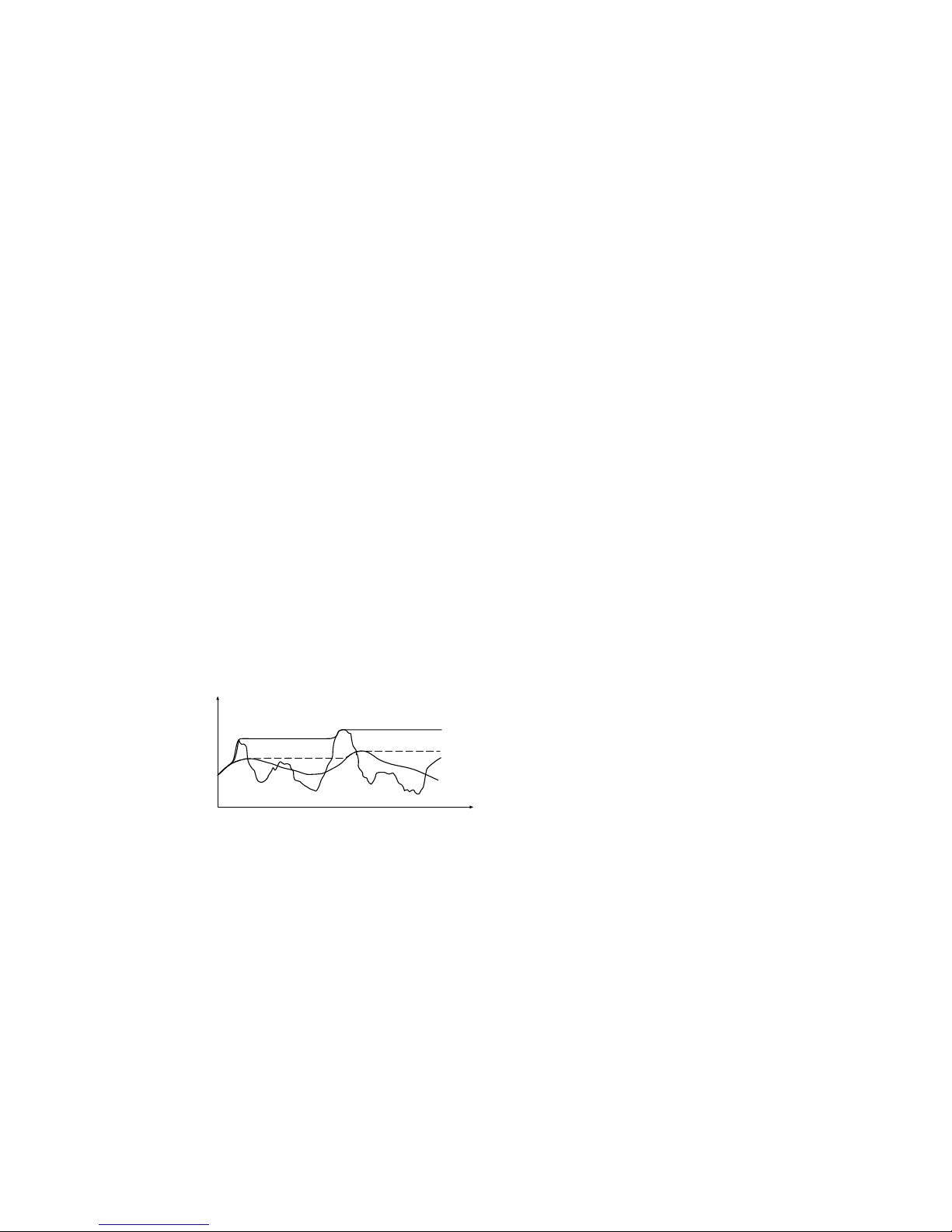

Max. Hold

Average Actual

Max. Average

Field strength

480836 V5.0 8/09

4-4-3 Alarm limit value (ALM)

The alarm limit value is used to monitor the display value and control the alarm

indication function. The alarm limit value can be edited in the displayed V/m unit; the

smallest value that can be set is 0.05V/m.

NOTE: Alarm limit function can only be used for the total three axial measurement value.

4-4-4 Calibration Factor (CAL)

The calibration factor “CAL” corrects for variances in the frequency response of the

field sensor. When a known RF calibration source is not available for precise

calibration, a calibration factor of 1.00 is sufficient for most applications.

E-Field typically calibration data:

Frequency CAL

50MHz 3.16

100MHz 2.46

200MHz 2.01

300MHz 1.91

433MHz 0.55

500MHz 0.37

600MHz 2.41

700MHz 4.63

800MHz 4.21

900MHz 4.47

1GHz 2.80

1.2GHz 1.38

1.4GHz 3.26

1.6GHz 1.25

1.8GHz 1.87

2GHz 1.67

2.2GHz 1.95

2.45GHz 1.93

Tabla de contenidos

Otros manuales de Instrumento de medición de Extech Instruments

Extech Instruments

Extech Instruments 407750 Manual de usuario

Extech Instruments

Extech Instruments Oyster-10 Manual de usuario

Extech Instruments

Extech Instruments 407736 Manual de usuario

Extech Instruments

Extech Instruments CO80 Manual de usuario

Extech Instruments

Extech Instruments RH520B Manual de usuario

Extech Instruments

Extech Instruments 461923 Manual de usuario

Extech Instruments

Extech Instruments RH520 Manual de usuario

Extech Instruments

Extech Instruments 480823 Manual de usuario

Extech Instruments

Extech Instruments 45160 Manual de usuario

Extech Instruments

Extech Instruments 401025 Manual de usuario

Extech Instruments

Extech Instruments 407780A Manual de usuario

Extech Instruments

Extech Instruments PS101 Manual de usuario

Extech Instruments

Extech Instruments SL130 Manual de usuario

Extech Instruments

Extech Instruments SDL300-NIST Manual de usuario

Extech Instruments

Extech Instruments 42265 Manual de usuario

Extech Instruments

Extech Instruments 407790 Manual de usuario

Extech Instruments

Extech Instruments DT200 Manual de usuario

Extech Instruments

Extech Instruments 400790A Manual de usuario

Extech Instruments

Extech Instruments PQ34-12 Manual de usuario

Extech Instruments

Extech Instruments ExStik RE300 Manual de usuario

Extech Instruments

Extech Instruments MO220 Manual de usuario

Extech Instruments

Extech Instruments ExStik PH100 Manual de usuario

Extech Instruments

Extech Instruments SP505 Manual de usuario

Extech Instruments

Extech Instruments MO257 Manual de usuario

Manuales populares de Instrumento de medición de otras marcas

Suaoki

Suaoki D40 Manual de usuario

Elster

Elster BK-G1.6 Manual de usuario

Endress+Hauser

Endress+Hauser Deltabar FMD71 Manual

Duratool

Duratool D03128 Manual de usuario

Vega

Vega VEGAPULS 65 Manual de usuario

Tonghui

Tonghui TH2618B Manual de usuario

Tenmars

Tenmars TM-801 Manual de usuario

MSR

MSR 145 Manual de usuario

TPS

TPS WP-82 Manual de usuario

ELMETRON

ELMETRON CP-511 Manual de usuario

PCB Piezotronics

PCB Piezotronics 003C30 Manual de usuario

Tenma

Tenma 72-10465 Manual de usuario

Endress+Hauser

Endress+Hauser Proline Promag 50 Especificaciones técnicas

Siemens

Siemens SITRANS F Coriolis FCT030 Manual de lista de piezas

KLINGER

KLINGER CMF V Series Manual de usuario

EXFO

EXFO FTB-2 Manual de operación y mantenimiento

Keysight

Keysight M8290A Manual de usuario

ADTEK

ADTEK MW-5 Manual de usuario
