Extech Instruments HDV7C-55-HD-1 Manual de usuario

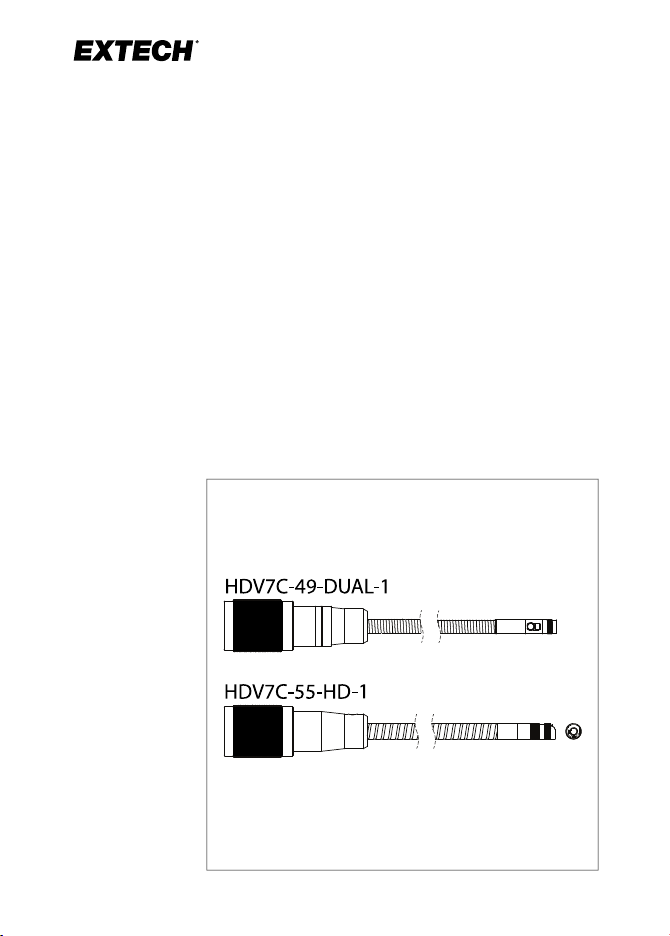

User Manual

Camera Probes

Models HDV7C-55–HD-1 and HDV7C-49–

DUAL-1. For use with the HDV700

VideoScope.

Introduction

The probes covered in this manual are designed for use with the

HDV700 High Definition VideoScope. The probes are controlled by

the touch-screen icons on the HDV700.

The HDV700 user manual and additional translations of this probe

manual are available from the support site (see the Support

section).

Probe Descriptions

The probes are described in the following sections, see the Specifi-

cations and Safety sections for additional information.

The HDV700 offers many useful features including capturing still

images and video, changing camera views, and controlling work-

lights; please refer to the HDV700 user manual for complete

information.

HDV7C-55–HD–1 HD Camera Probe

The HD camera probe head is 0.2 in. (5.5 mm) in diameter and its

probe length is 3.3 ft. (1 m). The camera resolution is 1280 x 720.

1. HDV700 connector

2. Probe

3. Probe head

4. HD camera lens and worklights

#NAS100129; r. AC/88004/88004; en-US 1

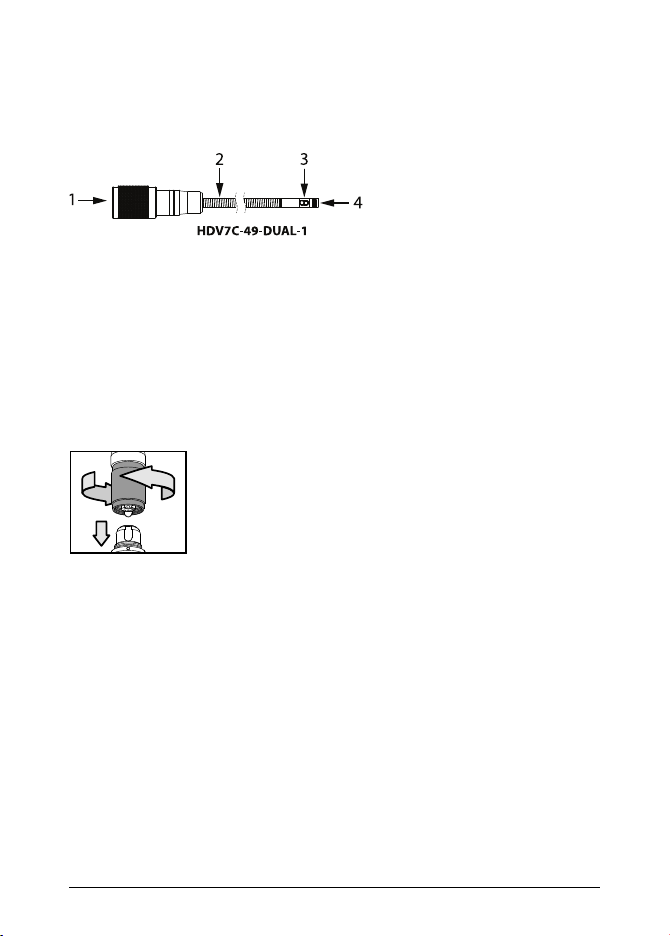

HDV7C-49–DUAL-1 Dual HD Camera Probe

The dual HD camera probe head is 0.19 in. (4.9 mm) in diameter

and its probe length is 3.3 ft. (1 m). The camera resolution is 1280 x

720.

1. HDV700 connector

2. Probe

3. Side view camera and worklights

4. Forward view camera

Connecting the Probe

The steps below explain how to safely connect the probe to the

HDV700 monitor. Always turn the HDV700 power off before replac-

ing the probe.

1. Align the white dot on the probe connector with the white dot on

the HDV700 connector.

2. Plug the probe into the HDV700, ensuring proper alignment and

full insertion.

3. Tighten the collar nut to secure the connection. Do not

overtighten.

#NAS100129; r. AC/88004/88004; en-US 2

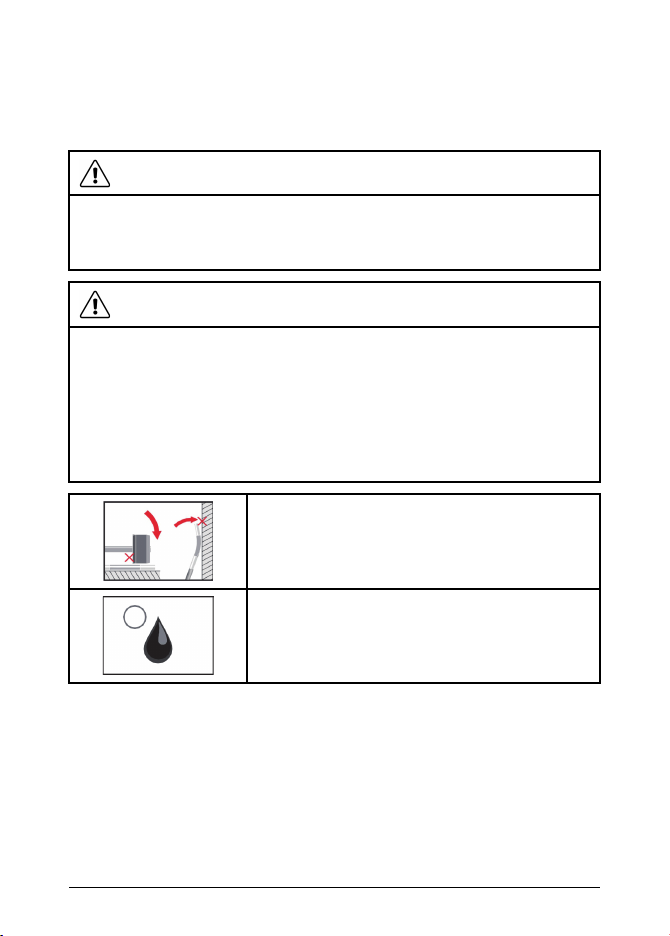

Safety

Safety Note

Please read and understand all safety cautions before use.

CAUTION

Do not insert the probe into flammable liquid or gas.

This product is designed for industrial use only. It is not intended for use in hu-

man or other biological inspection.

CAUTION

To clean the probe, wipe with a soft cloth dampened with a mild detergent and

clean water. Do not use abrasives, corrosives (alcohol), or solvents to clean

the probe. Use a high quality lens cleaning fluid and a lint-free swab to clean

the camera and worklight lenses.

Do not disassemble the product, damage to the product and electrical shock

may occur.

Avoid direct sun exposure. Store in a cool, dry, and well-ventilated area.

The probe contains sensitive circuitry that controls

the optics and electronics of the camera. Do not

strike the probe or allow it to impact objects

forcefully.

Immerse probes only in approved liquids (see the

Specifications section).

#NAS100129; r. AC/88004/88004; en-US 3

Specifications

Camera resolution 1280 (H) x 720 (V) pixels

Frame rate 30 frames per second (fps), approximately

Probe Diameter 0.2 in. (5.5 mm) for HDV7C-55–HD-1

0.19 in. (4.9 mm) for HDV7C-49–DUAL-1

Field of View 90°

Depth of Field 0.4 to 4.0 in (10 to 100 mm)

Probe tip length 0.78 in. (20 mm) for HDV7C-55–HD-1

0.85 in. (21.6 mm) for HDV7C-49–DUAL-1

Probe length 3.3 ft (1 m)

Side-view camera HDV7C-49–DUAL-1 only

LED Worklights Worklights are controlled from the HDV700

Four forward worklights on HDV7C-55–HD-1

Five forward and one side worklight on HDV7C-

49–DUAL-1

Operating temperature 14 to 140℉(–10 to 60℃)

Storage temperature –4 to 140℉(-20 to 60℃)

Relative Humidity 10 to 95 % non-condensing

Approved liquids for digi-

tal camera probes

Approved for use in brake and transmission fluid,

diesel fuel, unleaded gasoline, engine oil, and

CPC hydraulic fluid (46AWS).

Ingress rating Probe tip and body: IP 67 (IEC 60529)

Protected from submersion in water up to 3.3 ft (1

m) for 30 minutes maximum. In use: rain,

splashes, and accidental submersion

#NAS100129; r. AC/88004/88004; en-US 4

Two-Year Warranty

FLIR Systems, Inc. warrants this Extech brand instrument to

be free of defects in parts and workmanship for two years from

date of shipment (a six-month limited warranty applies to sensors

and cables). To view the full warranty text please visit:

http://www.extech.com/support/warranties.

CUSTOMER SUPPORT

Customer Support Telephone List:

https://support.flir.com/contact

Calibration, Repair, and Returns e-mail:repair@extech.com

Technical Support:https://support.flir.com

#NAS100129; r. AC/88004/88004; en-US 5

last page

Publ. No.: NAS100129

Release: AC

Commit: 88004

Head: 88004

Language: en-US

Modified: 2022-11-04

Formatted: 2022-11-04

Website

http://www.flir.com

Customer support

http://support.flir.com

Disclaimer

Specifications subject to change without further notice. Models and accessories

subject to regional market considerations. License procedures may apply.

Products described herein may be subject to US Export Regulations. Please

refer to [email protected] with any questions.
