ExoSlide ExoCube Printer V4 Manual de usuario
1. Outer Frame:
Parts Needed:
3030 x 700mm, 12x
3030 Corner Brace, 8x
M5x8 bolt, 96x
M5 T-nut (3030), 96x
8X
Notes:
-The four Z 700mm extrusions run the full length, while the other extrusions butt up to them.
-Assemble the M5x8 bolt and T-nut, then slide into the brackets (96x).
2. Bed Frame
Parts Needed:
3030 x 700mm, 2x
L Bracket, 4x
M5x8 bolt, 12x
M5 T-nut (3030), 12x
Note:
-Position the 3030 extrusions roughly 100mm from the ends. The position will be finalized in a later step.
3. Gantry Frame:
Parts Needed:
2020 x 760mm, 2x
2020 x 632mm, 2x
ExoBracket 20, 2x
Corner bracket, 4x
Edge bracket, 2x
Printed Z Brace, 2x
M5x8 bolt, 20x
M5x14 bolt, 4x
M5 T-nut, 24x
M5 washer, 4x
2X 4X 2X 2X
Front Right (Front left same) Back Left Back Right
Notes:
-The two 760mm extrusions run the full length, while the 632mm extrusions butt up to them.
-The ExoBrackets (mounted on one 760mm extrusion) have the tabs pointing towards the corner braces.
-Leave the ExoBracket clamp bolts loose for now.
-Install the M5 bolts and T-nuts into the corner brackets (leaving the two outside holes blank) with the T-nuts in the
exact orientation shown above, then slide the 760mm extrusion through the T-nuts until it bottoms on the bracket.
Then slide the 632mm extrusion through the T-nuts until it bottoms on the cross 760mm extrusion.
4. Gantry Mounting:
Parts Needed:
ExoSlide 30S, 6x
M4x18 bolt, 8x
M4x30 bolt, 8x
6X
Notes:
-Hold the gantry temporarily in place with tape on both ends, about half way up the frame.
-Arrange the back ExoSlide 30S groups of two as shown above, and fasten with four M4x30 each.
-Mount the back ExoBrackets to the upper fastening positions on the ExoSlides.
5. Z Belt Drive:
Parts Needed:
WormDrive gearboxes, 4x
Nema 17x40 motor, 4x
Motor brackets, 4x
Omega idlers, 4x
Z belt brackets, 8x
GT2-6mm belt clips, 8x
M3x35 bolt, 12x
M5x8 bolt button head, 8x
M5x8 bolt, 8x
M5 T-nut 2020, 8x
M5 T-nut 3030, 8x
2X 2X 8X
Notes:
-Mount the gearbox assemblies spaced 85mm / 3 3/8” (motor bracket edge) from the inside of the 632mm extrusion.
-Tighten the top belt section first, then tighten the bottom belt section (four sets).
6. Gantry X Rail
Parts Needed:
2040 x 700mm, 1x
ExoSlide 20P, 2x
ExoSlide 40P, 2x
ExoBracket 40, 2x
M4x40 bolt, 4x
M4x60 bolt, 4x
2X 2X 2X
Notes:
-Orient the four ExoSlide carriage with the front ExoSlide 20P having the ExoSlide logo on the left side.
-Orient the ExoBrackets with the tabs pointing outwards, with the right ExoBracket flush with the end of the extrusion.
-Leave the left ExoBracket clamp bolt loose, it will be secured in the next step.
7. Gantry Install:
Parts Needed:
ExoSlide 20P, 8x
M4x18 bolt, 6x
M4x40 bolt, 15x
M4x50 bolt, 1x
8X
Left Side Right Side
Note:
-Arrange the ExoSlide 20P groups of two as shown above, and fasten with M4x40 bolts (except an M4x50 bold as shown)
8. Core XY Belts:
Parts Needed:
Motor bracket, 2x
Nema 17x40 motor, 2x
GT2 20t pulley 5mm ID, 2x
Idler bracket, 2x
Idler bracket back, 2x
Bracket Belt CoreXY, 1x
M4x14, 4x
M5x8 bolt, 8x
M5x14 bolt, 4x
M5 T-nut, 12x
GT2 belt clips, 4x
GT2 belt
Left Side Right Side
Both Belts Installed
Bottom CoreXY belt Top CoreXY belt
Left side view
Right side view
Left pulley spacing, 3mm Right pulley spacing, 12mm
Belt Guides on underside of XY motors to ease installation
Notes:
-Install the printed belt guides underneath the X and Y motor pulley’s to keep the belts in place during installation.
-Install the bottom belt first, then the top belt second.

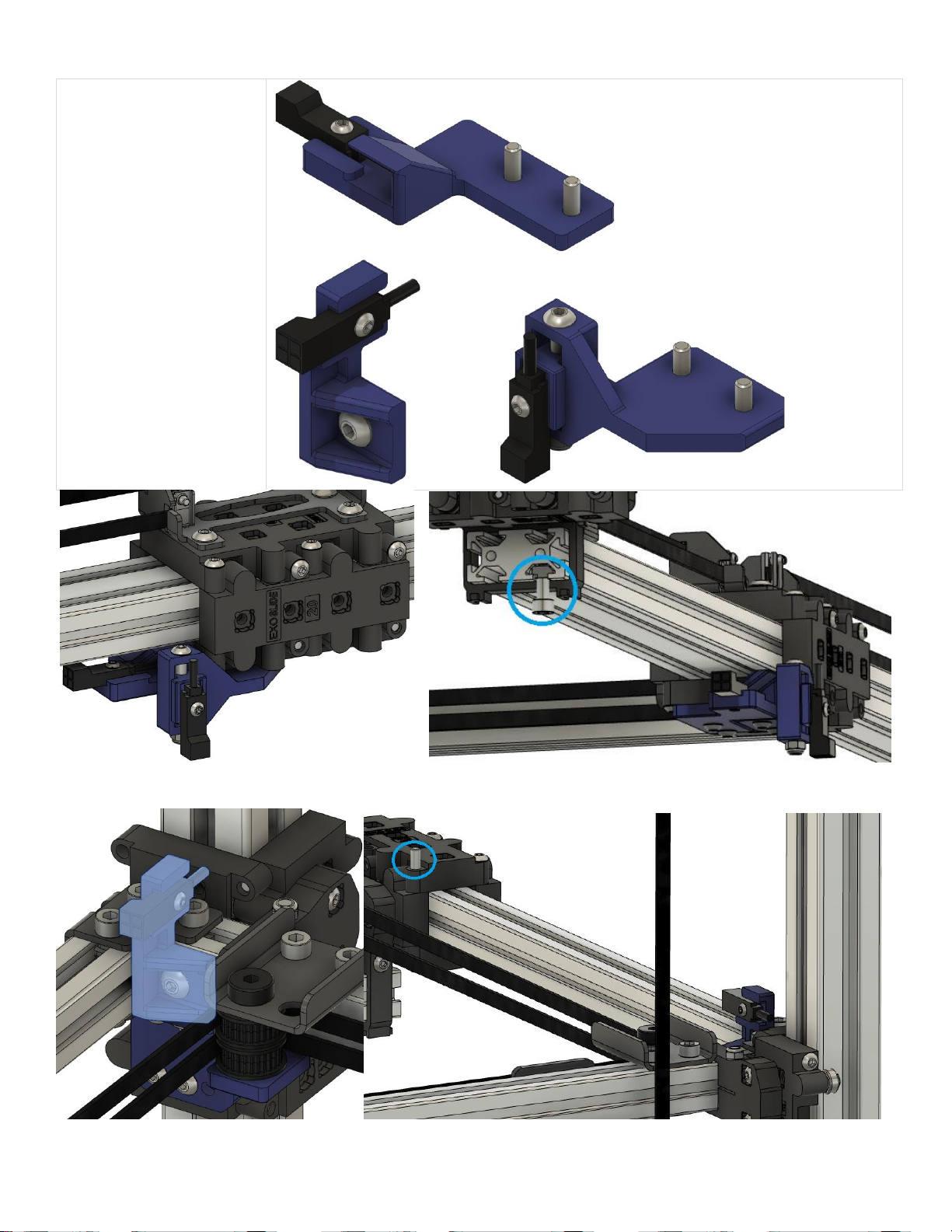

9. Endstops
Parts Needed:
Inductive probe, 3x
Printed X Endstop, 1x
Printed Y Endstop, 1x
Printed Z Endstop, 1x
M3x10 bolt, 3x
M4x12 bolt, 4x
M4x35 bolt, 1x
M4 nylock nut, 1x
M5x8 bolt, 1x
M5x14 bolt, 1x
M5 T-nut, 2x
X
Y Z
X and Z Endstops on XY Gantry X Endstop Bolt (for inductive probe to sense)
Y Endstop on Back Left Corner Y Endstop Bolt (for inductive probe to sense)
