EverFocus Weatherproof Long Range IR Camera 235E Manual de usuario

EVERFOCUS

Weatherproof Long Range IR Camera

Operation Instructions

Model No. EZ230E/235E/330E/335E

Please read this manual first for correct installation and operation. This manual should be retained

for future reference. The information in this manual was current when published. The

manufacturer reserves the right to revise and improve its products. All specifications are therefore

subject to change without notice.

PRECAUTIONS

1. Do not place any object on top of the cover.

2. Be careful when handling the camera, do not drop it or subject it to strong shock or vibration

to prevent any damages to it. Do not disassemble it or place it on an unstable base.

3. Install the camera away from TV, radio transmitter, magnet, electric motor, transformer,

audio speakers because the magnetic fields generate from above devices will distort the

video image.

4. Install the camera away from stoves, or other heat generating devices as the high temperature

could cause deformation, discoloration or other damages of the camera. Install the camera

at where the temperature range will stay between -40℃to 50℃(-40℉to 122℉).

5. Never aim the camera at the sun or other extremely bright objects whether it is in use or not.

6. Do not touch the surface of CCD sensor by hand directly. Use a soft cloth to remove the

dirt from the camera body. Use lens tissue or a cotton tipped applicator and ethanol to clean

the CCD sensor and the camera lens. When the camera is not in use, put the cover cap on

the lens mount.

7. All warnings on the products and in the operating instructions should be adhered to.

8. Do not use attachments not recommended by the appliance manufacturer as they may cause

hazards.

9. Do not allow anything to rest on the power cord. Do not locate this appliance where the cord

will be abused by persons walking on it.

10. Do not overload wall outlets and extension cords as this can result in fire or electric shock.

11. Never push objects of any kind into his appliance through cabinet slots as they may touch

dangerous voltage points or short out parts that could result in fire or electric shock.

12. Refer all work related to the installation of this product to qualified service personnel or

system installers.

PREFACE

EZ230E/235E/330E/335E series camera is a true day/night, weather-proof, long range IR color

camera, designed with the 1/3” SONY HAD color CCD to provide a high performance in low

LUX environment. It is ideal for outdoor applications such as parking lots, gas stations and

shopping malls.

FEATURES

zThe electronic shutter and AGC functions allow the camera to be used in environment

with varying light levels

zThe advanced 1/3” SONY Super HAD color CCD provides low light sensitivity 0.3

Lux/F=1.2 (AGC ON) for EZ230E/EZ235E and 0.4 Lux/F=1.2 (AGC ON) for EZ330E/335E

zVari-frequency IR control

zLong IR distance: 30 meters/98 feet for EZ230E/EZ330E and 50 meters/164 feet for

EZ235E/EZ335E

zLifespan of High Light IR LED is 20,000 hours

zIP66 weatherproof rated

zBuilt-in heater for camera to work in low temperature environment

zCables covered by the bracket, to prevent from intentional destruction

zInternal cable connection provides installation without additional waterproof connection box

zVandal proof design

STANDARD ACCESSORIES

¾IR Long Range Camera x 1

¾Operation Instructions x 1 (this document)

¾Waterproof Connector x 1 (connected to the camera body)

¾Bracket x 1

¾Mounting kit includes:

-Long Screws x 4 (for mounting bracket)

-Short Screws x 4 (for connecting camera body to bracket)

-Expanding Screws x 4

-Hex key x 1 (for adjusting bracket)

-Hexagon wrench x 1 (for adjusting sunshield)

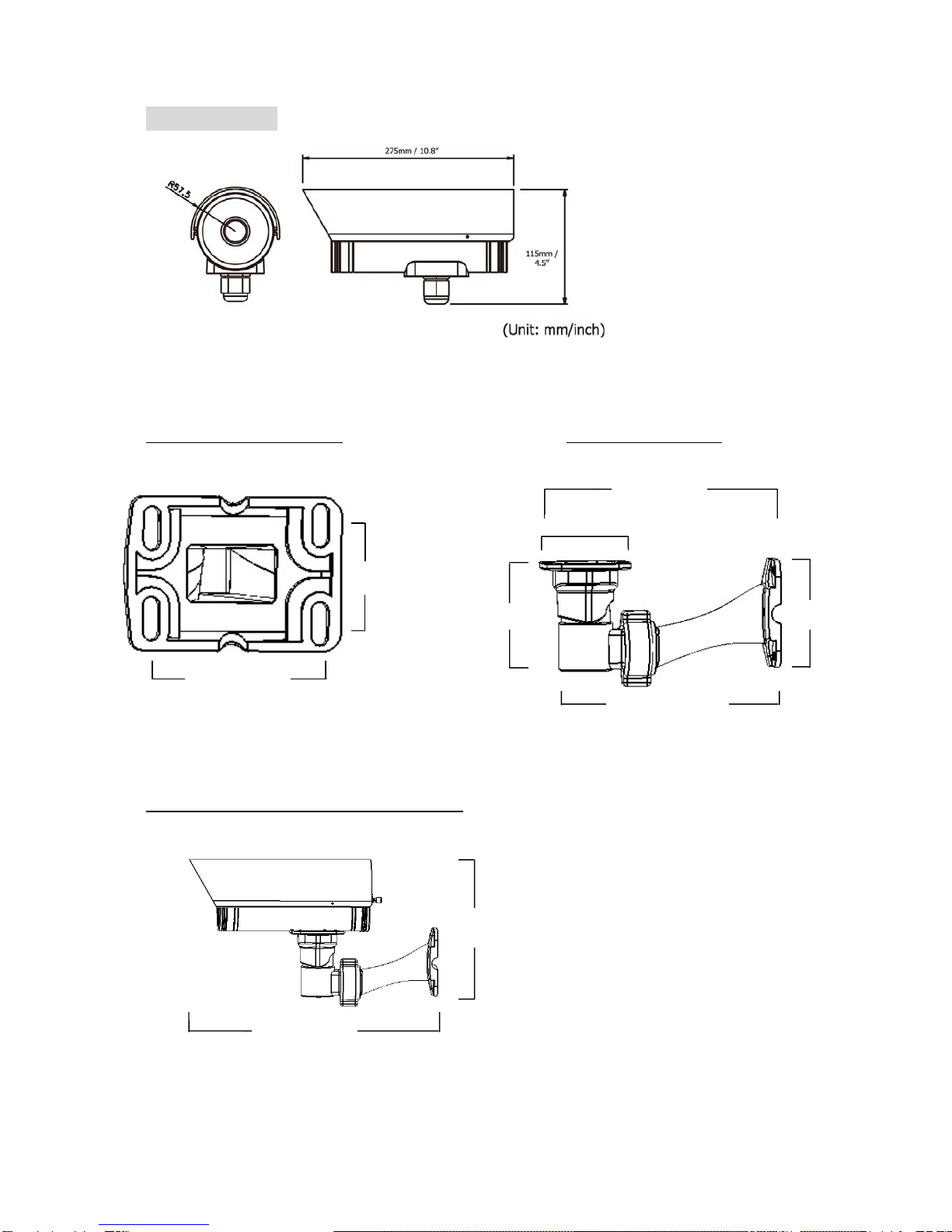

DIMENSIONS

Dimension of holes to holes Dimension of Bracket

The dimension of whole camera with bracket

45mm/1.8”

80mm/3.2”

217mm/8.68”

350mm/14”

84mm/3.36”

100mm/4”

196mm/7.84”

215mm/8.6”

95mm/3.8”

NAMES AND FUNCTIONS OF BACK PANEL

○

1Video Output Connector

Connect the video output of the camera to a color monitor or other video devices through a 75

Ohm type coaxial cable with BNC female connector at backside of the camera.

○

2Power Input Terminal

Connect to the appropriate power to each model. N/L is used to connect to power in. PE is a

ground pin.

○

3Cable clips

Used to fix power cable.

24VAC model

○

1○

○

110V~240VAC model

○

1○

○

INSTALLATION GUIDE

Video output

Power connector

Bracket

Sun shield

Fixing screw for sunshield

1. Wire coaxial cable and power cable through the bracket.

Note: Please use RG59/5C2V coaxial cable without connector

2. Fix the bracket to wall by using 4 screws.

3. Open camera’s back cover: Loose the 2 screws from the back panel, then open the back cover.

4. Take off the cap of waterproof connector which is under the camera.

Power cable

Coaxial cable Reserve

Screws for back panel

Note: 1. The holes of waterproof connector were plugged by stoppers, please remove the

stoppers when you need to use it for connection.

2. Please always keep the smallest hole (5 mm) plugged by stopper, to avoid any possible

damage caused by humidity. This is a reserved hole.

5. Take coaxial cable and power cable to pass through waterproof connector, place them into

camera housing.

Note: Do not connect BNC connector to coaxial cable until coaxial cable has passed through

camera housing
