EverFocus EZ655p Manual de usuario

EZ655p

IR Day/Night plus WDR

IP66 Bullet Camera

User’s Manual

Release Date: January, 2013

Cautions

1. Do not install the camera near electric or magnetic fields.

2. Never disassemble the camera beyond the recommendations in this

manual nor introduce materials other than those recommended

herein.

3. Try to avoid facing the camera toward the sun.

4. Keep the power cable away from water and other liquids and never

touch the power cord with wet hands.

5. Never install the camera in areas exposed to oil, gas or solvents.

6. Do not operate the camera beyond the specified temperature or

humidity. Use the dual voltage model at temperatures within -10°C

~50°C (14°F ~122°F) / the 12VDC model with heater at temperatures

within -40°C~50°C (-40°F~122°F) and humidity between 20%~ 80%; this

device is not rated as submersible.

7. Determine the polarity of the power adapter pigtail before connecting

the camera to the power source. The input power source is 12 VDC /

24 VAC~.

EZ655p

1. INTRODUCTION

Based on Sony Effio-P platform, the EZ655p is a bullet camera providing

700 TVL with Sony’s 1/3'' 960H image sensor. The double scan WDR (Wide

Dynamic Range) technology enables the camera to get detailed

information from the dark part of the image without saturation from the

bright part, which provides clear images under back light circumstances

where intensity of illumination can vary excessively.

The camera also provides 3D-DNR (Digital Noise Reduction) function,

which can save the HDD space of the connected DVR. Multiple functions

including dual voltages, 16x digital zoom, privacy mask and motion

detection are supported. The embedded 35 IR LEDs provide up to

60m/195ft. viewing range in low light or complete no light environment.

Along with the IP66 weather-resistant and vandal-proof housing design,

the EZ655p is an ideal design for both indoor and outdoor environment.

1.1 FEATURES

•1/3 ” SONY 960H WDR sensor at 0.03 Lux has 5x better native light

sensitivity before DSP low light boost

•Starlight super high sensitivity of 0.00006 Lux at F1.2 is achieved

through a sensitivity increase setting of up to 512x

•Extended IR range of 60m / 195ft. with 35 LEDs

•Split glass to prevent internal IR reflections

•True Day/Night with ICR module

•Vari-focal auto iris lens – optional 2.8~12mm or 5~50mm focal range,

external zoom and focus adjustment support

•Wide Dynamic Range expansion to deliver properly exposed images

despite bright light sources, deep shadows and/or unbalanced lighting

in the same scene

•Provides 2D, 3D-Noise Reduction to improve picture clarity while

enabling DVRs to improve disk storage utilization

•Motion detection for 4 configurable zones

•Privacy mask function for 15 configuration zones

•Provides digital zoom up to 16x

•Support Digital Image Stabilization (DIS)

•Easy bottom access to video test point and lens / OSD menu controls

inside weatherproof cover

•IP66 weather resistance

•Vandal resistance

EZ655p

1.2 PACKAGE CONTENTS

1. Camera x 1

2. Camera Base x 1

3. User Manual x 1

4. Power Adaptor Pigtail x 1

5. Test Lead x 1

6. Accessory Kit x 1 (Hexagon Wrench x 1, L-Type Wrench x 1, Hexagon

Screw x 4 and Mounting Screw x 4)

1.3 OVERVIEW

1.4 DIMENSIONS

No. Name Description

1 Sunshield Protect the camera from the direct rays of the sun.

2 Bracket Lock

Knob

Loosen / tighten the bracket lock knob for

adjusting camera angles.

3 3-Axis Bracket For adjusting the camera angles.

4 Cover Open it to control the OSD settings, LED

brightness, and to connect the Test Lead.

EZ655p

1.5 CABLE DEFINITIONS

Power Cable

Video-Out Cable

Test Lead

Power Adaptor Pigtail

Cable Name

Description

Video-Out Cable (BNC) Connects to a DVR or a monitor.

Power Cable

Connects to the 12 VDC / 24 VAC~ power source.

You can optionally use the supplied Power Terminal

Block or a power adapter.

Test Lead

Connects one end to spot monitor port on the back

panel of the camera and the other end to a

portable monitor.

Power Adaptor Pigtail

Connects one end to the Power Cable, and the

other end to the 12 VDC / 24 VAC~ power source

(black wire to ground end; black / red wire to

positive end.)

1.6 OPTIONAL DEVICES

The following two items are used to contain and protect the camera

cables from rain.

Hood Camera Junction Box:

PBOX-A013

Hood Camera Junction Box:

PBOX-A024

EZ655p

2. SPECIFICATIONS

Pickup Device

1/3" SONY 960H WDR CCD

Video Format

NTSC / PAL

Picture Elements

976 x 494 (NTSC), 976 x 582 (PAL)

Horizontal Resolution

700 TVL

Sensitivity

0.03 Lux at F=1.2

0.00006 Lux at F1.2/Sens-up 512x

0 Lux (IR on)

S/N Ratio

Over 52dB (AGC off)

Electronic Shutter

1/60 (1/50) ~ 1/100,000 sec.

Video Output Main output BNC 1.0V p-p ,75ohm, Local test output,

cable provided

Gamma Correction

0.45

Lens Type DC Iris Vari-focal: 2.8~12mm or 5~50mm focal length

Back Light

Compensation Off / BLC / HLC

Auto Gain Control

0~128 level adjustable

White Balance

ATW(1,800K~10,500K) / Push / User1 / User2 / Anti

CR / Manual / Push Lock

Sync. Mode

Internal

Day & Night Color, Auto (EXT On / Off)

OSD Menu

Yes

IR Emitters

35 long life LEDs

IR Configuration

Split glass isolation prevents internal reflections

IR Wavelength

850nm

IR Distance

60m / 195ft.

Smart IR Yes

2D, 3D-DNR Off / Low / MidLow / Mid / MidHigh / High (2D+3D)

WDR

On / Off

Digital Slow Shutter

Up to 512x

Mirror

Off / V-Flip / H-Flip / HV-Flip

Digital E-Zoom

0~255 Level Adjustable(1x~16x) PAN/TILT

Motion Detection

On / Off for 4 selectable zones

Privacy Mask On / Off for 15 selectable zones

DIS On / Off

Weather Proof

IP66 rated

Heater

Yes, built-in (12 VDC model only)

EZ655p

Vandal Resistant

Yes

Power Source

12 VDC / 24 VAC~ ; 12 VDC

Power Consumption

12 VDC: 7.2W max. (IR on)

12 VDC: 14.5W max. (IR + Heater on)

12 VAC~:6.5W max. (IR on)

Operating

Temperature

-10°C~50°C / 14°F~122°F (Dual voltage model)

-40°C~50°C / -40°F~122°F (12 VDC with heater)

Dimensions (O.D x H

100 x 125 x 230mm / 3.94” x 4.72” x 9.06”

Weight

1.8kg / 3.96lbs

Certifications

CE, FCC

EZ655p

3.INSTALLATION

1. Loosen the screw on the sunshield and push the rear of the sunshield

to the front.

Sunshield Screw

2. Adjust the sunshield to an appropriate position and tighten the

screw.

3. Screw through the four black holes on the Camera Base to the wall /

ceiling using the Mounting Screws.

Mounting

Screw Camera Base

Wall / Ceiling

4. If you want to wire the cables through the wall /ceiling, drill a hole on

the wall / ceiling at the center of the Camera Base. Ignore this step if

you want to wire the cables from the side cut of the base.

Wall / Ceiling

Hole

Cables

EZ655p

5. Connect the Power Cable to the 12 VDC /24 VAC~ power source

using the supplied Power Adaptor Pigtail or a power adapter.

Connect the Video-Out Cable to a DVR or a monitor.

Video-Out Cable

Power Cable

Power Adaptor Pigtail

6. Screw the camera to the wall / ceiling using the four supplied

hexagon screws.

Camera Base

Hexagon Screw

Note: When the camera is mounted on the wall, please keep the side

cut of the base toward the ground to prevent it from rain.

Side Cut

7. Open the cover at the bottom of the camera by twisting it

counterclockwise.

Cover

EZ655p

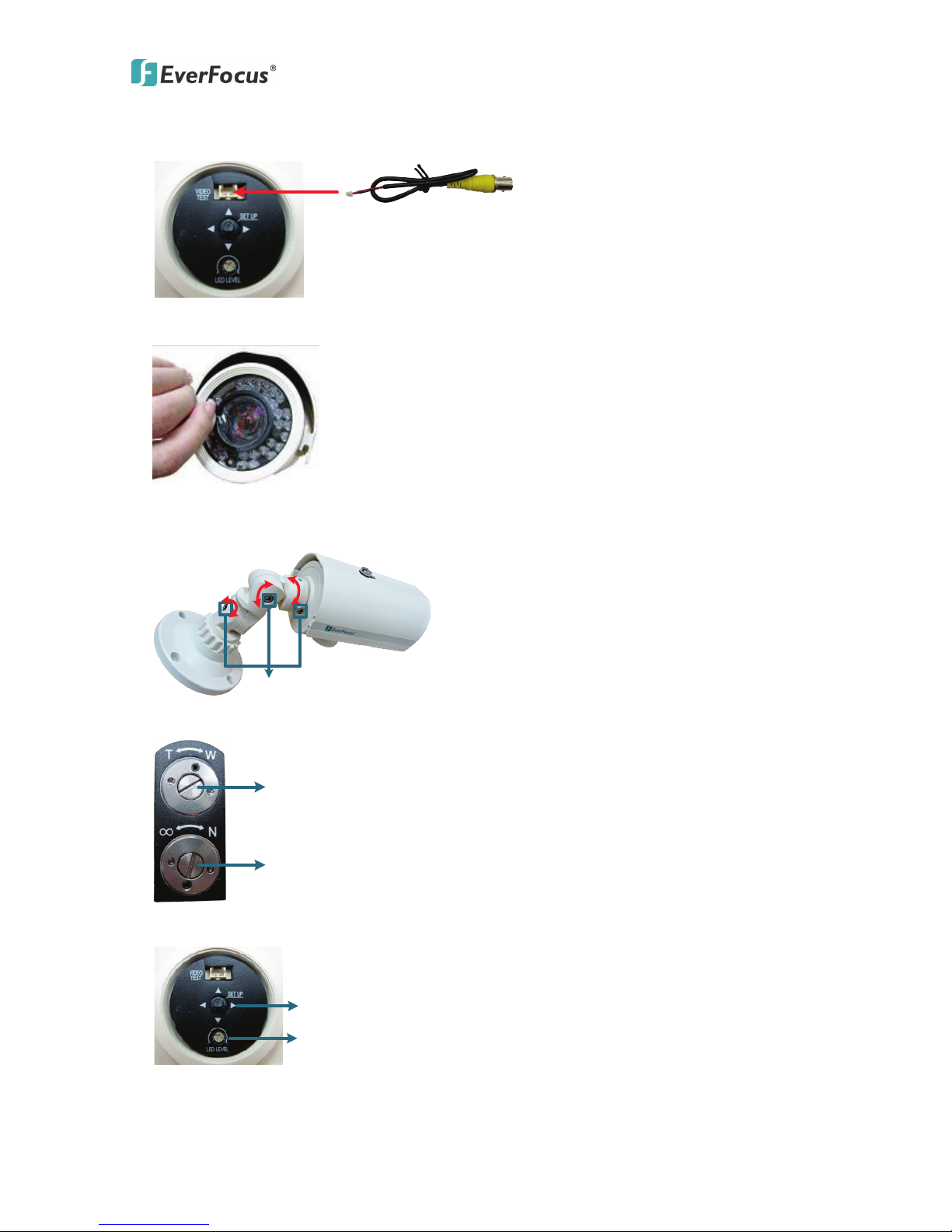

8. Connect the camera to a portable monitor using the test lead for

accessing and adjusting the camera view.

Test Lead

9. Peel off the plastic paper on the lens.

10. Adjust the 3-Axis Bracket to get the desired viewing angle, and screw

the 3-Axis Bracket using the supplied hexagon wrench.

3-Axis Bracket

180° 360°

180°

11. Adjust zoom and focus using a screw driver.

Zoom

Focus

12. Setup the OSD menu and control the LED light.

OSD Setup

LED Level

13. Close the cover by twisting it clockwise.

•Press the button to enter the OSD setup menu.

•Push the button up / down / left / right button to

select among OSD setup menu items.

•Use a screw driver to control the LED brightness.
