EverFocus M099-VDE101-002 Manual de usuario

OPERATION MANUAL

HIGH RESOLUTION

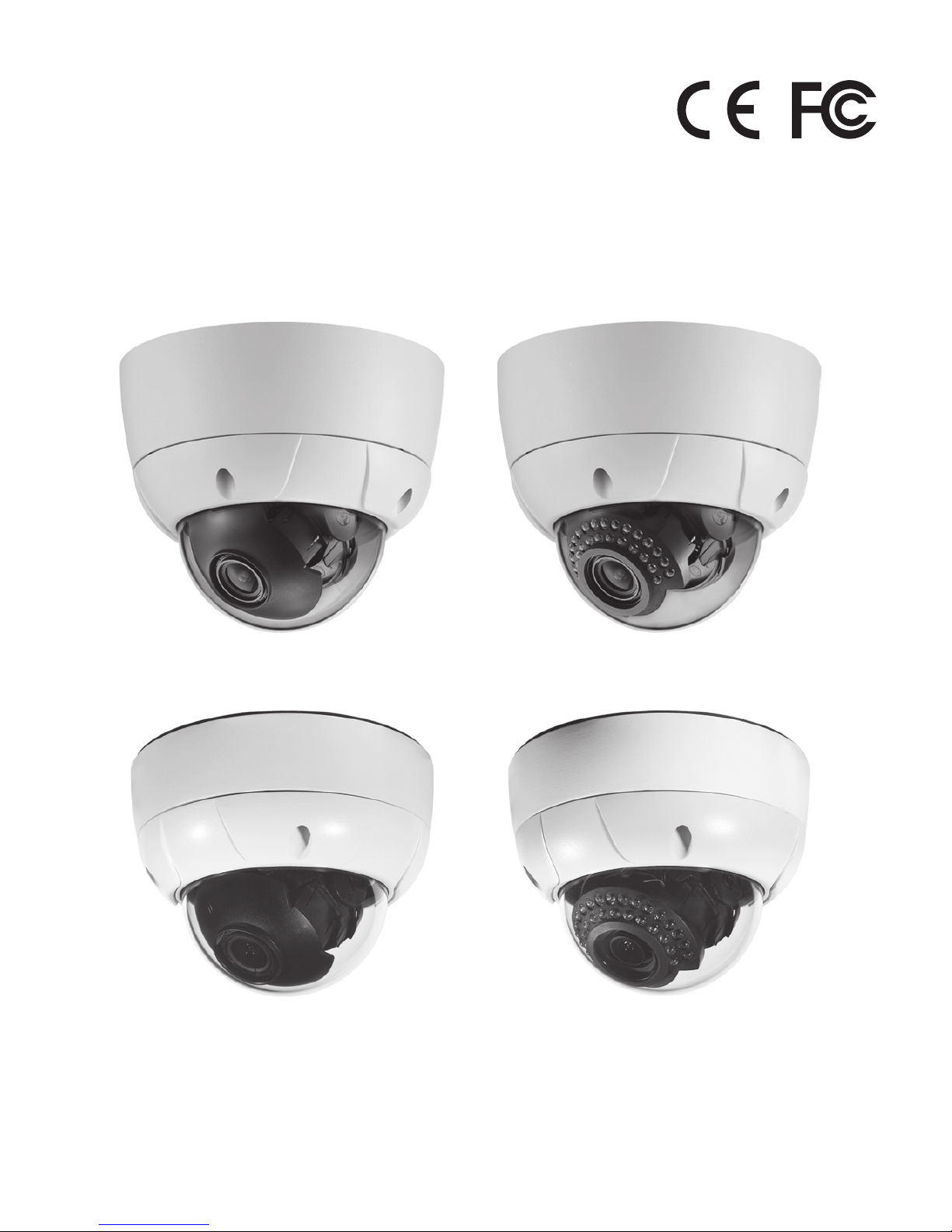

VANDAL DOME CAMERA

M099-VDE101-002

Thank you for choosing our high quality camera.

Before attempting to connect operate this unit, please read and follow these instructions.

CONTENTS

1. Cautions

2. Features

3. Package

4. Overview and function

5. Installation

6. Connection

7. Dimensions

8. Specifications

9. OSD Menu Structure

1. CAUTIONS

This device complies with Part 15 of the FCC Rules.

Operation is subject to the following two conditions;

1. This device may not cause harmful interference.

2. This device must accept any interference received, including

interference that may cause undesired operation.

Note

This equipment has been tested and found to comply with limits for a Class B digital

device, pursuant to part 15 of the FCC Rules. These limits are designed to provide

reasonable protection against harmful interference in a residential installation.

This equipment generates, uses, and can radiate radio communications.

However, there is no guarantee that interference will not occur in a particular

installation. If this equipment off and on, the user is encouraged to try to correct the

interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the

receiver is connected.

• Consult the dealer or an experienced radio / tv technician for help.

Caution

Any changes or modications in construction of this device which are not expressly

approved by the party responsible for compliance could void the user’s authority to

operate the equipment.

1. A regulated DC12V 1A power supply is recommended for use with this camera

for the best picture and the most stable operation.

An unregulated power supply can cause damage to the camera.

When unregulated power supply is applied, product warranty will be out of subject.

2. It is recommended that the camera is used with a monitor that has a CCTV quality

75 video impedance level.

If your monitor is switched to high impedance then please adjust accordingly.

3. Do not attempt to disassemble the camera to gain access to the internal componets.

Refer servicing to your dealer.

4. Never face the camera towards the sun or any bright or reective light, which may

cause smear on the picture and possible damage to the CCD.

5. Do not remove the serial sticker for the warranty service.

6. Do not expose the camera to rain or other types of liquid.

7. The apparatus must be connected to a mains socket-outlet with a protective earthing

connection.

1. CAUTIONS

Correct Disposal of This Product

(Waste Electrical & Electronic Equipment)

(Applicable in the European Union and other European countries with

separate collection systems)

This marking shown on the product or its literature, indicate that it should not

be disposed with other household wastes at the end of its working life. To

prevent possible harm to the environment or human health from uncontrolled

waste disposal, please separate this from other types of wastes and recycle it

responsibly to promote the sustainable reuse of material resources.

This product should not be mixed with other commercial wastes purchased this

product, or their local government ofce, for details of where and how they can

take item for environmentally safe recycling.

Business users should contact their supplier and check the terms and

conditions of the purchase contract.

Household users should contact either the retailer where they for disposal.

2.Features

• 1/3 960H SONY EXview HAD CCD II

• High Resolution of 700TV Lines

• OSD Function

• Multi Language

(ENGLISH / JAPANESE / GERMAN / FRENCH / RUSSIAN / PORTUGUESE / SPANISH / CHINESE)

• 2DNR

• Privacy Zone

• Motion Detect

• DC12V / AC24V Dual Voltage

• ATR(Adaptive Tone-curve Reproduction / Digital WDR)

The function provides gradation compensation to improve the contrast of subjects both

low-luminance areas and high luminance areas exist in the same picture

• 3-Axis Gimbal

Pan Rotation Horizontal RotationTilt Rotation

CAUTION panning the bracket in excess of 3 rotations in one direction maycause damage to the cable.

• Service Video connector

The Service Video Connector also provides the installer with an easy way of conguring the

camera.

3.Package

1VANDAL DOME CAMERA

2 SURFACE MOUNT

3VIDEO OUTPUT TEST CABLE

4OPERATION MANUAL

SCREW(M4x10) - 4ea

SCREW(5x30) - 4ea

SCREW(M4x40.SUS) - 4ea

L WRENCH - T20

6 MOUNT GUIDE

4.Overview and function

• CONTROL FUNCTION

(OSD JOYSTICK)

LEFT

RIGHT

DOWN

• Name (LED Type)

• Name (Standard)

Standard TypeLED Type

Mount Guide

5. Installation

① Installation of the camera with SURFACE

CASE(using M4x40)

② Installation of the camera with SCREWS

③ Installation of the camera with JUNCTION BOX

① Installation of the camera on the wall

② Installation of the camera on the 3/4” NPT PIPE

③ Installation of the camera on the JUNCTION BOX

Check the safe wire which

should be entirely inserted into camera

housing during locking the dome cover to

maintain Waterproof condition.

When using the camera

without LED take off the rubber.

NOTE

5. Installation

1. Installation of Flush Mount

2. Installation of Surface Mount

PIPE

When you install the camera, please glue up the end of cable to

keep it stable in order to protect the camera from the humidity problems.

6.Connection

• DUAL(DC 12V/AC24V)

• DC 12V
